If you want one of these, they're available in my Tindie store

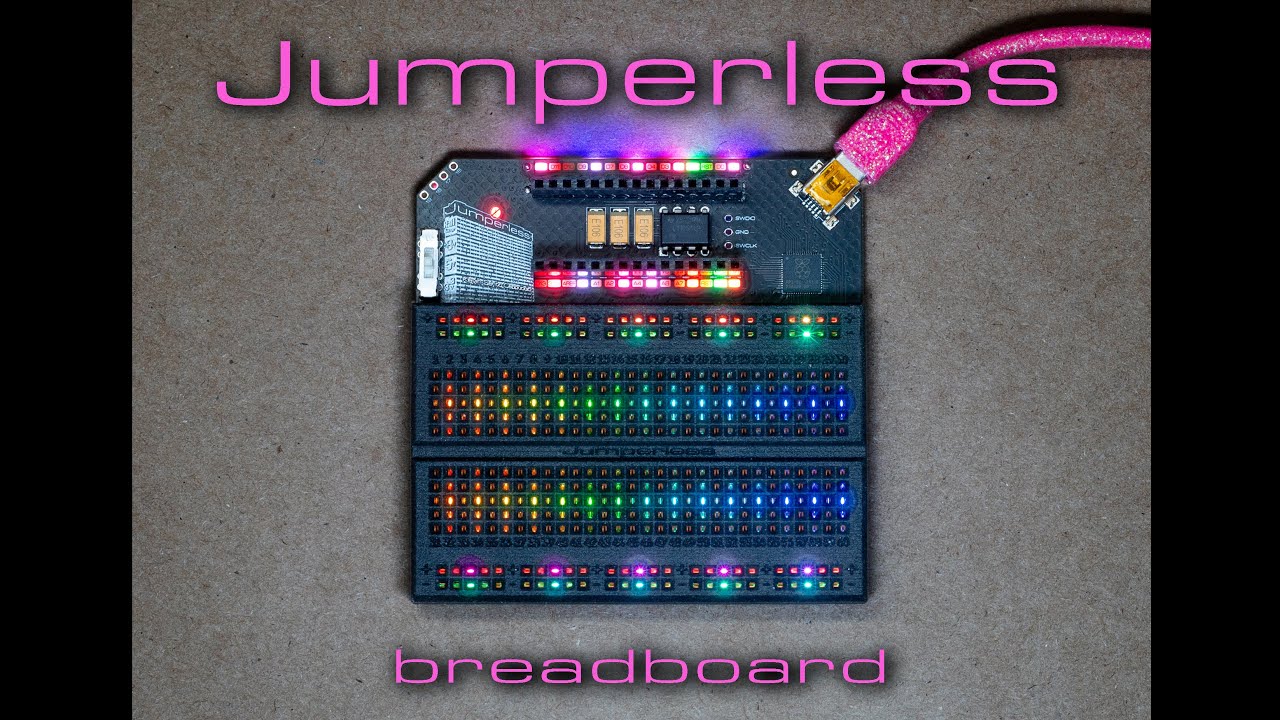

(You can click on this to watch the explainer video)
Using a bunch of analog crosspoint switches wired together into one bigger switch, this breadboard makes real, hardware connections between any points on the board or the Arduino Nano header at the top via software command, instead of needing to use jumper wires.
Try this Wokwi project if something isn't working: https://wokwi.com/projects/389569655762010113
Here's an example of me using this thing to connect some I2C pins from an Arduino to an OLED
JumperlessI2CExampleEnlonggened.mp4
Jumperless also has a ton of voltage/current sensing so the RGB LEDs underneath each row can show a ton of information about what's going on with your circuit. 2 buffered high-current DACs (one 0-5V and one ±8V), 4 buffered and level-shifted 12-bit ADCs (3 are 0-5V and 1 for ±8V), 2 INA219 current and voltage measurement ICs, and 4 GPIO to simulate digital or analog signals that can be routed to anywhere on the breadboard or the Arduino Nano header.
JumperlessLEDmatrixExample.mp4
Use it to probe the pins on an unknown IC (which is what I'm doing in the video above), or for some automated fuzzing, or to help guide you through converting a schematic to a real circuit, or do whatever the hell you want with it.
The connections are real and fully analog (-8V to +8V, up to around 1 MHz before signal quality starts to degrade) instead of cheating with some measure-then-simulate setup, although you can do that too if you want to simulate a memristor or to send jumpers over the internet.
IMG_3849.mov
If you want to read about how the code and stuff works, the README in JumperlessNano goes through how each part works in more detail.
Or check out the Hackaday.io page and the Hackaday Blog Writeup
And no, it's not an FPGA.
Here it is running a 555 circuit (note that this is a Rev 1 without the through-PCB LEDs)
IMG_3995.mov
Here are some fun bonus shots
https://github.com/Architeuthis-Flux/Jumperless/assets/20519442/b933e817-c6e4-4d97-9fc0-7b8d9e875ebb SchematicRevision3.pdf
https://github.com/Architeuthis-Flux/Jumperless/assets/20519442/d070d99d-b6b3-43e3-adee-4ca2d7358a9a
