Real time Varnish Cache metrics dashboard
JavaScript
Latest commit a272dfc Apr 29, 2013 Patricio Bruna Another idea
Permalink
Failed to load latest commit information.
css
img Blur screenshot Mar 27, 2013
js
.gitignore Readme update Mar 27, 2013
LICENSE Now is licensed Apr 17, 2013
README.md
TODO.md
index.html User can change refresh time Apr 21, 2013

README.md

Introduction

This is a simple realtime HTML Dashboard that works together with the new Varnish Agent 2 (https://github.com/varnish/vagent2).

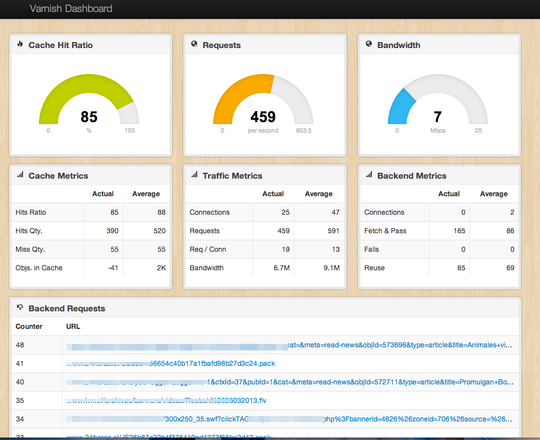

Screenshot

The previous image was taken from a live site using Varnish.

Important Note

The Backend Requests is a list of all the URL fetched from the backend. For this to work you need to add the following instruction to the vcl_recv routine:

sub vcl_recv {
  set req.http.X-Full-Uri = req.http.host + req.url;
....

How to use it

1. Install Varnish Agent 2

The agent must be installed in the same server running Varnish Cache. You can clone and compile the source code or install it using the following packages for Debian/Ubuntu and RHEL/CentOS: http://users.varnish-software.com/~kristian/agent/

I recommend that you read the docs on the GitHub repo and this post: http://kly.no/posts/2013_01_22_Varnish_Agent.html

You may have to create a file with username and password: /etc/varnish/agent_secret. Every line of this file is a user and a password with the following format:

username:password

2. Clone this Repo

For this guide we are going to assume that the Dashboard will be located at /var/www/html/Varnish-Agent-Dashboard. So lets create the directory and clone the repo:

mkdir -p /var/www/html
cd /var/www/html
git clone git://github.com/pbruna/Varnish-Agent-Dashboard.git

3. Run the Agent and use the Dashboard

Now you are ready to use the Dashboard, just run the Agent like the following example:

varnish-agent -H /var/www/html/Varnish-Agent-Dashboard

and visit http://VARNISH_IP:6085/html/
