MAGPagedScrollView

Now MAGPagedScrollView supports Swift2. If you want to use Swift 1.2, use tag 0.0.6. MAGPagedScrollView is collection of some scroll classes that orginise views and view controllers as horizontall scroll flow

• 100% Swift (are you still developing with Objective-C ?)
• reuse behavior as UITabelView (memory efficient)
• easy to use (2 minutes to implement basic app)
• support and bug fixing (we are using this component in our products)

Please send us link to your apps, and w ewill create app gallery.

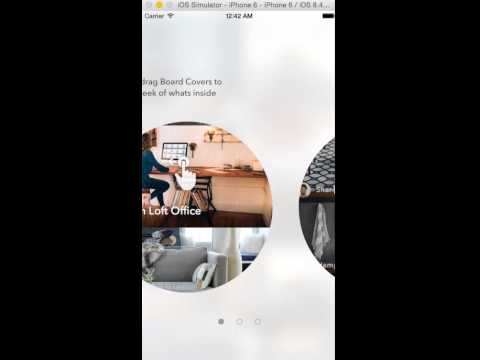

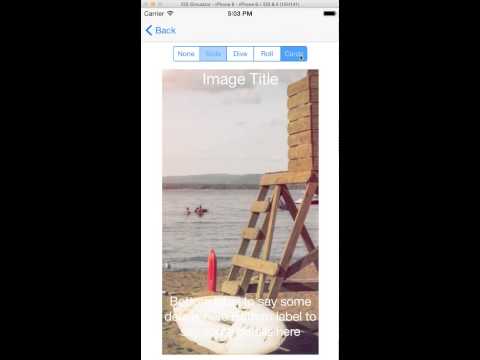

Here is video demo:

and real life example of onboarding screens:

Installation

add this line to Podfile:

    pod 'MAGPagedScrollView'

PagedScrollView

Subclass of UIScrollVeiw, that will orginise it's subviews as scrolled cards. And it's base class for other guys as well: PagedReusableScrollView and PagedParallaxScrollView.

the result looks like that:


to do it, just use this function:

    func addSubviews(aSubviews: [ViewProvider])

and add couple lines of code, here is example of code that demonstrate, how to do it:

    override func viewDidAppear(animated: Bool) {
        super.viewDidAppear(animated)

        scrollView.addSubviews([
            createView(0),
            createView(1),
            createView(2),
            createView(3)
        ])
    }


    func createView(color: Int) -> UIView {
        var view = UIView(frame: CGRectMake(0, 0, 100, 100))
        view.backgroundColor = UIColor.randomColor
        view.layer.cornerRadius = 10.0
        return view
    }

So the PagedScrollView operate with ViewProvider :

@objc protocol ViewProvider {
    var view: UIView! { get }
}

so ViewProvider is the class that can provide view. UIViewController is already could be used, providing it's own view. UIView itself is also a ViewProvider, providing itself.

Keep in mind, PagedScrollView don't keep reference to ViewProviders, so you have to handle ownership of this objects by yourself. But the views, that were provided by ViewProviders will be added as subview, so they will be reverenced by PagedScrollView

Transition

You can use 5 build in transform classes for views sliding

None


scrollView.transition = .None

Slide

scrollView.transition = .Slide

Dive

scrollView.transition = .Dive

Roll

scrollView.transition = .Roll

Cards

scrollView.transition = .Cards

PagedReusableScrollView

That class works a UITabelViewController, it reuse ViewProvider. So you have to implement PagedReusableScrollViewDataSource protocol. This class owns the ViewProvider objects and provide two functions for reuse:

    func dequeueReusableView(#tag:Int) -> ViewProvider?
    func dequeueReusableView(#viewClass:AnyClass) -> ViewProvider?

so ViewProvider could be reused by tag or class

PagedReusableScrollViewDataSource require that functions:

    func scrollView(scrollView: PagedReusableScrollView, viewIndex index: Int) -> ViewProvider
    func numberOfViews(forScrollView scrollView: PagedReusableScrollView) -> Int

so putting all together, the example implementation could be like that:

extension ViewController3: PagedReusableScrollViewDataSource {

    func scrollView(scrollView: PagedReusableScrollView, viewIndex index: Int) -> ViewProvider {
        var newView:SimpleCardViewController? = scrollView.dequeueReusableView(tag:  1 ) as? SimpleCardViewController
        if newView == nil {
            newView =  SimpleCardViewController()
        }
        newView?.imageName = "photo\(index%5).jpg"
        return newView!
    }

    func numberOfViews(forScrollView scrollView: PagedReusableScrollView) -> Int {
        return 10
    }

}

the result will be like that:

PagedParallaxScrollView

This view is populate to it's views about current parallax progress, from -100 to 100, 0 is central position. So you can adjust constraint, positions, colors etc regarding position.

So view of ViewProvider should confirm protocol:

@objc protocol PagedScrollViewParallaxView: class {
    func parallaxProgressChanged(progress:Int)
}

If you want use ViewController as ViewProvider, you can make that view as ParallaxViewProxy subclass. So ParallaxViewProxy redirect all parallax progress to it's parallaxController.

so ViewControllers's implementation could be like that:

extension ParralaxCardViewController: PagedScrollViewParallaxView {

    func parallaxProgressChanged(progress:Int) {
        self.imageView.bounds = CGRectMake(CGFloat(progress), 0, imageView.bounds.size.width, imageView.bounds.size.height)
        detailsCentralConstraint.constant = CGFloat(-progress*4)
        imageCentralConstraint.constant = CGFloat(-progress)
        titleTopConstraint.constant = CGFloat(abs(progress))
    }

}

and result of that:

Using ViewController as ViewProvider

So anyone could be ViewProvider, but if you are using UIViewController subclass as ViewProvider you are expecting to have all View Controller lifecycle works as expected and described in apple doc:

And expecting to get rotation callback for your child view controllers, for example handling it in iOS8+ :

func viewWillTransitionToSize(_ size: CGSize, withTransitionCoordinator coordinator: UIViewControllerTransitionCoordinator)

To implement it, regarding Aplle Doc, we have to implement some logic in our container view controller (example from Apple Doc):

- (void) displayContentController: (UIViewController*) content;
{
   [self addChildViewController:content];                 // 1
   content.view.frame = [self frameForContentController]; // 2
   [self.view addSubview:self.currentClientView];
   [content didMoveToParentViewController:self];          // 3
}

The issue is that PagesScrollView is not a view controller and could not be container. Moreover, the view don't have reference to it's view controller, so you have to do it by yourself. Fortunately, all you need is just inherit the ViewController, that owns PagedScrollView from PagedScrollViewContainerViewController :

class ViewController4: PagedScrollViewContainerViewController {
...

And it will implement optional functions to handle it. So all your child ViewControllers will behave as expected, getting all lifecysle messages like viewWillAppear and viewWillDisappear and rotation messages. You can check it in source code in ParralaxCardViewController:

    override func viewWillTransitionToSize(size: CGSize, withTransitionCoordinator coordinator: UIViewControllerTransitionCoordinator) {
        println("\(self) viewWillTransitionToSize: \(size)  with coordinator: \(coordinator)")
    }

Custom Transition

You can assign customTransition property to any transofrmation. The transformation is described by PagedScrollViewTransitionProperties struct:

struct PagedScrollViewTransitionProperties {
    var angleRatio:     CGFloat = 0.0
    var translation:    CGVector = CGVector(dx:0.0, dy:0.0)
    var rotation:       Rotation3D = Rotation3D()
}

struct Rotation3D {
    var x:CGFloat = 0.0
    var y:CGFloat = 0.0
    var z:CGFloat = 0.0
}

All build in transitions are PagedScrollViewTransitionProperties as well. So to create and apply custom property use that code:

scrollView.customGTransition = PagedScrollViewTransitionProperties(angleRatio: 0.5, translation: CGVector(dx:0.25,dy:0.0), rotation: Rotation3D(x:-1.0,y:0.0,z:0.0))
scrollView.transition = .Custom

Credits

I'd appreciate it to mention the use of this code somewhere if you use it in an app. On a website, in an about page, in the app itself, whatever. Or let me know by email or through github. It's nice to know where one's code is used.

Implemented by MadAppGang.com, we do awesome iOS apps.
