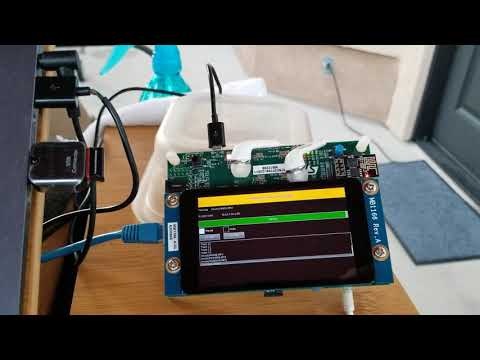

Watch demo

Brief Description

Struts4Embedded (S4E) is a MVC framework designed for embedded systems; it mimics Java's Struts 1.0 that was popular 18+ years ago. Basically it's a pattern that decouples the model (data structure) from your view (UI); and all are decoupled from the controller (business logic), which often results in projects that are faster to market, easy to manage, maintain & scale. For now, S4E is coupled to ChibiOS RTOS only; therefore S4E is independent of any 3rd party libraries (i.e LWIP, MQTT, FATFS,...etc).

Proof of Concepts (Tested Use Cases)

In this release, three IOT use cases were provided as a proof of concepts to help developers get started:-

  1. The 1st use case reads POT values and sends them as JSON messages (via MQTT broker) to a Node-Red instance where the data is displayed on the UI Dashboard. Once messages reaches Node-Red, they could be rerouted to AWS IOT, or persisted to data stores (i.e. ElasticSearch, DynamoDB, & SQLLite3 were demonstrated). Commands to the embedded application could be sent from UI Dashboard (or AWS IOT) via JSON messages routed via MQTT broker.
  2. the 2nd use case demonstrates controlling and monitoring the state of a MP3 Player from a Node-Red's UI Dashboard; and if ESP8266 (WiFi Module) is attached to STM32F769i, it could be controlled as well via RESTful Web Service (web server) hosted on ESP8266. Also a GUI was built to control the player using uGFX library (based on V2.7 with slight modification) with ST32F746 & STM32F769i boards. Click here to view a demo.
  3. the 3rd use case demonstrates reading MPU6050 accelerometer & gyro values and plotting them onto a Node-Red UI Dashboard.

It should be noted; that all three use case:

  • were demonstrated using FATFS (w/ SDIO and SPI), ADC; GPT, 5-Button JoyStick, SSD1306 OLED (via I2C), I2S, SAI in a reusable helper modules; that you can include/exclude as you see fit. See ./source folder for details
  • Also demonstrated, how to send S4E wireless control signals (via FlySky-i6s RC , eByte Lora), or via IR Receiver.
  • easily any of the use cases could be modified/extended to fit other embedded projects.

Architectural Overview

MP3Player with TM32F7 Architectural Overview

Click here for High Resolution Diagram in PDF

This architectural diagram for the MP3 Player use case with STM32F769i board. Please pay attention to the sequenced steps; and from there you should be able to trace the system & have a good overview.

Struts4Embedded framework is based on actions & events that are statically predefined for each use case (or project). Those actions & events could be triggered/invoked by sending events to a queue (mailbox), and worker thread(s) consume and execute those predefined actions. This is very similar to the command pattern where the senders and the consumers are decoupled. For more details, pay attention in ./source/ActionEvents folder per each project use case. The core of the architecture is very ease to follow in this file ./source/Struts4Embedded/Threads/ActionEventsThd.c which is under 250 lines of code

Supported Boards

The framework was tested using the following development boards: STM32F407 Discovery, STM32F407VET6 Blackboard, Seeed Arch Max 1.1, ST32F746 & STM32F769i discovery boards, STM32F446re-Nucleo, STM32F429zi-Nucleo, & STM32F746zg-Nucleo.

Projects Setup

  • If you don't already have ChibiOS 20.3.x, please download it first. From now on, where you have expanded it, it will be referred to by ChibiOS

  • Clone each use case's repository from github into you ChibiOS/demo/STM32 folder, and then import the make projects into ChibiStudio like any other project.

  • LWIP zip file is expected to be expanded in ChibiOS/ext folder; same goes for FATFS.

  • If you decide to use uGFX, then please clone the modified version of uGFX v2.7 in ChibiOS/ext folder; this version has been modified slightly. Note that recent versions were very hard to integrate with ChibiOS.

  • In ChiboOS/ root folder; please clone ChibiOS-Contrib; S4E is dependent on it.

  • Per each development boards, each has its own configuration & make files. A configuration file per board is located into ./conf/BoardName/Struts4EmbeddedConf.h where you'll find all specific configuration parameters per board (inclusive of all used pins & drivers). And make files are all grouped in /.make folder. Therefore this is a great starting point to understand project dependencies.

  • Static IP 10.42.0.10 was chosen running on network 10.42.0.X which you can easily change in ./conf/lwipopts.h

  • With boards with Arduino headers, I found that using Waveshare's Accessory Shield to be very helpful. It has SSS1306 LCD, POT, buzzer, RGB light, RTC clock, 5 button joystick, temperature & accelerometer sensors. I suggest buying one (under $18); it made my life very easy.

  • For development boards without ethernet modules, I used LAN8720; for some reason I wasn't able to make ChibiOS work with DP83848!

  • Make sure that you test Node-Red UI Dashboard as the last step. Therefore,  first make sure that your MQTT broker is receiving and sending messages to your application. It should be noted that I tested with Node-Red V1.0.4, since then recent versions were released

  • Mosquito MQTT Broker was used as the primary MQTT broker; other online MQTT brokers (i.e. Dashboard Broker) were tested and they worked. Please note the data will be published on these topics. Be free to customize & change as you see fit.

  • With regards to Node-Red here are my notes

    • Flows can be found in ./node-red folder.
    • this current deployment is dependent on the following node modules: dashboard, contrib-fs, elasticsearch7, sqlite3, rbe, tail & binance. Therefore please install them before importing the flows. as expected. Please inspect ./conf/lwipopts.h for MQTT broker's parameters.
  • See folder ./source/ESP8266WiFiModule for the Arduino sketch that runs the Web Service (web Server) on ESP8266. Please change to your WiFi's SSID & password at the top of the sketch.

  • If you decide to use FlySky-i6s to send control signals via RC, please note the following:

    • configure RC output to be PPM & i-Bus in the system config menu & make sure it is already bounded to the receiver.
    • All you need is to wire 3 pins: ground, 5V, and PPM.
    • Note that current configuration by default ignores every other 9 frames, which could be adjusted by changing MAX_FRAMES_TO_COLLECT. This is needed because PPM frames are coming fast; & this is needed to reach steady state quickly else flickering states will be reported (especially for buttons).
    • Also note that if use SD-Card; you may have to power the receiver externally and not directly powered from the board's pins (unless the board is powered externally and not from USB).
  • If you decide to use eByte Lora to send control signals via eByte Lora Modules, please note the following:

    • The library is designed to send a Lora Frame, that includes a payload.
    • the payload could be overridden in the configuration file. By the default the payload sends the state of 8 buttons plus the value of a single POT. This easily could be extended or overridden in the config file.
    • by default the maximum payload size is limited to 40 bytes. Easily you can override this in the config file. Note that eByte limits the total frame size to 512.
    • Note that the Fixed Transmission feature has been implemented, where the transmitter can specify receivers address & channel per frame.
    • On frame reception, the library sends acknowledgement message by default.
  • If you decide to use IR Receiver to send control signals via 1838 Modules, please note the following:

    • The library is designed to receive frames from this type of remote. If you decide to use other type of remote, then you have decipher/decode its signals as described here.
    • The library is designed to be re-usable with minimally dependencies on S4E. It is dependent on these parameters in the config file.
    • So far it has been tested with STM32F769i board; I am almost sure it works with all others.
    • Please override method handleIREvent() as you see here to handle incoming event. Don't change the original since it is designed to be override the /weak method.
  • The MP3 Player expects the files to be played to be in folder /music; which you can override in main.c. The audio driver could be found in ./source/AudioDriver.

  • If you test with either STM32F407VET6 Blackboard, Seeed Arch Max 1.1 or STM32F407 Discovery boards, then use the relevant board files provided here in ./make/make/backup/ folder; it contain the changed board files that were used. it should be noted that Seeed Arch Max 1.1 board requires to copy the ch.elf or ch.bin file directly to the board. The normal deployment/flashing process doesn't work. On the other hand, the debugger worked.

  • Every project was compiled & tested with C++ & STL Templates as well. However, please note the size of C++ binaries shall increase by at least 300k, and your RAM usage increases as well. The make files, used different link files, and if you get a link error, you can copy them from ./make/make/backup/. I recommend copying all ./Struts4Embedded/make/*.ld files to ChibiOS/os/common/startup/ARMCMx/compilers/GCC/ld

  • all projects have their ChibiOS debug options turned on; same goes for compilation. Therefore the default make files are not geared for the release versions.

Please note that above setup instructions are the defaults defined in make, header and configuration files. They are not written in stone; therefore if you don't like them please be free to change.

Licencing

Basically Apache 2.0 has been adopted, therefore please be free to use as you see fit and I shall welcome your critical feedback. I hope this framework will help others in speeding up the development process using a tested & well designed framework. Therefore please be free to use and upgrade as you see fit.

About Me

Finally, I would like to tell you that prior to 5 to 6 months ago, I had limited exposure to embedded systems or ChibiOS (not even Adruino). However, it was easy for me to pick since I come from a strong architectural background in the Java domain. Frankly, the last time I coded in C/C++ was 20+ years ago! Therefore I'm new to this field, however, ChibiOS really made my job a lot easier. It is a well designed RTOS, and if it wasn't available I was about to do something very similar. The honest truth, it is a well designed, intuitive, very easy to use, well supported & documented, & very easy to reverse engineer.
