KAFKA-12396 added a nullcheck before trying to retrieve a key #10548

Merged
merged 10 commits into from Apr 30, 2021
Merged

KAFKA-12396 added a nullcheck before trying to retrieve a key #10548

Show file tree
Hide file tree
Changes from 6 commits
Commits
Show all changes
10 commits
Select commit Hold shift + click to select a range
26395a5
KAFKA-12396 added a nullcheck before trying to retrieve a key
Apr 16, 2021
b06e7ae
KAFKA-12396 elevated nullcheck to store types and provided some unit …
Apr 16, 2021
8091bf4
KAFKA-12396 removed unnecessary checks from MeteredKeyValueStore and …
Apr 21, 2021
c6703a0
KAFKA-12396 got rid of the null check in RocksDBStore
Apr 21, 2021
983cc95
KAFKA-12396 reverted RockDBStore to it's original state
Apr 22, 2021
7142aa2
KAFKA-12396 checkstyle errors fixed
Apr 22, 2021
c9aef82
KAFKA-12396 new checks\tests for MeteredSessionStoreTest, small refac…
Apr 22, 2021
5e61459
KAFKA-12396 cosmetic changes in tests signatures
Apr 22, 2021
3d6bc9b
KAFKA-12396 removed unused import
Apr 26, 2021
12038c0
KAFKA-12396 removed obsolete test
Apr 27, 2021
File filter

Filter by extension

Filter by extension
Conversations
Failed to load comments.
Jump to
Jump to file
Failed to load files.
Diff view
Diff view
19 changes: 18 additions & 1 deletion streams/src/main/java/org/apache/kafka/streams/state/internals/MeteredKeyValueStore.java
View file
Open in desktop
Expand Up @@ -38,6 +38,8 @@

import java.util.ArrayList;
import java.util.List;
import java.util.Objects;
import java.util.stream.Collectors;

import static org.apache.kafka.streams.kstream.internals.WrappingNullableUtils.prepareKeySerde;
import static org.apache.kafka.streams.processor.internals.metrics.StreamsMetricsImpl.maybeMeasureLatency;
Expand Down Expand Up @@ -185,6 +187,7 @@ public boolean setFlushListener(final CacheFlushListener<K, V> listener,

@Override
public V get(final K key) {
Objects.requireNonNull(key, "key cannot be null");
try {
return maybeMeasureLatency(() -> outerValue(wrapped().get(keyBytes(key))), time, getSensor);
} catch (final ProcessorStateException e) {
Expand All @@ -196,6 +199,7 @@ public V get(final K key) {
@Override
public void put(final K key,
final V value) {
Objects.requireNonNull(key, "key cannot be null");
try {
maybeMeasureLatency(() -> wrapped().put(keyBytes(key), serdes.rawValue(value)), time, putSensor);
maybeRecordE2ELatency();
Expand All @@ -208,6 +212,7 @@ public void put(final K key,
@Override
public V putIfAbsent(final K key,
final V value) {
Objects.requireNonNull(key, "key cannot be null");
final V currentValue = maybeMeasureLatency(
() -> outerValue(wrapped().putIfAbsent(keyBytes(key), serdes.rawValue(value))),
time,
Expand All @@ -219,11 +224,19 @@ public V putIfAbsent(final K key,

@Override
public void putAll(final List<KeyValue<K, V>> entries) {
final List<KeyValue<K, V>> possiblyNullKeys = entries
Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I think we could simplify this to a one liner?

entries.forEach(entry -> Objects.requireNonNull(entry.key, "key cannot be null"));

.stream()
.filter(entry -> entry.key == null)
.collect(Collectors.toList());
if (!possiblyNullKeys.isEmpty()) {
Objects.requireNonNull(possiblyNullKeys.get(0).key, "key cannot be null");
}
maybeMeasureLatency(() -> wrapped().putAll(innerEntries(entries)), time, putAllSensor);
}

@Override
public V delete(final K key) {
Objects.requireNonNull(key, "key cannot be null");
try {
return maybeMeasureLatency(() -> outerValue(wrapped().delete(keyBytes(key))), time, deleteSensor);
} catch (final ProcessorStateException e) {
Expand All @@ -234,13 +247,15 @@ public V delete(final K key) {

@Override
public <PS extends Serializer<P>, P> KeyValueIterator<K, V> prefixScan(final P prefix, final PS prefixKeySerializer) {

Objects.requireNonNull(prefix, "key cannot be null");
Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

As mentioned by @cadonna the wrapped stores, also check prefixKeySerializer for null -- thus might be good to move both check here.

I think we can also remove both checks in RocksDBStore and InMemoryKeyValueStore -- they seems to be redundant now?

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

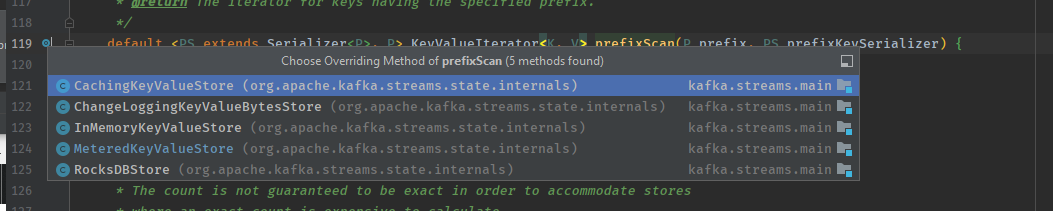

I think we can also remove both checks in RocksDBStore and InMemoryKeyValueStore -- they seem to be redundant now?

they are both different implementations, aren't they?
I don't understand how they will be checked if we only leave it in MeteredKeyValueStore.

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I wrote a quick test to see if it still throws NPE in InMemoryKeyValueStore without the check - it did, I am confused, but they are, indeed, redundant.
I'll leave the tests in both RocksDBStoreTest and InMemoryKeyValueStore bc why not.

Copy link
Member

@mjsax mjsax Apr 25, 2021 •
edited

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

KafkaStreams runtime always "wraps" any store with a corresponding MeteredXxxStore (cf https://github.com/apache/kafka/blob/trunk/streams/src/main/java/org/apache/kafka/streams/state/internals/KeyValueStoreBuilder.java#L42-L49) -- those MeteredXxxStores do the transaction from objects to bytes (ie they use the serdes) and also track state store metrics. (Note that stores provided to the runtime always have type <Bytes, byte[]> while they are exposed to Processors as <K,V> types.)

Thus, when you call context.stateStore(...) you always get a MeteredXxxStore object -- of course, those details are hidden behind the interface type.

This architecture allows us to unify code and separate concerns. In fact, it also allows us to add/remove more "layers": we can insert a "caching layer" (cf. https://kafka.apache.org/28/documentation/streams/developer-guide/memory-mgmt.html) and a "change logging layer" (both are inserted by default).

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Oooooh, I see.

return new MeteredKeyValueIterator(wrapped().prefixScan(prefix, prefixKeySerializer), prefixScanSensor);
}

@Override
public KeyValueIterator<K, V> range(final K from,
final K to) {
Objects.requireNonNull(from, "keyFrom cannot be null");
Objects.requireNonNull(to, "keyTo cannot be null");
return new MeteredKeyValueIterator(
wrapped().range(Bytes.wrap(serdes.rawKey(from)), Bytes.wrap(serdes.rawKey(to))),
rangeSensor
Expand All @@ -250,6 +265,8 @@ public KeyValueIterator<K, V> range(final K from,
@Override
public KeyValueIterator<K, V> reverseRange(final K from,
final K to) {
Objects.requireNonNull(from, "keyFrom cannot be null");
Objects.requireNonNull(to, "keyTo cannot be null");
return new MeteredKeyValueIterator(
wrapped().reverseRange(Bytes.wrap(serdes.rawKey(from)), Bytes.wrap(serdes.rawKey(to))),
rangeSensor
Expand Down
4 changes: 4 additions & 0 deletions streams/src/main/java/org/apache/kafka/streams/state/internals/MeteredSessionStore.java
View file
Open in desktop
Expand Up @@ -159,6 +159,8 @@ public boolean setFlushListener(final CacheFlushListener<Windowed<K>, V> listene
public void put(final Windowed<K> sessionKey,
final V aggregate) {
Objects.requireNonNull(sessionKey, "sessionKey can't be null");
Objects.requireNonNull(sessionKey.key(), "sessionKey.key() can't be null");

try {
maybeMeasureLatency(
() -> {
Expand All @@ -178,6 +180,8 @@ public void put(final Windowed<K> sessionKey,
@Override
public void remove(final Windowed<K> sessionKey) {
Objects.requireNonNull(sessionKey, "sessionKey can't be null");
Objects.requireNonNull(sessionKey.key(), "sessionKey.key() can't be null");

try {
maybeMeasureLatency(
() -> {
Expand Down
10 changes: 10 additions & 0 deletions streams/src/main/java/org/apache/kafka/streams/state/internals/MeteredWindowStore.java
View file
Open in desktop
Expand Up @@ -36,6 +36,8 @@
import org.apache.kafka.streams.state.WindowStoreIterator;
import org.apache.kafka.streams.state.internals.metrics.StateStoreMetrics;

import java.util.Objects;

import static org.apache.kafka.streams.kstream.internals.WrappingNullableUtils.prepareKeySerde;
import static org.apache.kafka.streams.processor.internals.metrics.StreamsMetricsImpl.maybeMeasureLatency;

Expand Down Expand Up @@ -161,6 +163,7 @@ public boolean setFlushListener(final CacheFlushListener<Windowed<K>, V> listene
public void put(final K key,
final V value,
final long windowStartTimestamp) {
Objects.requireNonNull(key, "key cannot be null");
try {
maybeMeasureLatency(
() -> wrapped().put(keyBytes(key), serdes.rawValue(value), windowStartTimestamp),
Expand All @@ -177,6 +180,7 @@ public void put(final K key,
@Override
public V fetch(final K key,
final long timestamp) {
Objects.requireNonNull(key, "key cannot be null");
return maybeMeasureLatency(
() -> {
final byte[] result = wrapped().fetch(keyBytes(key), timestamp);
Expand All @@ -195,6 +199,7 @@ public V fetch(final K key,
public WindowStoreIterator<V> fetch(final K key,
final long timeFrom,
final long timeTo) {
Objects.requireNonNull(key, "key cannot be null");
return new MeteredWindowStoreIterator<>(
wrapped().fetch(keyBytes(key), timeFrom, timeTo),
fetchSensor,
Expand All @@ -208,6 +213,7 @@ public WindowStoreIterator<V> fetch(final K key,
public WindowStoreIterator<V> backwardFetch(final K key,
final long timeFrom,
final long timeTo) {
Objects.requireNonNull(key, "key cannot be null");
return new MeteredWindowStoreIterator<>(
wrapped().backwardFetch(keyBytes(key), timeFrom, timeTo),
fetchSensor,
Expand All @@ -223,6 +229,8 @@ public KeyValueIterator<Windowed<K>, V> fetch(final K keyFrom,
final K keyTo,
final long timeFrom,
final long timeTo) {
Objects.requireNonNull(keyFrom, "keyFrom cannot be null");
Objects.requireNonNull(keyTo, "keyTo cannot be null");
return new MeteredWindowedKeyValueIterator<>(
wrapped().fetch(keyBytes(keyFrom), keyBytes(keyTo), timeFrom, timeTo),
fetchSensor,
Expand All @@ -236,6 +244,8 @@ public KeyValueIterator<Windowed<K>, V> backwardFetch(final K keyFrom,
final K keyTo,
final long timeFrom,
final long timeTo) {
Objects.requireNonNull(keyFrom, "keyFrom cannot be null");
Objects.requireNonNull(keyTo, "keyTo cannot be null");
return new MeteredWindowedKeyValueIterator<>(
wrapped().backwardFetch(keyBytes(keyFrom), keyBytes(keyTo), timeFrom, timeTo),
fetchSensor,
Expand Down
51 changes: 51 additions & 0 deletions streams/src/test/java/org/apache/kafka/streams/state/internals/MeteredKeyValueStoreTest.java
View file
Open in desktop
Expand Up @@ -435,6 +435,57 @@ public void shouldRemoveMetricsEvenIfWrappedStoreThrowsOnClose() {
verify(inner);
}

@Test
public void shouldThrowNullPointerOnGetIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> metered.get(null));
}

@Test
public void shouldThrowNullPointerOnPutIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> metered.put(null, VALUE));
}

@Test
public void shouldThrowNullPointerOnPutIfAbsentIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> metered.putIfAbsent(null, VALUE));
}

@Test
public void shouldThrowNullPointerOnDeleteIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> metered.delete(null));
}

@Test
public void shouldThrowNullPointerOnPutAllIfAnyKeyIsNull() {
assertThrows(NullPointerException.class, () -> metered.putAll(Collections.singletonList(KeyValue.pair(null, VALUE))));
}

@Test
public void shouldThrowNullPointerOnPrefixScanIfPrefixIsNull() {
final StringSerializer stringSerializer = new StringSerializer();
assertThrows(NullPointerException.class, () -> metered.prefixScan(null, stringSerializer));
}

@Test
public void shouldThrowNullPointerOnRangeIfFromIsNull() {
assertThrows(NullPointerException.class, () -> metered.range(null, "to"));
}

@Test
public void shouldThrowNullPointerOnRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> metered.range("from", null));
}

@Test
public void shouldThrowNullPointerOnReverseRangeIfFromIsNull() {
assertThrows(NullPointerException.class, () -> metered.reverseRange(null, "to"));
}

@Test
public void shouldThrowNullPointerOnReverseRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> metered.reverseRange("from", null));
}

@Test
public void shouldGetRecordsWithPrefixKey() {
final StringSerializer stringSerializer = new StringSerializer();
Expand Down
45 changes: 45 additions & 0 deletions streams/src/test/java/org/apache/kafka/streams/state/internals/MeteredSessionStoreTest.java
View file
Open in desktop
Expand Up @@ -472,11 +472,26 @@ public void shouldThrowNullPointerOnRemoveIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.remove(null));
}

@Test
public void shouldThrowNullPointerOnPutIfWrappedKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.put(new Windowed<>(null, new SessionWindow(0, 0)), "a"));
Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This test remind me, that the SessionWindow what is wrapped should not be null either.

}

@Test
public void shouldThrowNullPointerOnRemoveIfWrappedKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.remove(new Windowed<>(null, new SessionWindow(0, 0))));
}

@Test
public void shouldThrowNullPointerOnFetchIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.fetch(null));
}

@Test
public void shouldThrowNullPointerOnFetchSessionIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.fetchSession(null, 0, Long.MAX_VALUE));
}

@Test
public void shouldThrowNullPointerOnFetchRangeIfFromIsNull() {
assertThrows(NullPointerException.class, () -> store.fetch(null, "to"));
Expand All @@ -487,6 +502,21 @@ public void shouldThrowNullPointerOnFetchRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> store.fetch("from", null));
}

@Test
public void shouldThrowNullPointerOnBackwardFetchIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFetch(null));
}

@Test
public void shouldThrowNullPointerOnBackwardFetchIfFromIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFetch(null, "to"));
}

@Test
public void shouldThrowNullPointerOnBackwardFetchIfToIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFetch("from", null));
}

@Test
public void shouldThrowNullPointerOnFindSessionsIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.findSessions(null, 0, 0));
Expand All @@ -502,6 +532,21 @@ public void shouldThrowNullPointerOnFindSessionsRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> store.findSessions("a", null, 0, 0));
}

@Test
public void shouldThrowNullPointerOnBackwardFindSessionsIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFindSessions(null, 0, 0));
}

@Test
public void shouldThrowNullPointerOnBackwardFindSessionsRangeIfFromIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFindSessions(null, "a", 0, 0));
}

@Test
public void shouldThrowNullPointerOnBackwardFindSessionsRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFindSessions("a", null, 0, 0));
}

private interface CachedSessionStore extends SessionStore<Bytes, byte[]>, CachedStateStore<byte[], byte[]> { }

@SuppressWarnings("unchecked")
Expand Down
36 changes: 36 additions & 0 deletions streams/src/test/java/org/apache/kafka/streams/state/internals/MeteredWindowStoreTest.java
View file
Open in desktop
Expand Up @@ -468,6 +468,42 @@ public void shouldRemoveMetricsEvenIfWrappedStoreThrowsOnClose() {
verify(innerStoreMock);
}

@Test
public void shouldThrowNullPointerOnPutIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.put(null, "a", 1L));
}

@Test
public void shouldThrowNullPointerOnFetchIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.fetch(null, 0L, 1L));
}

@Test
public void shouldThrowNullPointerOnBackwardFetchIfKeyIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFetch(null, 0L, 1L));
}

@Test
public void shouldThrowNullPointerOnFetchRangeIfFromIsNull() {
assertThrows(NullPointerException.class, () -> store.fetch(null, "to", 0L, 1L));
}

@Test
public void shouldThrowNullPointerOnFetchRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> store.fetch("from", null, 0L, 1L));
}


@Test
public void shouldThrowNullPointerOnbackwardFetchRangeIfFromIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFetch(null, "to", 0L, 1L));
}

@Test
public void shouldThrowNullPointerOnbackwardFetchRangeIfToIsNull() {
assertThrows(NullPointerException.class, () -> store.backwardFetch("from", null, 0L, 1L));
}

private List<MetricName> storeMetrics() {
return metrics.metrics()
.keySet()
Expand Down
