mgr/dashboard: display helpfull message when the iframe-embedded Grafana dashboard failed to load

[nSedrickm]

This commit checks if there is an error while loading a grafana panel and informs the user

Fixes: https://tracker.ceph.com/issues/54206
Signed-off-by: Ngwa Sedrick Meh nsedrick101@gmail.com

Checklist

• Tracker (select at least one)
  • References tracker ticket
  • Very recent bug; references commit where it was introduced
  • New feature (ticket optional)
  • Doc update (no ticket needed)
  • Code cleanup (no ticket needed)
• Component impact
  • Affects Dashboard, opened tracker ticket
  • Affects Orchestrator, opened tracker ticket
  • No impact that needs to be tracked
• Documentation (select at least one)
  • Updates relevant documentation
  • No doc update is appropriate
• Tests (select at least one)
  • Includes unit test(s)
  • Includes integration test(s)
  • Includes bug reproducer
  • No tests

Show available Jenkins commands

• jenkins retest this please
• jenkins test classic perf
• jenkins test crimson perf
• jenkins test signed
• jenkins test make check
• jenkins test make check arm64
• jenkins test submodules
• jenkins test dashboard
• jenkins test dashboard cephadm
• jenkins test api
• jenkins test docs
• jenkins render docs
• jenkins test ceph-volume all
• jenkins test ceph-volume tox

[avanthakkar]

@nSedrickm Can you add screenshot for the message shown and also unit-test for checking 500 error msg? Thanks!

[nSedrickm]

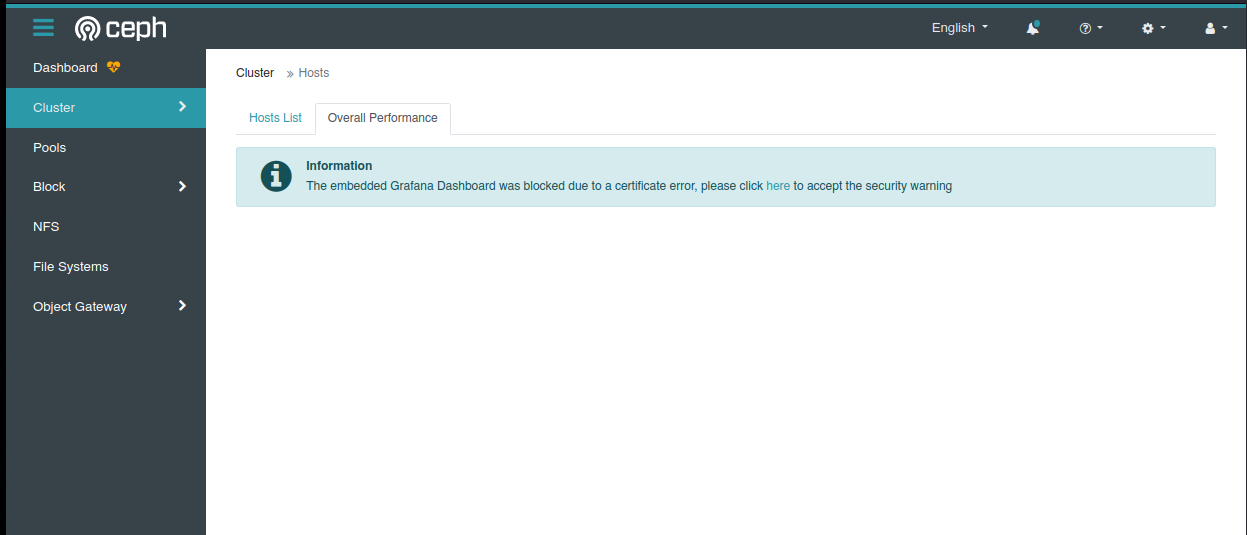

Hello @avanthakkar here's a screenshot

The test is done in the grafana components getFrame method

[nSedrickm]

jenkins retest this please

[epuertat]

@nSedrickm have you tested if the error warning badge disappears when the user accepts the invalid certificate? At least in my case it didn't work and the reason is that what the validateGrafanaDashboardUrl() service does is launching a connection to Grafana... from the Dashboard back-end:

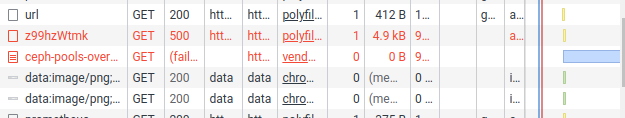

There you see 2 simultaneous failures: the first one is a 500 coming form the Dashboard back-end when trying to access Grafana from the backend, and the second one is from the front-end, when the browser tries to embed Grafana inside the iframe.

That's basically because you accept the Grafana self-signed certificate in your browser, but the Dashboard back-end doesn't know anything about browsers. It uses the python-requests package for the HTTP connections, and in fact you'll see this traceback in the ceph-mgr logs:

Traceback (most recent call last):
...
  File "/ceph/src/pybind/mgr/dashboard/controllers/grafana.py", line 39, in validation
    response = grafana.url_validation(method, url)
  File "/ceph/src/pybind/mgr/dashboard/grafana.py", line 23, in url_validation
    verify=Settings.GRAFANA_API_SSL_VERIFY)
  File "/usr/lib/python3.6/site-packages/requests/api.py", line 60, in request
    return session.request(method=method, url=url, **kwargs)
  File "/usr/lib/python3.6/site-packages/requests/sessions.py", line 533, in request
    resp = self.send(prep, **send_kwargs)
  File "/usr/lib/python3.6/site-packages/requests/sessions.py", line 646, in send
    r = adapter.send(request, **kwargs)
  File "/usr/lib/python3.6/site-packages/requests/adapters.py", line 514, in send
    raise SSLError(e, request=request)
requests.exceptions.SSLError: HTTPSConnectionPool(host='172.20.0.6', port=3000): Max retries exceeded with url: /api/dashboards/uid/z99hzWtmk (Caused by SSLError(SSLError(1, '[SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed (_ssl.c:897)'),))

Therefore you have to modify that part of the back-end code to launch a request(..., verify=False). In fact, that part of the code is already fixed, and by setting ceph dashboard set-grafana-api-ssl-verify false will do exactly this.

So the problem is still there! Lesson learnt: you cannot rely on the back-end for this. You have to do your magic with just the front-end.

Let's explore the alternatives:

• I tested the onload and onerror and they don't seem to work.

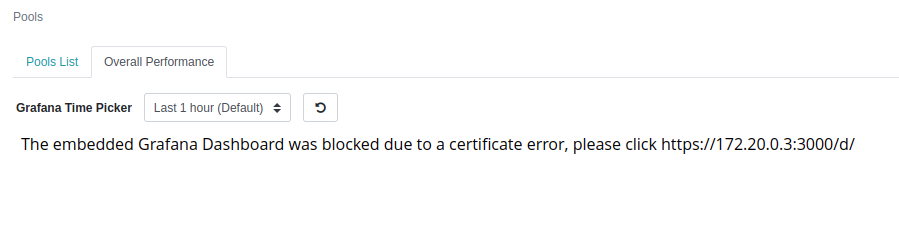

• An srcdoc="The embedded Grafana Dashboard was blocked due to a certificate error, please click {{baseUrl}}" field works (it's not as fancy as the banner you created, but still works):

• Exploring existing Angular packages that do iframe management for you?

[nSedrickm]

@epuertat thanks for the review. I noticed the backend still throws even if the user has accepted the certificate but wasn't sure if it was ok to edit the backend code. I will make changes focusing on the front-end only

[nSedrickm]

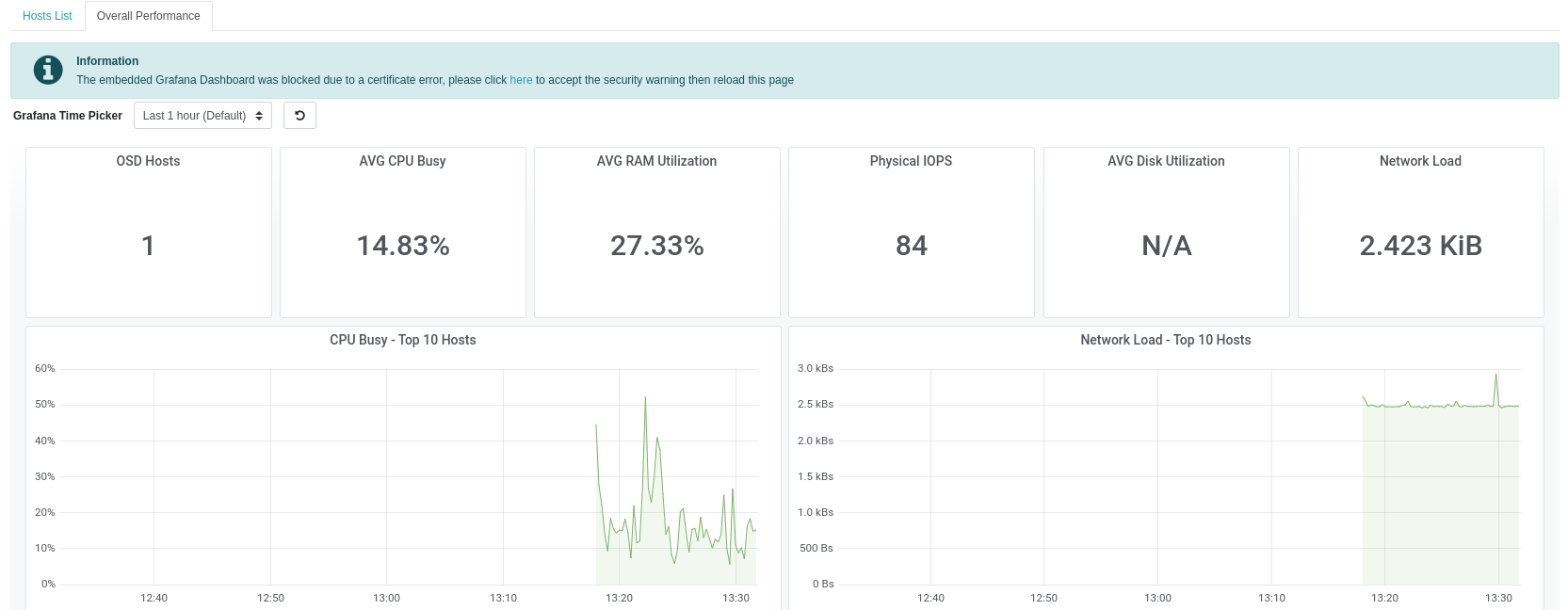

@epuertat warning badge now disappears after user accepts certificate and reloads page. I found the onload event fires when the iframe successfully loads even with the server exception which helped. I tried using the srcdoc attribute but the message just replaced the dashboard after the user accepts the certificate

[nizamial09]

Sorry for the late review here @nSedrickm

When we show the new error information, can we hide the Grafana Timepicker and the iframe thing so that only the error is there and user don't have to worry about the blank frame below?

Also, once we accept the privacy concern we don't need to show the error again. Right now, even if we accept the privacy the message appears. So could you hide it when the user accepts that privacy message?

[nizamial09]

I just noticed that its working good in firefox but when you try with chrome something is getting messed up. I am not sure if its a local issue of mine so an additional local testing would be good here. @ceph/dashboard

[nSedrickm]

Hi @nizamial09, thanks for the review. I will test some more with chrome

[epuertat]

@nSedrickm this is still the old approach, right? Can you plz update the PR with the front-end only check? Thanks!

[nSedrickm]

Hi! @epuertat, yes, this is the old approach. I only made changes in the grafana html and ts file

[github-actions]

This pull request can no longer be automatically merged: a rebase is needed and changes have to be manually resolved

[nSedrickm]

Screenshots taken from chrome

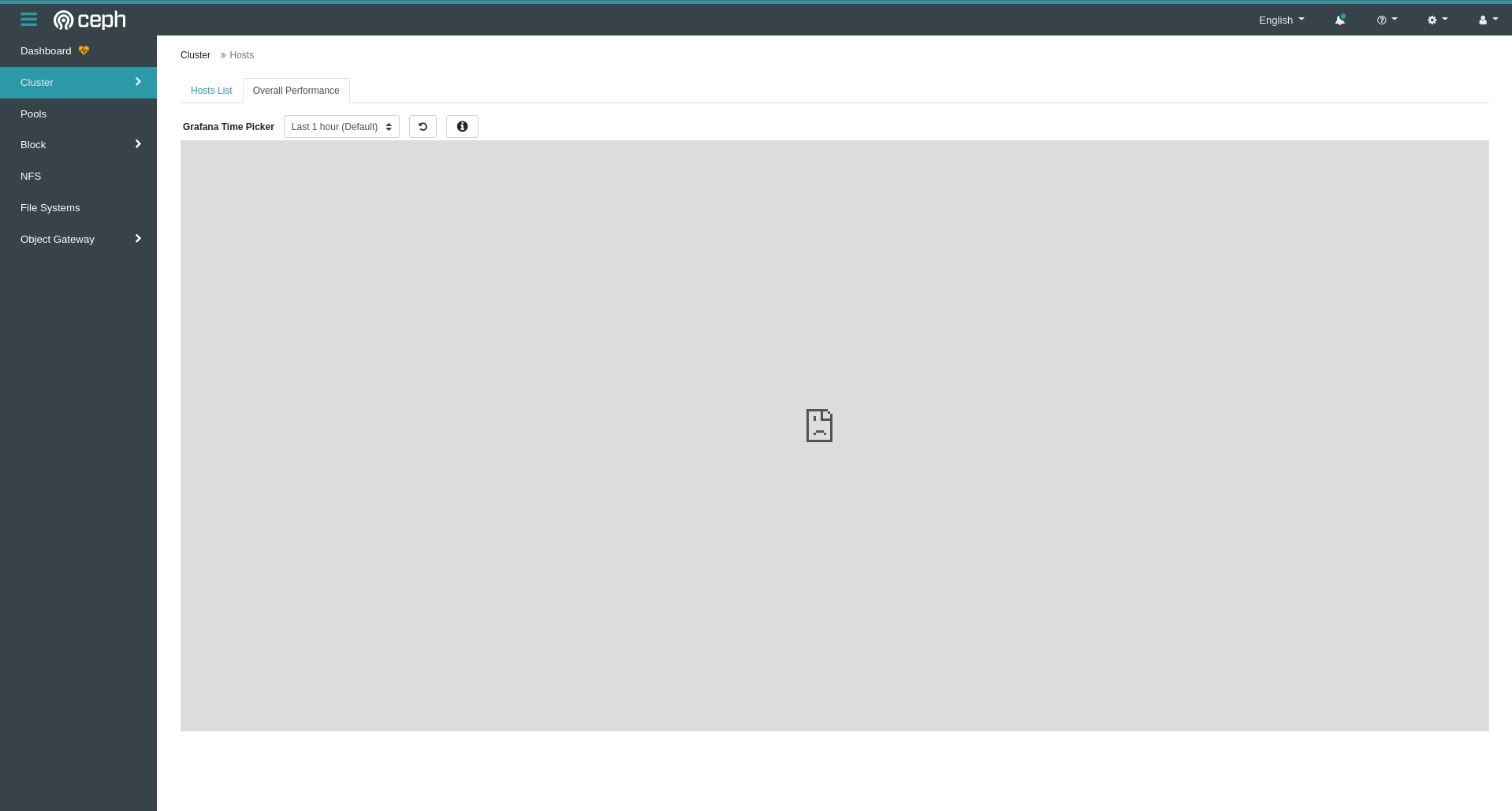

Alert hidden

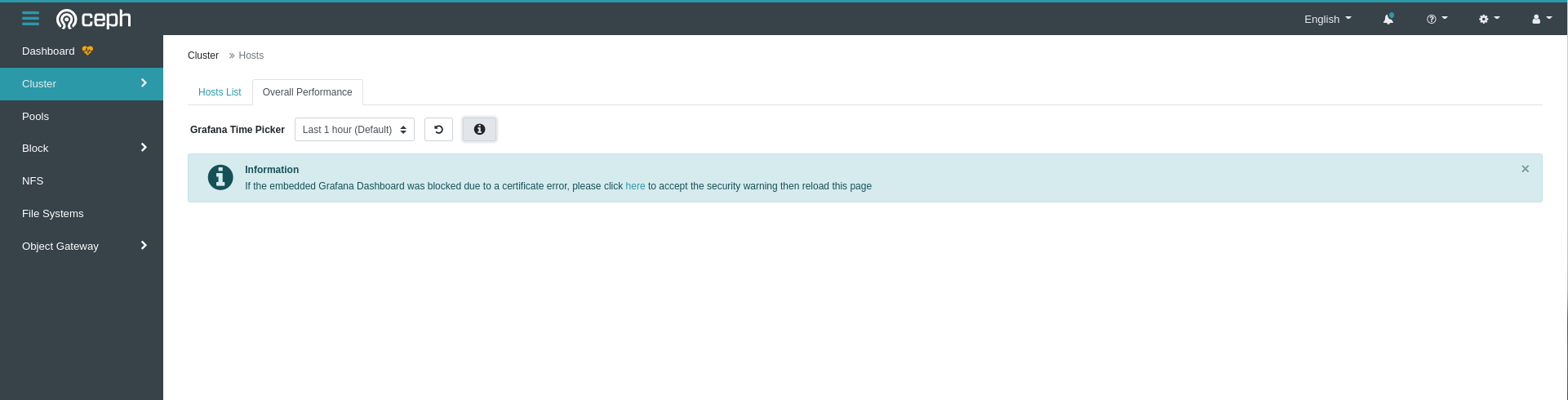

Alert displayed

[epuertat]

LGTM. Some suggestions over there.

[epuertat]

jenkins test api

[sunilangadi2]

LGTM.

[ljflores]

I am running some teuthology tests for this branch here:
http://pulpito.front.sepia.ceph.com/lflores-2022-06-17_20:48:59-rados:dashboard-grafana-iframe-ux-update-distro-default-smithi/

@nSedrickm you may not be able to access this link if you don't have access to the Sepia VPN, but I will summarize the results here once the tests finish running.

[nSedrickm]

Hi @ljflores thanks, I can't access the link

[ljflores]

@nSedrickm you'd need access to the VPN. No worries though, the results were all good!
