mgr/dashboard:Get different storage class metrics in Prometheus dashboard

[aaSharma14]

Fixes: https://tracker.ceph.com/issues/56625
SIgned-off-by:Aashish Sharma aasharma@redhat.com

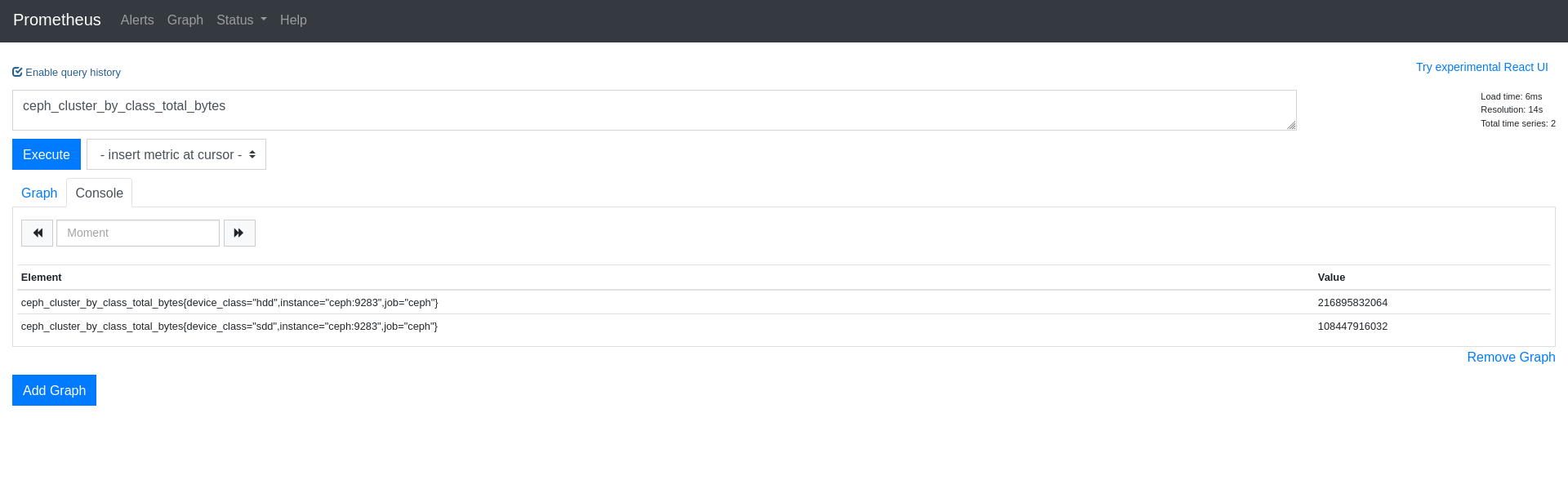

New metrics-

Contribution Guidelines

• To sign and title your commits, please refer to Submitting Patches to Ceph.

• If you are submitting a fix for a stable branch (e.g. "pacific"), please refer to Submitting Patches to Ceph - Backports for the proper workflow.

Checklist

• Tracker (select at least one)
  • References tracker ticket
  • Very recent bug; references commit where it was introduced
  • New feature (ticket optional)
  • Doc update (no ticket needed)
  • Code cleanup (no ticket needed)
• Component impact
  • Affects Dashboard, opened tracker ticket
  • Affects Orchestrator, opened tracker ticket
  • No impact that needs to be tracked
• Documentation (select at least one)
  • Updates relevant documentation
  • No doc update is appropriate
• Tests (select at least one)
  • Includes unit test(s)
  • Includes integration test(s)
  • Includes bug reproducer
  • No tests

Show available Jenkins commands

• jenkins retest this please
• jenkins test classic perf
• jenkins test crimson perf
• jenkins test signed
• jenkins test make check
• jenkins test make check arm64
• jenkins test submodules
• jenkins test dashboard
• jenkins test dashboard cephadm
• jenkins test api
• jenkins test docs
• jenkins render docs
• jenkins test ceph-volume all
• jenkins test ceph-volume tox
• jenkins test windows

[epuertat]

Awesome RFE-to-PR time @aaSharma14 ! Some suggestions over there.

[nizamial09]

LGTM! Is there anything left here @aaSharma14 ?

Also, we should squash the commits and update its title..

[aaSharma14]

LGTM! Is there anything left here @aaSharma14 ?

Also, we should squash the commits and update its title..

Nothing left from my side here @nizamial09 . I have squashed the commits as well

[epuertat]

LGTM. Thanks a lot for addressing my comments!

Given we don't have any integration or e2e testing on the mgr/prometheus module, what about running the qa/tasks/mgr/test_prometheus.py test in our API test suite?

I'd suggest adding an additional test there that compares the dump of the tested http://<prometheus>:9283/metrics endpoint with a git-versioned template like this:

# HELP ceph_health_status Cluster health status
# TYPE ceph_health_status untyped
ceph_health_status 1.0
...
# HELP ceph_mon_metadata MON Metadata
# TYPE ceph_mon_metadata untyped
ceph_mon_metadata{ceph_daemon="mon.a",hostname="",public_addr="172.20.0.2",rank="0",ceph_version=""} 1.0
# HELP ceph_mgr_metadata MGR metadata
# TYPE ceph_mgr_metadata gauge
ceph_mgr_metadata{ceph_daemon="mgr.x",hostname="ceph",ceph_version="ceph version 17.0.0-13521-gf9bd8922 (f9bd8922d75a454b4a0ace5a85637213e5ee5700) quincy (dev)"} 1.0
# HELP ceph_mgr_status MGR status (0=standby, 1=active)
# TYPE ceph_mgr_status gauge
ceph_mgr_status{ceph_daemon="mgr.x"} 1.0
...

The above dump was obtained from a run of ceph-dev in my laptop, so many fields will differ from other runs (IPs, timestamps, metric values, etc). One alternative would be going through that dump looking for IP address, hostnames, etc., and replace that with REGEX (e.g.: hostname="172.20.0.2" with hostname=REGEX_HOSTNAME). However that would require a lot of editing and would make it really complicate to update that dump when new fields are added/removed.

So my suggestion would be to implement the 'smartness' in the code instead. Instead of making the changes inline:

• We take each metric (including the # HELP and # TYPE metadata) in the tested prometheus and in the reference dump and produce a tuple of three elements to compare:
  • HELP: strict comparison
  • TYPE: strict comparison
  • metric itself: we compare the following:
    • the metric name (all metrics in the reference dump should be present in the tested dump)
    • the metric label names (but not the metric label values)

I'm ok with going with this PR as is, but an interesting example would be to run that test in this PR and verify that it fails because the cluster_by_class_* metrics are missing.

What do you think?

[aaSharma14]

LGTM. Thanks a lot for addressing my comments!

Given we don't have any integration or e2e testing on the mgr/prometheus module, what about running the qa/tasks/mgr/test_prometheus.py test in our API test suite?

I'd suggest adding an additional test there that compares the dump of the tested http://<prometheus>:9283/metrics endpoint with a git-versioned template like this:

# HELP ceph_health_status Cluster health status
# TYPE ceph_health_status untyped
ceph_health_status 1.0
...
# HELP ceph_mon_metadata MON Metadata
# TYPE ceph_mon_metadata untyped
ceph_mon_metadata{ceph_daemon="mon.a",hostname="",public_addr="172.20.0.2",rank="0",ceph_version=""} 1.0
# HELP ceph_mgr_metadata MGR metadata
# TYPE ceph_mgr_metadata gauge
ceph_mgr_metadata{ceph_daemon="mgr.x",hostname="ceph",ceph_version="ceph version 17.0.0-13521-gf9bd8922 (f9bd8922d75a454b4a0ace5a85637213e5ee5700) quincy (dev)"} 1.0
# HELP ceph_mgr_status MGR status (0=standby, 1=active)
# TYPE ceph_mgr_status gauge
ceph_mgr_status{ceph_daemon="mgr.x"} 1.0
...

The above dump was obtained from a run of ceph-dev in my laptop, so many fields will differ from other runs (IPs, timestamps, metric values, etc). One alternative would be going through that dump looking for IP address, hostnames, etc., and replace that with REGEX (e.g.: hostname="172.20.0.2" with hostname=REGEX_HOSTNAME). However that would require a lot of editing and would make it really complicate to update that dump when new fields are added/removed.

So my suggestion would be to implement the 'smartness' in the code instead. Instead of making the changes inline:

• We take each metric (including the # HELP and # TYPE metadata) in the tested prometheus and in the reference dump and produce a tuple of three elements to compare:

  • HELP: strict comparison

  • TYPE: strict comparison

  • metric itself: we compare the following:

    • the metric name (all metrics in the reference dump should be present in the tested dump)
    • the metric label names (but not the metric label values)

I'm ok with going with this PR as is, but an interesting example would be to run that test in this PR and verify that it fails because the cluster_by_class_* metrics are missing.

What do you think?

Yes, makes sense @epuertat , maybe we can discuss this in the standup call as well to get more clear overview of its implementation
