tone equalizer: better mask autotune (for testing) #10014
Conversation

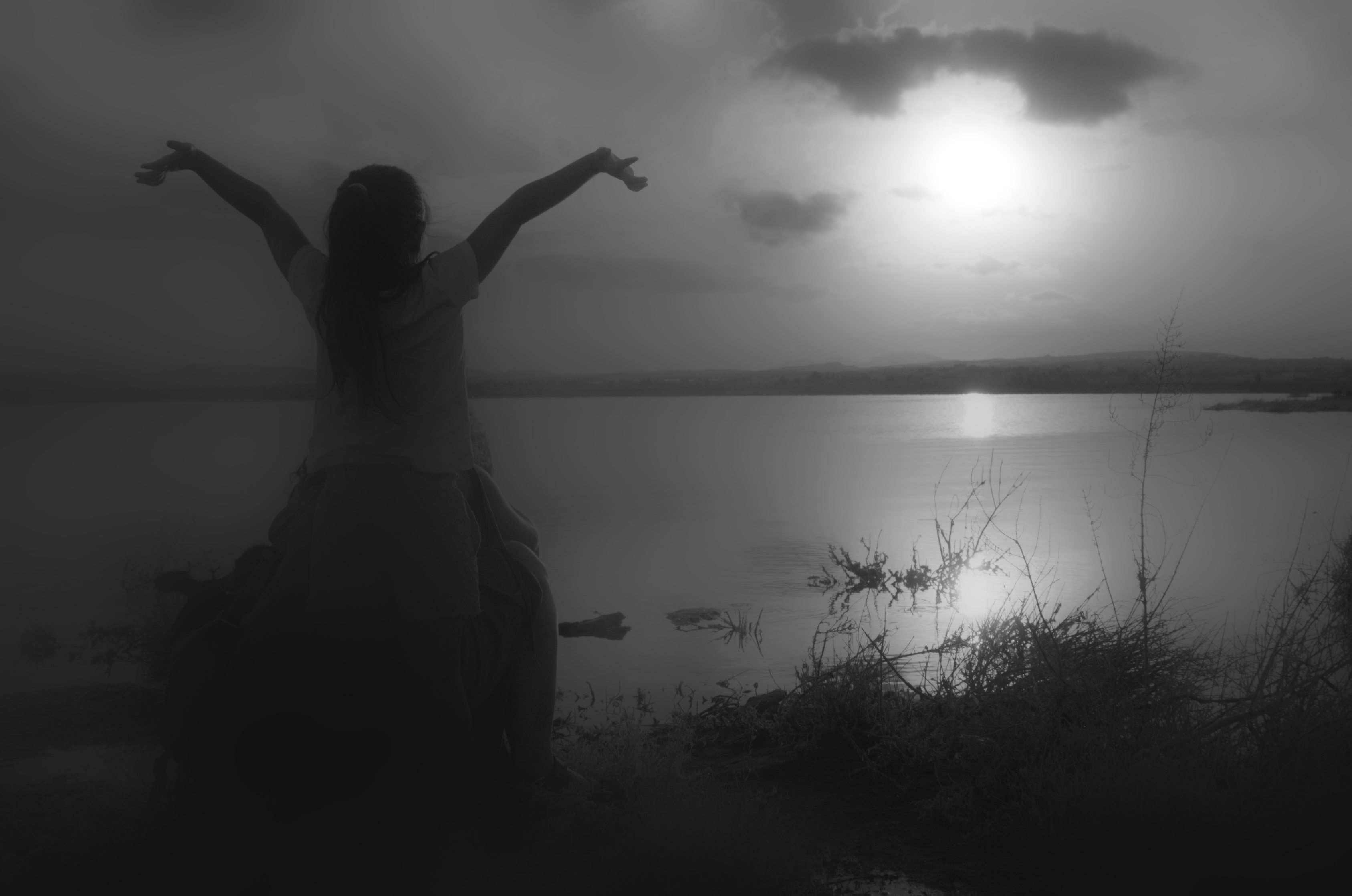

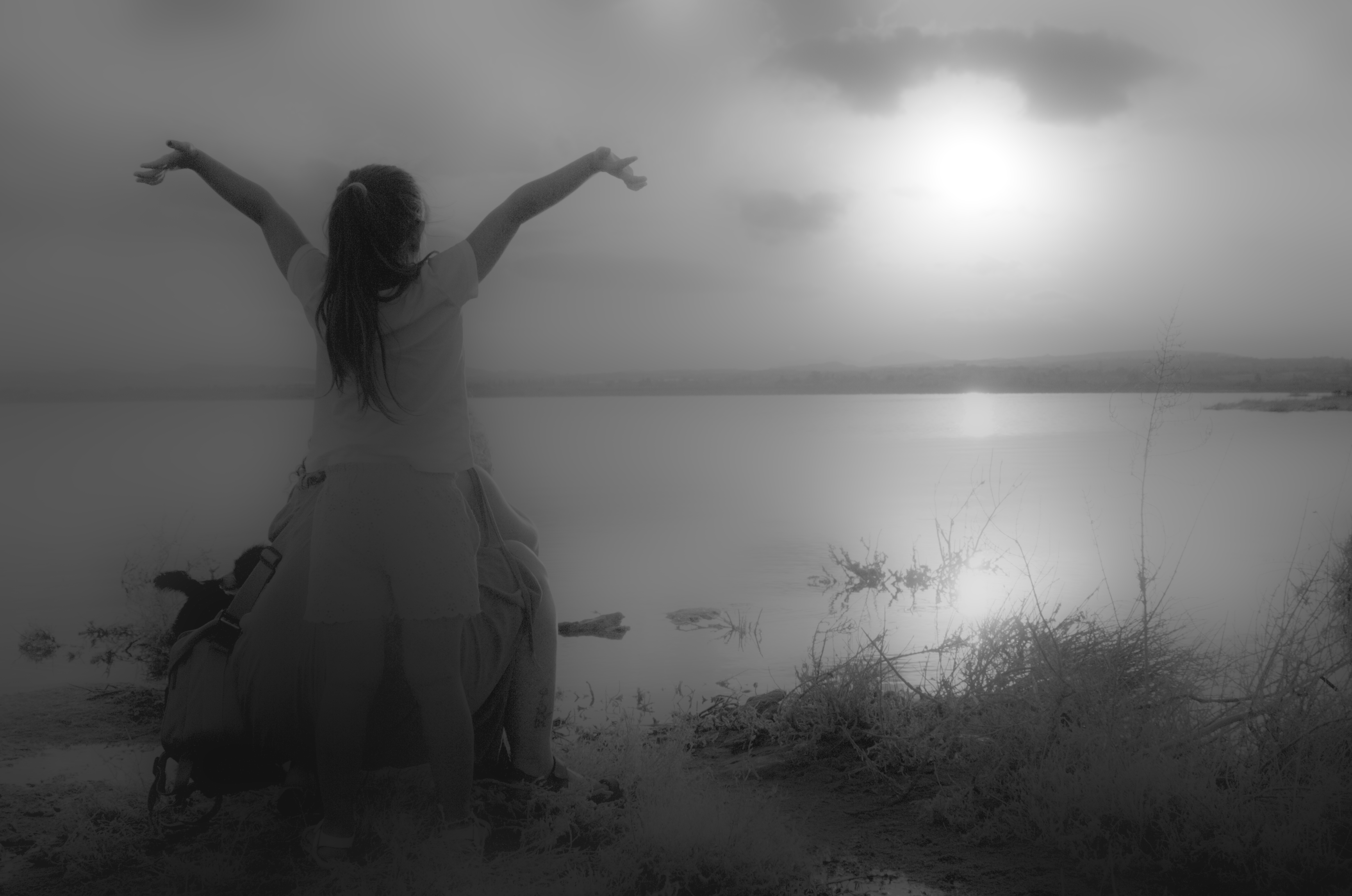

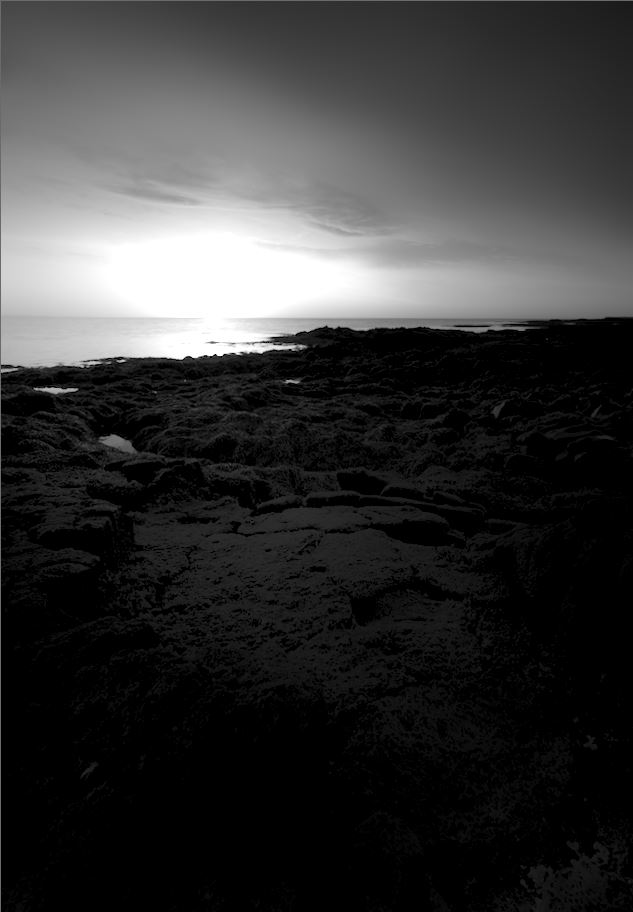

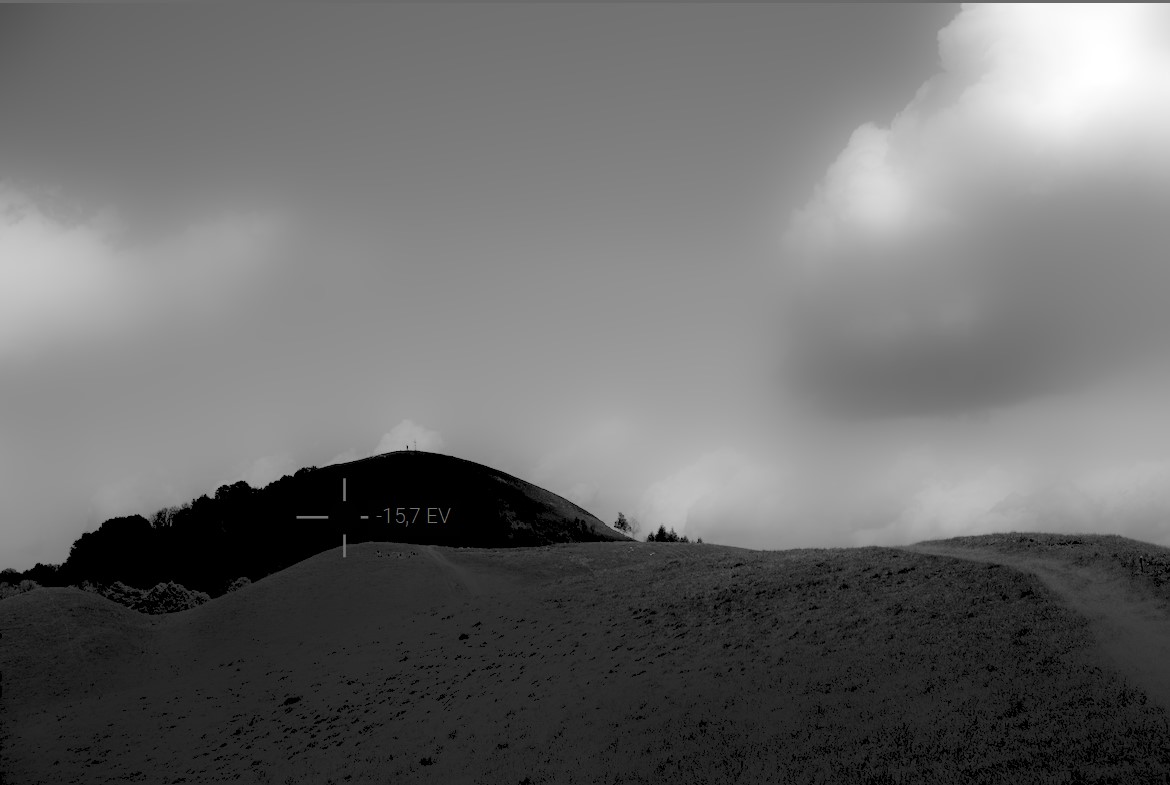

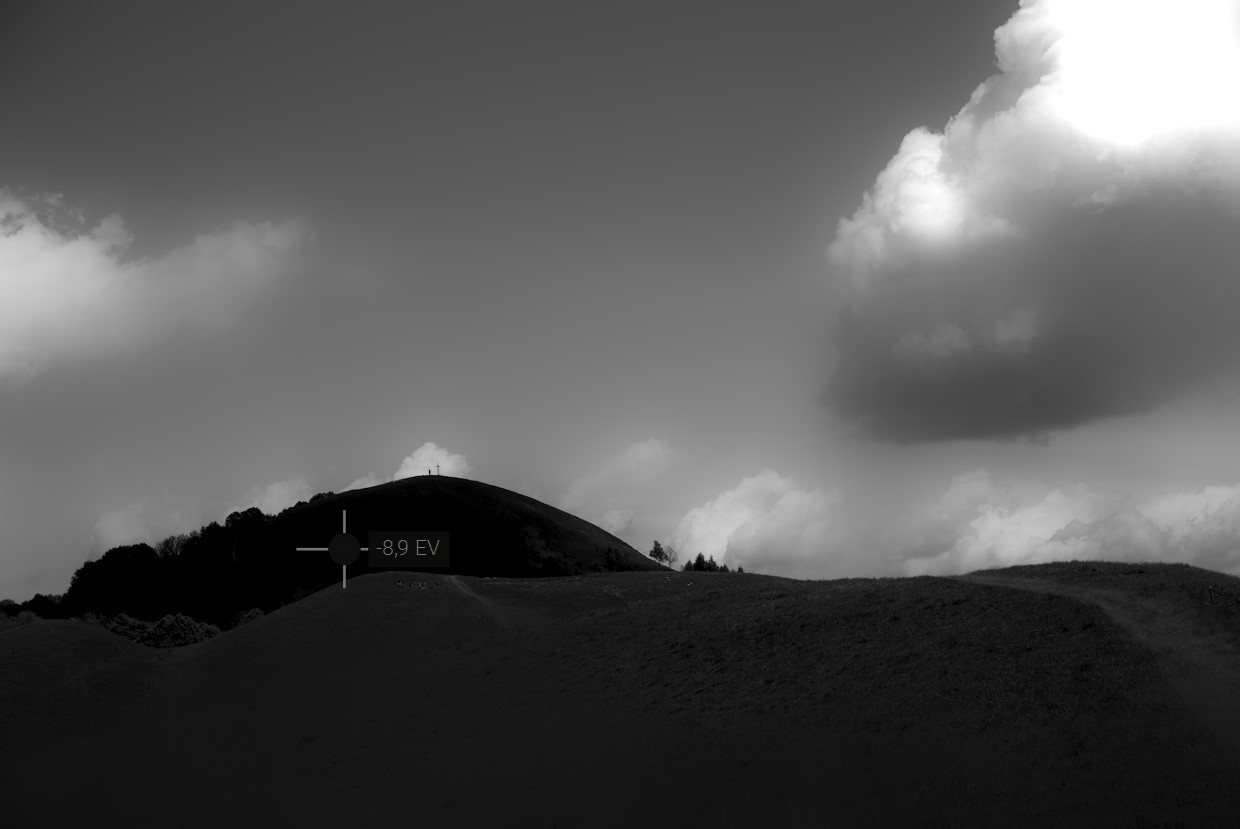

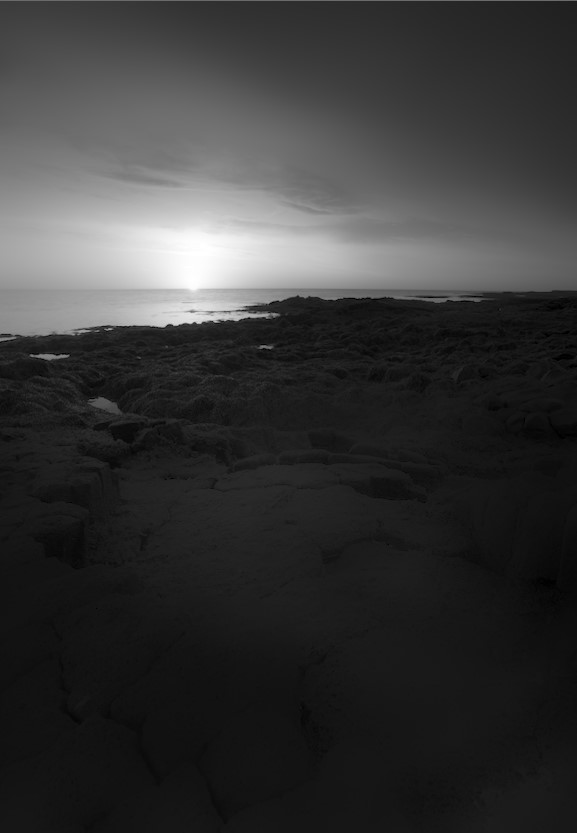

Ok, here are some tests on real images. Image1 current master this PR Image 2 current master this PR Image 3 current master this PR |
The contrast algo seems to fight against the edge-detection from the guided filter : just see how your examples don't behave like a surface blur anymore, especially in highlights. That can prove tricky to actually achieve details preservation. The linear contrast behaves well regarding the patch-wise variance, which is used by the guided filter to detect edges. But if you rewrite the relationship between neighbouring pixels in a non-linear way, then you rewrite the variance in a random way, and then the edge detection becomes erratic. |
I see your point, reverted to linear contrast. |

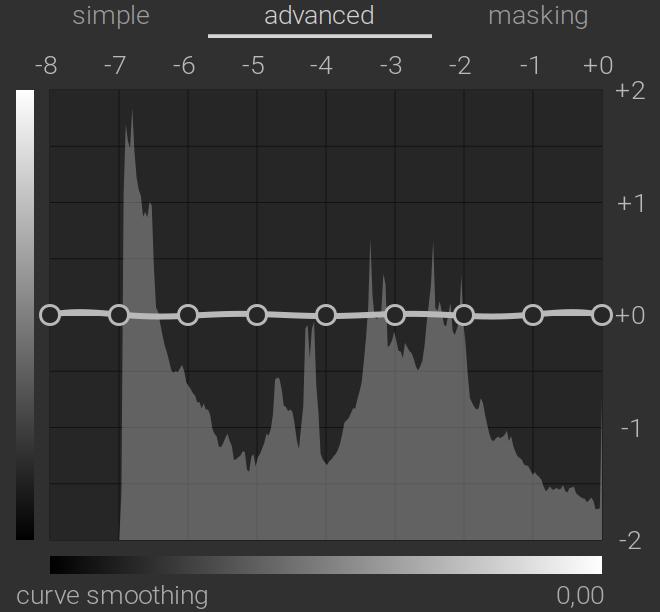

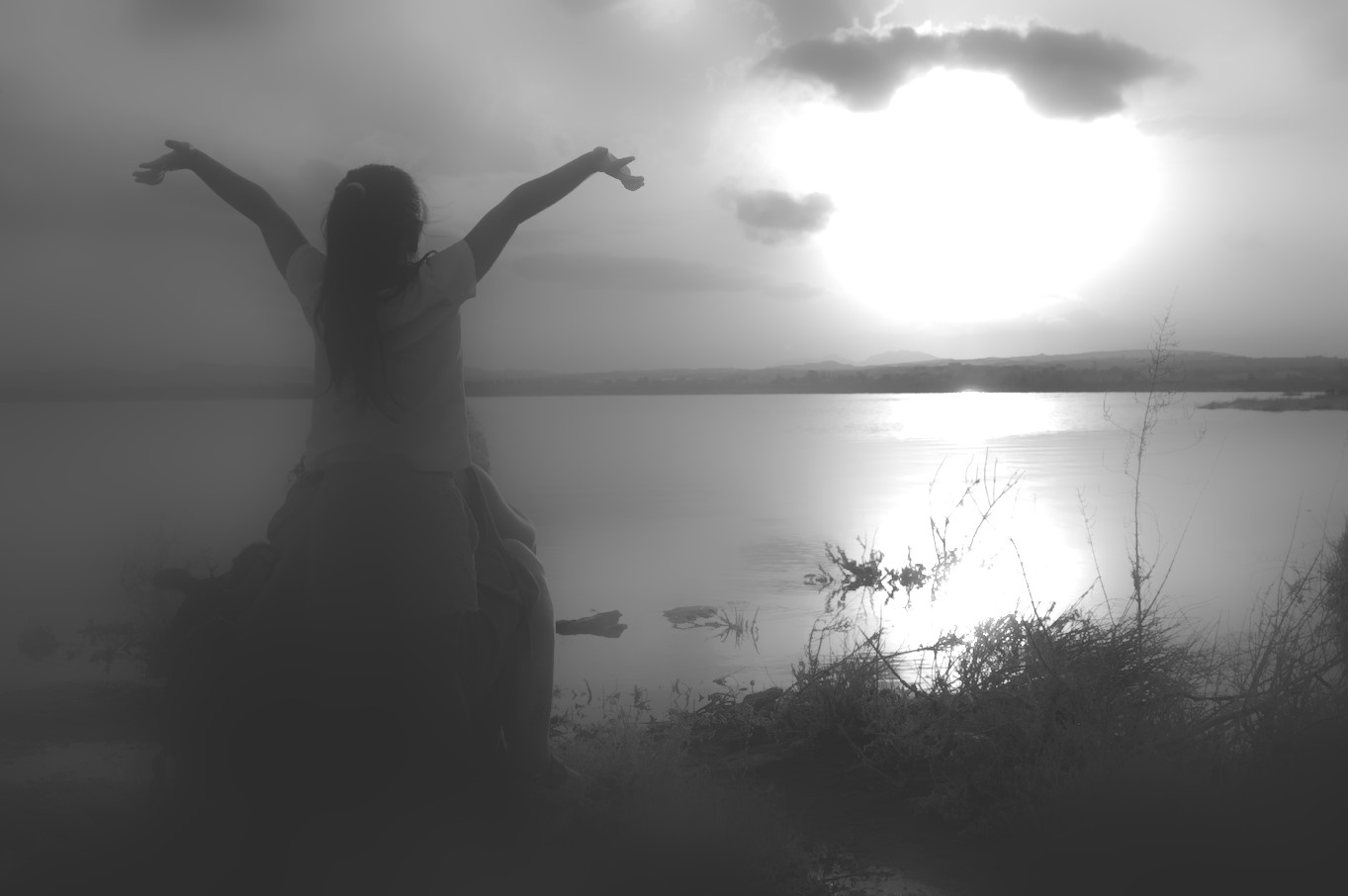

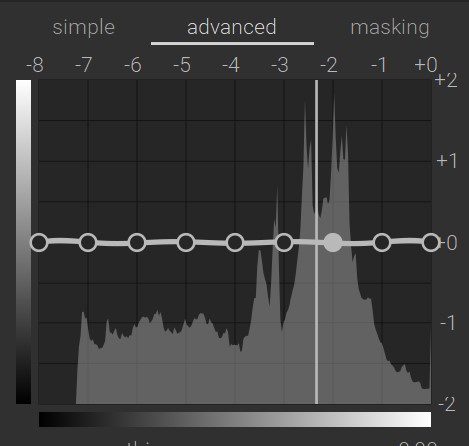

By the way, coming back to linear vs log contrast, I wanted to compare the two algos in the same conditions for an image, so I adjusted mask exposure and contrast so that the histogram spans more or less in the same range. See below: To my (not well trained) eye the difference between the two can be explained by the different distribution of the contrast across the tonal range. (maybe we could have both options?) |
with the last commit I splitted the auto-adjust formulas in the two pickers, they work pretty decently also separated |
Never mind, I found a decent solution for auto exposure and constrast, leaving TE algorithm as is. |
This PR is not ready for merging as it will break old edits and presets.
It is meant to test and discuss improved algorithm for mask auto-tune pickers in tone equalizer.
If those changer are accepted, I will transform it in a real PR.
Today one issue in tone equalizer is the effectiveness of the pickers for auto exposure and contrast correction, also reflected in discussions in DT forums. Moreover, there is cross-talk between the two sliders, as exposure correction changes contrast and vice-versa.
Here, we introduce two changes:
1) auto-exposure correction
This is the easiest, as it will not break edits.

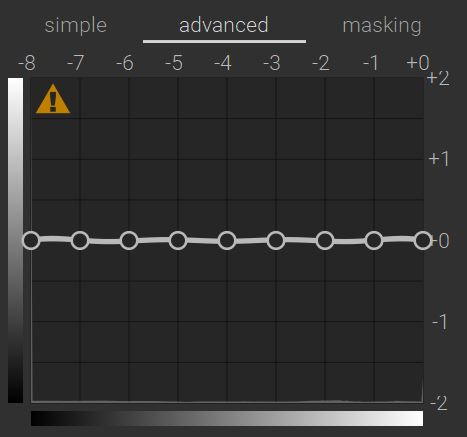

The auto-exposure correction is based on mask histogram deciles. However, those are calculated on an histogram restricted in the [-8, 0] EV range. Luminance values outside that range are capped and counted in the first or last bin of the histogram.
This is especially an issue for the highlights part, as TE comes in the unbound part of the pipeline and after exposure correction most of the times the luminance exceeds 0 EV. This can lead to an inaccurate estimation of
g->histogram_last_decile
and underestimating the amount of exposure correction.The solution implemented here is to calculate first an extended histogram in the [-8, +8] EV range (with double number of bins), use that for deciles estimation and then remap the extended histogram in the normal one.
It is not computationally expensive, just another small array of integers.
I couldn't find a method to avoid the two steps with temp extended histogram and calculate the deciles directly in the OpenMP parallel loop. Maybe someone more expert than me can find a better implementation.
Also I changed deciles in "ventiles" as with deciles we get potentially 20% of pixels out of reach of the TE correction and this is way too much, as most often than not the whole purpose TE is used is to fix those extreme values.
Overall the new auto correction works really well and in most cases is the only adjustment needed for the mask.
2) contrast correction and auto-contrast
this is trickier, as it will break old edits and it requires to step up TE version.
the issue here is the use of a linear contrast function
the use of subtraction with non log encoded data quickly drives to negative numbers as contrast correction increases, which then are capped to
MIN_FLOAT
. The result is the histogram change in asymmetrical way, the shadows part extend much more and the luminance mask goes black for the shadows.I replaced that function with a log contrast like others used in DT (for example in color balance rbg)
The auto correction math is updated as a consequence.
I am aware of the problems with non-linear correction and color, but here it is just a monochromatic mask and nothing bad seems to happen.
Overall the contrast slider and the auto picker behave really well IMO, it is super easy to nail a mask that covers all correction nodes and TE becomes a joy to use.
@aurelienpierre please test the PR if you like and give me feedback.
