Protagonist

A collection of separate dotnet core applications that together form the basis of the new DLCS platform.

About

• What is the DLCS?
• Interaction Patterns
• Architectural Considerations
• Design Principles
• RFCs

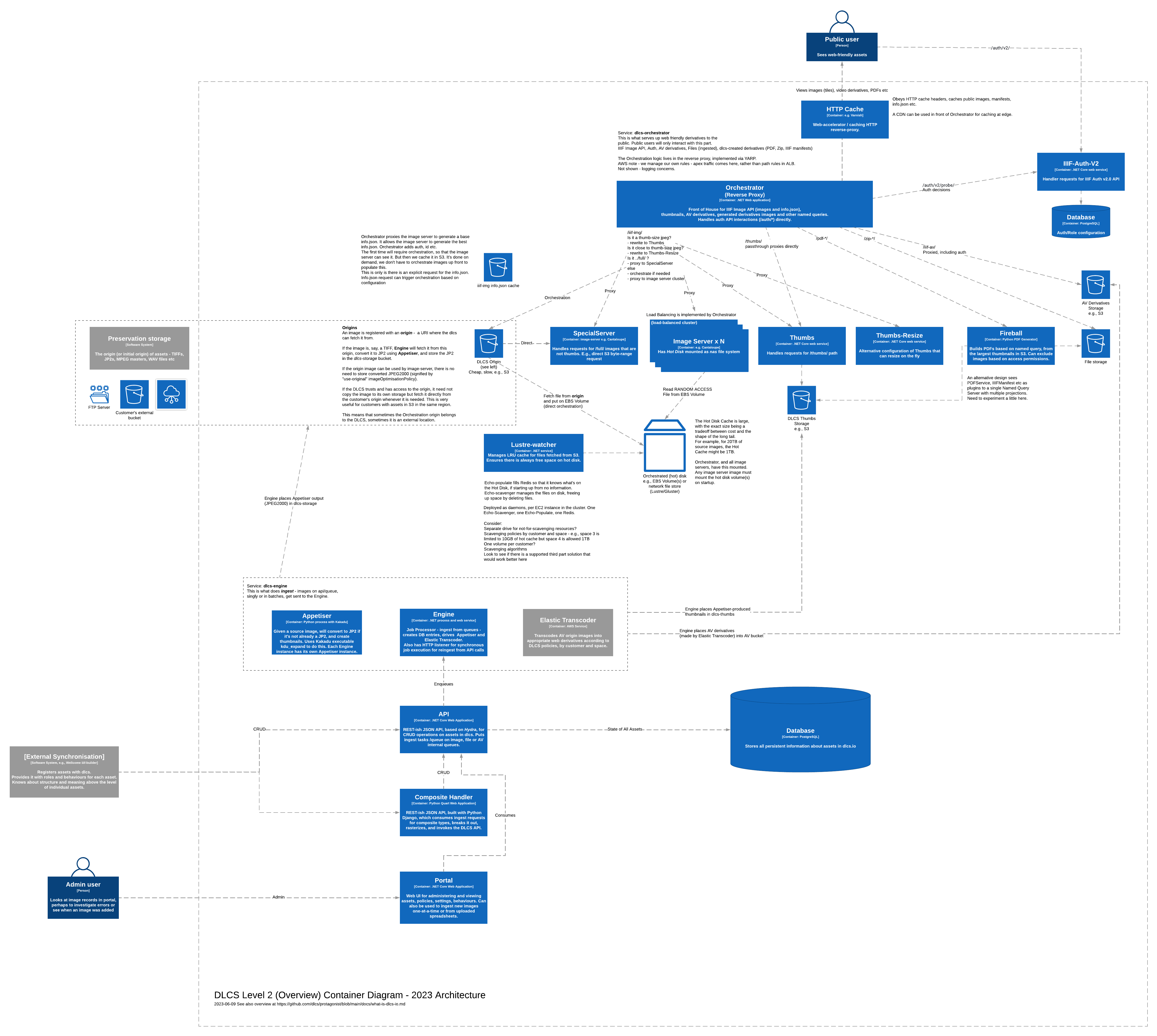

• Architecture Diagram
• Public API Documentation

Projects

There are a number of shared projects and entry point applications that use these shared projects, detailed below:

Shared

• DLCS.AWS - classes for interacting with AWS resources.
• DLCS.Core - general non-domain specific utilities and exceptions.
• DLCS.HydraModel - Hydra models for DLCS API.
• DLCS.Mediatr - shared classes for projects using Mediatr.
• DLCS.Model - DLCS models and repository interfaces.
• DLCS.Mock - Mock version of API serving pre-canned responses from memory.
• DLCS.Repository - Repository implementations and DbContext for database.
• DLCS.Web - Classes that are aware of HTTP pipeline (e.g. request/response classes)
• Hydra - Base classes for Hydra objects (not DLCS specific).

In addition to the above there are a number of *.Tests classes for automated tests.

Entry Points

• API - HTTP API for interactions.
• Engine - asset ingestion/derivative creation.
• Orchestrator - reverse proxy that serves user requests.
• Portal - administration UI for managing assets.
• Thumbs - simplified handling of thumbnail requests.
• DeleteHandler - monitors queue for notifications + deletes asset derivatives on receipt.
• Migrator - Applies any pending EF migrations.

Technology 🤖

There are a variety of technologies used across the projects, including:

• LazyCache - lazy in-memory cache.
• Serilog - structured logging framework.
• Mediatr - mediator implementation for in-proc messaging.
• EFCore - ORM data-access and migrations.
• Dapper - high performance object mapper.
• XUnit - automated test framework.

Deployment

Github actions are used to build and push new Docker images to github container registry.

The main entry point is run_build.yml. This runs dotnet test then uses the parameterised build_docker.yml files to handle Docker image creation.

Getting Started

There are 2 docker-compose files:

• docker-compose.local.yml - this will start any required external dependencies to enable local development (see below).
• docker-compose.yml - this spins up a full DLCS stack, including dotnet components.

# start full stack
docker-compose up

# start external dependencies only for local dev
docker-compose -f docker-compose.local.yml up

Local Development

Both docker-compose files will spin up a Postgres, LocalStack container and external resources like image-servers etc. Postgres connection details are specified via .env file (see .env.dist for example) and this is listening on :5452. The LocalStack image will contain required resources, see seed-resources.sh and these will be used by DLCS for S3 access.

Using the connection and AWS details from .env.dist and appsettings.Development.Example.json will work by default. The seed-resources.sh file will seed AWS resources and EFMigrations will be run on Orchestrator startup is "RunMigrations" appsetting is true.

Note that full stack cannot be run until all elements have been sufficiently implemented.

LocalStack

Use of LocalStack can be controlled by appsettings:

{
    "AWS": {
        "Region" : "us-east-1",
        "Profile": "Used for running against AWS",
        "UseLocalStack": true,
        "S3": {
            "ThumbsBucket": "dlcs-thumbs"
        }
    }
}

Use helpers from DLCS.AWS rather than AWS SDK for registering dependencies, e.g.:

// Use built in helpers
services
  .SetupAws(configuration, webHostEnvironment)
  .WithAmazonS3();

// Rather than default SDK methods
services
  .AddDefaultAWSOptions(configuration.GetAWSOptions())
  .AddAWSService<IAmazonS3>()

If environment.IsDevelopment() && awsSettings.UseLocalStack; when the above will register amazon sdk dependencies using LocalStack rather than AWS.

# view thumbs bucket
aws s3 ls dlcs-thumbs --recursive --human-readable --endpoint-url=http://localhost:4566

Database

Running Orchestrator with appSetting RunMigrations = true will apply migrations to DB on startup.

Running the TestData app will seed data to database.

dotnet run ./Utils/TestData/TestData.csproj

Note that the seed data added by TestData is insufficient to fully run DLCS and will need expanded.

Migrations are added using:

dotnet ef migrations add "Table gains column" -p DLCS.Repository -s API

if you would like to view the SQL the migration will produce, you can use the following command:

dotnet ef migrations script -i -o .\migrate.sql -p DLCS.Repository -s API
