Image Spectrumizer

ScreenShot

This is a GUI tool to help convert normal images suitable to be used in ZX Spectrum (and similar devices). Note that the resolution is, by default, 256x192. Feeding the tool smaller or bigger images works, but the internal image size remains the same. (The internal resolution can be changed in options, but there are limits).

Instead of trying to be completely automated, this tool lets you interactively adjust the source image while letting you see the results in real time. Any number of modifiers can be stacked on top of each other, and their order can be changed.

Output can be saved as a PNG, or in raw, C header, or assembler include file.

If wanted, the tool can be used to convert image automatically, by feeding it the input image and a workspace file on commandline, along with option to save output.

Binaries

http://iki.fi/sol/zip/img2spec_40.zip

Source

https://github.com/jarikomppa/img2spec

Adjusting Output

Unlike most of programs that convert images to zx spectrum format, Image Spectrumizer is primarily meant to be an artist tool. It does a lot of things automatically, but there is no single "best" conversion from RGB images to the limited graphics zx spectrum offers.

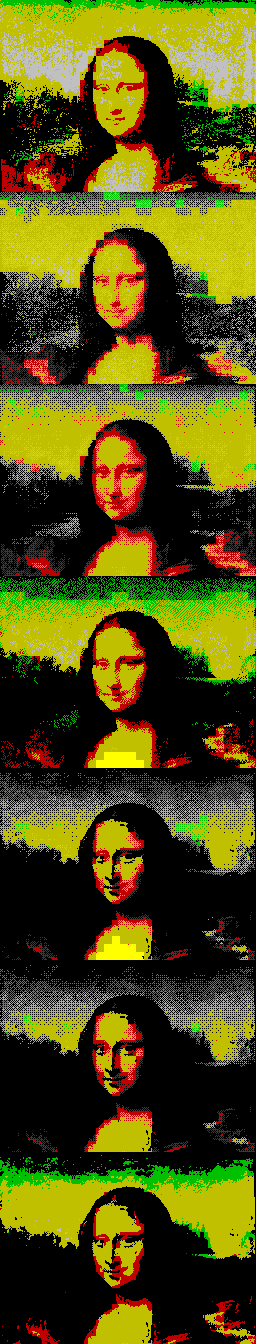

Here's one image converted in a bunch of different ways (these were all made in a few minutes). It all depends on what you're after, really. (I did not even go crazy with false-color stuff here).

ScreenShot

##Tips:

  • The window can be resized.
  • Various helper windows can be opened from the window menu.
  • Don't hesitate to play with conversion options.

##Typical workflow:

  1. Load an image (file->load image)
  2. Add modifiers (modifiers->...)
  3. (optionally) open options (window->options) and change conversion options
  4. Tweak modifiers until result is acceptable
  5. Export result (file->export ...)

##Image editor interoperation If you keep the image file open in image spectrumizer and the image editor of your choice (such as photoshop), image spectrumizer can detect when the file has changed and reloads the image automatically. This way you can keep editing the source image with (potentially) better tools than image spectrumizer can offer, and see the results relatively quickly.

This feature is enabled by default, and can be disabled from the options.

##File formats:

The file formats for scr, h and inc are basically the same. Bitmap (in spectrum screen order) is followed by attribute data. In case of non-standard cell sizes, the attribute data is bigger, but still in linear order - it is up to the code that uses the data to figure out how to use it.

If you prefer the data to be in linear order (not in spectrum screen order), you can change that from the options.

.scr is a binary format, basically memory dump of the spectrum screen.

.h is C array, only data is included, so typical use would be:

    const char myimagedata[]= {
    #include "myimagedata.h"
    };

.inc is assembler .db lines.

##Command line arguments

Any image or workspace file names given as arguments are loaded (in the order given). If multiple loadable images or workspaces are given, the last ones are the ones that are used.

(Well, all of them do get loaded, they just replace the earlier ones in memory).

To save results on commandline, use the following flags:

  • -p pngfilename.png
  • -h headerfilename.h
  • -i incfilename.inc
  • -s scrfilename.scr

Example:

img2spec cat.png mush.isw -h cat.h

Output files are overwritten without a warning, but I trust you know what you're doing.

##3x64 mode In this mode, two sets of attributes are calculated, and the application is expected to swap between the two every frame. This creates approximately 3*64 colors (due to double blacks, the actual number of colors is quite much lower). The effect flickers on emulators but works "fine" on CRTs. (Why 3x64 and not 192? because there's three sets of (about) 64 color palettes, and each cell can use 2 from one of those).

Note that the color reproduction results in real hardware will differ from the simulated, depending on the capabilities of the display device, and may be a flickering nightmare.
