The lepton issue lepton-eda#250 revealed that there was no test in the
lepton-netlist test suite for filtering components having the
"graphical=" attribute attached. This patch adds the test based on
the schematic by dmn provided in the issue.
The lepton issue #250 revealed that there was no test in the
lepton-netlist test suite for filtering components having the
"graphical=" attribute attached. This patch adds the test based on
the schematic by dmn provided in the issue.
lepton-netlist
doesn't ignoregraphical
components if they are connected to nets. It happens with some backends (not all), notably, withPCB
anddrc2

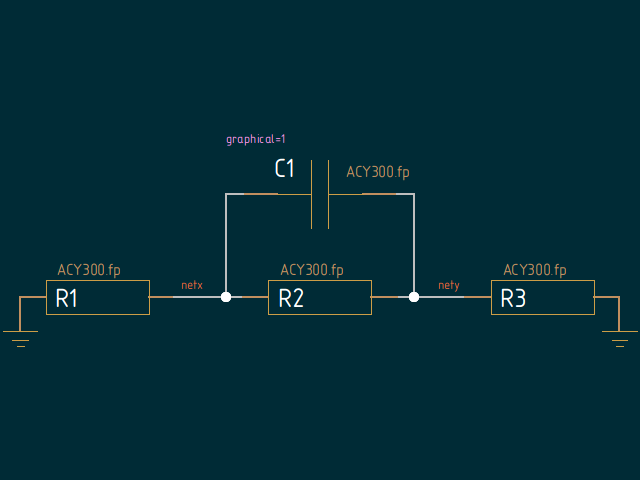

.Test schematic (attached):
C1
should not appear in resulting netlist, but it is:$ lepton-netlist -o - -g PCB netlist_graphicals.sch
GND R1-1 R3-2
netx C1-1 R1-2 R2-1
nety C1-2 R2-2 R3-1
lepton-netlist -o - -g drc2 netlist_graphicals.sch
Checking non-numbered parts...
Checking duplicated references...
Checking NoConnection nets for connections...
Checking nets with only one connection...
Checking pins without the 'pintype' attribute...
NOTE: Found pins without the 'pintype' attribute: C1:1 C1:2
Checking type of pins connected to a net...
Checking unconnected pins...
Checking slots...
Checking duplicated slots...
Checking unused slots...
If you disconnect
C1
fromnetx
andnety
nets,lepton-netlist
will generate a correct netlist.netlist_graphicals.zip
