Notion Charts


Notion Charts is a simple tool to create beautiful charts for Notion.so.

See more examples

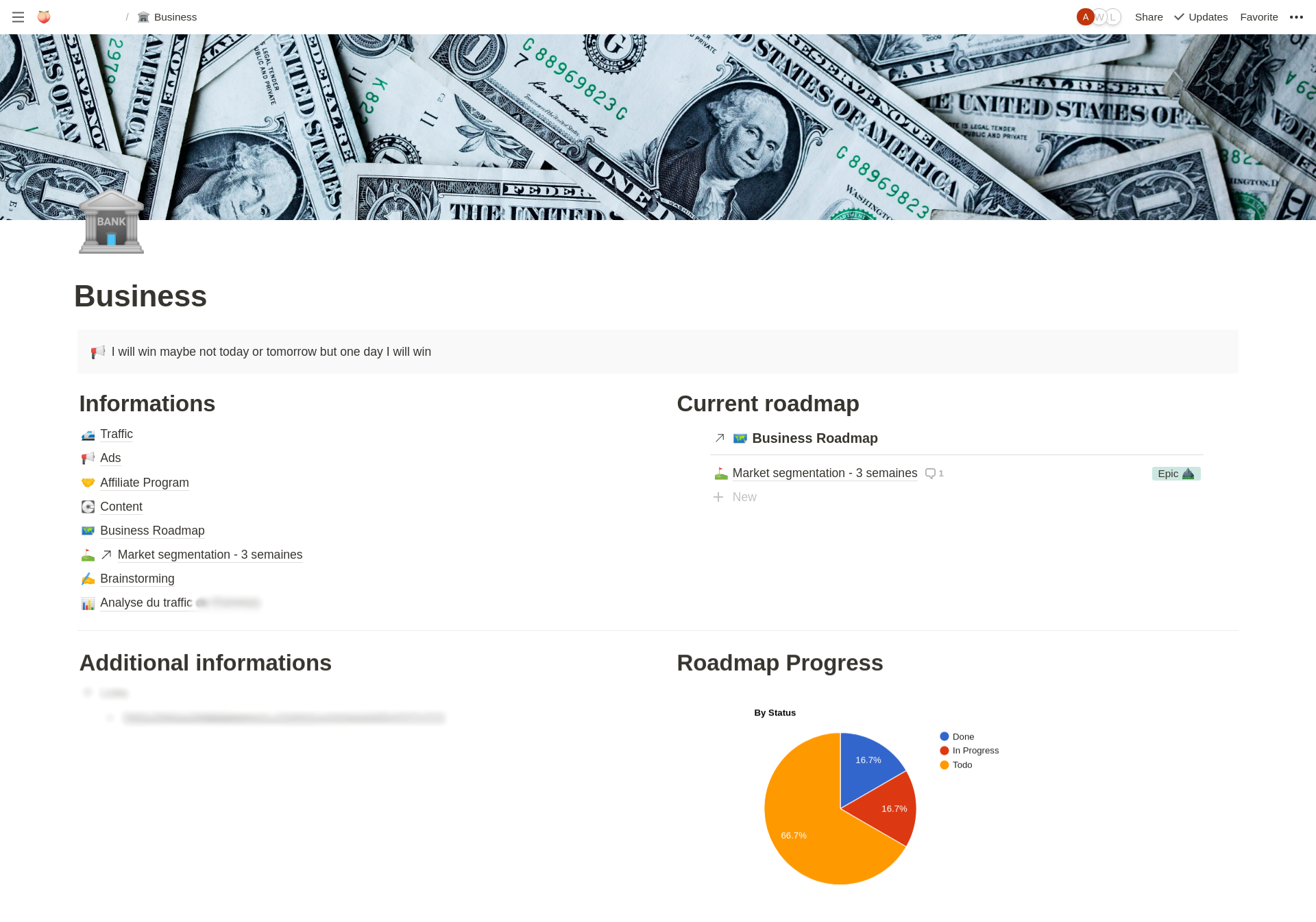

Business Dashboard

Business Dashboard

Dev Dashboard

Dev Dashboard

Note

This project is using a deprecated Unofficial Notion API. Official API version is in development on the V2 branch.

Usage

For public Notion pages

Simply use https://charts.mathix.ninja url, and follow the documentation below.

For private Notion pages

You'll need to host your own version of this repository. The best way to do that is by clicking this button below, it will automatically host this API on vercel.com which is 100% free.

Show me the steps
  1. Click the blue Deploy button on this page
  2. Log in or sign up to continue.
  3. Choose a name for your project, keep in mind that this name will goes in your url https://YOUR-PROJECT-NAME.vercel.app
  4. Follow instructions and don't forget to put your notion TOKEN_V2 before clicking Continue If you don't know how to get it, click here
  5. Click Continue one more time, and you're done!
  6. Leave me a Star on github 😋

Then when the hosting is completed simply follow documentation instructions below and enjoy 😎 Don't forget to use your URL instead of charts.mathix.ninja.

Deploy with Vercel

If you want to stay up to date I recommend you to use a Deploy Hook.

Principles

There is only 2 principles to understand in Notion Charts.

1. The aggregator

The first "column" you set-up on Notion Charts is called the aggregator.

It's used to group your database by it's values.

For example if you have a database which contains peoples (name, age, height, weight).

By setting your aggregator to the age column all these people will be grouped by their ages. So if the second Notion Chart "column" is the height with the avg action, you will plot the average height by ages of your dataset.

2. Actions

Actions are performed on column datas, in order to obtain specific results.

Right now there is 4 actions possible:

  • value => Simply return the value of the cell.
  • count => Will count how many items are in the aggregated set.
  • sum => Return sum of all values in the aggregated set. (only works with numbers)
  • avg => Return average of all values in the aggregated set. (only works with numbers)

Examples

Todo-list pie chart

Notion Database: Notion Task List

Columns: Status:value | Status:count

Chart URL: https://charts.mathix.ninja/schema-chart/efe5f941ce5e415da072615ee12b4a77/9e890bfd058a4d07af5b6024ec0a6e0a?s=Status%3A3E6J%3Avalue%2CCount%3A3E6J%3Acount&t=PieChart

Image preview

Pie chart

Type repartition of non-evolving Pokémons

Notion Database: Non-evolving Pokémon

Columns: Primary Type:value | Primary Type:count

Chart URL: https://charts.mathix.ninja/schema-chart/d27bb47228d541a7a979bed894fb7533/9667c7a342fb43d88686776c52a6262e?s=Type%3A%29P%7CF%3Avalue%2CCount%3A%29P%7CF%3Acount&t=PieChart

Image preview

Pie chart of non-evolving Pokémons

Specs by type of non-evolving Pokémons

Notion Database: Non-evolving Pokémon

Columns: Primary Type:value | HP:avg | Attack:avg | Defense:avg

Chart URL: https://charts.mathix.ninja/schema-chart/d27bb47228d541a7a979bed894fb7533/9667c7a342fb43d88686776c52a6262e?s=Type%3A%29P%7CF%3Avalue%2CHP%3AHkft%3Aavg%2CAttack%3AB%2F%29Q%3Aavg%2CDefense%3Aq%2B%2BI%3Aavg&t=LineChart

Image preview

Line chart of non-evolving Pokémons

Pokedex normal types candle-stick chart

Notion Database: Normal Type Pokédex

Columns: Name:value | HP:value | Attack:value | Defense:value | Speed:value

Chart URL: https://charts.mathix.ninja/schema-chart/2b5e6a6389e64f3298ab97005f4e6a35/9ef790d411504c70b437361169034b42?s=Name%3Atitle%3Avalue%2CPoints%3AHkft%3Avalue%2C%3AB%2F%29Q%3Avalue%2C%3Aq%2B%2BI%3Avalue%2C%3A8CLR%3Avalue&t=CandlestickChart

Image preview

Candle-stick chart Pokémon

API Documentation

This part of the documentation is for power users. (API only)

For fast and easy previews you can now go directly here.

Split notion url

https://www.notion.so/fa9b093633c0479f886fdb857f57f9b0?v=c94a0043c3df410cb461e7698cee6aff

<collection> = fa9b093633c0479f886fdb857f57f9b0

<view> = c94a0043c3df410cb461e7698cee6aff

Image charts

Generate a chart image based on Chart.js, uses QuickChart.io.

[GET] => /image-chart/<collection>/<view>?s=SCHEMA&t=CHART_TYPE

Query parameters

[REQUIRED] t => line | bar | radar | doughnut | pie | polarArea | bubble | scatter

[REQUIRED] s => [[ColumnName:ColumnIndex:action], ...]

  • ColumnName => Display name of the selected Notion column.
  • ColumnIndex => Notion Index of the selected column.
  • action => Action to perform on the column data. (See Actions)

Interactives charts

Generate an html page containing a chart based on Google Charts.

[GET] => /schema-chart/<collection>/<view>?s=SCHEMA&t=CHART_TYPE&dark

Query parameters

[REQUIRED] t => line | bar | radar | doughnut | pie | polarArea | bubble | scatter

[REQUIRED] s => [[ColumnName:ColumnIndex:action], ...]

  • ColumnName => Display name of the selected Notion column.
  • ColumnIndex => Notion Index of the selected column.
  • action => Action to perform on the column data. (See Actions)

[OPTIONAL] dark => If set in url, a Notion dark theme is applied.

Open for contributions

Please feel free to contribute to this project!
