Should theme elements provided to guides inherit from plot theme? #2728

Closed
clauswilke opened this issue Jun 30, 2018 · 0 comments · Fixed by #4879
Closed

Should theme elements provided to guides inherit from plot theme? #2728

clauswilke opened this issue Jun 30, 2018 · 0 comments · Fixed by #4879
Labels
guides 📏 themes 💃

Comments

@clauswilke
Copy link
Member

Here is an issue I've been pondering: Should theme elements provided to guides inherit from the plot theme? Currently they don't, and I think this causes unexpected behavior.

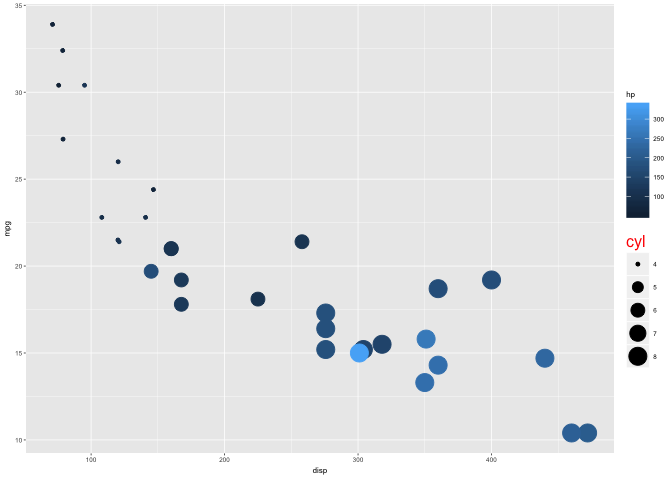

Example: I'm trying to change the color of the legend title but I'm inadvertently also changing the font size.

library(ggplot2)
ggplot(mtcars, aes(disp, mpg, size = cyl, color = hp)) +
  geom_point() +
  theme_grey(6) +
  scale_size(
    guide = guide_legend(
      title.theme = element_text(colour = "red")
    )
  )

Created on 2018-06-30 by the reprex package (v0.2.0).

I'd be happy to take a stab at this if we agree that the current behavior is sub-optimal. I think the right way to do it is to expand the calc_element() function so it can take as an optional argument an element that would override the theme settings.
@clauswilke clauswilke mentioned this issue Apr 23, 2019
Closed
@teunbrand teunbrand mentioned this issue Sep 4, 2022
Merged
teunbrand added a commit that referenced this issue Apr 24, 2023
@teunbrand
Convert guides to ggproto (#4879)
b9f43f2
The guide system, as the last remaining chunk of ggplot2, has been rewritten
in ggproto. The axes and legends now inherit from a <Guide> class, which makes
them extensible in the same manner as geoms, stats, facets and coords
(#3329, @teunbrand). In addition, the following changes were made:
    * Styling theme parts of the guide now inherit from the plot's theme
      (#2728).
    * Styling non-theme parts of the guides accept <element> objects, so that
      the following is possible: `guide_colourbar(frame = element_rect(...))`.
    * Primary axis titles are now placed at the primary guide, so that
      `guides(x = guide_axis(position = "top"))` will display the title at the
      top by default (#4650).
    * Unknown secondary axis guide positions are now inferred as the opposite
      of the primary axis guide when the latter has a known `position` (#4650).
    * `guide_colourbar()`, `guide_coloursteps()` and `guide_bins()` gain a
      `ticks.length` argument.
    * In `guide_bins()`, the title no longer arbitrarily becomes offset from
      the guide when it has long labels.
    * The `order` argument of guides now strictly needs to be a length-1
      integer (#4958).
    * More informative error for mismatched
     `direction`/`theme(legend.direction = ...)` arguments (#4364, #4930).
    * `guide_coloursteps()` and `guide_bins()` sort breaks (#5152).
