Welcome to compose_adaptive_scaffold

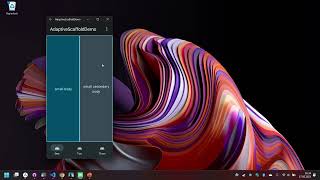

The aim of this library is to make writing Jetpack Compose apps that support large screen and foldable devices a breeze. Here's a short clip that showcases how the library works. Clicking on the preview image directs you to YouTube.

Watch the video

compose_adaptive_scaffold is based on the idea of two panes, called body and secondary body. For small screens you pass alternatives (or variations) called small body and small secondary body (the latter one is optional). Depending on your screen layout, the pairs body and small body, and secondary body and small secondary body may even be the same. Two panes are the basis for Canonical Layouts, an important Material Design concept.

Under the hood, compose_adaptive_scaffold uses Jetpack WindowManager to provide full hinge support. This means that you do not need to worry about screen dimensions, location and sizes of hinges, and hinge features like orientation. Just provide body and secondary body composables - everything else is handled by compose_adaptive_scaffold.

Picture of Microsoft Surface Duo portrait folded Picture of Microsoft Surface Duo landscape folded Picture of Microsoft Surface Duo portrait opened Picture of Microsoft Surface Duo landscape opened

Setup

The library is available through Maven Central. To include it in your apps, just add an implementation dependency:

dependencies {
    implementation "com.github.tkuenneth:compose_adaptive_scaffold:0.5.2"
}

It uses the following configuration:

Property Value
namespace eu.thomaskuenneth.adaptivescaffold
minSdk 30
targetSdk 35

Used libraries:

Name Version
Jetpack WindowManager 1.3.0
Jetpack Compose BOM 2024.09.01

How to use

Here's how a simple sample activity looks like:

class SimpleDemoActivity : ComponentActivity() {
  @OptIn(ExperimentalMaterial3Api::class)
  override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    setContentRepeatOnLifecycleStarted {
      MaterialTheme(
        content = {
          AdaptiveScaffold(
            startDestination = destination1,
            otherDestinations = listOf(destination2),
            onDestinationChanged = {
              // do something
            },
            topBar = {
              TopAppBar(
                title = {
                  Text(
                    text = stringResource(
                      id = R.string.app_name
                    )
                  )
                })
            },
          )
        },
        colorScheme = defaultColorScheme()
      )
    }
  }
}

Have you noticed there is no setContent {} but instead setContentRepeatOnLifecycleStarted {} is used? This is just a tiny wrapper. It is implemented like this:

fun ComponentActivity.setContentRepeatOnLifecycleStarted(
    enableEdgeToEdge: Boolean = false,
    parent: CompositionContext? = null,
    content: @Composable () -> Unit
) {
    if (enableEdgeToEdge) enableEdgeToEdge()
    lifecycleScope.launch {
        lifecycle.repeatOnLifecycle(Lifecycle.State.STARTED) {
            setContent(
                parent = parent,
                content = content
            )
        }
    }
}

This is needed to get informed upon posture and orientation changes. The two destinations that are passed to AdaptiveScaffold are defined like this:

val destination1 = NavigationDestination(
    icon = R.drawable.ic_android_black_24dp,
    label = R.string.one,
    body = {
        Box(
            modifier = Modifier
                .fillMaxSize()
                .background(color = Color.Red)
        )
    },
    secondaryBody = {
        Box(
            modifier = Modifier
                .fillMaxSize()
                .background(color = Color.Green)
        )
    },
    smallBody = {
        Box(
            modifier = Modifier
                .fillMaxSize()
                .background(color = Color.Blue)
        )
    },
    smallSecondaryBody = {
        Box(
            modifier = Modifier
                .fillMaxSize()
                .background(color = Color.Yellow)
        )
    },
)

val destination2 = NavigationDestination(
    icon = R.drawable.ic_android_black_24dp,
    label = R.string.two,
    overlay = {
        Box(
            modifier = Modifier
                .fillMaxSize()
                .background(color = Color.LightGray)
        )
    },
)

NavigationDestination receives an icon, a label, and five composable functions:

  1. a body
  2. a secondary body
  3. a small body
  4. a small secondary body (can be null)
  5. an overlay (optional)

Depending on the app window size, either body and secondary body or small body and small secondary body are shown. If the device has a hinge, all features of the hinge including its location, size, and orientation are honored.

If you want to show something that should span the two panes, you can pass a overlay composable to NavigationDestination. Please have a look at destinationFoldInfo in AdaptiveScaffoldDemoActivity.kt to see how that works. In this example the two panes are empty, so the overlay becomes the main content.

Inside your composable functions, you can use LocalFoldDef.current to find out the current window size classes and the configuration of the fold or hinge.

@Composable
private fun FoldDefInfo() {
  with(LocalFoldDef.current) {
    LazyColumn(
      contentPadding = PaddingValues(horizontal = 16.dp, vertical = 8.dp),
    ) {
      item {
        FoldDefInfoItem("isSeparating", isSeparating.toString())
        FoldDefInfoItem("orientation", orientation.toString())
        FoldDefInfoItem("occlusionType", occlusionType.toString())
        VerticalSpacer()
        FoldDefInfoItem(
          "windowWidthSizeClass",
          windowSizeClass.windowWidthSizeClass.toString().lastPart()
        )
        FoldDefInfoItem(
          "windowHeightSizeClass",
          windowSizeClass.windowHeightSizeClass.toString().lastPart()
        )
        VerticalSpacer()
        FoldDefInfoItem("foldWidth", foldWidth.toString())
        FoldDefInfoItem("foldHeight", foldHeight.toString())
        VerticalSpacer()
        FoldDefInfoItem("widthLeftOrTop", widthLeftOrTop.toString())
        FoldDefInfoItem("heightLeftOrTop", heightLeftOrTop.toString())
        VerticalSpacer()
        FoldDefInfoItem("widthRightOrBottom", widthRightOrBottom.toString())
        FoldDefInfoItem("heightRightOrBottom", heightRightOrBottom.toString())
      }
    }
  }
}

Acknowledgements

compose_adaptive_scaffold is inspired by the Flutter package flutter_adaptive_scaffold.
