tree2code: Learning Discrete Syntactic Codes for Structural Diverse Translation

This code implements the syntactic code learning model in paper "Generating Diverse Translation with Sentence Codes" published in ACL 2019. PDF of the paper can be acquired here: . Citation:

  title={Generating Diverse Translations with Sentence Codes},
  author={Raphael Shu and Hideki Nakayama and Kyunghyun Cho},

The motivation of learning syntactic codes is to extract the syntactic structure of a sentence, and encode the structural choice into discrete codes. Then if we merge the syntactic codes with the target tokens and train a neural machine translation model to predict both of them, the code can effectively condition of the generation of the whole translation.

More concretely, suppose "<c15>" represents the syntactic structure of the sentence "John hates school.". Then we are going to train a model that does this kind of translation:

John odia la escuela. -> <c15> John hates school.

So, how can we encode syntax into discrete codes? Well, we combine the ideas of TreeLSTM autoencoder and discretization bottleneck. The TreeLSTM autoencoder creates a representation of a parse tree, and the bottleneck quantize the vector representation into discrete numbers, which is quite straight-forward.

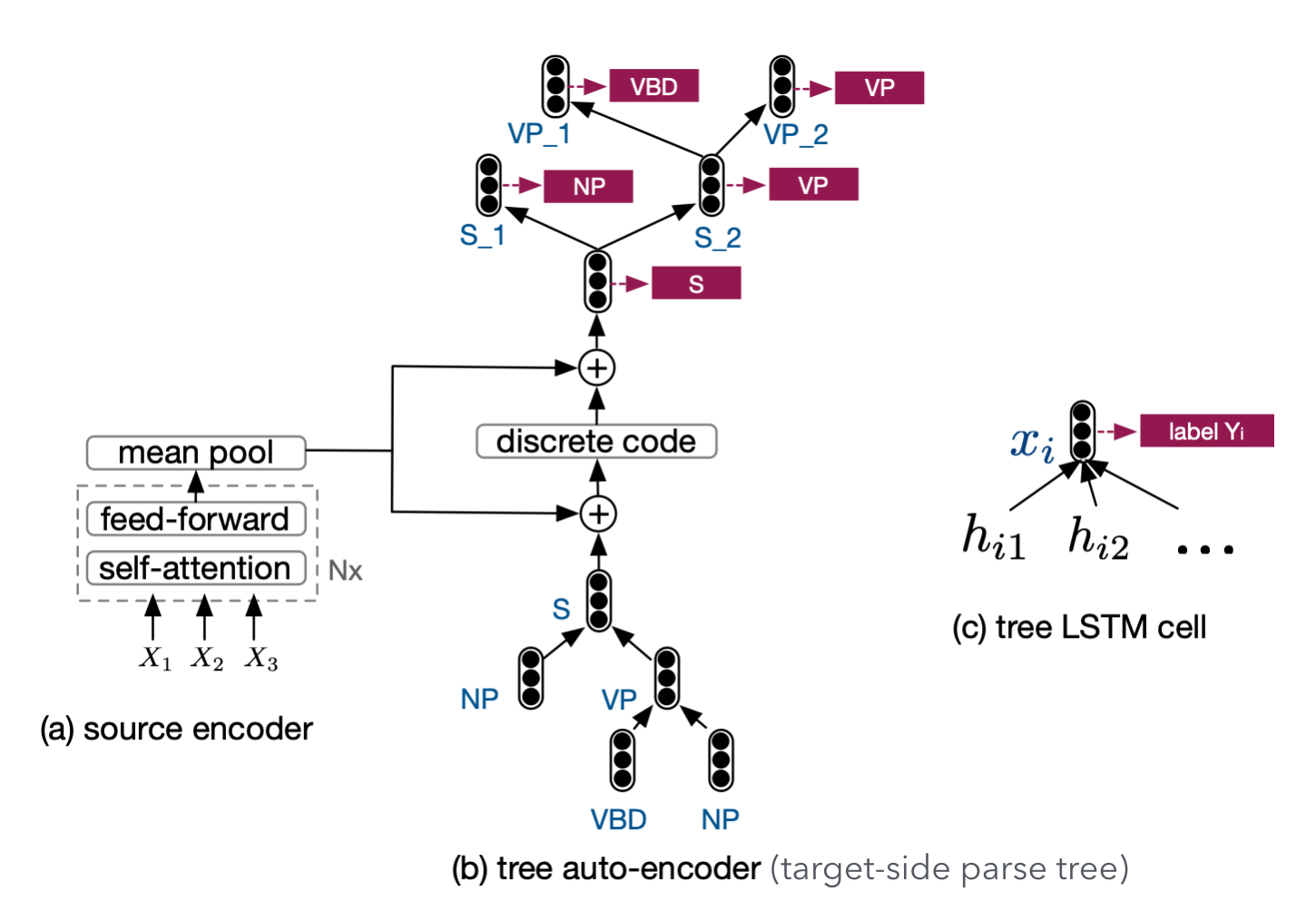

Now, this is the model, it has a pretty clear architecture of TreeLSTM-based autoencoder. The only thing you may be surprised is that we also feed the context of the source sequence into the autoencoder. Why we do this? The reason is simple. Without the source context, you are literally trying to encode almost infinite variations of parse trees into say only 32 codes, which is an impossible task even for Captain America. With the source information, you are just encoding the choice of syntactic structures.

The TreeLSTM part may looks complicated, but fortunately it can be efficiently implemented by DGL (Deep Graph Library), which is developed by NYU and AWS team.

Install Package Dependency

The code depends on PyTorch, dgl for TreeLSTM, nltk, torchtext and networkx for tree loading, nmtlab for Transformer encoder and horovod for multi-gpu training.

We recommend installing with conda.

-1. (If you don't have conda) Download and Install Miniconda for Python 3

mkdir ~/apps; cd ~/apps

Reload the bash/zsh and run python to check it's using the python in Miniconda.

-2. Install pytorch following

-3. Install dgl following

-4. (Only for multi-gpu training) Install horovod following

mkdir ~/apps; cd ~/apps
tar xzvf openmpi-4.0.1.tar.gz
cd openmpi-4.0.1
# Suppose you have Miniconda3 in your home directory
./configure --prefix=$HOME/miniconda3 --disable-mca-dso
make -j 8
make install

Check whether the openmpi is correctly installed by running mpirun. Then install horovod with:

conda install -y gxx_linux-64
# If you don't have NCCL
pip install horovod
# If you have NCCL in /usr/local/nccl
HOROVOD_GPU_ALLREDUCE=NCCL HOROVOD_NCCL_HOME=/usr/local/nccl pip install horovod

Check horovod by running horovodrun.

-5. Run pip install nltk networkx torchtext nmtlab

-6. Clone this github repo, run

cd ~/
git clone
cd tree2code

Download pre-processed WMT14 dataset with parsed CFG trees

We parse the target-side CFG trees with Stanford parser and segment the words using sentencepiece. As parsing the whole dataset is extremely time-consuming, we recommend you to just download the pre-processed dataset instead of parsing it by your self.

-1. Create mydata folder if it's not there

mkdir mydata
cd mydata

-2. Download pre-processed WMT14 dataset from . After download, uncompress the dataset in side mydata folder.

./ tree2code_wmt14.tgz
tar xzvf tree2code_wmt14.tgz

Note: The CFG trees are parsed by runing this command:

java -mx300g -cp "/your/path/stanford-parser-full-2018-10-17/*" edu.stanford.nlp.parser.lexparser.LexicalizedParser -maxLength 70 -nthreads 36 -sentences newline -retainTMPSubcategories -outputFormat 'oneline' edu/stanford/nlp/models/lexparser/englishPCFG.ser.gz corpus.en >

Train the model

-1. Go back to tree2code folder

-2. (Single GPU) Run this command:

python --opt_dtok wmt14 --opt_codebits 8 --opt_limit_tree_depth 2 --opt_limit_datapoints 800000 --train

-2. (Multi-GPU) Run this command if you have 8 GPUs:

horovodrun -np 8 -H localhost:8 python --opt_dtok wmt14 --opt_codebits 8 --opt_limit_tree_depth 2 --opt_limit_datapoints 100000 --train

There are some options you can use for training the model.

--opt_codebits specifies the number of bits for each discrete code, 8 bits means 256 categories

--opt_limit_tree_depth limit the depth of a parse tree to consider. The model will consider up to three tree layers when we limit the depth to 2. You can increase the depth and monitor the label_accuracy to ensure the reconstruction accuracy is not too low.

--opt_limit_datapoints limit the number of training datapoints to be used on each GPU as training on the whole dataset is time-consuming. In our experiments, we train the model with 8 GPUs, and limit the training datapoints to 100k on each GPU, which results in an effective training dataset of 800k samples.

The script will train the model for 20 epochs, and you will see the increasing performance like this:

[nmtlab] Training TreeAutoEncoder with 74 parameters
[nmtlab] with Adagrad and SimpleScheduler
[nmtlab] Training data has 773 batches
[nmtlab] Running with 8 GPUs (Tesla V100-SXM2-32GB)
[valid] loss=6.62 label_accuracy=0.00 * (epoch 1, step 1)
[valid] loss=1.43 label_accuracy=0.54 * (epoch 1, step 194)
[nmtlab] Ending epoch 1, spent 2 minutes
[valid] loss=0.47 label_accuracy=0.86 * (epoch 12, step 14687)

Export the syntactic codes for all training samples

Note: For single GPU, please change --opt_limit_datapoints to 800000

Once we obtain the syntactic coding model, we need to get the syntactic codes for all training samples. Just run this command:

python --opt_dtok wmt14 --opt_codebits 8 --opt_limit_tree_depth 2 --opt_limit_datapoints 100000 --export_code

It's going to take time as the dataset is large. Once it's done, if you go to mydata/, you will see things like this:

▁Der ▁Bau ▁und ▁die ▁Reparatur ▁der ▁Auto straßen ... (ROOT (NP (NP (NN Construction) (CC and) (NN repair)) (PP (IN of) (NP (NNP highways) (NNP and))) (: ...))) 246

Each line has three parts: source sequence, target-side tree and syntactic code.

Merge the codes with target sentences in the training set

Note: For single GPU, please change --opt_limit_datapoints to 800000

Finally, we merge the generated codes with target sentences in the training set.

python --opt_dtok wmt14 --opt_codebits 8 --opt_limit_tree_depth 2 --opt_limit_datapoints 100000 --make_target

If you go to mydata/tree2code_codebits-8_dtok-wmt14_limit_datapoints-100000_limit_tree_depth-2.tgt, you can find the file like this:

<c247> <eoc> ▁Construction ▁and ▁repair ▁of ▁highway s ▁and ...

Result files

You can also find all the result files here:

The file tree2code_codebits-8_dtok-wmt14_limit_datapoints-100000_limit_tree_depth-2.tgt is the target-side training data with prefixing codes.


  • put nmtlab on pypi
  • Add more comments in the code
  • Discuss the code inbalance issue
  • add the script for training NMT models and sample diverse translations
