Goverlay

GOverlay is an open source project aimed to create a Graphical UI to manage Vulkan/OpenGL overlays. It is still in early development, so it lacks a lot of features.

This project was only possible thanks to the other maintainers and contributors that have done the hard work. I am just a Network Engineer that really likes Linux and Gaming.

Table of contents

• Screenshot
• Prerequisites
• Installation
  • Distributions
    • Arch / Manjaro / Other Arch derivatives
    • Fedora
    • Solus
    • Ubuntu
    • OpenSUSE
  • Tarball
  • Source
    • Prerequisites
    • Building
    • Running
• Credits
• Donations

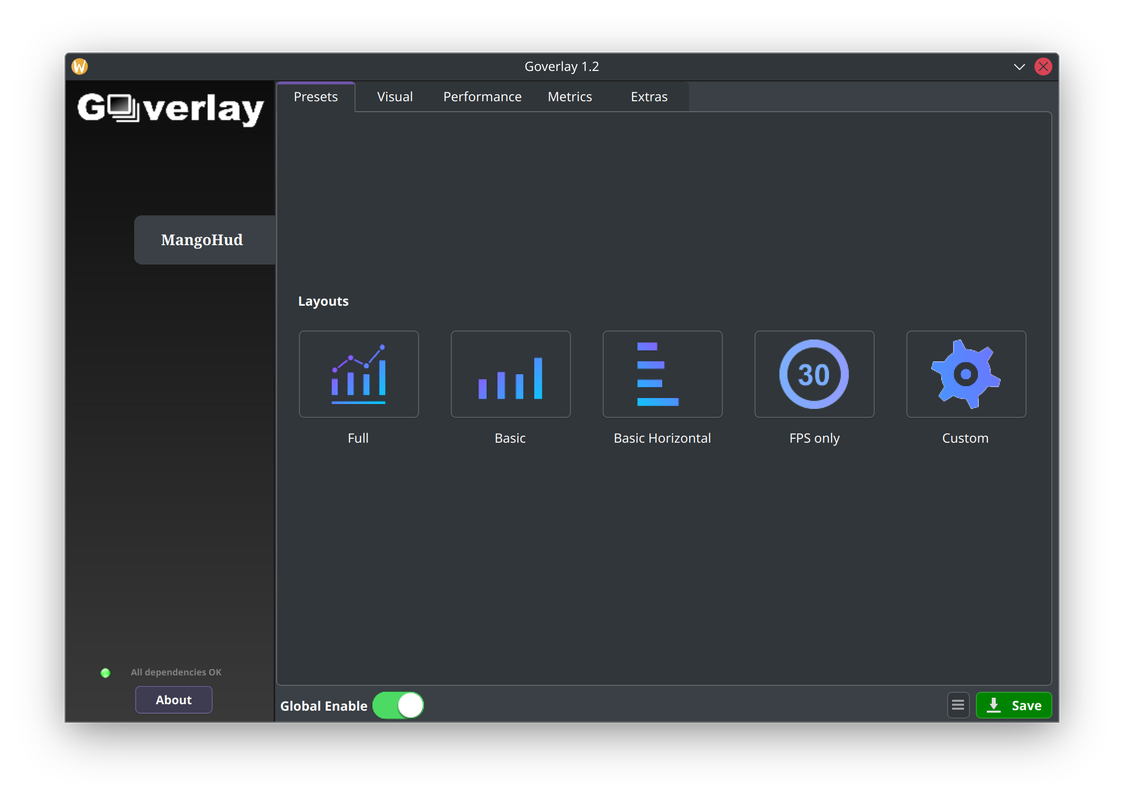

Screenshot

Prerequisites

Here are the dependencies needed in order to make GOverlay run:

• mangohud - Configure MangoHud
• mesa-demos - OpenGL preview
• vulkan-tools - Vulkan preview
• vkBasalt - Configure vkBasalt
• git - Clone reshade repository
• qt6pas - Free Pascal Qt6 binding library updated by lazarus IDE

Installation

Distributions

Arch / Manjaro / Other Arch derivatives

To install goverlay, run the following command as root:

pacman -S goverlay

Fedora

To install goverlay, run the following command as root:

dnf install goverlay

OpenSUSE

Tumbleweed

To install goverlay, run the following command as root:

zypper install goverlay

Leap 15.2

To install goverlay from the games:tools repo, run the following commands as root:

zypper addrepo https://download.opensuse.org/repositories/games:tools/openSUSE_Leap_15.2/games:tools.repo
zypper refresh
zypper install goverlay

Solus

To install goverlay, run the following command as root:

eopkg it goverlay

Debian

To install goverlay in debian sid, run the following command as root:

apt install goverlay

Ubuntu

To install goverlay in Ubuntu (20.04 and up) and derivatives, you need to install libqt6pas that isn't provided by official repo, but you can grab it in https://github.com/davidbannon/libqt6pas

sudo apt-get update
wget https://github.com/davidbannon/libqt6pas/releases/download/v6.2.8/libqt6pas6_6.2.8-1_amd64.deb
sudo dpkg -i libqt6pas6_6.2.8-1_amd64.deb
tar -zxvf goverlay*.tar.gz
./goverlay

To avoid a issue with libdl.so on ubuntu based distros it's recomended to build Mangohud from source. https://github.com/flightlessmango/MangoHud

Tarball

1. Download the latest tarball from Releases.

2. Extract the file by running the following command:

tar -xvf goverlay*.tar.xz

3. Properly execute the binary inside the tar file:

./goverlay

Note: Since version 0.6.4 mangohud needs to be installed to run GOverlay.

Source

Prerequisites

Before building, you will need to install the following:

• Lazarus - IDE

Building

To build GOverlay, clone the git repository by running following command:

git clone https://github.com/benjamimgois/goverlay.git

Then, change directory and build GOverlay by running the following commands:

cd goverlay
make

Running

Start GOverlay with:

./goverlay

Note: Since version 0.6.4 mangohud needs to be installed to run GOverlay.

Installing

To install GOverlay execute:

make install

This will install the start script to /usr/local/bin/goverlay, so that it can be launched via goverlay in the console.

Theme compatibility

Since Goverlay 0.9 the official supported themes are Breeze (plasma) and Adwaita (Gnome). If you run into issues with your current one you can force goverlay to run with a specific theme:

goverlay --style breeze

or

goverlay --style fusion

Credits

Mango

Most of the credits go to Flightless Mango. He is the man and the mind behind MangoHud.

https://flightlessmango.com/

https://github.com/flightlessmango/MangoHud

https://discordapp.com/invite/Gj5YmBb

DadSchoorse

Special thanks to DadSchoorse, creator of the vkBasalt project.

https://github.com/DadSchoorse/vkBasalt

Lazarus

This project was built using Lazarus.

Donations

If this project was useful to you, don't hesitate to donate to me :)
