Positioning nodes with x and y

[z-sanjivini]

I have been using the default example given and was simply playing around with the config.

import React from "react";
import { Graph } from "react-d3-graph";

// graph payload (with minimalist structure)
const data = {
    // nodes: [{ id: "Harry" }, { id: "Sally" }, { id: "Alice" }],
    // links: [{ source: "Harry", target: "Sally" }, { source: "Harry", target: "Alice" }],
    nodes : [
      {
          id: 1,
          name: "A",
          x: 50,
          y: 300,
      },
      {
          id: 2,
          name: "B",
          x: 40,
          y: 310,
      },
      {
          id: 3,
          name: "C",
          x: 40,
          y: 310,
      },
      {
          id: 4,
          name: "D",
          x: 400,
          y: 200,
      },
  ],
    links: [
      {
          source: 1,
          target: 2,
          //label: "A-B",
      },
      {
          source: 1,
          target: 3,
          //label: "A-C",
      },
      {
          source: 2,
          target: 4,
          //label: "A-D",
      },
  ],
};

// the graph configuration, you only need to pass down properties
// that you want to override, otherwise default ones will be used
const myConfig = {
    // nodeHighlightBehavior: true,
    // node: {
    //     color: "lightgreen",
    //     size: 120,
    //     highlightStrokeColor: "blue",
    // },
    // link: {
    //     highlightColor: "lightblue",
    // },
    height: 1200,
    width: 1200,
    nodeHighlightBehavior: true,
    linkHighlightBehavior: true,
    staticGraphWithDragAndDrop: true,
    node: {
        fontSize: 12,
        highlightFontSize: 12,
        highlightFontWeight: "bold",
        highlightStrokeColor: "blue",
        labelProperty: "name",
        size: 500,
        strokeWidth: 2,
    },
    link: {
        highlightColor: "blue",
        renderLabel: true,
        highlightFontWeight: "bold",
        semanticStrokeWidth: true,
        fontSize: 12,
    },
    d3: {
        gravity: -400,
        linkLength: 180,
    },
};

// graph event callbacks
const onClickGraph = function() {
    window.alert(`Clicked the graph background`);
};

const onClickNode = function(nodeId) {
    window.alert(`Clicked node ${nodeId}`);
};

// const onDoubleClickNode = function(nodeId) {
//     window.alert(`Double clicked node ${nodeId}`);
// };

const onRightClickNode = function(event, nodeId) {
    window.alert(`Right clicked node ${nodeId}`);
};

const onMouseOverNode = function(nodeId) {
    // window.alert(`Mouse over node ${nodeId}`);
};

const onMouseOutNode = function(nodeId) {
    // window.alert(`Mouse out node ${nodeId}`);
};

const onClickLink = function(source, target) {
    window.alert(`Clicked link between ${source} and ${target}`);
};

const onRightClickLink = function(event, source, target) {
    window.alert(`Right clicked link between ${source} and ${target}`);
};

const onMouseOverLink = function(source, target) {
    // window.alert(`Mouse over in link between ${source} and ${target}`);
};

const onMouseOutLink = function(source, target) {
    // window.alert(`Mouse out link between ${source} and ${target}`);
};

const onNodePositionChange = function(nodeId, x, y) {
    window.alert(`Node ${nodeId} is moved to new position. New position is x= ${x} y= ${y}`);
};

function App() {
  return (<Graph
    id="graph-id" // id is mandatory, if no id is defined rd3g will throw an error
    data={data}
    config={myConfig}
    onClickNode={onClickNode}
    onRightClickNode={onRightClickNode}
    onClickGraph={onClickGraph}
    onClickLink={onClickLink}
    onRightClickLink={onRightClickLink}
    onMouseOverNode={onMouseOverNode}
    onMouseOutNode={onMouseOutNode}
    onMouseOverLink={onMouseOverLink}
    onMouseOutLink={onMouseOutLink}
    onNodePositionChange={onNodePositionChange}
/>)
}

export default App;

Each time I run this code, even when the coordinates have been hardcoded, I get new positions. Why is that so since they should now be fixed. I would like to simply create a tree structure with siblings getting equally spaced, how do I calculate these coordinates. Could you please explain?

[danielcaldas]

@StevenHeven maybe you could share a bit no your experience of displaying tree-like structure with react-d3-graph 🙂 (sorry to tag you here directly 🙈 )

[z-sanjivini]

Also, even after fixing the coordinates why do the node's position change everytime on re-rendering? I believed that they would remain in constant positions.

[StevenHeven]

Hi @z-sanjivini ,

I launched your code and, except that you have nodes with the same x values, it works.

Afterwards, to create a kind of tree with child-parent relationships, you must first walk your tree like roads.
Let me explain:
You have to go through your graph from the beginning, and go up via the links to know who the children of the node being looked at are, and then create a table of your nodes that will be in the right order or then simply a map with a key a node and worth its children for example. Then with this table, you can then define positions according to the children of the nodes.

That is basically how to proceed in a logical way. That's what it can do:

I'm not going to put my code to get to that because there's no point but it's to make the principle understandable;)

If you need more explanations, I'm here ;)
And no problem @danielcaldas , if i can help ;)

[antoninklopp]

@StevenHeven I also had problem with node positioning, even with gravity at 0 and different positions they get rearranged by d3. How do you get around this problem?

[StevenHeven]

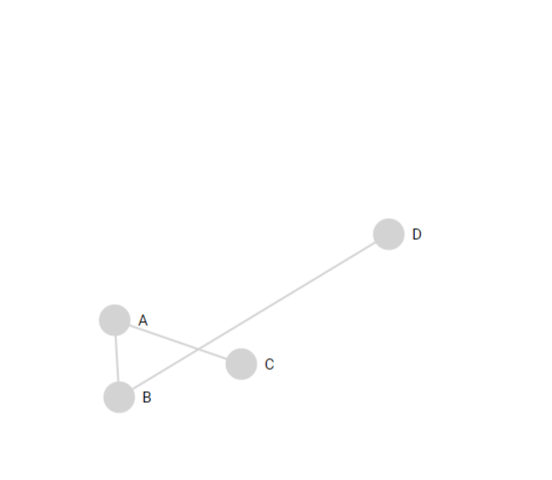

I don't understand how you get this trouble because i run your code and it's work :

With your code upper ....

[StevenHeven]

If you want to see how i made my tree graph, you can check the Issue#270 to see the code ;)

[antoninklopp]

@StevenHeven, I can reproduce the problem here (link to sandbox)
The real problem is that the d3.linkLength rearranges the nodes alone.

In my example, 3 nodes should be at the same level at the bottom, and one above the second one, like this :

But when I add the links I get this :

Do you have any fix for this?

[antoninklopp]

After looking a bit at the code, I found exactly the behavior I'd like to have :
Changing the function here

From :

   _graphBindD3ToReactComponent() {
        this.state.simulation.nodes(this.state.d3Nodes).on("tick", this._tick);
        this._graphLinkForceConfig();
        this._graphNodeDragConfig();
    }

To :

   _graphBindD3ToReactComponent() {
        this._graphNodeDragConfig();
    }

It lets my config as I described it in the doc.
@danielcaldas Is it possible to override this behavior, or at least to override it if the user specified an x, y position for each entry?

[danielcaldas]

I currently don't have time to look into it in more detail, but my approach would be something like:

First look into the comments from @StevenHeven, maybe you're missing something? If that's not the case we could try to go for the following implementation:

1. Create a new config to disable link force and simulation

config = {
   nodeHighlightBehaviour: true,
   // ... other configs
   disableLinkForceConfig: false, // --> new API config

2. Implement changes according to the config

_graphBindD3ToReactComponent() {
    if (disableLinkForceConfig) {
        this.state.simulation.nodes(this.state.d3Nodes).on("tick", this._tick);
        this._graphLinkForceConfig();
    }
    this._graphNodeDragConfig();
}

Let me know if you're willing to give this a try, cheers!

[antoninklopp]

Sure I will do a PR for this one !

[danielcaldas]

Thanks @antoninklopp, closing this with #278

[ASchwad]

Sorry for bringing this old issue up again, but this seems like the most fitting place for my question:

I would like to statically position nodes on 3 levels based on the x coordinate. If there are multiple nodes on one level, they should automatically take distance from each other by adjusting their y-coordinate.
Is it still possible to use gravity for the y-coordinate, if I set the following config? I cannot get it to work so far.

d3: { disableLinkForce: true, gravity: -500 },

[danielcaldas]

Hi @ASchwad, you would have to compute yourself the x,y coordinates to fulfill your distancing requirements.
