facet labellers not calling default #4031

Closed
waltersom opened this issue May 27, 2020 · 1 comment · Fixed by #4032
Closed

facet labellers not calling default #4031

waltersom opened this issue May 27, 2020 · 1 comment · Fixed by #4032

Comments

@waltersom
Copy link
Contributor

I have a plot using facet_grid, that I want to set the facet labels with.
The faceting variables are stored as integers, and I am trying to use lookup tables to specify some expressions, and then pass those to label_parsed.

As I read the docs for labeller(), the lookup table should be passed to .default.

.default Default labeller for variables not specified. Also used with lookup tables or non-labeller functions.

However, this doesn't seem to be happening (note labels on rows.)

I'm not sure if this is a documentation problem, me misunderstanding something, or a problem with the labeller.


library(ggplot2)
tdf <- data.frame(x=c(1,2,3,4), y=c(4,3,2,1), a=c(0,1,0,1), b=c(1, 2, 2, 1))
ggplot(tdf, aes(x, y))+geom_point()+
  facet_grid(a~b, labeller=labeller(a=c(`0`="a^2", `1`="a[2]"), b=c(`1`="One", `2`="Two"), .default=label_parsed))

Created on 2020-05-27 by the reprex package (v0.3.0)


If I instead use .rows and .cols to name the arguments to labeller, I get the expected result.
(The labels on the rows are now passed to label_parsed)

library(ggplot2)
tdf <- data.frame(x=c(1,2,3,4), y=c(4,3,2,1), a=c(0,1,0,1), b=c(1, 2, 2, 1))
ggplot(tdf, aes(x, y))+geom_point()+
  facet_grid(a~b, labeller=labeller(.rows=c(`0`="a^2", `1`="a[2]"), .cols=c(`1`="One", `2`="Two"), .default=label_parsed))

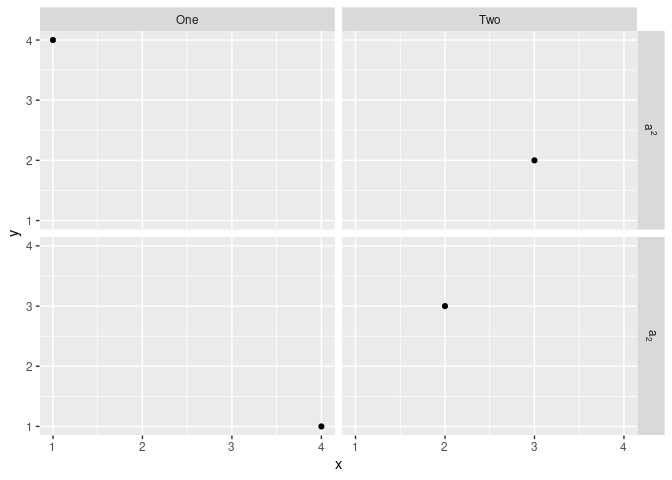

Created on 2020-05-27 by the reprex package (v0.3.0)

@clauswilke
Copy link
Member

You're correct. The code doesn't reflect the documentation. If you check out line 440 below, the .default argument is not forwarded to as_labeller(), whereas in line 442 it is. Line 440 is run in your first example, line 442 in your second one.

ggplot2/R/labeller.r

Lines 439 to 443 in 3e35c7a

if (is.null(margin_labeller)) {
labellers <- lapply(dots, as_labeller)
} else {
margin_labeller <- as_labeller(margin_labeller, default = .default,
multi_line = .multi_line)

karawoo added a commit that referenced this issue Jun 23, 2020
* Fix labeller to pass .default for lookups (#4031)

Pass .default to as_labeller even when margin_labeller is null, such as
when using named arguements for a lookup table.

* Correct style, and add line to NEWS.md

* Move NEWS bullet into dev version section

Co-authored-by: Kara Woo <woo.kara@gmail.com>
