Table array access in TreeSequence

[jeromekelleher]

Add array access to TreeSequence and solve some performance issues/memory leaks. See below for more details.

[codecov]

Codecov Report

Merging #2424 (d51f87e) into main (8c932c2) will increase coverage by 0.03%.
The diff coverage is 98.78%.

❗ Current head d51f87e differs from pull request most recent head 01ef912. Consider uploading reports for the commit 01ef912 to get more accurate results

@@            Coverage Diff             @@
##             main    #2424      +/-   ##
==========================================
+ Coverage   93.36%   93.39%   +0.03%
==========================================
  Files          28       28
  Lines       27056    27245     +189
  Branches     1253     1253
==========================================
+ Hits        25260    25445     +185
- Misses       1762     1766       +4
  Partials       34       34

Flag	Coverage Δ
c-tests	92.26% <ø> (-0.01%)	⬇️
lwt-tests	89.05% <ø> (ø)
python-c-tests	71.37% <96.34%> (+0.41%)	⬆️
python-tests	98.94% <100.00%> (+<0.01%)	⬆️

Flags with carried forward coverage won't be shown. Click here to find out more.

Impacted Files	Coverage Δ
python/_tskitmodule.c	90.91% <98.60%> (+0.18%)	⬆️
python/tskit/trees.py	98.68% <100.00%> (+0.01%)	⬆️
c/tskit/trees.c	94.99% <0.00%> (+0.01%)	⬆️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 8c932c2...01ef912. Read the comment docs.

[jeromekelleher]

Fixes #2423:

Before using the standard ts.trees() approach:

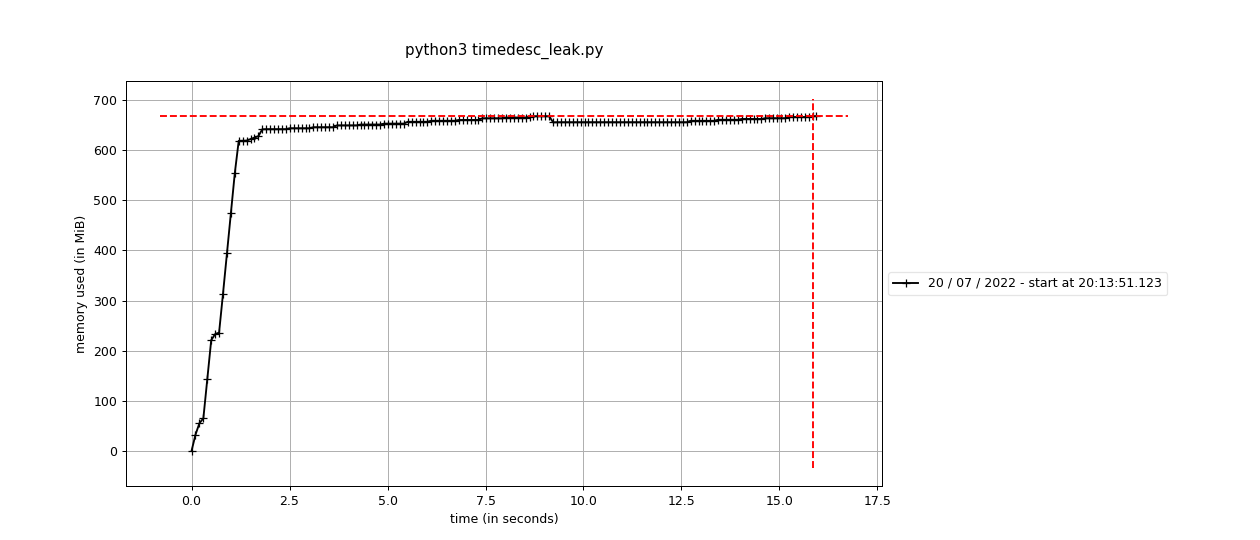

Before using the sequential ts.at(j) approach:

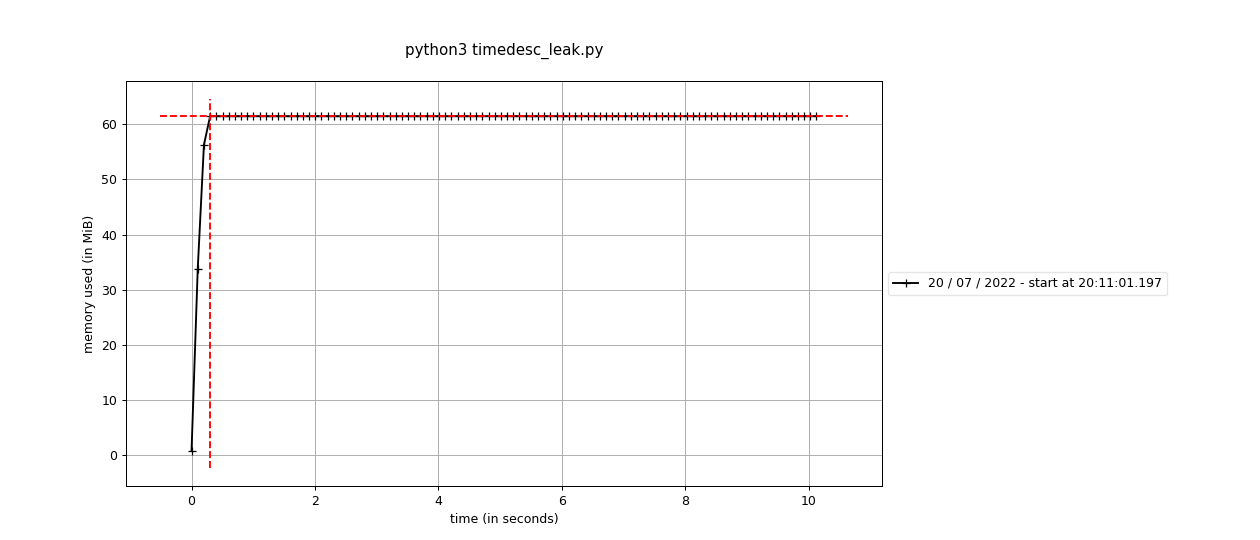

This branch:

The difference is pretty stark - 60M vs around 650M. It's interesting that it doesn't seem like this is a real "leak" per-se, because the memory does hit a high-water mark. It's an awful lot more though, and maybe we're having to run garbage collection or something to get it back?

[jeromekelleher]

Fixes #1916:

Benchmark:

import msprime
import time


before = time.perf_counter()
ts = msprime.sim_ancestry(
    10000,
    sequence_length=1000000,
    population_size=10_000,
    recombination_rate=1e-8,
    random_seed=1234,
)
duration = time.perf_counter() - before
print(f"Simulation of {ts.num_trees} trees done after {duration:.2f} seconds")

for _ in range(1000):
    samples = ts.samples(time=0)
    # print(samples)

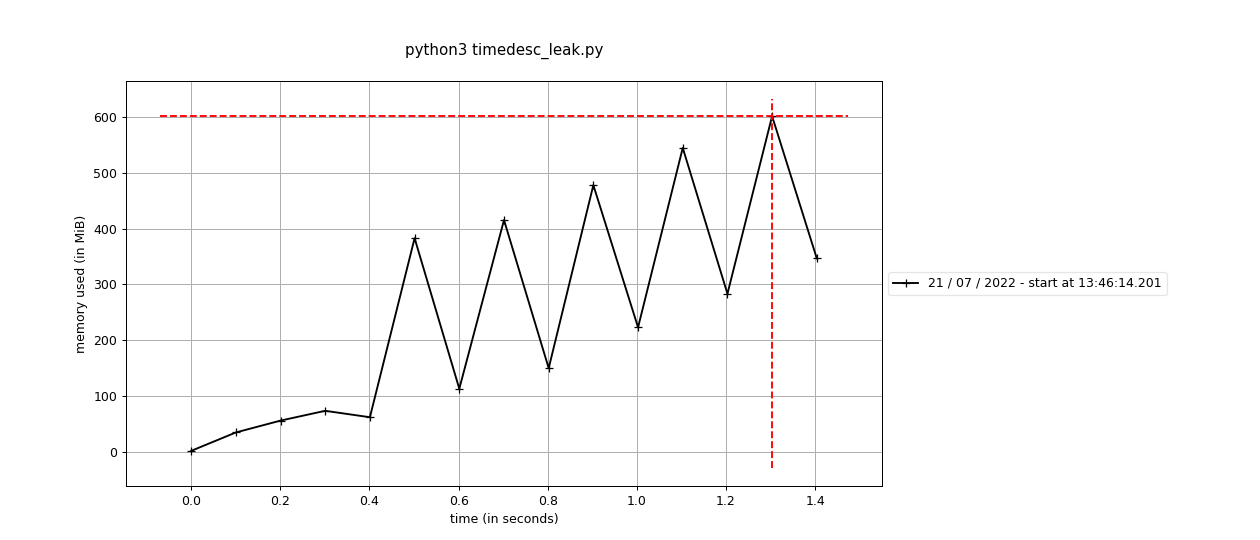

Before:

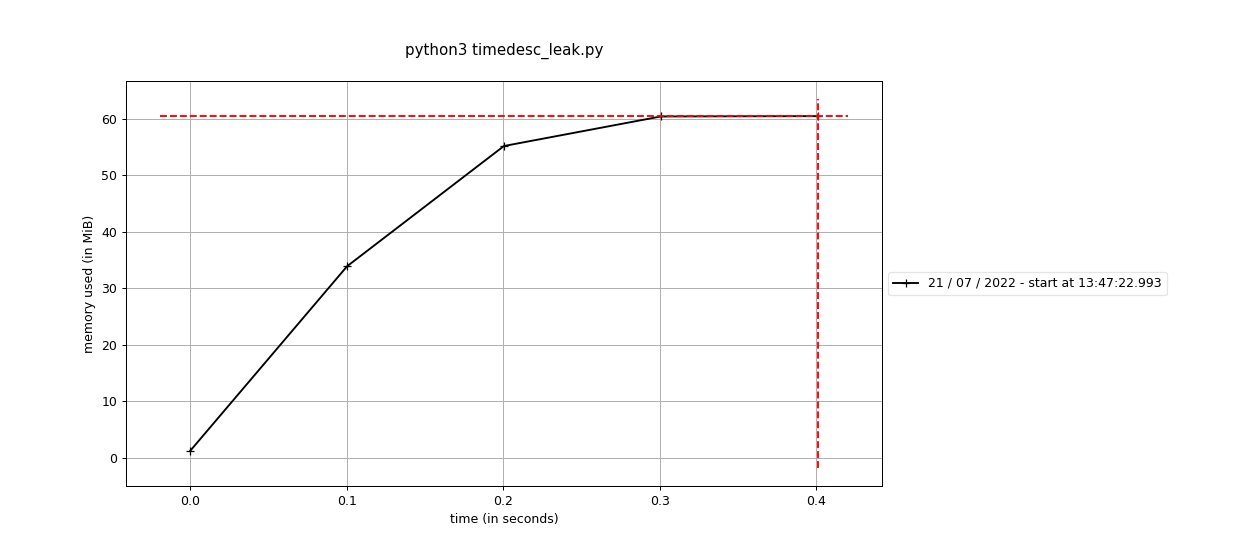

This branch:

[jeromekelleher]

Performance improvement of ts.site(position=x). Benchmark:

import msprime
import time


before = time.perf_counter()
ts = msprime.sim_ancestry(
    10000,
    sequence_length=1000000,
    population_size=10_000,
    recombination_rate=1e-8,
    random_seed=1234,
)
ts = msprime.sim_mutations(ts, rate=1e-7, random_seed=1)
duration = time.perf_counter() - before
print(f"Simulation of {ts.num_trees} trees done after {duration:.2f} seconds")

for site in ts.sites():
    s = ts.site(position=site.position)
    if site.id >= 1000:
        break

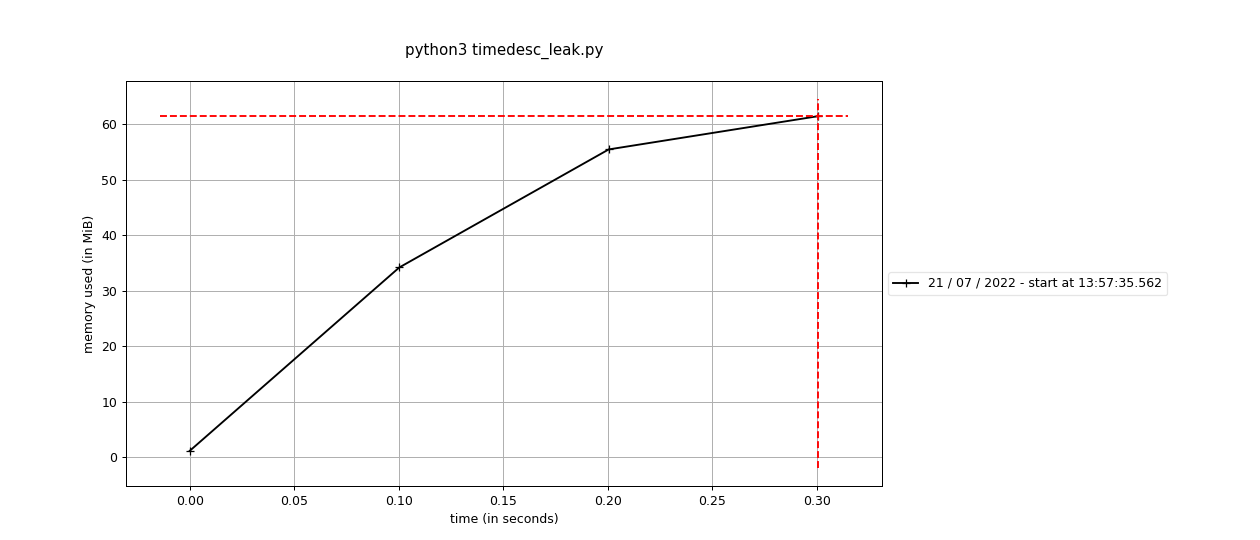

Before:

After:

[jeromekelleher]

Performance for using ts.variants(left=x):

import msprime
import time


before = time.perf_counter()
ts = msprime.sim_ancestry(
    10000,
    sequence_length=1000000,
    population_size=10_000,
    recombination_rate=1e-8,
    random_seed=1234,
)
ts = msprime.sim_mutations(ts, rate=1e-7, random_seed=1)
duration = time.perf_counter() - before
print(f"Simulation of {ts.num_trees} trees done after {duration:.2f} seconds")

for _ in range(10):
    for var in ts.variants(left=1):
        pass

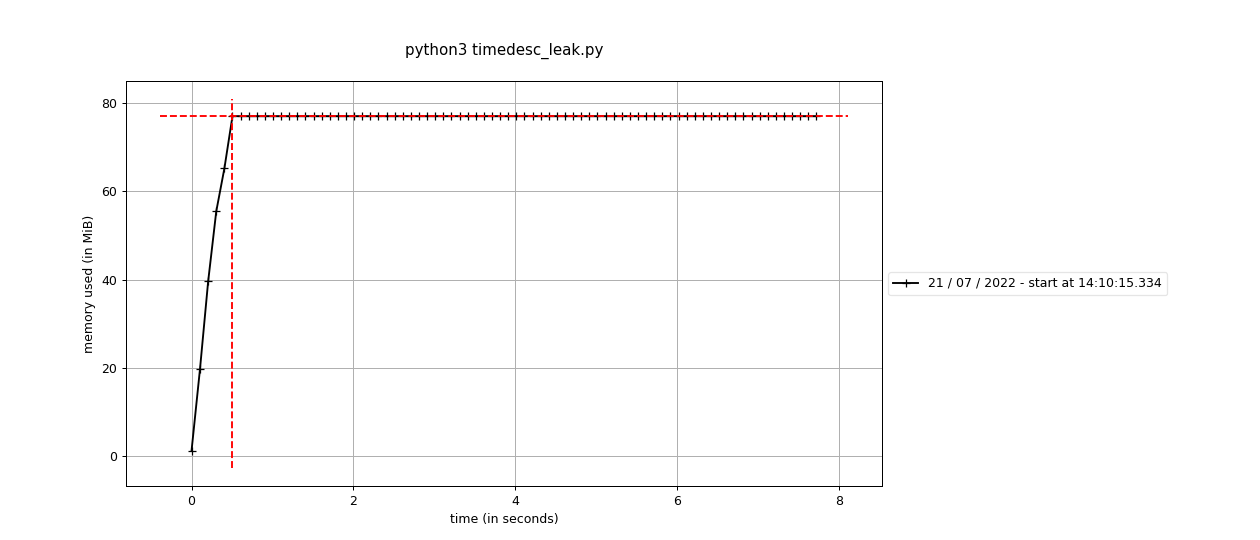

Before:

After:

(Note before appears to be leaking memory, and since we released a version which always takes a copy of the tables in 0.5.1, the variants iterator is leaking at the moment in the released version).

Updated: opened #2427 to track the leak in the released version in 0.5.1 which leaks even when we don't specify left or right).

[jeromekelleher]

Running edge_diffs:

import msprime
import time


before = time.perf_counter()
ts = msprime.sim_ancestry(
    10000,
    sequence_length=1000000,
    population_size=10_000,
    recombination_rate=1e-8,
    random_seed=1234,
)
# ts = msprime.sim_mutations(ts, rate=1e-7, random_seed=1)
duration = time.perf_counter() - before
print(f"Simulation of {ts.num_trees} trees done after {duration:.2f} seconds")

before = time.perf_counter()
for _ in range(100):
    for _ in ts.edge_diffs():
        pass
duration = time.perf_counter() - before

print(f"Ran edge diffs in {duration:.2f} seconds")

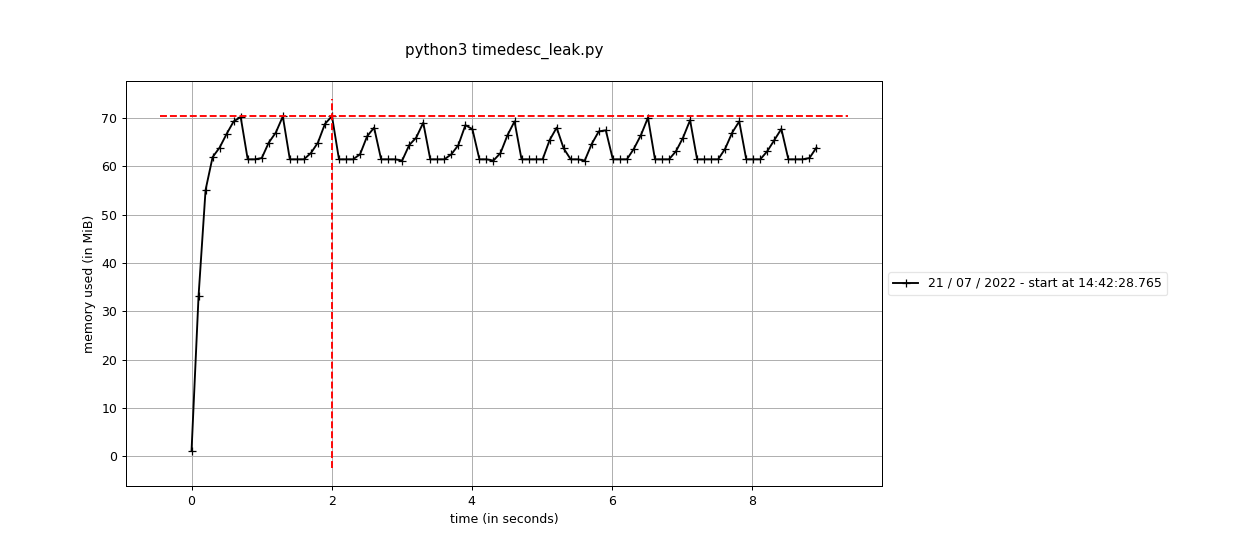

Before

After:

Interestingly there's no real difference in edge_diffs - we just take a little bit off the peak memory. We don't have a memory leak beforehand, which is a bit of a head-scratcher.

[jeromekelleher]

This is ready for review. The basic idea is to provide array access via the TreeSequence object in lieu of the "proper" solution of making TreeSequence.tables a read-only view (which is hard, engineering wise). On the way I've moved all internal usage of self.tables as they were all leading to significant performance problems (at best) and sometimes major memory leaks (#2428). I don't understand why some of these were leaking memory and others aren't, but we can follow that up later - at least library functions shouldn't leak and be efficient.

See #2426 for discussion of what we should do for the ragged columns (that I've left out here).

Since we've got some memory leaks in the released version we should probably get this out ASAP.

[petrelharp]

NICE!!! Looks good to me - just a docs suggestion/comment.

[jeromekelleher]

Marking this one for merging as I need it to work with the 1.4M sample tree sequences on Zenodo (and there's another bug that needs resolving to get a VCF out of them). Please do follow up with issues for any review problems you spot @benjeffery @hyanwong

[hyanwong]

Sorry for the slow review. LGTM - this is a great improvement. My only query would be if / how we intend to maintain this in the long term, once we address #760. Will we then deprecate these attributes, and simply have them as permanently maintained (and undocumented?) equivalents to ts.tables.nodes.time and friends?

[jeromekelleher]

Will we then deprecate these attributes, and simply have them as permanently maintained (and undocumented?) equivalents to ts.tables.nodes.time and friends?

I think we can keep them permanently as part of the public API. There is an advantage of fewer attribute lookups in ts.node_flags to ts.tables.nodes.flags as well as a bit less typing, so no harm in keeping them I think.

[benjeffery]

Been through this closely and looks good!

[benjeffery]

Why not parameterise this with the same list as the last test?

[jeromekelleher]

I thought this was simpler and easier to follow. There would have been some obscure string parsing and getattring in order to get the corresponding table array, and this seemed more ... obvious.
