IntelliJ setup

Part 1

• install IntelliJ (beyond the scope of this documentation)
• start IntelliJ

• select Do not import settings
• click OK

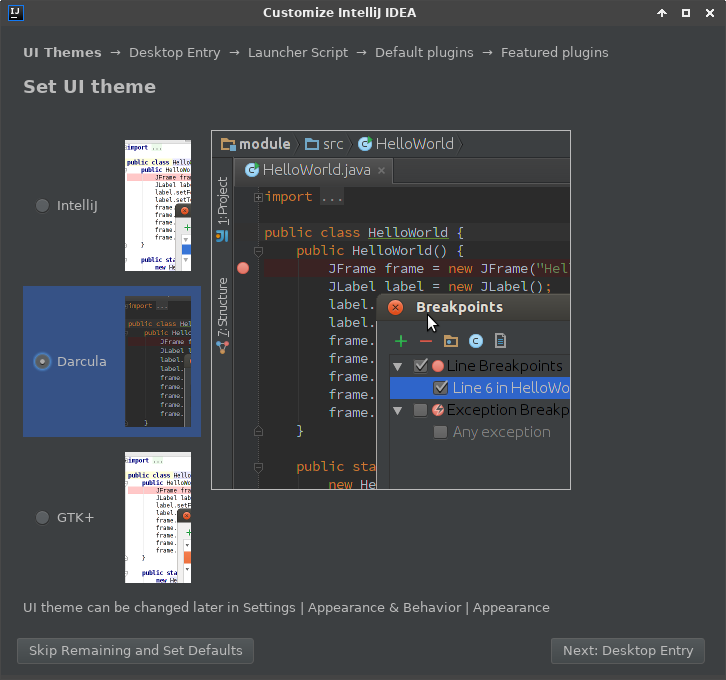

• select Theme
• click Skip Remaining and Set Defaults

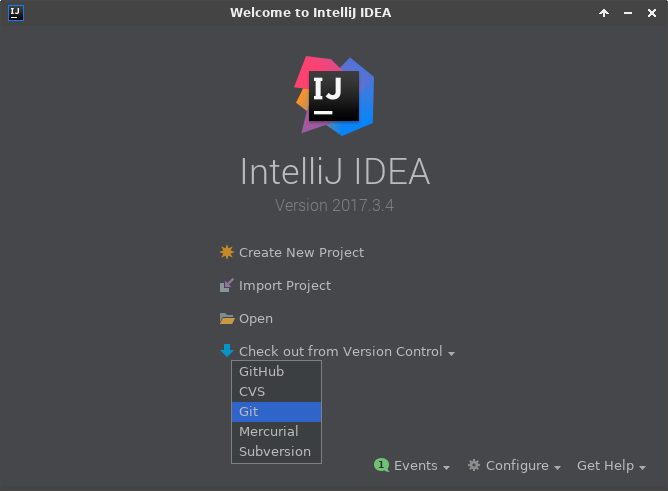

• select Check out from Version Control
• select Git

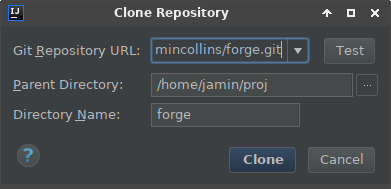

• enter your repository/branch details

• click Test

• click Clone

• -- wait ---

You will receive a prompt indicating that your checkout from version control contained a project file. In my experience, attempting to open this file fails to do anything useful.

• click No

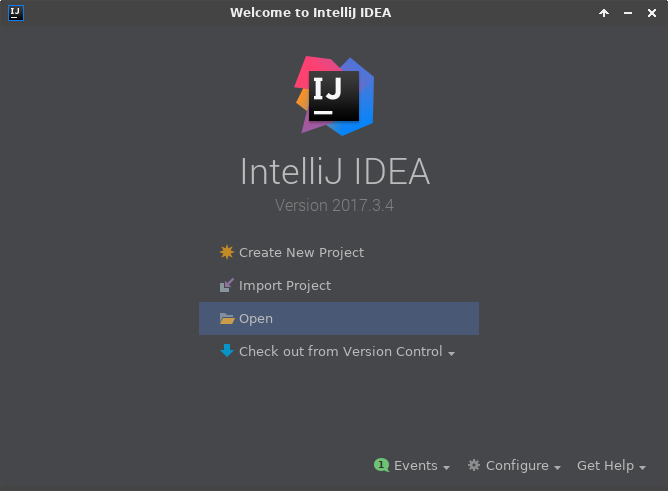

• click Open

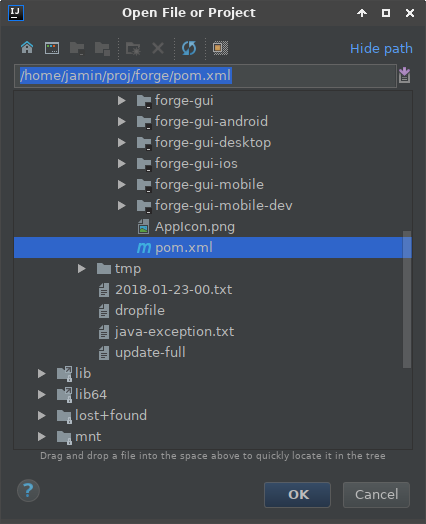

Browse to the folder you specified for the parent and inside the folder you specified for the git checkout. You should see a pom.xml file.

• select the pom.xml file
• click OK

• select Open as Project

At this point IntelliJ should be open with the Forge project. However, it will take a while for IntelliJ to download all the project dependencies. This is reflected in the bottom status bar by default.

Part 2

• select File

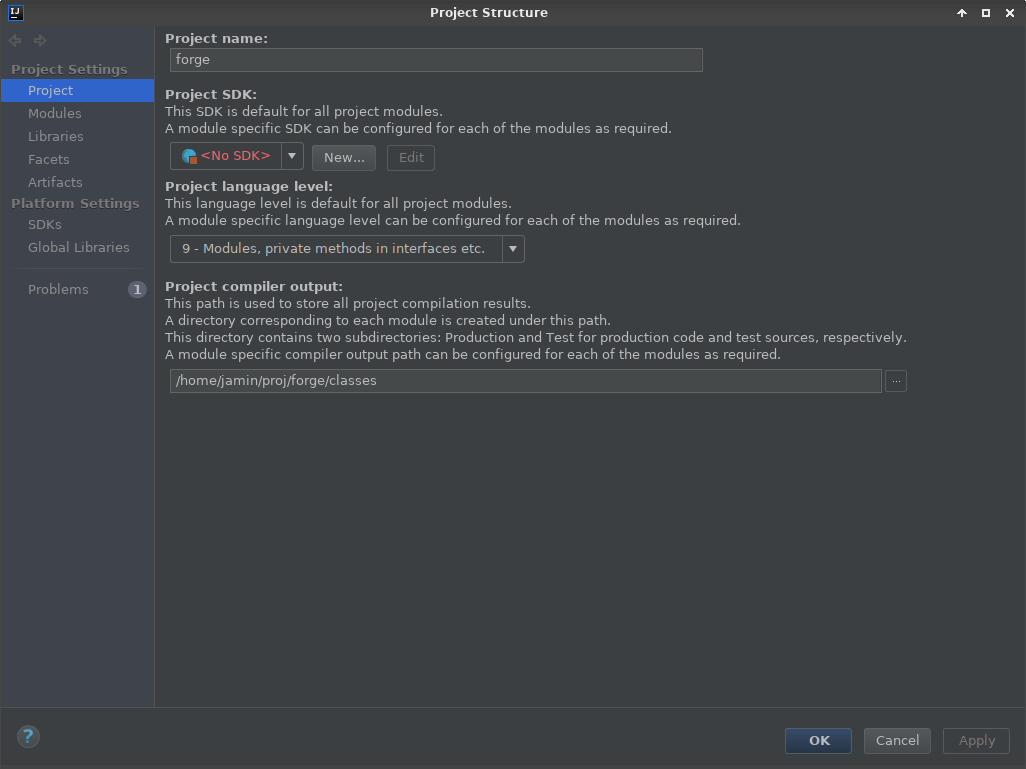

• select Project Structure...

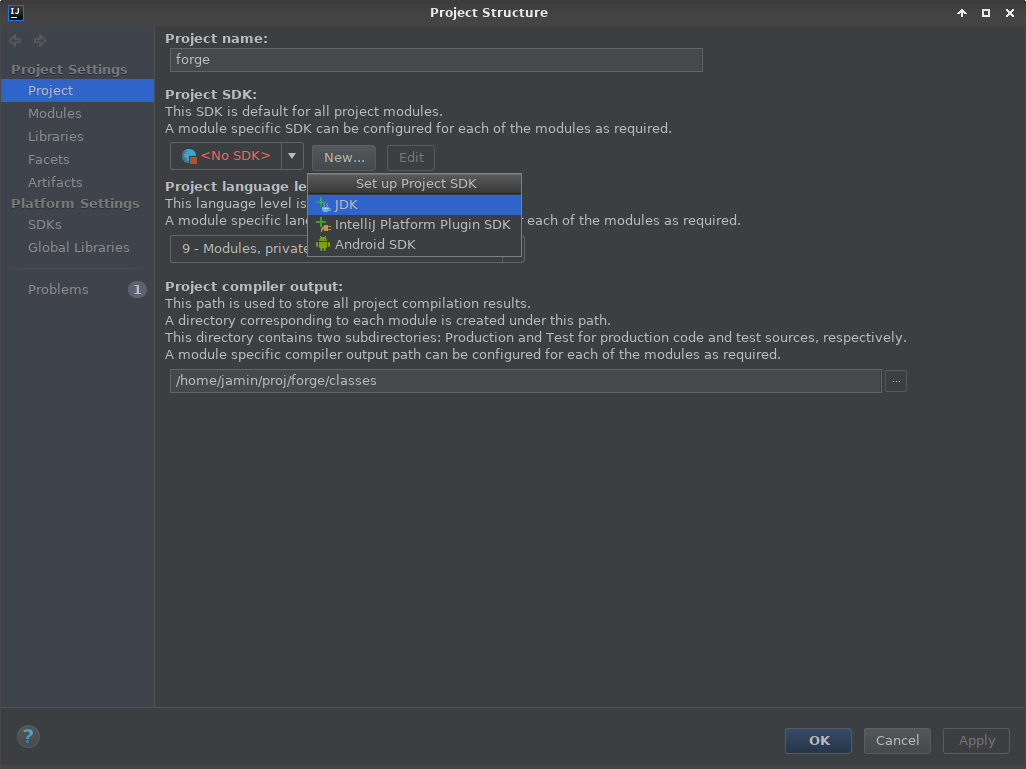

• select New
• select JDK

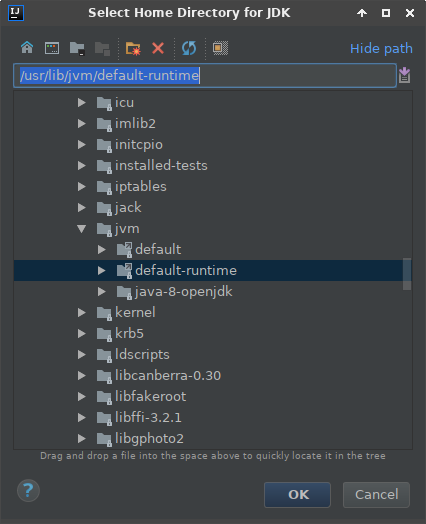

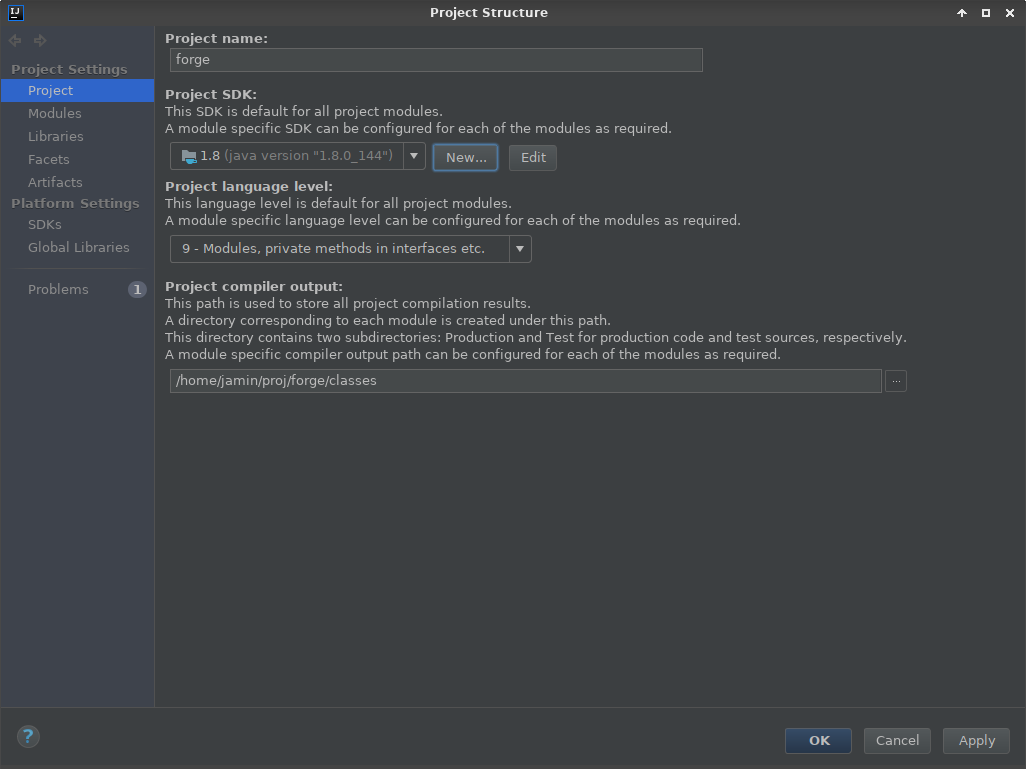

If necessary browse to the JDK directory.

• click OK

• click OK

• select Run from the top menu

• select Debug... from the drop down

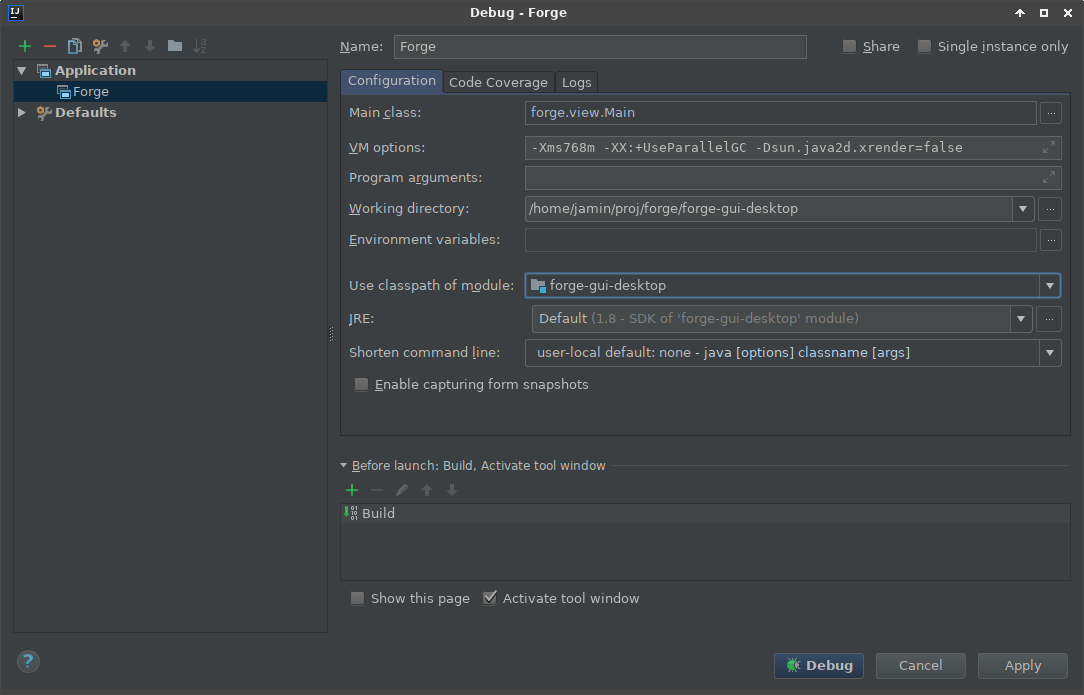

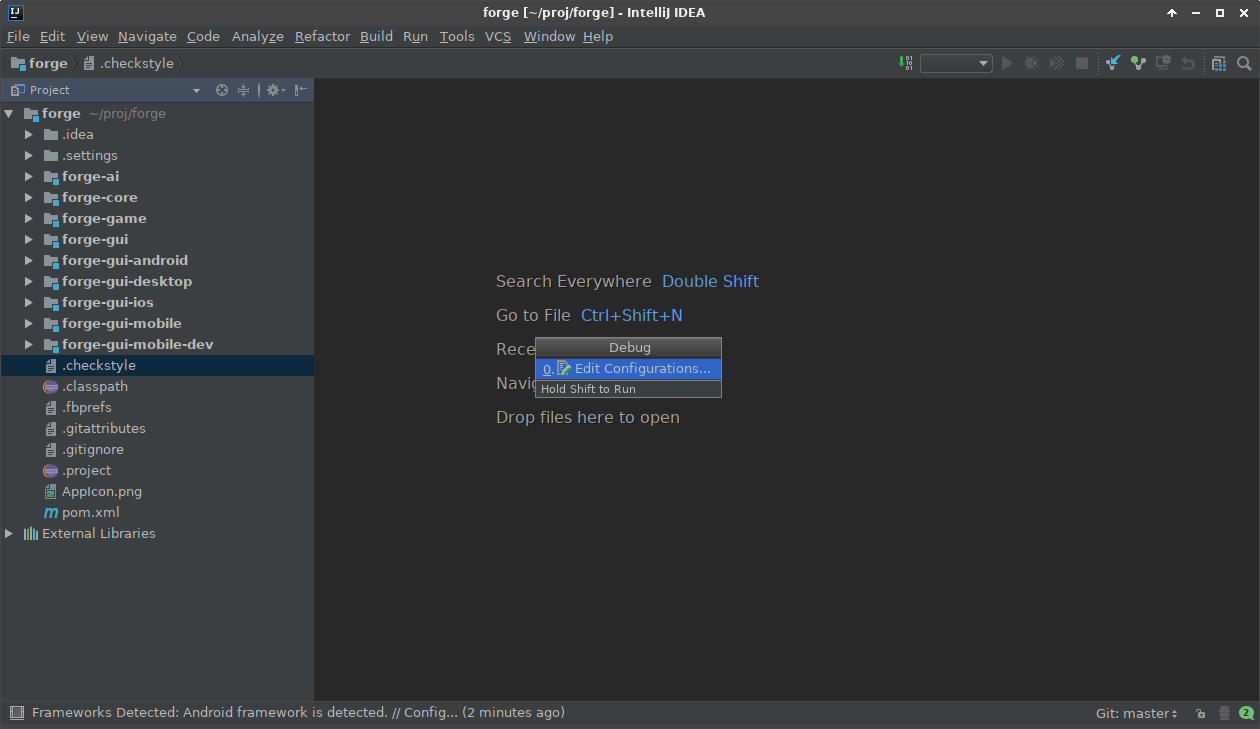

• select Edit Configurations...

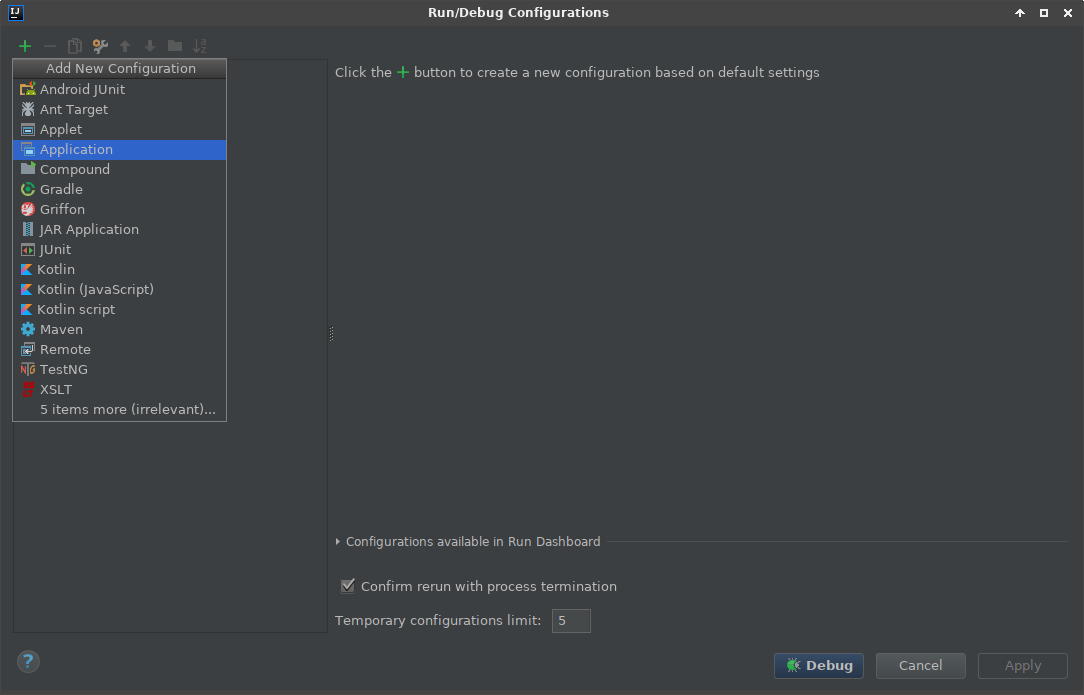

• click the + in the upper left

• select "Application"

• set the Name to: Forge

• set the Main class to: forge.view.Main

• set the VM options to:

  • (using JAVA 8 / 1.8)

    -Xms768m -XX:+UseParallelGC -Dsun.java2d.xrender=false -Dio.netty.tryReflectionSetAccessible=true

  • (JAVA 11 and above)

    -Xms768m -XX:+UseParallelGC -Dsun.java2d.xrender=false --add-opens java.base/java.util=ALL-UNNAMED --add-opens java.base/java.lang=ALL-UNNAMED --add-opens java.base/java.lang.reflect=ALL-UNNAMED --add-opens java.base/java.text=ALL-UNNAMED --add-opens java.desktop/java.awt.font=ALL-UNNAMED --add-opens java.base/jdk.internal.misc=ALL-UNNAMED --add-opens java.base/sun.nio.ch=ALL-UNNAMED --add-opens java.base/java.nio=ALL-UNNAMED --add-opens java.base/java.math=ALL-UNNAMED --add-opens java.base/java.util.concurrent=ALL-UNNAMED --add-opens java.desktop/java.awt=ALL-UNNAMED --add-opens java.base/java.net=ALL-UNNAMED --add-opens java.desktop/javax.swing=ALL-UNNAMED --add-opens java.desktop/java.beans=ALL-UNNAMED --add-opens java.desktop/javax.swing.border=ALL-UNNAMED -Dio.netty.tryReflectionSetAccessible=true

• set the Working directory to the forge-gui-desktop subfolder path

• set Use classpath of module to: forge-gui-desktop

• click Debug

• -- wait --

If all goes well, you should eventually see the Forge splash screen followed by the main UI.
