A tool for rehearsing and performing live theatre remotely.
VirtualDirector is a live broadcast and realtime editing tool for remote collaborators. The platform captures video feeds either through a screen capture of a video conferencing call or directly through webRTC, a secure peer-to-peer streaming technology facillitated by OBS Ninja. VirtualDirector allows a user to mix video feeds from remote users inside a shared virtual environment that can be dynamically changed and saved as scenes to facilitate the rehearsal and performance of theatre. The platform has tools for removing chromakey backrounds, working with 2D video and image assets as background and foreground elements as well compositing remote participants inside 3D geometry.
Virtual Director GUI, 2020:(a) Zoom screen capture, (b) FG select, (c) Player select, (d) BG select, (e) Preview

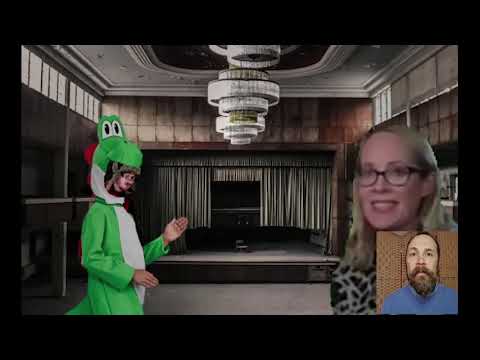

You can learn more about how the platform was used to study the affects of tele-immersion on improvisational theatre in our SIGCHI 2021 paper: Tele-Immersive Improv: Effects of Immersive Visualisations on Rehearsing and Performing Theatre Online as well as in the accompanying video:
System overview, Virtual Director 2020: (a) Isolated performer connects via client software, (b) Background segmenta-tion is performed by client software, (c) Performer sees a video of themselves co-located with partners in virtual space, (d) NDImacros supply client video to Virtual Director, (e) Automatic separation of video call participants, (f,g) Virtual Director selectsbackground and foreground assets for compositing, (h) Each asset appears as a 3D object that can be rotated, scaled, faded, andpositioned dynamically.
If you use this work in an academic context, please cite:
@inproceedings{branch2021tele,
title={Tele-Immersive Improv: Effects of Immersive Visualisations on Rehearsing and Performing Theatre Online},
author={Branch, Boyd and Efstratiou, Christos and Mirowski, Piotr and Mathewson, Kory W and Allain, Paul},
booktitle={Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems},
pages={1--13},
year={2021}
}
For optimal use we recommend using a PC with an AMD 5000 series processor or equivalent, and a CUDA-enabled Nvidia RTX graphics card. This is because TouchDesigner is optimised for Nvidia GPUs.
The platform was built and tested on the following configurations:
- Windows 10, AMD Ryzen 7 5800X CPU, Nvidia RTX Quadro 4000 GPU,
- Windows 10, AMD Ryzen 9 3950X CPU, Nvidia RTX GeForce 3090 GPU,
- Mac OS 11.3, Intel i9 CPU, AMD Radeon Pro 560X GPU,
- Mac OS 11.3, Intel i9 CPU, AMD Radeon Pro 5500M GPU.
The platform depends on video feeds being captured and processed through 3rd party software over the network which can be computationally expensive when multiple participants are engaged. We have not tested other configurations so cannot make recommendations beyond the above. We suggest running the platform and experimenting with settings to find a workflow that works with your available hardware.
Required:
VirtualDirector runs inside of Touchdesigner, a visual programming sandbox. Basic familiarity with Touchdesigner is recommended for succesfull deployment of VirtualDirector. The platform is modular and can be adapted to meet the specific needs of your performance troupe.
Optional:
- For capturing the live feed of remote actors, we use Obs Ninja, a web application developed by the amazing and generous Steve Seguin.
- For streaming live outputs from TouchDesigner, we use NDI Tools as virtual camera.
- VB-Audio
To operate the software download the latest version of Touchdesigner and clone this repository to your fastest drive. Open the VirtualDirector_XXXXX.toe file by double clicking the icon.
VirtualDirector can work with video captured thought the use of NDI Tools or directly through OBS Ninja urls.
For capturing video from video conferencing software (Zoom, MS Teams, Skype etc) we recommend using free NDI Tools screen capture or Nvidia-specific NDI Tools screen capture to capture the video grid of particpants to feed into VirtualDirector. After downloading NDI tools, launch the NDI Screen Capture tool as well as the NDI Virtual Input. Select your Zoom window as the capture source for your NDI Capture Tool, and then select that source as your NDI Virtual Input.
Alternatively, you can directly feed an OBS.ninja webpage into the Virtual Director. Each performer needs to open https://obs.ninja/?push=PLAYER_ID on their Chrome browser and to start streaming, so that VirtualDirector can read the video stream at the corresponding https://obs.ninja/?view=PLAYER_ID.
Once you have your Zoom or other Web conferencing tool set up with NDI, you can bring that source in directly to Virtual Director via the Source Name drop down menu. If you have multiple NDI feeds available, they will automatically populate this drop down. Select the relevant NDI Feed.
Virtual Director depends on users having a chromakey background. If your participants do not have green or blue screens at home, they can utilise the built in background removal tools in Zoom to upload a 'virtual green screen.' Just have the participants upload a green jpeg as their background.
Select Video Feeds: Find the top center panel labeled Library to select from the available media frameworks available on your computer (usually DirectShow). Next find your webcam device in the device link.
Next assign this NDI feed as your grid source. Virtual Director allows a user to select from many different sources for thier grid including a provided grid of the 'Brady Bunch' to use for testing purposes. Click on the drop down menu next to 'Grid Source' and select 'NDI 1' to select your NDI source.
Next specify the amount of rows and columns in your grid.
If you have an uneven grid of players select the Odd option next to your grid column selection. If your rows are even, select Even.
Press Update to extract the players and load them into the GUI. (You may need to press update a few times to fully populate the grid).
Next select your background images by pressing the small folder icon at the end of the row labeled BGs. We recommend beginning with the 2nd image set of backgrounds found in the Asset Folder of this repo. Technically images can be of any size, but larger images will require more processing power. We also recommend a 16X9 apsect ratio for your images. We generally work with 1920px x 1080px images.
Next find the FGs label and select the folder icon at the end of the row to load a folder of .png images to use as foreground elements. We suggest starting with the FG folder provided in the Asset folder with this repo.
Now you are ready to arrange your players. Find the middle console with the label Select Cast. Here you can select individual cast member video feeds to refine their background segmentation. Select the number of the cast member from the dropdown. The following row labled P and U are for use with ObsNinja and can be ignored for now. Make sure the button to the right is in the off position in order to work with your Zoom NDI capture. Press Smart Key to perform an automatic background removal. If the chromakey is not well executed you can manually adjust the hue, saturation, and values to fine tune your key. Perform this operation for all players.
The rows to the left are your players. You can select any one of your cast as players 1-8 by clicking on the appropriate thumbnail. Note that player 1 has an option for displaying the video feed of the operator with the small box labeled On or off at the bottom left. When set to On the user video will be displayed instead of the cast member.
Make sure the 3D BG button is turned off in the row between output and preview.
To see the immediate affect of player controls the Preview window to the right displays all the realtime adjusments being made. The current settings for any scene can be saved by pressing one of the numbers in the Save column.
The Prev column will load the previously saved settings for a given cue number.
The saved scene numbers correspond to the Output numbered tabs at the top. The output window feeds into an NDI output that can set to your virtual webcam or loaded directly in your broadcasting tool that supports NDI.
To compose a scene, select a background and fade the relevant players video up.
Use the XY 2D sliders to position your players within the scene.
You can use the scale sliders to scale the pixels up or down.
Use the Z pos sliders to move the players closer or further from the virtual camera.
X,Y,Z rotation will rotate player videos on the corresponding axis.
Activate the foreground element by turning on the FG button located next to the BG Z Pos of the of the middle console toward the bottom.
Select a foreground element by clicking on the icon of the relevant image.
The FG element can be positioned in the same way as the players using the sliders.
At the bottom of the Preview window are a set of tools for displaying text.
Type the text you want to display in the corresponding window. Select Text off or Text on to preview the text. Select Disp On or Disp off to display the text in the output.
Note that you must save the scene with the text in oder to see it display in the output.
Besides switching between saved scenes, you can also display the preview scene directly to the output by selecting the 'Go Live' button.
While outputing a scene, you can use the camera control buttons located beneath the scene numbers of the output window. 'CU1 - CU8' will dolly the virtual camera into a close up of the player. The other buttons are for use with a 3D scene which will be covered later.
You can record the video of your output by selecting a folder location and hitting the record button. Note that recording is computationally expensive and requires a fast CPU to run.
There are several other advanced features which will be described later.
Note background and foreground elements can be video or images. For video we suggest encoding your footage in the .hap codec for smooth playback.
The platform is released under an MIT License that requires attribution to the orignal developers (Boyd Branch & Piotr Mirowski) for any public use of the software. Commercial use of the software requires purchase of a professional Touchdesigner license. VirtualDirector was developed as part of a research project carried out at the University of Kent and is made publicly available here for other researchers and performers to use free of charge (and also free of technical support :-) ). We only ask for notification of how it is being used and attribution if used for public performance. We are enthusiastic collaborators, so also welcome any interest in further developing the project.
All code is copyright (c) 2020-2021 Boyd Branch (username Geitenkaas). Additional code contributions by Piotr Mirowski.
