I had recently solved a strange task for boosting up my inner mathematician 🤓

My strange friend asked me to create a new crazy project for him:

The web page has with multiple horizontal containers each having text or image content. Height of content is bigger than the container height, so the user only sees a part of the content. The content in the containers scrolls up while the web page is scrolled down and vice versa. My friend called that the "binoculars effect". 😊

I didn't know, why he needed this insane solution 🤷‍♂️, but it was really funny to create it and train myself in math.

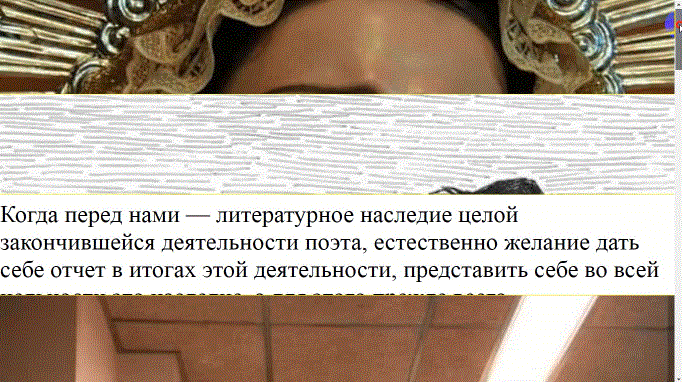

Full demo:

• In the browser window: https://lanking.github.io/binoculars-parallax-math-for-wayu/window.html
• In separate div: https://lanking.github.io/binoculars-parallax-math-for-wayu/div.html

Challenges that I've chosen for myself:

1. Solve this task with pure math (Don't use logical conditions in the main math model. Of course, some logic used for configuration and objects initialization, but the main model is hardcore pure math 🤘).

2. Users must see every pixel of content in each container during the scrolling web page from start to end. The content scroll must be started when its first pixel was shown during page scroll and also it must stop scrolling when the last pixel was scrolled out.

It doesn't matter if the current area is located at the top, in the middle or at the bottom of the page. For example: for areas located at the first screen content started scrolling immediately. For areas on the second screen, content is not scrolling until the web page will be scrolled enough to see the first pixel of the container. Also for the last areas of the page content must stop scrolling only when page scrolled completely. So, each area has a different scroll tempo.

3. Minimize browser load by choosing a good algorithm (no dummy operations). As a result: I got a simple program code.

Working with DOM elements on pure JS was not a challenge for me: I used JQuery to make easy access to DOM elements.

Math magic explained step by step: 💫

1. Create a numerical sequence, that describes the occurence position of each container relying on browser window height.

• As a result top containers will have negative values.
• Then negative values must be removed — this is implemented by converting them to zeroes: (x + Math.abs(x)) / 2

Taking absolute value of negative variable converts it to positive). For example, if x = -5, (x + Math.abs(x)) will transformed to -5 + 5 = 0 Division to 2 is a correction for positive values: (5 + 5) / 2 = 5

2. Create a numerical sequence that describes the position of scroll finish for each element relying on window height.

• As a result: numerical sequence with mostly negative values and positive values at the end (last containers in the window are not scrolling out).
• Using hack from step 1 positive values were removed.

3. Scroll containers content to percent depending on the difference between two steps.
