RTD Bus Feed

The rtd-feed module publishes the latest Denver RTD vehicle positions, every 30 seconds, to the rtd-bus-position Kafka topic.

The messages are serialized as Avro and look like this when deserialized:

{
  "id": "985CC5EC1D3FC176E053DD4D1FAC4E39",
  "timestamp": 1574904869,
  "location": {
    "lon": -104.98970794677734,
    "lat": 39.697723388671875
  }
}

The message key is the vehicle ID, which means that telemetry for a vehicle is always sent to the same Kafka partition.

The rtd-stream module is a Kafka Streams job that enriches the feed data with the speed, based on the distance traveled between the last known position. The enriched records are written to the rtd-bus-postition-enriched topic. Here's a sample record:

{
  "id": "985CC5EC1D3FC176E053DD4D1FAC4E39",
  "timestamp": 1574904869,
  "location": {
    "lon": -104.98970794677734,
    "lat": 39.697723388671875
  },
  "milesPerHour": 34.18513011763098,
  "h3": "8c268cd8d171dff"
}

Note that the milesPerHour and h3 properties have been added. The h3 is a hierarchical spatial index, designed by Uber. See eng.uber.com/h3 for more details. The h3 is at resolution 12 - which equates to hexagons that are approx. 307 square meters.

The rtd-stream module reads in Kafka and Schema Registry properties from environment variables.

Once the enriched data is in Kafka, it can be written to Elastic using Kafka Connect. In order to recognise the timestamp and location using the proper datatypes, we create a dynamic template in Elastic:

{
  "dynamic_templates": [
    {
      "dates": {
        "mapping": {
          "format": "epoch_millis",
          "type": "date"
        },
        "match": "*timestamp"
      }
    },
    {
      "locations": {
        "mapping": {
          "type": "geo_point"
        },
        "match": "*location"
      }
    }
  ]
}

The following curl command was then run to create the connector:

curl -X PUT -H "Content-Type: application/json" --data '
{
    "connection.url": "http://elastic.woolford.io:9200",
    "connector.class": "io.confluent.connect.elasticsearch.ElasticsearchSinkConnector",
    "key.converter": "org.apache.kafka.connect.storage.StringConverter",
    "key.ignore": "true",
    "name": "rtd-elastic",
    "schema.ignore": "true",
    "topics": "rtd-bus-position-enriched",
    "transforms": "routeTS",
    "transforms.routeTS.timestamp.format": "yyyyMMdd",
    "transforms.routeTS.topic.format": "${topic}-${timestamp}",
    "transforms.routeTS.type": "org.apache.kafka.connect.transforms.TimestampRouter",
    "type.name": "_doc"
}' http://cp01.woolford.io:8083/connectors/rtd-elastic/config

Note the TimestampRouter single-message transform. This writes the messages into new index each day. That's very handy when it comes to purging old data from Elastic.

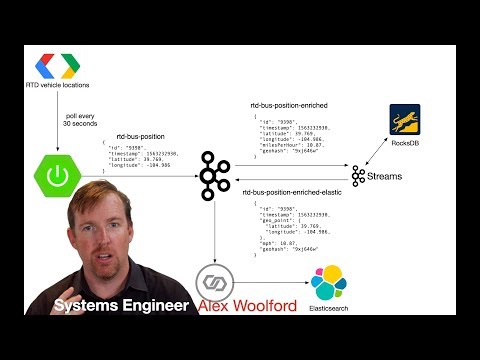

Here's a diagram of the solution:

Here's the topology, generated by the Kafka Streams Topology Visualizer tool. Note the busPositionStore, which is a key/value store cache of the previous bus positions. This positions are written back to a Kafka changelog topic so the state can be maintained if the streaming job was to fail:

Here's a screenshot from the Kibana dashboard:

See the feed in action:

build/run

The Kafka and Schema Registry connection properties are read from environment variables:

property	mandatory	component
BOOTSTRAP_SERVERS	yes	Kafka
SECURITY_PROTOCOL	no	Kafka
SASL_JAAS_CONFIG	no	Kafka
SASL_ENDPOINT_IDENTIFICATION_ALGORITHM	no	Kafka
SASL_MECHANISM	no	Kafka
SCHEMA_REGISTRY_URL	yes	Schema Registry
BASIC_AUTH_CREDENTIALS_SOURCE	no	Schema Registry
SCHEMA_REGISTRY_BASIC_AUTH_USER_INFO	no	Schema Registry

To create executable jars, build the project:

git clone https://github.com/alexwoolford/rtd-kafka
cd rtd-kafka
mvn package

And then, to run rtd-feed and rtd-stream, export the environment variables:

export BOOTSTRAP_SERVER=cp01.woolford.io:9092
export SCHEMA_REGISTRY_URL=http://cp01.woolford.io:8081

... and then run the jars:

java -jar rtd-feed/target/feed-0.1-spring-boot.jar
java -jar rtd-stream/target/rtd-stream-1.0-jar-with-dependencies.jar
