examples/stats/web_client_monitoring/README.md

@@ -0,0 +1,85 @@
+# Monitoring Web Metrics with OpenCensus and Stackdriver
+This example demonstrates instrumentation of browser code in a web application
+for monitoring web metrics with a JavaScript module. See the schematic diagram
+below for a graphical description.
+
+![Schematic Diagram](https://user-images.githubusercontent.com/5554156/49771515-4b1ca180-fc9e-11e8-8c2a-07877ee096a3.png)
+
+## Prerequisites
+Install [Node.js](https://nodejs.org) in your local development environment.
+Create a Google Cloud Platform (GCP) project and set it as your default project
+with the command
+```
+export GOOGLE_CLOUD_PROJECT=[your project id]
+gcloud config set project $GOOGLE_CLOUD_PROJECT
+```
+
+You will need the environment variable GOOGLE_CLOUD_PROJECT exported to the
+Node.js runtime for it to send the data to Stackdriver when running in a local
+development environment. The choice of variable name matches the [App Engine
+Flex](https://cloud.google.com/appengine/docs/standard/nodejs/runtime#environment_variables)
+environment variable name.
+
+Enable the [Stackdriver API](https://cloud.google.com/monitoring/api/v3/) with
+the command
+```
+gcloud services enable monitoring
+```
+
+You can run the example with another monitoring backend if you modify the code
+in app.js to use a different exporter.
+
+## Web Client Compilation
+Set up Nodejs and Webpack:
+```
+cd web_client
+npm install
+```
+
+Compile the client JavaScript
+```
+npm run build
+```
+
+## Running locally
+To run the example locally follow the instructions in [Getting Started with
+Authentication](https://cloud.google.com/docs/authentication/getting-started)
+to make a service account key available via the GOOGLE_APPLICATION_CREDENTIALS
+environment variable. Then serve the HTML file from the Node.js server with
+Express:
+```
+cd
+npm install
+npm start
+```
+
+Navigate to the page at http://localhost:8080 with a browser.
+
+## Deploying to App Engine
+The app can be deployed to App Engine with no changes. All that is needed is
+an app.yaml file. To deploy it run the command
+```
+npm run deploy
+```
+
+This will use the gcloud app deploy command, which will deploy the app as an
+Express app using the App Engine Flex Nodejs runtime.
+
+## Configuring Stackdriver

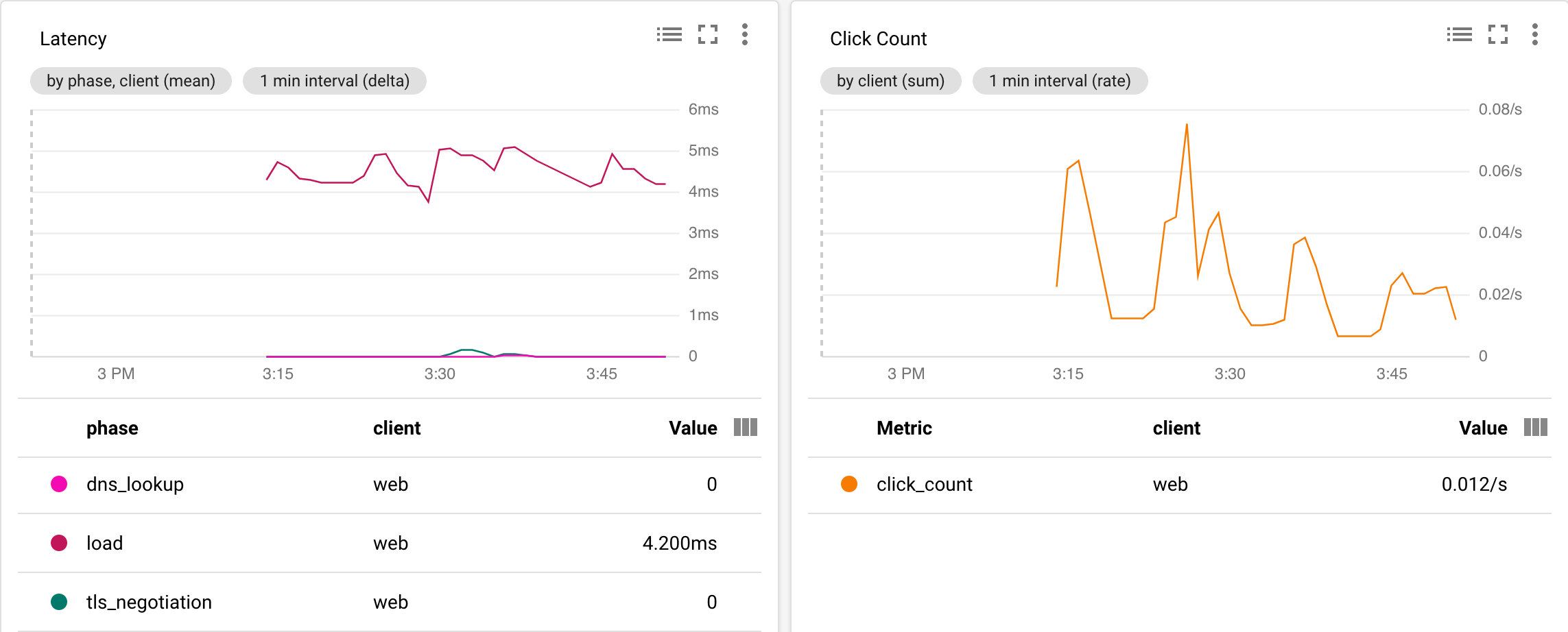

+To see the metrics data in Stackdriver, select Monitoring in the main menu to
+bring up the Stackdriver user interface. Create a new dashboard. Create new
+charts for the dashboard. Add the metrics collected to the chart. The metric
+names are listed in the app.js file. An example screenshot is shown below.
+You may want to use one chart for the (double value) timing data and one chart
+for the (integer value) click counts.
+
+![Stackdriver Dashboard](https://user-images.githubusercontent.com/4898263/49771039-190a4000-fc9c-11e8-9536-9ce4172606b8.png)
+
+## Troubleshooting
+If your monitoring data does not show up in Stackdriver, check the GCP
+[API Dashboard](https://cloud.google.com/apis/docs/monitoring) for the Cloud
+Monitoring API and the [App Engine
+logs](https://cloud.google.com/appengine/articles/logging) for errors in the
+Google Cloud Console and Developer tools in the browser. See [Troubleshooting
+the Monitoring API](https://cloud.google.com/monitoring/api/troubleshooting)
+for more tips.

examples/stats/web_client_monitoring/app.js

@@ -0,0 +1,128 @@
+/**
+ * Copyright 2018, OpenCensus Authors
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+/**
+ * An Express application to receive the web metrics and send to Stackdriver
+ * with the opencensus API.
+ */
+
+"use strict";
+
+const express = require("express");
+const assert = require('assert');
+const process = require("process");
+const bodyParser = require('body-parser');
+// [START web_client_monitoring_imports]
+const { Stats, MeasureUnit, AggregationType } = require('@opencensus/core');
+const { StackdriverStatsExporter } = require('@opencensus/exporter-stackdriver');
+// [END web_client_monitoring_imports]
+
+const app = express();
+app.use(express.static("web_client"));
+app.use(bodyParser.json());
+
+// The project id must be provided for running in a local environment
+const project = process.env.GOOGLE_CLOUD_PROJECT;
+assert(typeof project !== 'undefined' && project,
+  "Please set environment variable GOOGLE_CLOUD_PROJECT to the project id.");
+console.log(`Sending metrics data to project: ${project}`);
+
+// OpenCensus setup
+// [START web_client_monitoring_ocsetup]
+const stats = new Stats();
+const exporter = new StackdriverStatsExporter({projectId: project});
+stats.registerExporter(exporter);
+const mLatencyMs = stats.createMeasureDouble("webmetrics/latency",
+                       MeasureUnit.MS,
+                       "Latency related to page loading");
+const mClickCount = stats.createMeasureInt64("webmetrics/click_count",
+                       MeasureUnit.UNIT,
+                       "Number of clicks");
+const buckets = [0, 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 30, 40, 50, 65, 80,
+                100, 130, 160, 200, 250, 300, 400, 500, 650, 800, 1000, 2000,
+                5000, 10000, 20000, 50000, 100000];
+const tagPhase = "phase";
+const tagClient = "client";
+const latencyView = stats.createView(
+  "webmetrics/latency",
+  mLatencyMs,
+  AggregationType.DISTRIBUTION,
+  [tagPhase, tagClient],
+  "Distribution of latencies",
+  buckets
+);
+const clickCountView = stats.createView(
+  "webmetrics/click_count",
+  mClickCount,
+  AggregationType.COUNT,
+  [tagClient],
+  "The number of button clicks"
+);
+// [END web_client_monitoring_ocsetup]
+
+// Process the metrics data posted to the server
+app.post("/metrics", (req, res) => {
+  const dnsTime = req.body["dnsTime"];
+  const connectTime = req.body["connectTime"];
+  const totalTime = req.body["totalTime"];
+  const clickCount = req.body["count"];
+  console.log(`totalTime ${totalTime}`);
+  console.log(`connectTime ${connectTime}`);
+  console.log(`dnsTime ${dnsTime}`);
+  console.log(`count ${clickCount}`);
+  const valueTLSNegotiation = "tls_negotiation";
+  const valueDNSLookup = "dns_lookup";
+  const valueLoad = "load";
+  const valueWeb = "web";
+  let tags = { phase: valueDNSLookup, client: valueWeb };
+  // [START web_client_monitoring_record]
+  try {
+    stats.record({
+      measure: mLatencyMs,
+      tags,
+      value: dnsTime
+    });
+    tags = { phase: valueTLSNegotiation, client: valueWeb };
+    stats.record({
+      measure: mLatencyMs,
+      tags,
+      value: connectTime
+    });
+    tags = { phase: valueLoad, client: valueWeb };
+    stats.record({
+      measure: mLatencyMs,
+      tags,
+      value: totalTime
+    });
+    tags = { client: valueWeb };
+    stats.record({
+      measure: mClickCount,
+      tags,
+      value: clickCount
+    });
+    res.status(200).send("Received").end();
+    console.log('Competed recording metrics');
+  } catch (err) {
+    console.log(`Could not save stats: ${err}`);
+    res.status(500).send("Error saving stats").end();
+  }
+  // [END web_client_monitoring_record]
+});
+
+// Start the server
+const PORT = process.env.PORT || 8080;
+app.listen(PORT, () => {
+  console.log(`Listening on port ${PORT}`);
+});

examples/stats/web_client_monitoring/app.yaml

@@ -0,0 +1,9 @@
+runtime: nodejs
+env: flex
+
+manual_scaling:
+  instances: 1
+resources:
+  cpu: 1
+  memory_gb: 0.5
+  disk_size_gb: 10

examples/stats/web_client_monitoring/package.json

@@ -0,0 +1,21 @@
+{
+  "name": "web-client-monitoring",
+  "description": "Example of saving web metrics",
+  "version": "0.0.1",
+  "private": true,
+  "license": "Apache-2.0",
+  "author": "Google Inc.",
+  "engines": {
+    "node": ">=4.3.2"
+  },
+  "scripts": {
+    "deploy": "gcloud app deploy",
+    "start": "node app.js",
+    "lint": "npm run lint",
+  },
+  "dependencies": {
+    "@opencensus/core": "0.0.7",
+    "@opencensus/exporter-stackdriver": "0.0.7",
+    "express": "^4.16.3"
+  }
+}

examples/stats/web_client_monitoring/web_client/client_app.js

@@ -0,0 +1,17 @@
+/**
+ * Copyright 2018, OpenCensus Authors
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+const WebMetrics = require("./metricsclient.js");
+new WebMetrics("#incrementbutton", "#flushbutton");

examples/stats/web_client_monitoring/web_client/index.html

@@ -0,0 +1,18 @@
+<!DOCTYPE html>
+<html>
+  <head>
+    <meta charset="utf-8">
+    <title>Web Metrics Monitoring Example</title>
+    <link rel="icon" href="data:,">
+    <meta name="viewport" content="width=device-width, initial-scale=1">
+  </head>
+  <body>
+    <section>
+      <h1>Web Metrics Monitoring Example</h1>
+      <p>A page to demonstrate monitoring of web metrics.</p>
+      <div>Click me: <button id="incrementbutton" type="button">Increment</button></div>
+      <div>Save me: <button id="flushbutton" type="button">Flush</button></div>
+   </section>
+  <script src="dist/app_bundle.js"></script>
+  </body>
+</html>

examples/stats/web_client_monitoring/web_client/metricsclient.js

@@ -0,0 +1,81 @@
+/**
+ * Copyright 2018, OpenCensus Authors
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+/**
+ * A Common JS module for proxying monitoring and trace calls to the server
+ */
+
+/**
+ * A class to collect web metrics and send them to the server
+ */
+class WebMetrics {
+
+  /**
+   * Creates a WebMetrics instance
+   * @param {string} incrementbutton - ID of the increment button DOM element
+   * @param {string} flushbutton - ID of the flush button DOM element
+   */
+  constructor(incrementbutton, flushbutton) {
+     // [START web_client_monitoring_click_counter]
+    this.click_counter_ = 0;
+    // [END web_client_monitoring_click_counter]
+    const wm = this;
+    const incrementbtn = document.querySelector(incrementbutton);
+    incrementbtn.onclick = function() {
+      wm.click_counter_++;
+    }
+    const flushbtn = document.querySelector(flushbutton);
+    flushbtn.onclick = function() {
+      wm.post_data_(wm.click_counter_);
+    }
+  }
+
+  /**
+   * Send the metrics data to the server
+   * @private
+   */
+  post_data_(count) {
+    // [START web_client_monitoring_performance]
+    const pageNav = performance.getEntriesByType("navigation")[0];
+    const dnsTime = pageNav.domainLookupEnd - pageNav.domainLookupStart;
+    const connectTime = pageNav.connectEnd - pageNav.connectStart;
+    const ttfb = pageNav.responseStart - pageNav.requestStart;
+    const totalTime = pageNav.responseEnd - pageNav.requestStart;
+    // [END web_client_monitoring_performance]
+    const data = {
+      dnsTime: dnsTime,
+      connectTime: connectTime,
+      ttfb: ttfb,
+      totalTime: totalTime,
+      count: count
+    }
+    fetch("/metrics", {
+      method: "POST",
+      headers: {
+        "Content-Type": "application/json; charset=utf-8",
+      },
+      body: JSON.stringify(data), // body data type must match "Content-Type" header
+    })
+    .then(function(response) {
+      if(response.ok) {
+        console.log("Data received");
+      } else {
+        console.log("Error sending data");
+      }
+    });
+  }
+}
+
+module.exports = WebMetrics

examples/stats/web_client_monitoring/web_client/package.json

@@ -0,0 +1,17 @@
+{
+  "name": "web_monitoring_client",
+  "version": "0.0.1",
+  "description": "Web client for monitoring example",
+  "main": "client_app.js",
+  "scripts": {
+    "test": "echo \"Error: no test specified\" && exit 1",
+    "build": "webpack --mode production"
+  },
+  "keywords": [],
+  "author": "",
+  "license": "ISC",
+  "devDependencies": {
+    "webpack": "^4.25.1",
+    "webpack-cli": "^3.1.2"
+  }
+}

examples/stats/web_client_monitoring/web_client/webpack.config.js

@@ -0,0 +1,6 @@
+module.exports = {
+  entry: './client_app.js',
+  output: {
+    filename: 'app_bundle.js',
+  }
+}
