- QA by: Baptiste Schmid (BS)
- Data evaluated: BALTRAD 2019-09-24 - 2019-10-31 /BS19
- Bird density unreasonably low (< 30 km2 birds pro night, often even less than 10 birds km2). This contrast with 2018 data from same radars with bird density in autumn up to 200 birds km2. /BS19
- Gaps in bird density due to
sd_vvp_threshold, but also from previous filer are common. /BS19 - Little rain contamination with

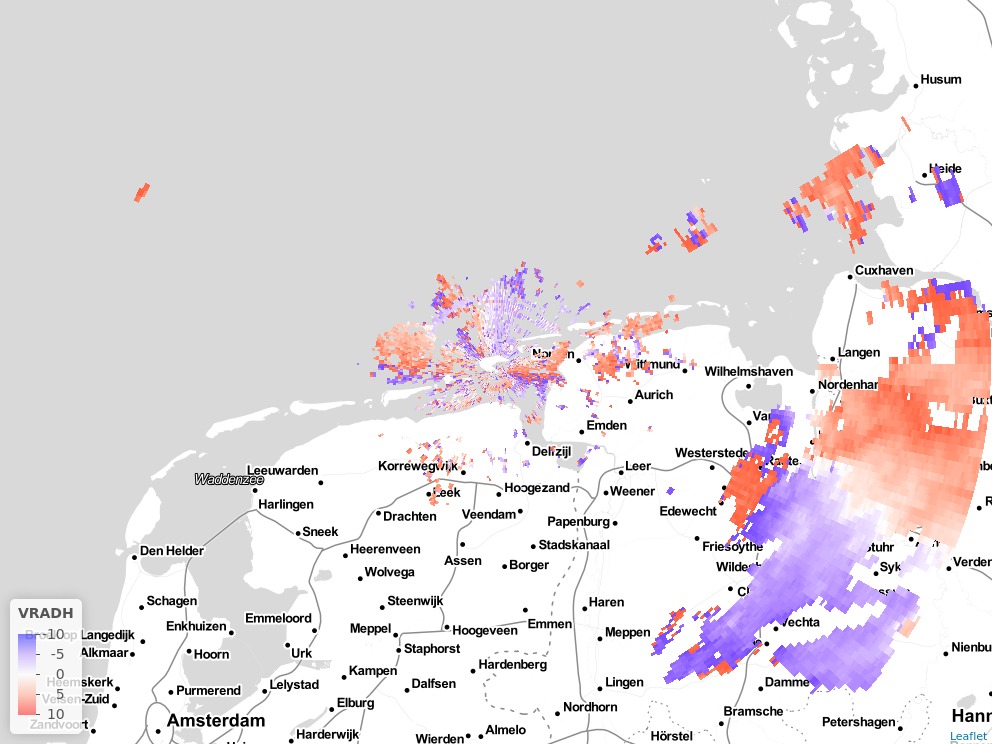

sd_vvp_threshold. /BS19 - Ground clutter generally not an issue, see possibly
deasb. /BS19 - All heights included, no cut-off at higher altitude. /BS19
- 5 min time resolution, w/o data gaps. /BS19
0: not available, 1: available, 2: poor quality, 3: good quality
| param | quality | remarks |
|---|---|---|
| DBZH | 1 | |
| TH | 1 | |
| VRADH | 1 | |
| CCORH | 0 | |
| RHOHV | 0 | |
| PHIDP | 0 | |
| ZDR | 0 |
| nr | highprf | lowprf | elangle | nbins | nrays | rscale | params |
|---|---|---|---|---|---|---|---|
| 1 | 800 | 600 | 0.4998779 | 180 | 360 | 1000 | DBZH, VRADH, TH |
| 2 | 800 | 600 | 1.4996338 | 180 | 360 | 1000 | DBZH, VRADH, TH |
| 3 | 800 | 600 | 2.4993896 | 180 | 360 | 1000 | DBZH, VRADH, TH |
| 4 | 800 | 600 | 3.4991455 | 180 | 360 | 1000 | DBZH, VRADH, TH |
| 5 | 800 | 600 | 4.4989014 | 180 | 360 | 1000 | DBZH, VRADH, TH |
| 6 | 800 | 600 | 5.4986572 | 180 | 360 | 1000 | DBZH, VRADH, TH |
| 7 | 1200 | 800 | 7.9980469 | 124 | 360 | 1000 | DBZH, VRADH, TH |
| 8 | 2410 | 2410 | 12.0025635 | 60 | 360 | 1000 | DBZH, VRADH, TH |
| 9 | 2410 | 2410 | 17.0013428 | 60 | 360 | 1000 | DBZH, VRADH, TH |
| 10 | 2410 | 2410 | 24.9993896 | 60 | 360 | 1000 | DBZH, VRADH, TH |
| radar | type | radar end date | remarks |
|---|---|---|---|
| deasb | C | active | |
| debln | ? | 2014-01-23 | |
| deboo | C | active | |
| dedrs | C | active | |
| deeis | C | active | |
| deemd | C | 2018-02-27 | |
| deess | C | active | |
| defbg | C | active | |
| defld | C | active | |
| deflg | ? | 2018-02-27 | |
| deham | ? | 2014-01-23 | |
| dehan | ? | 2014-07-29 | |
| dehnr | C | active | |
| deisn | C | active | |
| demem | C | active | |
| demhp | ? | 2018-10-25 | |
| demuc | ? | 2014-01-22 | |
| deneu | C | active | |
| denhb | C | active | |
| deoft | C | active | |
| depro | C | active | |
| deros | C | active | |
| desna | ? | 2019-04-04 | |
| detur | C | active | |
| deumd | C | active |
