Welcome to SANgo!

GoSAN is the discrete-event based simulator with reinforcement learning support.

What it simulates?

• Resource usage
  • CPU
  • Links
  • Storage
    • SSD
    • HDD
• Load generation
  • Read mode
  • Write mode

Installation

Execute the following command:

go get -u gitlab.com/lambda-hse/tatlin-hse/gosan

Example

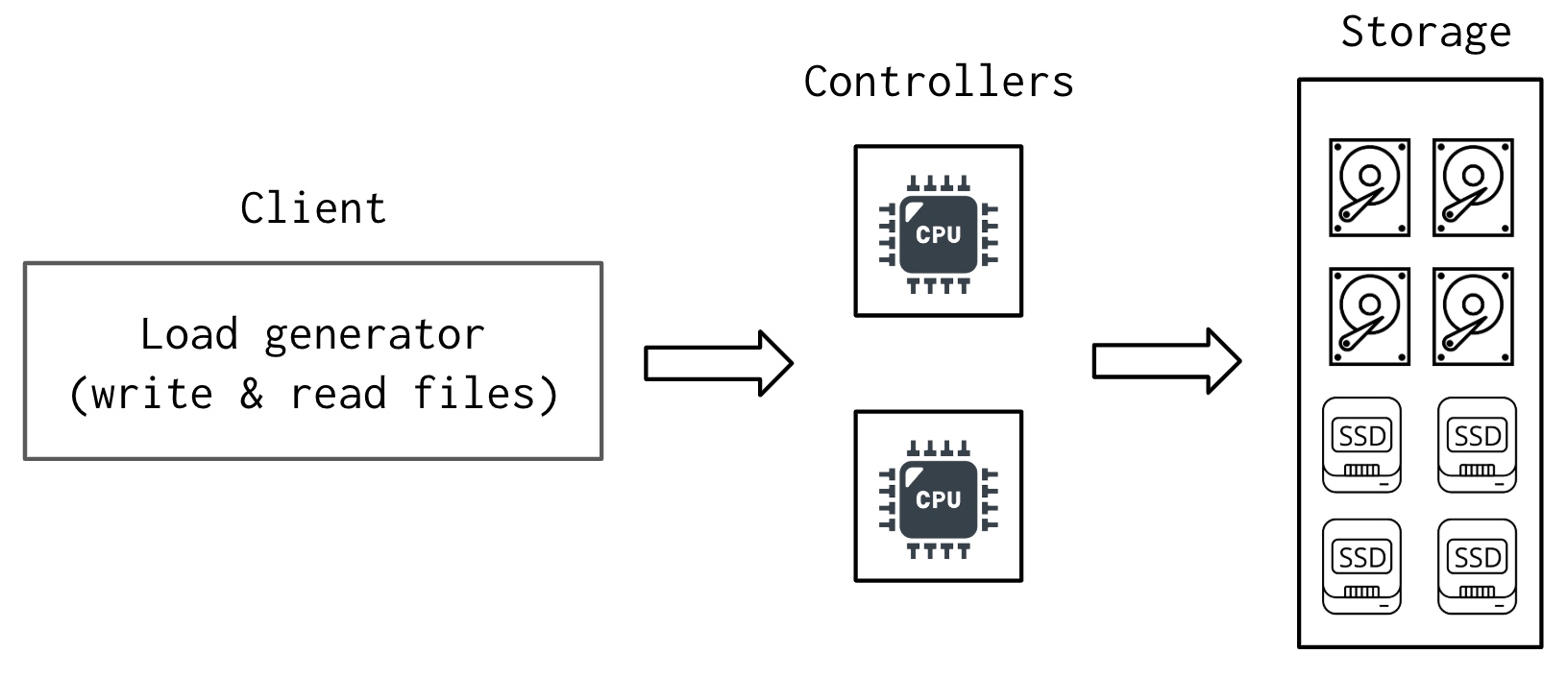

To demonstrate how GoSAN can be used we implemented a toy version of actual storage array network. It consists of:

• Load generator
• 2 controllers
• 8 storage units:
  • 4 SSD
  • 4 HDD

Client sends data blocks to controllers. They, in own turn, write data to storage units in the round-robin algorithm.

Reproducible run

To play around with the simulator check out https://codeocean.com/capsule/9707185.

Available flags

The following flags are available at the current moment:

1. Input configuration files:

-platform — Tatlin storage array controller (hard-drives, controllers, etc.)
-packet — how much time packets (data blocks) consume on the different Tatlin components depending on their size with self-explainable field tags
-atm_dep - atmosphere (temperature, humidity, pressure, vibration) dependencies
-atm_control - file with atmospheric time-series data in JSON format
-output — file where measured data will be written to

2. Load generation:

-file_amount — the amount of W/R files
-file_size — file size interval [lower, upper)
-load_range — file read/write frequency [minTime, maxTime)

3. Failures:

-anomaly_type — failure type; VESNIN1ANOMALY, VESNIN2ANOMALY, VESNIN1CLIENTLINK, VESNIN2CLIENTLINK are available
-anomaly_amount — the number of failures
-anomaly_time_range — time interval [minTime, maxTime). A random number from this interval is chosen, which will be the time of the next failure
-anomaly_duration —  time interval [minTime, maxTime). Repair time is sampled from this interval.

4. Hard-drive amount:

-disk_amount — the number of disks in the JBOD. Overwrite disk amount, given in the -platform flag

DeepController synchronization:

Turning on/off DC connection.
--controling_mode=true/false(or 1/0), by default = false
Protocol:
--protocol={tcp,udp}, by default tcp
Connection hostname:
--host, by default localhost
Connection port:
--port, by default 1337
DC-GoTatlin communication delay:
--json_delay, by default 1(sec)

Additional

The below command makes the output file well-formed:

sed -i -e '1i \[' -e 's/}{/},{/g' -e "\$a]" $(jsonfilename)

Description of each field in json format can be found here.

For profiling (benchmarking) run:

go tool pprof http://localhost:6060/debug/pprof/profile
