bosch-indego-card

Simple card for your bosch indego mower in Home Assistant's Lovelace UI

based on the work of benct https://github.com/benct/lovelace-xiaomi-vacuum-card

GH-release GH-downloads GH-last-commit GH-code-size hacs_badge

If you like my work feel free to buy me a cofee

BMC

Integrated support for Bosch Indego mowers supported on https://github.com/jm-73/Indego

Integration installation

First install integration from https://github.com/jm-73/Indego

Card installation

Manually add bosch-indego-card.js to your <config>/www/ folder and add the link to the resource file (Manage Resource files menu) :

url: /local/bosch-indego-card.js?v=1.0.0

Resource type = Javascript file

OR install using HACS : Add this repository (https://github.com/xguitoux/lovelace-bosch-indego-card) as a custom repository

Install it, reload and follow below instructions

The above configuration can be managed directly in the Configuration -> Lovelace Dashboards -> Resources panel when not using YAML mode, or added by clicking the "Add to lovelace" button on the HACS dashboard after installing the plugin.

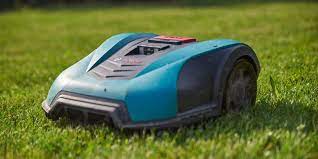

If you want to use the Bosch S350 background image, download and add img/s350.jpg to <config>/www/img/ or configure your own preferred path.

Card Configuration

Name Type Default Description
type string Required custom:bosch-indego-card
entity string Required sensor.indego_XXXXXXXXX_mower_state
name string/bool friendly_name Override friendly name (set to false to hide)
image string/bool false Set path/filename of background image (i.e. /local/img/s350.jpg)
state [Entity Data](#entity data) (see below) Set to false to hide all states
attributes [Entity Data](#entity data) (see below) Set to false to hide all attributes
buttons [Button Data](#button data) (see below) Set to false to hide button row

Entity Data

Default indego attributes under each list:

  • state (left list) include status, battery and lawn_mowed.
  • attributes (right list) include mow_mode, mowtime_total, next_mow and last_completed.

See examples on how to customize, hide or add custom attributes.

Name Type Default Description
key string Required Attribute/state key on vacuum entity
icon string Optional icon
label string Optional label text
unit string Optional unit

Button Data --- TO COMPLETE

Default buttons include start, pause, and return. See examples on how to customize, hide or add custom buttons/actions.

Name Type Default Description
icon string Required Show or hide stop button
show bool true Show or hide button
label string Optional label on hover

Screenshots

Default card bosch-indego-card

No title bosch-indego-card-no-title-no-image

With provided image bosch-indego-card-image

No action buttons bosch-indego-card-no-buttons

Examples

Basic configuration:

- type: custom:bosch-indego-card
  entity: sensor.indego_XXXXXXXXX_mower_state
- type: custom:bosch-indego-card
  entity: sensor.indego_XXXXXXXXX_mower_state
  image: /local/custom/folder/background.png
  name: My S+ 350

Hide state, attributes and/or buttons:

- type: custom:bosch-indego-card
  entity: sensor.indego_XXXXXXXXX_mower_state
  state: false
  attributes: false
  buttons: false

Translations:

- type: custom:bosch-indego-card
  entity: sensor.indego_XXXXXXXXX_mower_state
  attributes:
   mowing_mode:
     label: 'Mode de tonte: '
   next_mow:
     label: 'Prochaine tonte: '
   last_completed:
     label: 'Dernière tonte: '
   mowtime_total:
     label: 'Total tonte: '
  buttons:
    start:
      label: C'est parti !
    pause:
      label: Halte !
    return:
      label: A la niche

Hide specific state values, attributes and/or buttons:

- type: custom:bosch-indego-card
  entity: sensor.indego_XXXXXXXXX_mower_state
  buttons:
    pause: false
  attributes:
    mowing_mode: false
    mowtime_total: false

Disclaimer

This project is not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Bosch Corporation, or any of its subsidiaries or its affiliates.
