Database project: booking system

The database for a rooms booking system is designed to manage the information related to the reservations made by users for different rooms. The system allows users to search for available rooms based on their preferences and book them. The database stores information about the hosts who own the rooms, the amenities available in each room, the users who make the reservations, and their associated loyalty cards.

The database contains several tables, including the hosts table, which stores information about the hosts, such as their names and surnames. The rooms table stores details about each room, including its price, location, availability, and type. The amenities table lists all possible amenities that a room can have, such as Wi-Fi, air conditioning, and a swimming pool.

The users table stores information about the users of the system, including their name, surname, email, password, and phone number. The loyalty_card table contains information about the loyalty cards issued to users, including their expiration date and associated discounts. When a user makes a reservation, the system stores information about the reservation in the reservations table, including the user who made the reservation, the room reserved, the start and end dates of the reservation, and the price paid.

The system also allows users to provide feedback on their reservations by leaving reviews. The reviews table stores the reviews provided by users, including the rating and comment for a specific reservation.

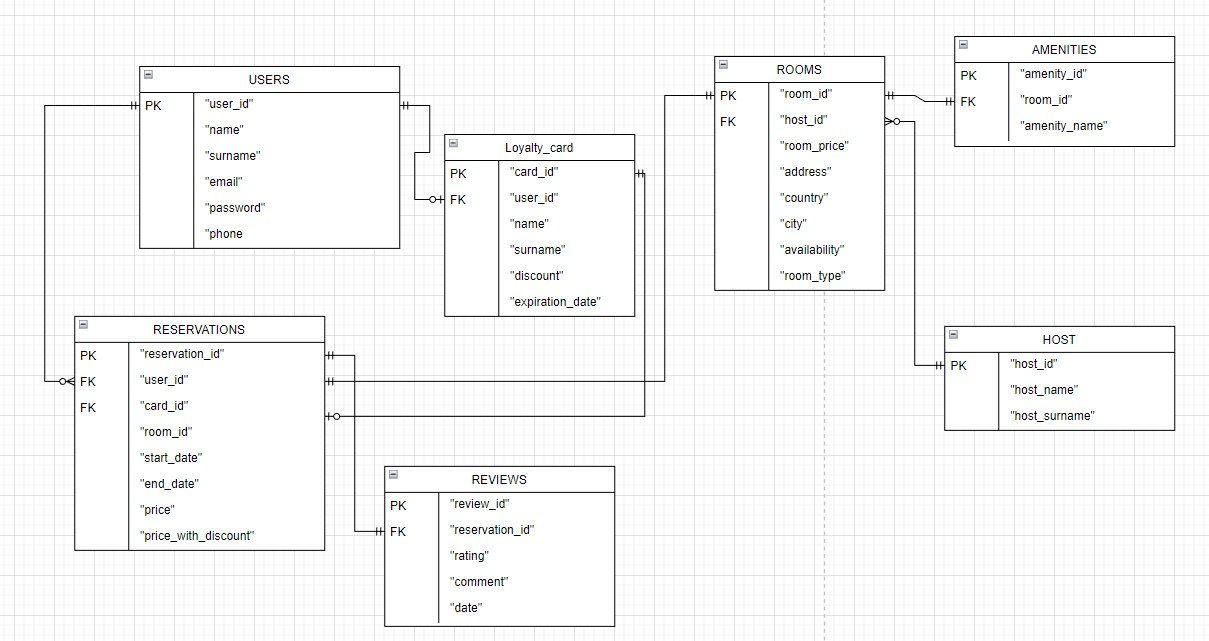

Conceptual Model

Logical Model

Physical Model

Table 1: hosts

Column Name	Description	Data Type
host_id	Unique identifier for each host	int
host_name	The first name of the host	varchar(50)
host_surname	The last name of the host	varchar(50)

Table 2: users

Column Name	Description	Data Type
user_id	Unique identifier for each user	int
name	The first name of the user	varchar(50)
surname	The last name of the user	varchar(50)
email	The email address of the user	varchar(50)
password	The password of the user	varchar(50)
phone	The phone number of the user	varchar(20)

Table 3: loyalty_card

Column Name	Description	Data Type
card_id	Unique identifier for each loyalty card	int
user_id	The user associated with the loyalty card	int
name	The first name of the card holder	varchar(50)
surname	The last name of the card holder	varchar(50)
discount	The discount percentage associated with the card	int
expiration_date	The expiration date of the card	date

Table 4: amenities

Column Name	Description	Data Type
amenity_id	Unique identifier for each amenity	int
amenity_name	The name of the amenity	varchar(50)

Table 5: rooms

Column Name	Description	Data Type
room_id	Unique identifier for each room	int
host_id	The host associated with the room	int
amenity_id	The amenity associated with the room	int
room_price	The price of the room	decimal(8,2)
address	The address of the room	varchar(100)
country	The country of the room	varchar(50)
city	The city of the room	varchar(50)
availability	The availability date of the room	date
room_type	The type of the room	varchar(50)

Table 6: reservations

Column Name	Description	Data Type
reservation_id	Unique identifier for each reservation	int
user_id	The user associated with the reservation	int
card_id	The loyalty card associated with the reservation	int
room_id	The room associated with the reservation	int
start_date	The start date of the reservation	date
end_date	The end date of the reservation	date
price	The price of the reservation	decimal(8,2)
price_with_discount	The price of the reservation with discount applied	decimal(8,2)

Table 7: reviews

Column Name	Description	Data Type
review_id	Unique identifier for each review	int
reservation_id	The reservation associated with the review	int
rating	The rating given in the review	int
comment	The comment given in the review	text
date	The date the review was posted	date

Tasks

Task 3

Task 4

Task 5

Task 6

Task 8

Task 9

Task 10

Task 11
