C# Application to read serial data from Arduino and display temperatures and voltage.
The target .NET Framework is 2.0 to be compatible with Windows 98.
- Microsoft .NET Framework 2.0 (Source: http://www.oldversion.com/windows/net-framework-2-0)
- Microsoft Windows Installer 2.0 (Source: https://archive.org/details/instmsi)
- Microsoft Internet Explorer 5.01 (Source: https://winworldpc.com/download/46e28093-2511-18c3-9a11-c3a4e284a2ef)
- Arduino Serial Driver
-
Microsoft Windows Installer 2.0 (URL provided above)
You most likely will be asked to restart your PC after installation -
Microsoft Internet Explorer 5.5 (URL provided above)
Just go for minimal and update the browser only You most likely will be asked to restart your PC after installation -
Microsoft .NET Framework 2.0 (URL provided above)
Will take a long time to install - be patient You most likely will be asked to restart your PC after installation -
Arduino Serial Driver (_Dependencies\Arduino_Serial_Driver\SETUP.EXE)
A bit complex... When asked for file 'CH341SER.CAT', please navigate to '_Dependencies\Arduino_Serial_Driver'
When asked for file 'CH341PORTS.DLL', you can try to select the file. It did not work for me. I skipped this file. Installation still worked.
Located under: _Dependencies\ArduinoSensors\ArduinoSensors.ino
Warning

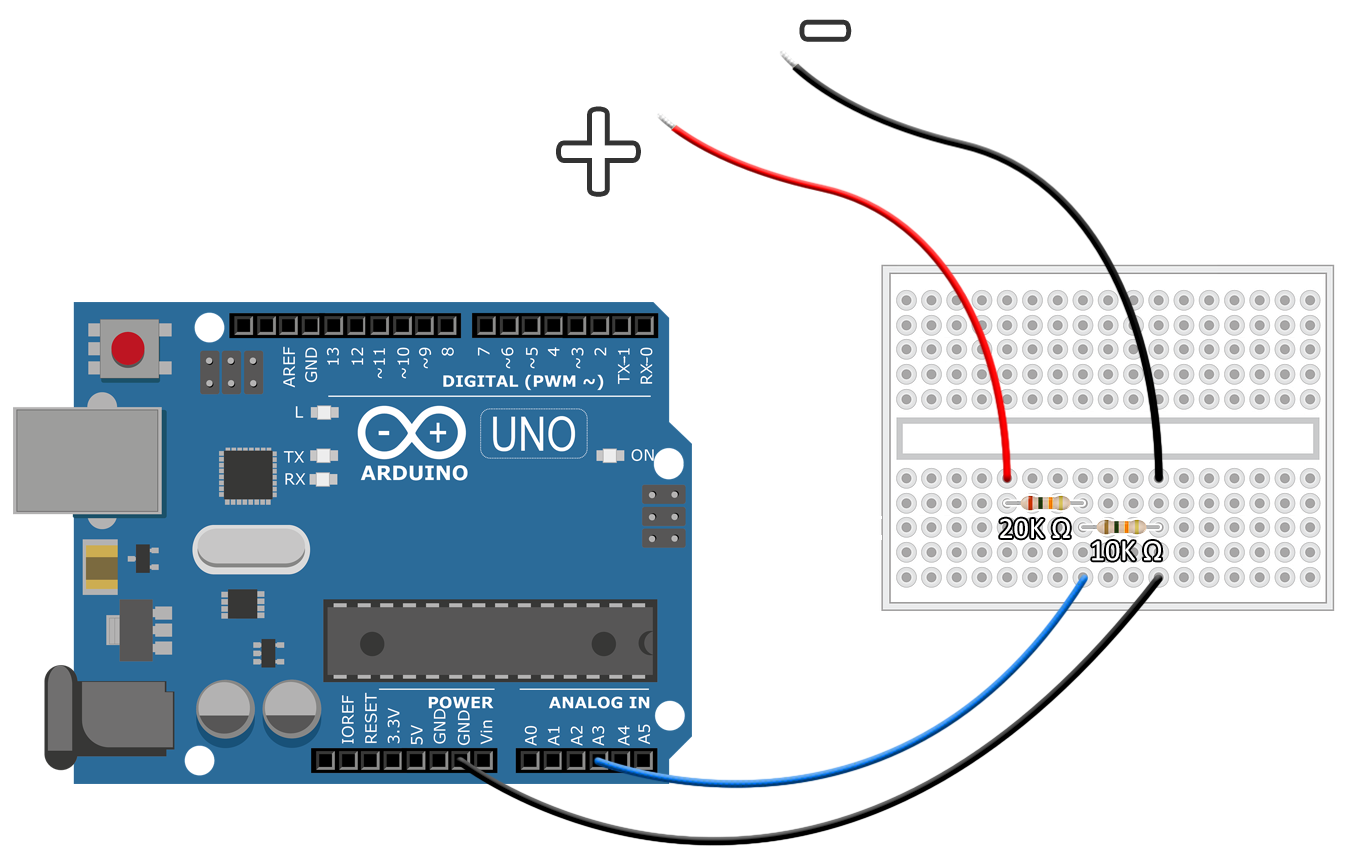

The maximum voltage that can be measured is ~15V DC!
For whatever reason - Windows Defender keeps detecting viruses when downloaded from github.
Therefore, I will not offer the binary file for download.
Here is a video I have uploaded to YouTube where I use the content of this repository:
Undervolted Pentium II - and monitor Vcore with an Arduino
