cadviewer-testapp-dotnet-core-01

CADViewer implementation of dotNet Core controllers

The repository contains a full setup of CADViewer with CAD Converters and script controllers for dotNet Core.

This package contains

1: CADViewer script library - in its preferred folder structure

2: AutoXchange AX2025 Converter and DWG Merge 2023 Converter - in their preferred folder structure

3: All structures for file-conversion, sample drawings, redlines, etc.

4: A number of HTML files with CADViewer samples.

5: The folder structure for dotNet Core script handlers for communication between CADViewer and the back-end AutoXchange 2023.

This package does not contain

6: The converter folder structure contains a larger set of fonts, installed in /cadviewer/converters/ax2023/windows/fonts/, but a fuller set of fonts can be installed.

Read the sections on installing and handling Fonts in AutoXchange 2020 TechDocs and TroubleShooting.

How to Use

1: Install into a folder of choice:

2: If different from default install folder, then locate appsettings.json and modify paths and urls to match your server settings.

{ "Logging": { "LogLevel": { "Default": "Warning" } }, "AllowedHosts": "*", "CADViewer": { "ServerLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/", "ServerUrl": "https://localhost:44374/", "ServerUrlGUI": "https://localhost:44374/", "ServerUrlcommandline": "https://localhost:5001/", "fileLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/files/", "fileLocationUrl": "https://localhost:44374/converters/files/", "fileLocationUrlGUI": "https://localhost:44374/converters/files/", "fileLocationUrcommandline": "https://localhost:5001/converters/files/", "converterLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/ax2024/windows/", "ax2020_executable": "AX2025_W64_25_04_138.exe", "cvjs_debug": true, "cvjs_svgz_compress": false, "licenseLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/ax2024/windows/", "xpathLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/ax2024/windows/", "callbackMethod": "https://localhost:44374/CADViewer/getFile", "callbackMethodURL": "https://localhost:44374/CADViewer/getFile", "callbackMethodcommandline": "https://localhost:5001/CADViewer/getFile", "MailServer": "smtp.dreamhost.com", "MailServerPort": 465, "MailUserName": "testing@cadviewer.com", "MailPassword": "xxx" } }

NOTE: If running from Visual Studio, the default URL is localhost:44374, if running from the command-line with dotnet command the default URL is localhost:5001 .

3: If different from default install folder and url, in the folder cadviewer/wwwroot/html update the JavaScript variables in each of the sample HTML documents:

    var ServerBackEndUrl = "https://localhost:44374/";
    var ServerUrl = "https://localhost:44374/";
    var ServerLocation = "";

NOTE: We have in the sample HTML documents simplified, by simply using current URL:

// Location of installation folders:  1) update if back-end on different port!  2) make sure / is after port!
    var ServerBackEndUrl = location.origin+"/";     //"http://localhost:5001/";
    var ServerUrl =  location.origin+"/";           // http://loalhost:5001/; //
    var ServerLocation = "";

NOTE: If running from Visual Studio, the default URL is localhost:44374, if running from the command-line with dotnet command the default URL is localhost:5001 .

The variable ServerLocation is used to set another server path for the installation. This should only be done in testing. It is normally kept empty and settings in appsettings.json are used. ServerBackEndUrl is not used for dotNetCore unless the back-end CADViewerController.cs is accessible from a different url/port in which also appsettings.json needs to be updated.

4: The method cvjs_setAllServerPaths_and_Handlers() sets the front-end and back-end combination as well as the controlling paths. Note that the last parameter in this method is the controller name. If the controller name variable is undefined or "", then the back-end location must be the url of the end-point itself, so: ServerBackEndUrl = "https://localhost:44374/CADViewer" in this case for running through Visual Studio.

    // Pass over the location of the installation: will update the internal paths, as well as front-end and back-end platforms
    // last parameter is the controller name  , ServerBackEndUrl+controller = controller path
    cvjs_setAllServerPaths_and_Handlers(ServerBackEndUrl, ServerUrl, ServerLocation, "dotNetCore", "JavaScript", "floorPlan", "CADViewer");

5: Once installed, eithr open cadviewer.sln in Visual Studio, or from the command line run: dotnet run --project ./cadviewer.csproj, the HTML samples under /cadviewer/wwwroot/html/ can then be accessed from a web-browser. Use http://localhost:xxxxx/cadviewer/html/CADViewer_fileloader_80.html as a starting point (assuming that your have installed under http://localhost:xxxxx).

General Documentation

Updating CAD Converters

This repository should contain the latest converters, but in case you need to update any of the back-end converters please follow:

  • Download AutoXchange (and other converters), install (unzip) AX2020 in cadviewer/converters/ax2020/windows or cadviewer/converters/ax2020/linux or in the designated folder structure.

  • Read the sections on installing and handling Fonts in AutoXchange 2020 TechDocs and TroubleShooting.

  • Try out the samples and build your own application!

Folder Structure

For a CADViewer dotNetcore installation on Windows, the base file-structure should be as below: CADViewer and AutoXchange is included in this repository, but it can be recreated by downloading the components directly from: https://cadviewer.com/download

c:\cadviewer-testapp-dotnet-core-01\cadviewer\cadviewer\
                                                     └─── wwwroot
                                                            ├── app
                                                            │    ├── cv
                                                            │    │    ├── cv-pro
                                                            │    │    │   ├── menu_config
                                                            │    │    │   ├── language_table
                                                            │    │    │   └── space
                                                            │    │    │         ├── css
                                                            │    │    │         └── html
                                                            │    │    ├── cv-core
                                                            │    │    │   ├── menu_config
                                                            │    │    │   └── language_table
                                                            │    │    └── cv-custom_commands
                                                            │    ├── fonts
                                                            │    ├── images
                                                            │    ├── js
                                                            │    ├── css
                                                            │    └── user_resources
                                                            ├── converters
                                                            │    ├── ax2025
                                                            │    │     ├── windows
                                                            │    │     │      └── fonts
                                                            │    │     └── linux
                                                            │    │            └── fonts
                                                            │    ├── dwgmerge2023
                                                            │    │         ├── windows
                                                            │    │         │      └── fonts
                                                            │    │         └── linux
                                                            │    │            └── fonts
                                                            │    ├── linklist2023
                                                            │    │         ├── windows
                                                            │    │         │     └── fonts
                                                            │    │         └── linux
                                                            │    │               └── fonts
                                                            │    └── files
                                                            ├── content
                                                            ├── html
                                                            └── temp_print

dotNETcore Configuration - set paths

In folder:

c:\cadviewer-testapp-dotnet-core-01\cadviewer
         └─── cadviewer
               └── appsettings.json

locate the configuration file: appsettings.json , edit the key settings that controls Converter and CADViewer paths to reflect your installation.

dotNETcore Controller

In folder:

c:\cadviewer-testapp-dotnet-core-01\cadviewer
         └─── cadviewer
                   └─── Controllers
                             └── CADViewerController.cs

The file CADViewerController.cs contains the controllers that CADViewer uses to manipulate content on the server and to control CAD conversion.

HTML

In folder:

c:\cadviewer-testapp-dotnet-core-01\cadviewer
                                       └─── cadviewer
                                                └── html

identify your sample mysample.html file, and ensure that it correctly sets the ServerLocation and ServeUrl parameters

Open a web-browser pointing to your sample html file: http:/localhost:xxxxx/html/mysample.html

Debug Trace

Use the server traces and browser development console for debugging, alternatively contact our Support

For debugging, the folder:

c:\cadviewer-testapp-dotnet-core-01\cadviewer
                                       └─── cadviewer
                                                 └─── wwwroot
                                                         └── temp_debug

contains a number of debug files. Note that callApiConversionHandlerLog_XXXXXX.txt lists the command line and traces in the communication with the back-end CAD converter AutoXchange 2023. If drawing files does not display, this file will contain useful information to pinpoint the issue.

Documentation

CADViewer Techdocs

AutoXchange Parameter Interface

Troubleshooting

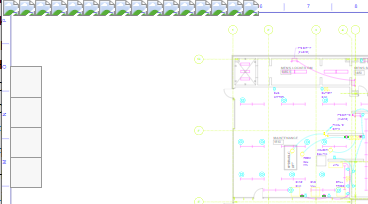

One issue that often appears in installations is that interface icons do not display properly:

Icons

Typically the variables ServerUrl, ServerLocation or ServerBackEndUrl in the controlling HTML document in /cadviewer/html/ are not set to reflect the front-end server url or port.

    var ServerBackEndUrl = "http://localhost:xxxx"; // or what is appropriate for my server
    var ServerUrl = "http://localhost:xxxx";   // or what is appropriate for my server
    var ServerLocation = ""; // or what is appropriate for my server
