Advanced Graphics Programming

A project developed with QT by Aleix Gabarró, Óscar Hernández and Jonathan Molina-Prados.

Features Implemented:

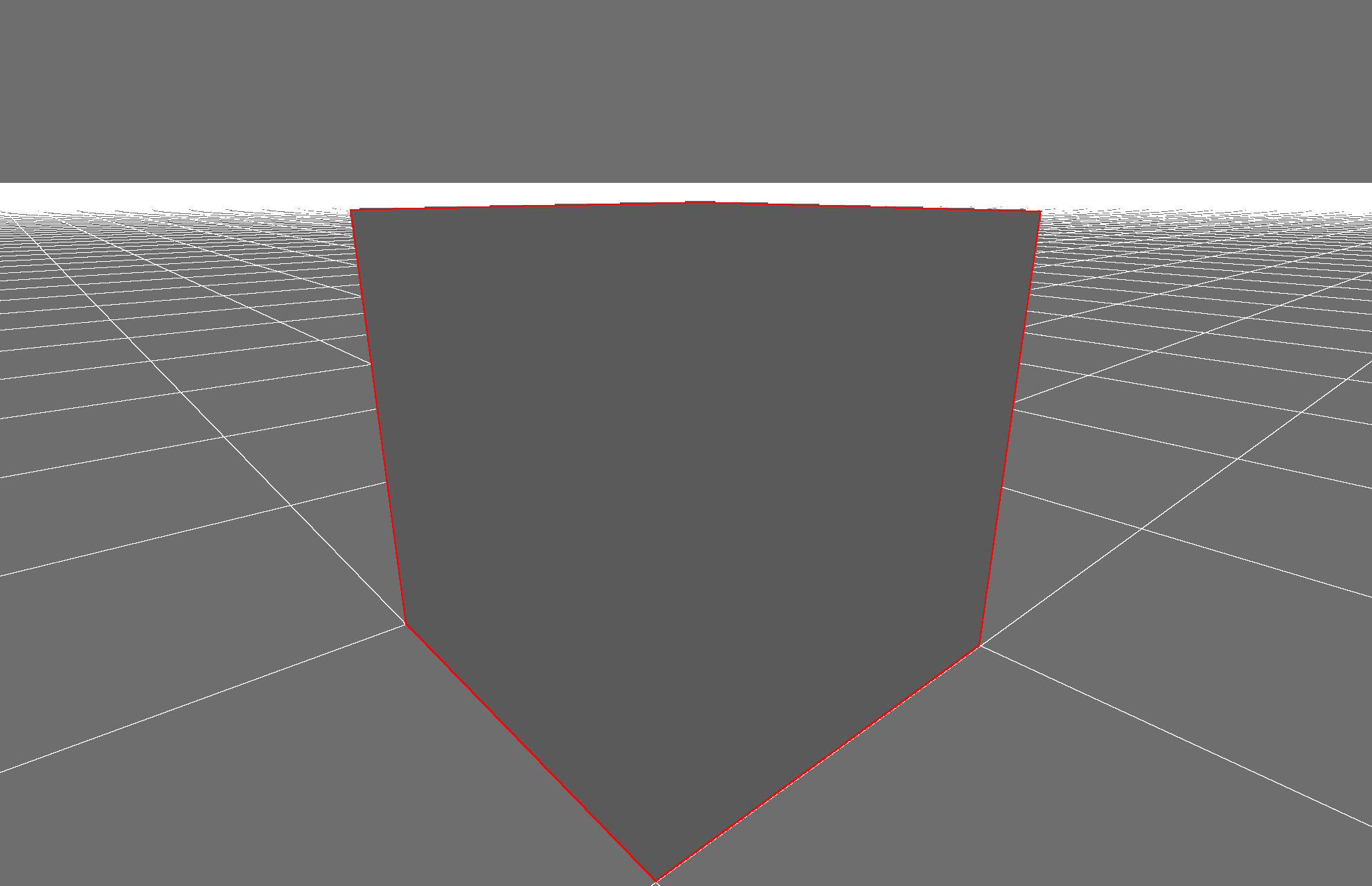

• Mouse Picking (rendering entities in a texture):

• Editor background and grid:

• Deferred Shading Pipeline:

• SSAO Graphic Technique:

• Orbital Camera:

• Settings: From the misc settings tab you can edit different properties from the engine such as:

  • Camera:
    • Speed
    • FOV Y
  • Enviroment:
    • Background color: Change the color of the background
    • Outline color: Change the color of the outline
    • Outline width: Change the width of the outline
  • Editor visual hints:
    • Grid: Activate/Deactivate the grid
    • Light sources: Activate/Deactivate the light sources
    • Selection outline: Activate/Deactivate the outline
  • Rendering:
    • SSAO: Activate/Deactivate the SSAO

• Controls:

  • LMB: Select Entities by left-clicking them in the scene or the hierarchy window.
  • F: Focus the selected entity.
  • RMB + WASDQE: Navigate through the scene in a first person point of view.
  • RMB + Panning: Look around.
  • SPACEBAR + RMB + Panning: Orbital camera around the selected object.
