Unity-TalkUI

A Node-Based Conversation Event Creation System Using Unity-GraphView.

Features

• You can easily create conversation events by connecting nodes.
• Event information is stored in JSON format and is dynamically loaded by attaching it to a dedicated object.
• The only code you need to implement is event.RunEvent() and a callback function for the ID of the ending of the conversation event!

Usage

• Download the .unitypackage file from Release and import it into your Unity project.

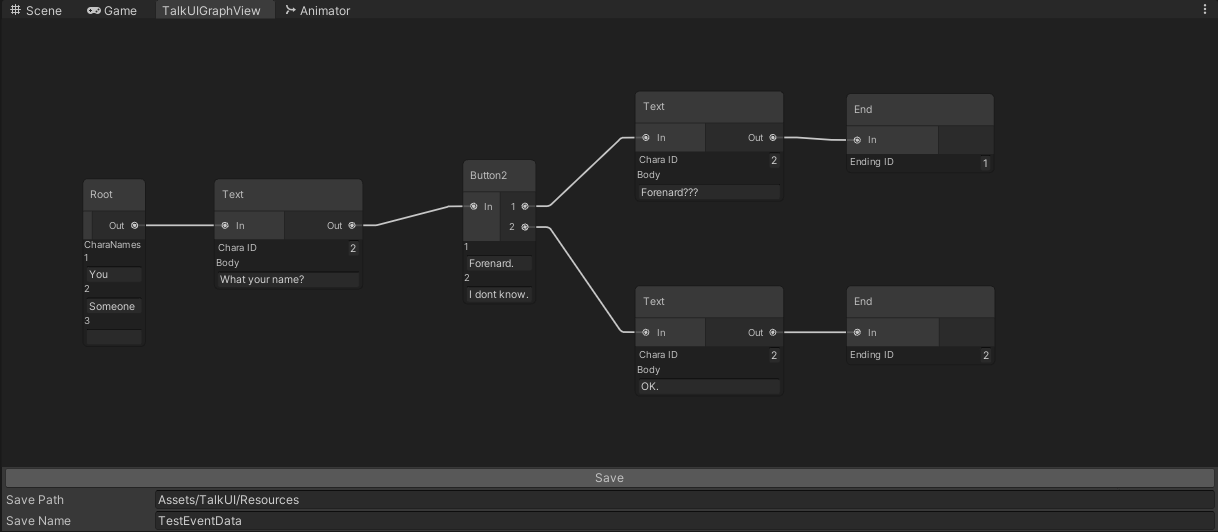

• Open the TalkUIGraphView tab and connect the nodes.

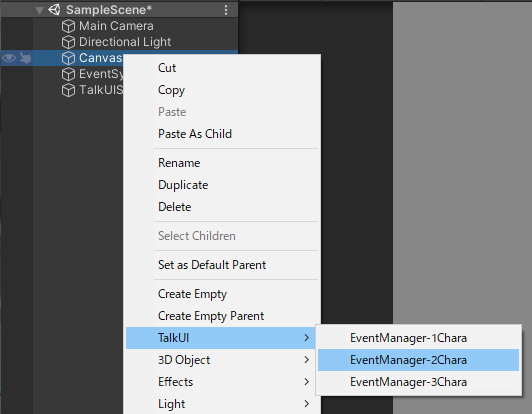

• Create an EventManager object.

• Attach the EventData file (JSON) you just saved to the EventManager component.

• The following code is the minimal code to start a conversation event

using TalkUI;
using UnityEngine;
using UnityEngine.Events;
public class TalkUISampleScript : MonoBehaviour
{
    [SerializeField]
    EventManager eventManager;
    private void Start()
    {
        UnityEvent<int> uEventCallBack = new UnityEvent<int>();
        uEventCallBack.AddListener(TestCallBack);
        eventManager.RunEvent(uEventCallBack);
    }
    public void TestCallBack(int id)
    {
        Debug.Log("Ending id is " + id);
    }
}

• You can also refer to TalkUI/Scenes/SampleScene

TODO

• Loading and re-editing saved EventData
• Adjusting the position of newly created nodes
