Control Design is Conditionally Allowed/Disallowed

This repo contains a prototype that is a minimal example of doing this.

---

First, subclass Microsoft.DotNet.DesignTools.Designers.ParentControlDesigner in order to customize the designer behavior for UserControlEx and set the Designer attribute of the user control.

// <PackageReference Include="Microsoft.WinForms.Designer.SDK" Version="1.6.0" />
class ParentControlDesignerEx : ParentControlDesigner{ }

[Designer(typeof(ParentControlDesignerEx))]
public partial class UserControlEx : UserControl{}

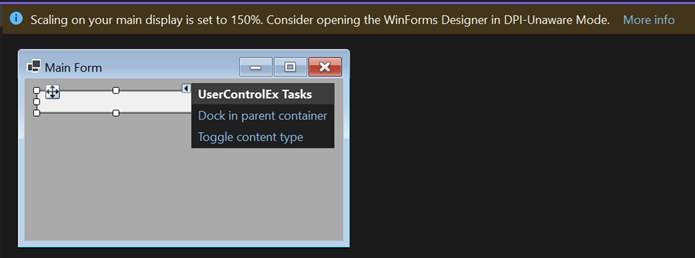

Optionally, add a frame with verbs for:

• Dock in Parent Container
• Toggle content type

public override DesignerVerbCollection Verbs => new DesignerVerbCollection(base.Verbs.Cast().Concat(new[] { new DesignerVerb("Dock in parent container", OnDockInParent), new DesignerVerb("Toggle content type", OnToggleContentType), }).ToArray());

    void OnDockInParent(object? sender, EventArgs e)
    {
        if (Component is Control c && c.Parent != null)
        {
            c.Dock = DockStyle.Fill;
            Control?.Log($"{nameof(OnDockInParent)}");
        }
    }

    private void OnToggleContentType(object? sender, EventArgs e) =>
        Control.ContentType = Control.ContentType switch
        {
            ContentType.Immutable => ContentType.Designable,
            _ => ContentType.Immutable,
        };

    public new UserControlEx Control => (UserControlEx)base.Control;

[

---

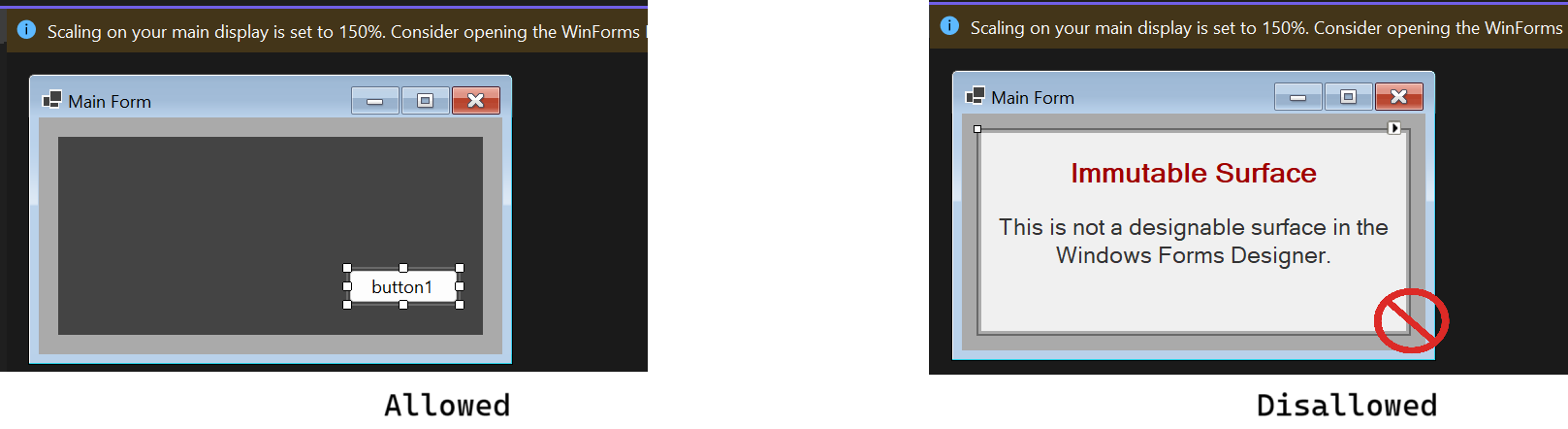

Next, by inspecting the value of the ContentType property of UserControlEx it can either show a Designable surface or an Immutable one. When something like a Button is being dragged over from the Tool Box, this property of the user control is inspected in the OnDragOver method of the custom designer and accepted in the first case and rejected in the second.

public new UserControlEx Control => (UserControlEx)base.Control;
protected override void OnDragOver(DragEventArgs de)
{
    base.OnDragOver(de);

    Point pt = Control.PointToClient(new Point(de.X, de.Y));
    var target = Control.GetChildAtPoint(pt, GetChildAtPointSkip.Invisible);
    if (target is ImmutableContent)
    {
        de.Effect = DragDropEffects.None;
    }
}
protected override void OnDragDrop(DragEventArgs de)
{
    if(Control.ContentType == ContentType.Designable)
    {
        // Allow
        base.OnDragDrop(de);
    }
}

[

---

What makes it tricky to suppress control addition via toolbox selection and single-click is that mouse interaction is routed through the BehaviorService, requiring interception at the behavior layer.

As a result, the typical strategies developers rely on are ineffective. These include:

• Overriding WndProc
• Overriding or handling mouse events (OnMouseDown, OnClick, etc.), even in the custom designer itself
• Using IMessageFilter and PreFilterMessage
• Overriding CanAddComponent or CanBeParentedTo
• Intercepting OnDragDrop (which only applies to drag-and-drop)

One approach that seems to work is to push a custom Behavior from within the designer's Initialize method:

public override void Initialize(IComponent component)
{
    base.Initialize(component);
    if (GetService(typeof(BehaviorService)) is BehaviorService behaviorSvc &&
        Control is not null)
    {
        behaviorSvc.PushBehavior(new ImmutableSurfaceBehavior(behaviorSvc, Control));
        Control?.Log($"BehaviorService is online.");
    }
    else
    {
        Control?.Log($"BehaviorService could not be obtained.");
    }
}

This Behavior implementation uses adorner-layer hit-testing to selectively suppress mouse interaction over the control. This condition is arbitrary, but in this case is inspecting the...

class ImmutableSurfaceBehavior : Behavior
{
    private readonly UserControlEx _control;
    private readonly BehaviorService? _behaviorService;

    public ImmutableSurfaceBehavior(BehaviorService behaviorSvc, UserControlEx control)
    {
        _control = control;
        _behaviorService = control.Site?.GetService(typeof(BehaviorService)) as BehaviorService;
    }

    public override bool OnMouseDown(Glyph? glyph, MouseButtons button, Point adornerCoordinates)
    {
        if (_behaviorService is not null)
        {
            var screenPoint = _behaviorService.AdornerWindowToScreen(adornerCoordinates);
            var clientPoint = _control.PointToClient(screenPoint);
            var bounds = new Rectangle(Point.Empty, _control.Size);

            if (_control?.ContentType == ContentType.Immutable && bounds.Contains(clientPoint))
            {
                if (_control.Site?.GetService(typeof(ISelectionService)) is ISelectionService selSvc)
                {
                    _control.BeginInvoke(() =>
                    {
                        selSvc.SetSelectedComponents(new[] { _control }, SelectionTypes.Primary);
                    });
                }
                return true;
            }
        }
        return base.OnMouseDown(glyph, button, adornerCoordinates);
    }
}

One approach that seems to work is pushing a custom Behavior from within the designer’s Initialize method, in order to swallow the MouseDown event and prevent toolbox-initiated control creation at the source.

---

I'm posting my "best solution so far," but having said that, I'm always looking for a canonical "best approach" if there is one. My aim here is to release this control (that is, the "real" control this MRE is based on) in production — so the other request is: if you do happen to clone my repo, and something doesn't work, I'd really appreciate it if you'd report the issue there. That is, if the whole thing isn't too arcane to begin with...

---

What makes it tricky to suppress control addition via toolbox selection and single-click is that mouse interaction is routed through the BehaviorService, requiring interception at the behavior layer.

As a result, the typical strategies we've come to rely on are ineffective. These include:

• Overriding or handling mouse events (OnMouseDown, OnClick, etc.), even in the custom designer itself
• Using IMessageFilter and PreFilterMessage
• Overriding WndProc
• Overriding CanAddComponent or CanBeParentedTo in the custom designer
• Intercepting OnDragDrop (which only applies to drag-and-drop)

However, working around this can be fairly straightforward.

---

Push the Behavior

public override void Initialize(IComponent component)
{
    base.Initialize(component);
    if (GetService(typeof(BehaviorService)) is BehaviorService behaviorSvc &&
        Control is not null)
    {
        behaviorSvc.PushBehavior(new ImmutableSurfaceBehavior(behaviorSvc, Control));
    }
}

Implement the Behavior

This Behavior implementation uses adorner-layer hit-testing to selectively suppress mouse interaction over the control. The condition shown here is based on a user-defined property ContentType on a subclassed control (UserControlEx), which determines whether the surface should be interactive at design time:

class ImmutableSurfaceBehavior : Behavior
{
    private readonly UserControlEx _control;
    private readonly BehaviorService? _behaviorService;

    public ImmutableSurfaceBehavior(BehaviorService behaviorSvc, UserControlEx control)
    {
        _control = control;
        _behaviorService = control.Site?.GetService(typeof(BehaviorService)) as BehaviorService;
    }

    public override bool OnMouseDown(Glyph? glyph, MouseButtons button, Point adornerCoordinates)
    {
        if (_behaviorService is not null)
        {
            var screenPoint = _behaviorService.AdornerWindowToScreen(adornerCoordinates);
            var clientPoint = _control.PointToClient(screenPoint);
            var bounds = new Rectangle(Point.Empty, _control.Size);

            if (_control.ContentType == ContentType.Immutable && bounds.Contains(clientPoint))
            {
                if (_control.Site?.GetService(typeof(ISelectionService)) is ISelectionService selSvc)
                {
                    _control.BeginInvoke(() =>
                    {
                        selSvc.SetSelectedComponents(new[] { _control }, SelectionTypes.Primary);
                    });
                }
                return true;
            }
        }
        return base.OnMouseDown(glyph, button, adornerCoordinates);
    }
}
