Spring-Security-JDBC-Authentication-in-MySQL

1. Create users table and dummy credentials The credentials should be stored in database, so let’s create a new table named users with the following columns:

2. Configure Data Source Properties

Next, specify database connection information in the application.properties file like this: spring.datasource.url=jdbc:mysql://localhost:3306/testdb spring.datasource.username=root spring.datasource.password=password Update the URL, username and password according to your MySQL database.

3. Declare Dependencies for Spring Security and MySQL JDBC Driver To use Spring Security APIs for the project, declare the following dependency in the pom.xml file:

org.springframework.boot spring-boot-starter-security And to use JDBC with Spring Boot and MySQL: org.springframework.boot spring-boot-starter-jdbc mysql mysql-connector-java runtime Note that the dependency versions are already defined by the Spring Boot starter parent project.

4. Configure JDBC Authentication Details To use Spring Security with form-based authentication and JDBC, create the WebSecurityConfig class as follows: package net.codejava;

import javax.sql.DataSource; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Configuration; import org.springframework.security.config.annotation.authentication.builders.; import org.springframework.security.config.annotation.web.builders.HttpSecurity; import org.springframework.security.config.annotation.web.configuration.; import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

@Configuration @EnableWebSecurity public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

@Autowired
private DataSource dataSource;

@Autowired
public void configAuthentication(AuthenticationManagerBuilder auth) throws Exception {
    auth.jdbcAuthentication().passwordEncoder(new BCryptPasswordEncoder())
        .dataSource(dataSource)
        .usersByUsernameQuery("select username, password, enabled from users where username=?")
        .authoritiesByUsernameQuery("select username, role from users where username=?")
    ;
}

@Override
protected void configure(HttpSecurity http) throws Exception {
    http.authorizeRequests()
        .anyRequest().authenticated()
        .and()
        .formLogin().permitAll()
        .and()
        .logout().permitAll();
}

} This security configuration class must be annotated with the @EnableWebSecurity annotation and is a subclass of WebSecurityConfigurerAdapter. An instance of DataSource object will be created and injected by Spring framework: @Autowired private DataSource dataSource; It will read database connection information from the application.properties file. And to configure authentication using JDBC, write the following method:

@Autowired public void configAuthentication(AuthenticationManagerBuilder auth) throws Exception { auth.jdbcAuthentication().passwordEncoder(new BCryptPasswordEncoder()) .dataSource(dataSource) .usersByUsernameQuery("select username, password, enabled from users where username=?") .authoritiesByUsernameQuery("select username, role from users where username=?") ; }

As you can see, we need to specify a password encoder (BCrypt is recommended), data source and two SQL statements: the first one selects a user based on username, and the second one selects role of the user. Note that Spring security requires the column names must be username, password, enabled and role. And to configure form-based authentication, we override the configure(HttpSecurity) method as follows:

@Override protected void configure(HttpSecurity http) throws Exception { http.authorizeRequests() .anyRequest().authenticated() .and() .formLogin().permitAll() .and() .logout().permitAll();
}

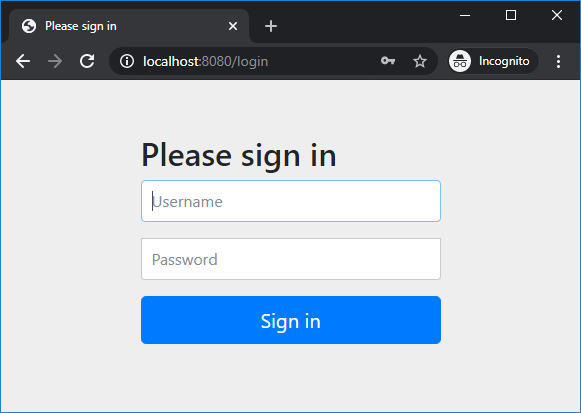

5. Test Login and Logout Start the Spring Boot application and access http://localhost:8080 in web browser, you will see the default login page provided by Spring security appears: As you can see, Spring Security will handle login and logout for the application. We don’t have to write repetitive code, just specify some configurations.
