Arduino 4 bit binary adder I made, you can find the code, bill of materials and the design of circuit in this repository.
Steps:

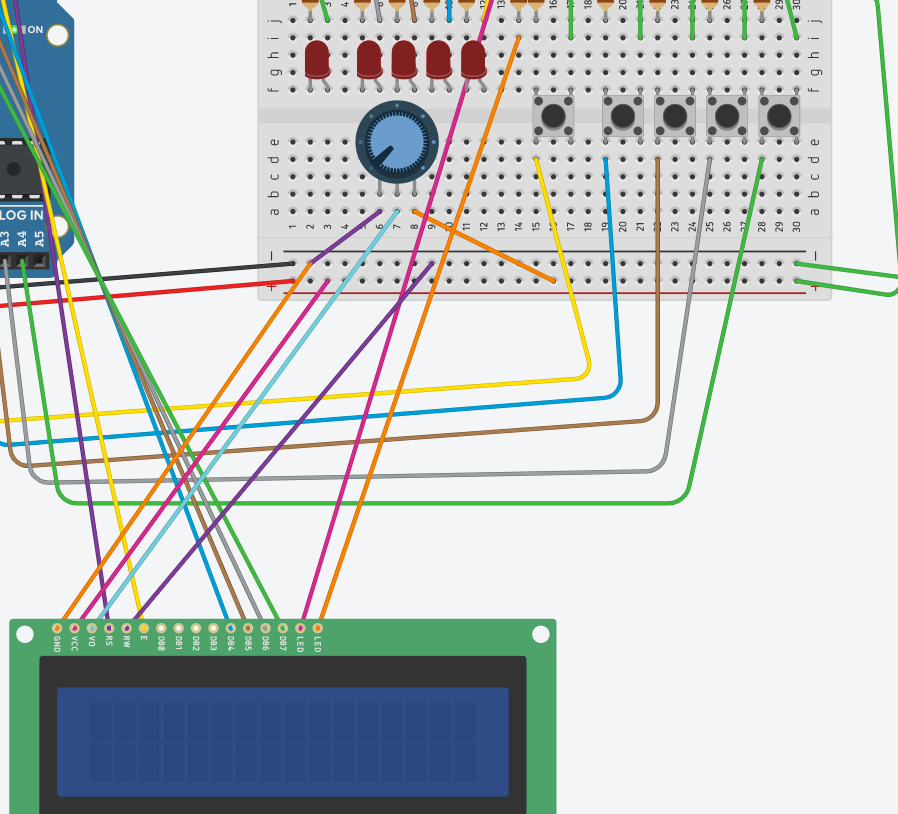

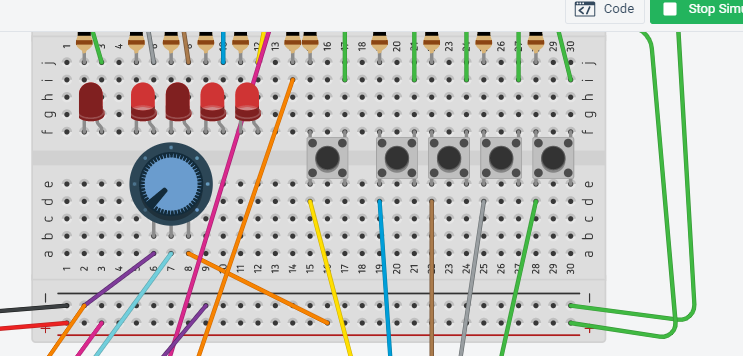

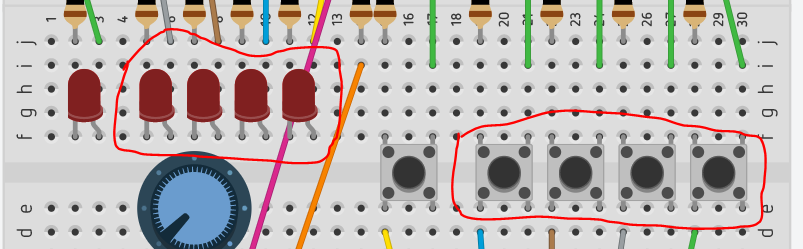

- Use the four buttons on the right to turn on and off the 4 LEDs above, these LEDs will act as the bits, LED on for a 1 and LED off for a 0. Since there are 4 buttons corresponding to the 4 LEDs, this means you can make a 4 bit binary nummber

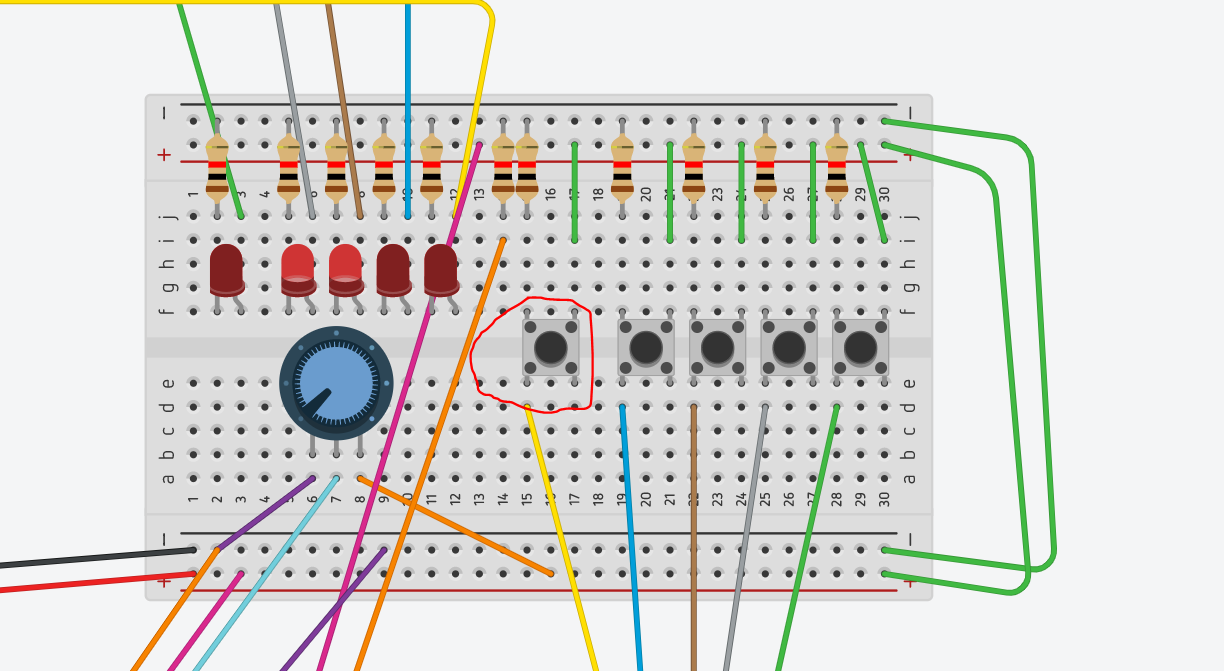

- Once you have choosen a 4 bit binary number, you can press the submit button, which is the button on the left of the 4 LED buttons.

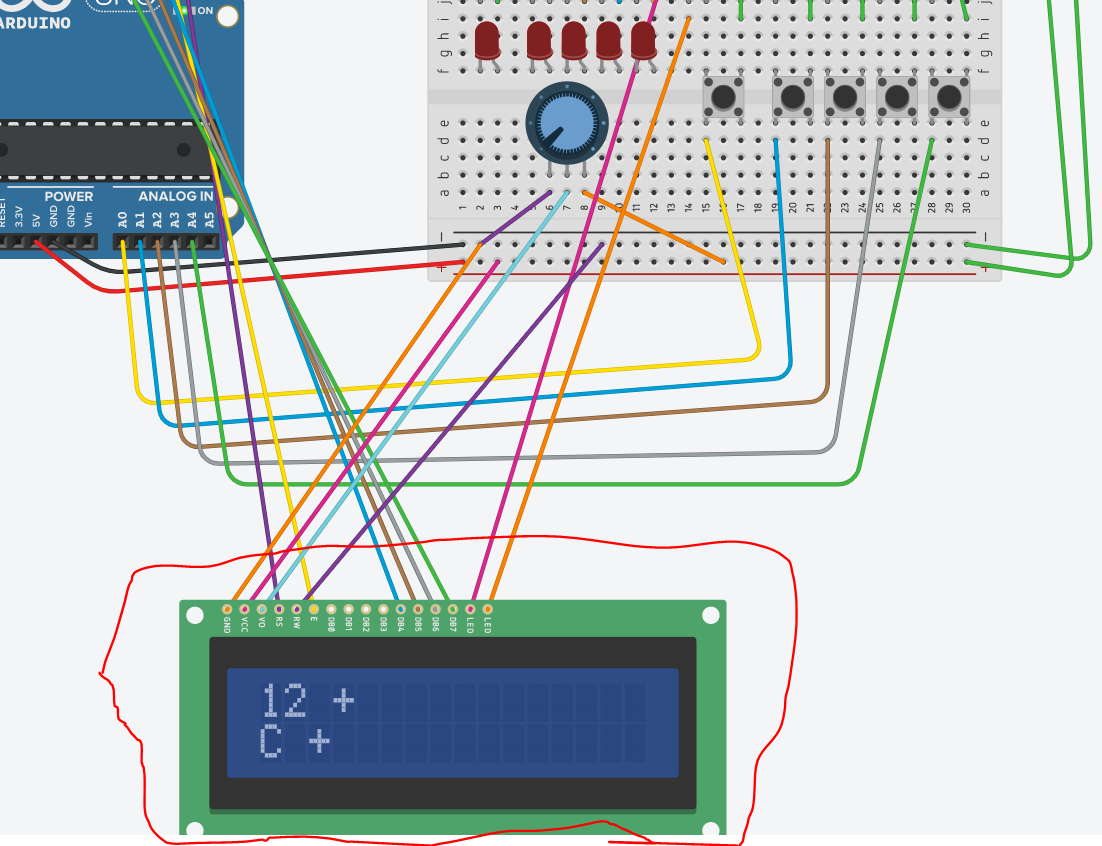

- Once submit button is pressed the LCD screen will display the deciamal and hexadecimal represenation of the number you submitted
- Now you can put in the next 4 bit binary number you want to add to the first number you put in. Using the same process as the first number, by using buttons to create a 4 bit binary number and then pressing submit button

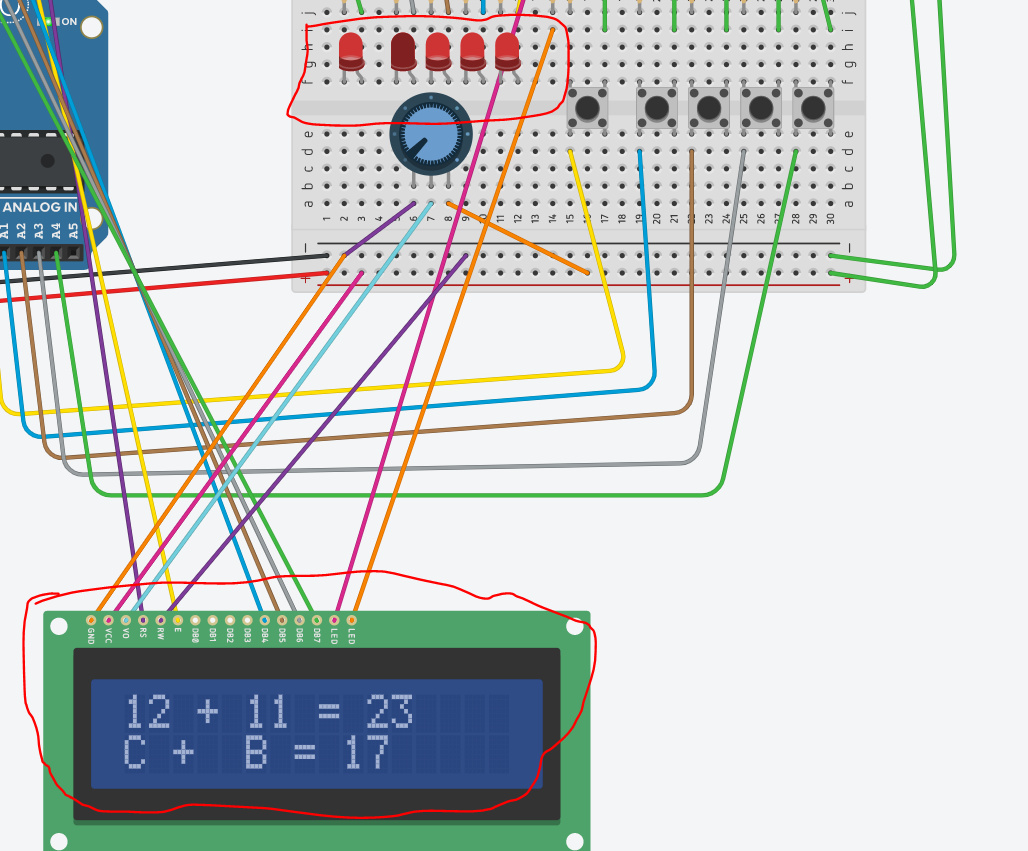

- After submitting that number you will see the final equation with the answer in decimal and hexadecimal on the LCD screen. The answer in binary will appear on the 5 LED lights, if the LED is on its a 1 and if the LED is off its a 0.
- You can press the submit button again to get back to the start and do a new equation.
