Recipe Viewer

Recipe Viewer is a mod for Inner Core (Minecraft BE 1.11.4 and 1.16.201) that allows you to view all kinds of recipes.

Usage

• Tap the R button on the inventory screen to open main window.

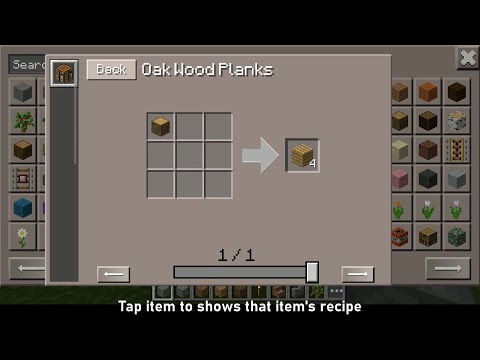

• Tapping items or liquids will display that recipe while long tapping shows what recipes it is used in.
• Tapping back button will back to previous page while long tapping will close recipe window.

Introduction Videos

• Basic usage
• New features

How to add Recipe Type (for Developers)

• Import RecipeViewer.d.ts into your mod.
• Prepare a function that will return all your recipes. () => RecipePattern[]
• Add the following callback at the end of your mod. (All subsequent code should be written in it.)

  ModAPI.addAPICallback("RecipeViewer", (api: {Core: any, RecipeType: typeof RecipeType, RecipeTypeRegistry: RecipeTypeRegistry}) => {

  });


• Declare a class for your recipe type

  class YourRecipeType extends api.RecipeType {

      getAllList(): RecipePattern[] {
          return PreparedFunc();
      }

  }


• Create instance

  const YourRecipe = new YourRecipeType("Your Recipe", BlockID.block, {
      params: {},
      drawing: [],
      elements: {

          //"input" + index starts from zero -> InputSlot
          input0: {x: 0, y: 0, size: 100},
          input1: {x: 0, y: 0, size: 100},
          input2: {x: 0, y: 0, size: 100},

          //"output" + index starts from zero -> OutputSlot
          output0: {x: 0, y: 0, size: 100},
          output1: {x: 0, y: 0, size: 100},
          output2: {x: 0, y: 0, size: 100},

          //"inputLiq" + index starts from zero -> InputTank
          inputLiq0: {x: 0, y: 0, width: 50, height: 200},
          inputLiq1: {x: 0, y: 0, width: 50, height: 200},
          inputLiq2: {x: 0, y: 0, width: 50, height: 200},

          //"outputLiq" + index starts from zero -> OutputTank
          outputLiq0: {x: 0, y: 0, width: 50, height: 200},
          outputLiq1: {x: 0, y: 0, width: 50, height: 200},
          outputLiq2: {x: 0, y: 0, width: 50, height: 200}

      }
  });


• For recipes that use liquids, set the liquid limit.

  YourRecipe.setTankLimit(8);


• Register a class in the RecipeTypeRegistry

  RecipeTypeRegistry.register("your_key", YourRecipe);


• If you cannot get all the recipes, you can use the following method.

  class YourRecipeType extends api.RecipeType {

      getAllList(): RecipePattern[] {
          return [];
      }

      getList(id: number, data: number, isUsage: boolean): RecipePattern[] {
          return PreparedFunc(id, data, isUsage);
      }

  }


• It can also be written as follows

  class YourRecipeType extends api.RecipeType {

      constructor(){
          super("Your Recipe", BlockID.block, {
              params: {},
              drawing: [],
              elements: {}
          });
          this.setTankLimit(8);
      }

      getAllList(): RecipePattern[] {
          return PreparedFunc();
      }

  }

  RecipeTypeRegistry.register("your_key", new YourRecipeType());


  class YourRecipeType extends api.RecipeType {

      constructor(name: string){
          super(name, BlockID.block, {
              params: {},
              drawing: [],
              elements: {}
          });
          this.setTankLimit(8);
      }

      getAllList(): RecipePattern[] {
          return PreparedFunc();
      }

  }

  RecipeTypeRegistry.register("your_key1", new YourRecipeType("Your Recipe 1"));
  RecipeTypeRegistry.register("your_key2", new YourRecipeType("Your Recipe 2"));
