Problem Statement: A Retail business organization (target) is not able to handle and maintain the details of potential market. It is unable to manage various employees who belong to various departments, information about the customers and sold products their defects, quality and Voucher details etc. Scope of Project: This project aims to build a database for retail application for an organization like Target where customers buy projects online and offline. Retail application database is mainly used by the retail store administrators to improve their sales by analyze the product sales, customer and employees working in their organization This project helps in designing unique database which holds the information of the business model to properly store, analyze the data that company is looking for Products list with minimum defects and maximum quality can be know which helps the organization to maintain good quality products in their store and increase their sales This project helps the organization to store and analyze customers, employee, product sales details. This Database design helps in analyzing which product is highly rated by customers, Total revenue earned by online and offline payment modes. Identification of Entities: Employee Customer Address Zip Code Bill Payment Mode Order Order Item Order Product Product Voucher Product Group Product Description Reviews ⇾ Employee-Any person who is employed as a part of company staff Attributes: EmployeeID, EmpFirst_Name, EmpLast_SSN, EmpMail_Address, Designation, Department, Salary, Employee_Type.
⇾ Customer -A person who buys products with cash or card basis. He may be internal or external customer. Attributes: CustomerID, First_Name, Last_Name, Mail_Address, Phone_Number, Category
⇾ Bill -Bill includes the total bill for the purchased products and amount that customer paid Attributes: Billing_ID, Amount_Paid
⇾ Address -Address to with a particular order must be delivered. Attributes: AddressID, Address_line1, Address_line2
⇾ Zip Code -Zip details of customers address is included Attributes: ZipCode, City, State
⇾ Payment- This table hold Date of customer visit number, payment and payment type whether the customer bought directly from store or purchased online. It also includes the customer card details Attributes: Payment_ID, Payment_Type, CreditCard_Number,Card_Type, CVV_Number, ExpiryDate, CardHolder_Name
⇾ Orders – This table hold the status of the order whether the order is delivered or not and the shipment option given by the customer. Attributes: Order_ID,Shippment_Duration, Order_Date,Status.
⇾ Order Item-OrderItem contains the details like date and quantity of items purchased. Attributes: Date of Order, Quantity
⇾ Order Product- This contains the details of quantity of product that customer ordered Attributes: OrderProduct_ID, Quantity
⇾ Voucher- Voucher includes priority of customers so based on that customers are given discount on their purchase. Attributes: Voucher_Number, Description, Priority, Quantity_Item
⇾ Product -It is a form of good that is purchased by customer. Attributes: ProductID, Product_Name, Available_Number
⇾ Product Details – Product details contains the description of particular product Attributes: Weight, Width, Colour, Height
⇾ Product Group – Product group tells to which category the product belongs to (Ex. Electronics) Attributes: Group_ID, Group_Name
⇾ Review-Reviews are the feedback given to the product by customers. Attributes: Quality, Defect%, Review_ID, Review_Date

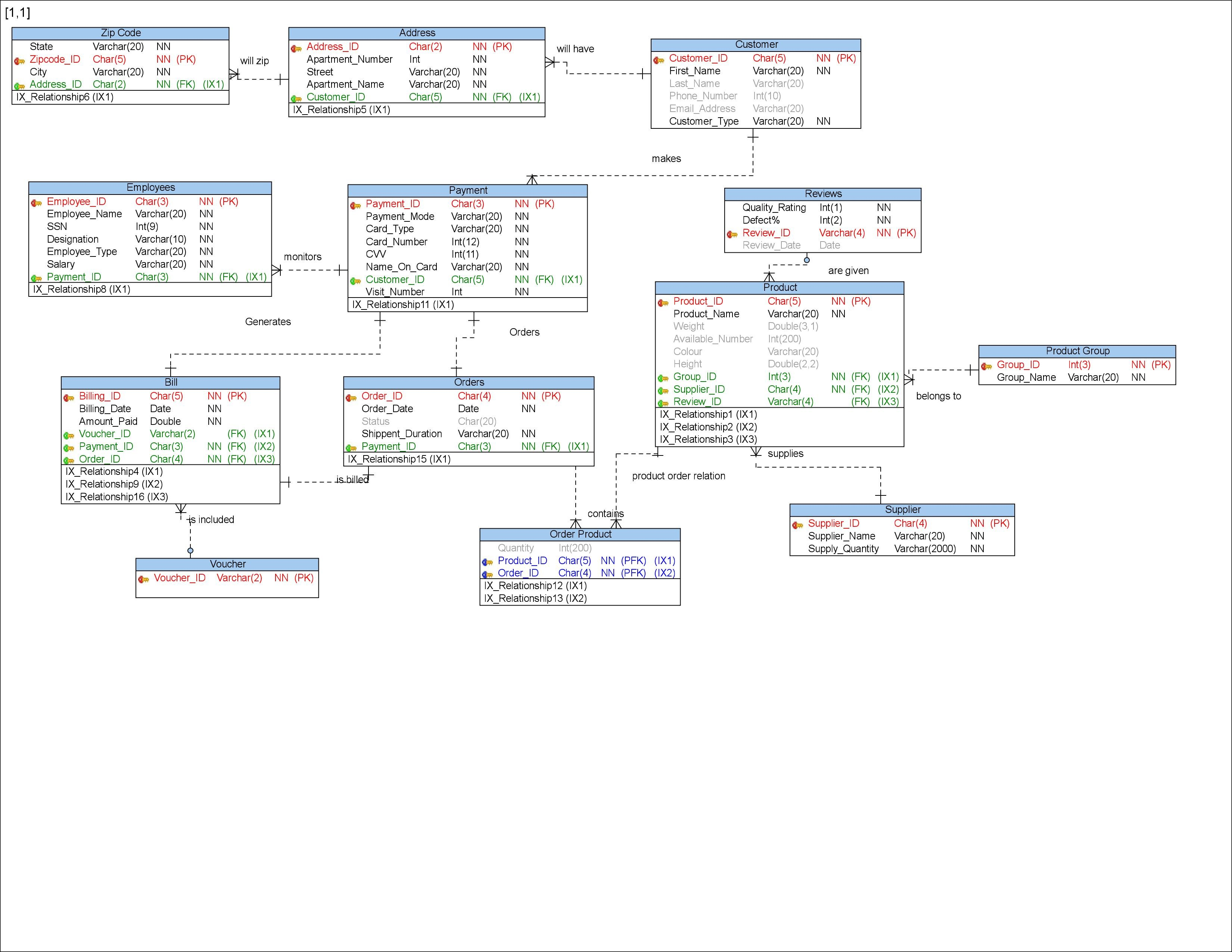

ER Diagram for Retail Application
ER Diagram for Retail Application Before Normalization:
After Normalization
