Excel-beamforcegenerator

Generate Graphs of forces in Excel and calculate Stress in fixed and rolling support beam situations

Word in advance

This class to generate force and tension graphs was made for a school assignment The code in question has been written quite fast and is in no way optimized I took shortcuts and also i am to unexpirienced to write quality VB code.

be aware for the existence of bugs and possible slowdowns/ delays / crashes by non optimized code I mostly tested the fixed situation option and it worked for me, hope you can use this or put it to good use

a well if you hate it... at least it was free

thanks to all tutorials and help topics about VB/Excel that i needed to make this

Best wishes, Tony

Setup / Usage

create a class module in exel and copy atleast all of the non quoted code to it name / rename this class to modelerenclass

add this quoted code or a similar code to your excel vb excel project under modules -> modulename (probably Module1)

---

Function createmodel(classname As String, berekentype As String, sheetname As String, forcepos As String, momentpos As String, supportpos As String, overigpos As String, calcpos As String, efpos As String)

   Dim mClass As New modelerenclass
   Dim lastactivecell As String
   Dim curSheetname As String

   'sla huidige sheet en cel op
   lastactivecell = ActiveCell.Address
   curSheetname = ActiveSheet.name
   Application.EnableEvents = False


    mClass.rundefault classname, berekentype, sheetname, forcepos, momentpos, supportpos, overigpos, calcpos, efpos



    'herselecteer de sheet en cel
    Application.EnableEvents = True
   Range(lastactivecell).Select
    Worksheets(curSheetname).Activate


End Function

you can create all tables on a new sheet with the following line of code

createmodel "Uniquesheetname", "type of calculation", "Sheetname to add the tables",  "A3", "A6", "A9", "A13", "I7", "I3"

example

 createmodel "mClasstest", "fixed", "Sheetname", "A3", "A6", "A9", "A13", "I7", "I3"

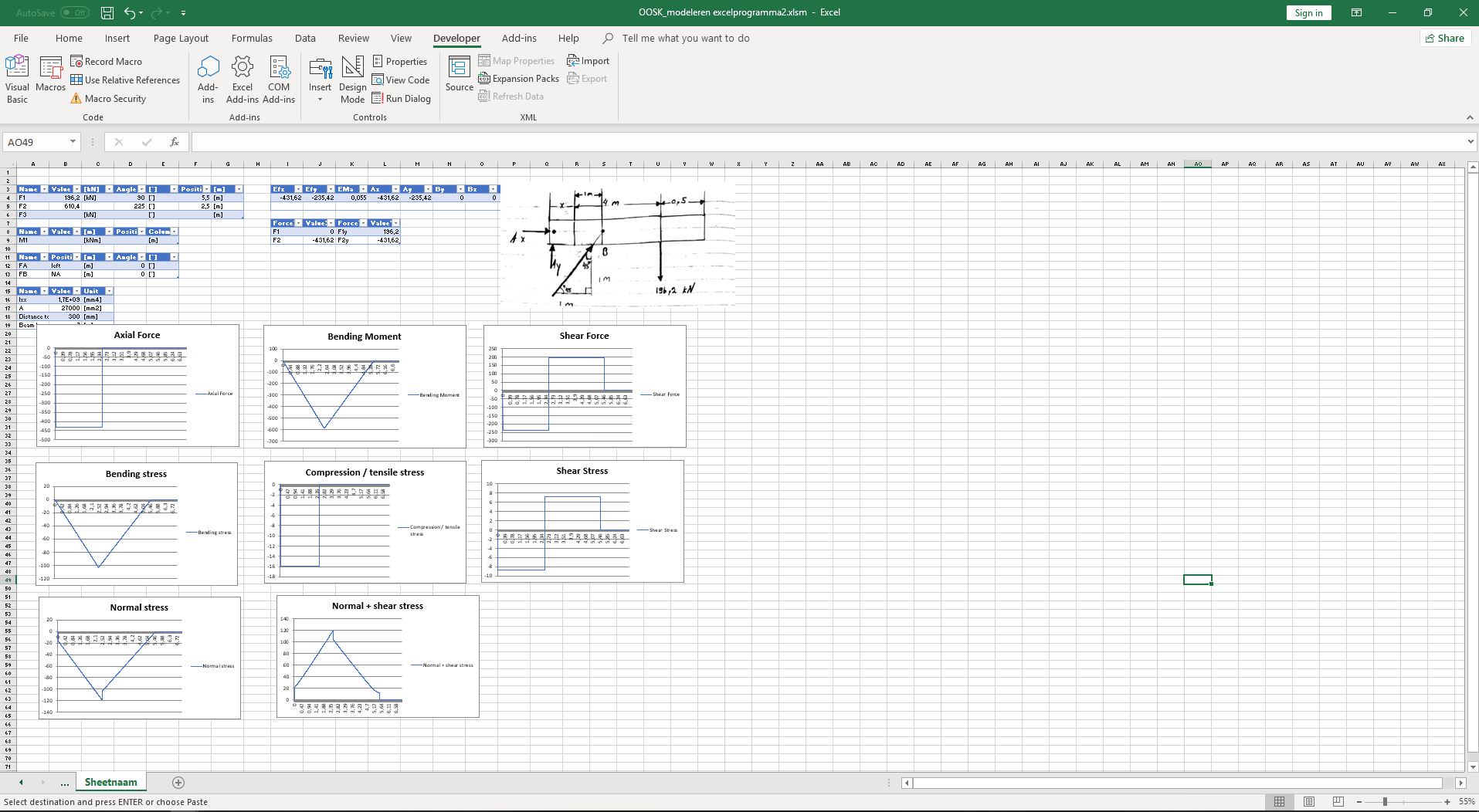

calling this line should generate empty tables on the sheetname calling this line again should update the graphs and tables by checking for filled in values inside the tables

options explanation

type of calculation options: "fixed" (fixed point on the left) or "punt" (hinge + rolling point calculation) A third option was under development called "AxBx" (two fixed points and usage of degrees for FA,FB) this one doesnt work properly, (i don't /didnt needed it anyway)' the positions of generated table positions are changeable by changing the cornercell names -> "A3", "A6", "A9", "A13", "I7", "I3"

on table change Auto run code example

usage and Steps

add this code or a similar code to your excel vb excel project under modules -> modulename (probably Module1) to add more sheets just reuse / copy paste the code inside the sub

Sub runmodels(sheetedit As String)

   If sheetedit = "Sheetname" Or sheetedit = "all" Then

    createmodel "mClass", "fixed", "Sheetname", "A3", "A6", "A9", "A13", "I7", "I3"

   End If


End Sub

add this code or a similar code to your excel vb excel project under microsoft excel objects --> ThisWorkbook

Private Sub Workbook_SheetChange(ByVal Sh As Object, ByVal Target As Range)

    'Automatically updates any table that has "UpdatedBy" and "UpdatedOn" columns

    Dim c                               As Range
    Dim lo                              As ListObject

    Application.EnableEvents = False

    For Each c In Target.Cells
        'Debug.Print Now & "  " & Sh.Name, c.Address, """" & c.Value & """"
        For Each lo In Sh.ListObjects
        On Error GoTo Exit_Workbook_SheetChange
            If Not Intersect(c, lo.DataBodyRange) Is Nothing Then


                   Call runmodels(Sh.name)


                On Error GoTo 0
                Exit For 'lo
            End If
        Next lo
    Next c

Exit_Workbook_SheetChange:
    Set lo = Nothing
    Set c = Nothing

    Application.EnableEvents = True

End Sub

create sub to call an update to all existing graphs manually

Sub modeleren()

  runmodels ("all")

End Sub

Good Luck!
