README.MD

Build Status Download Android Arsenal

ConnectPatternView

A widget that can be used to confirm the user's action, unlocking the screen etc. by providing the desired pattern with specified configuration. Widget can be animated in and out.

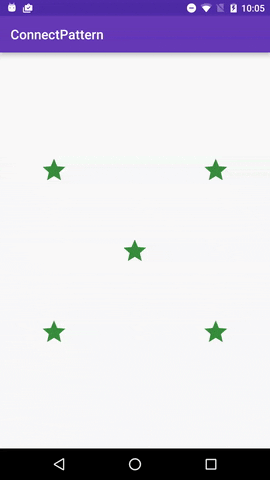

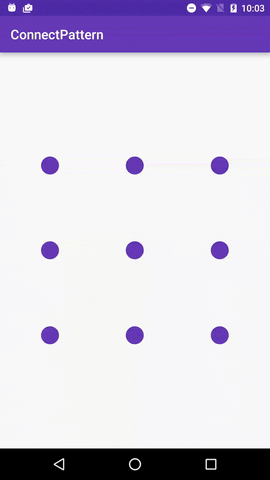

Nine connectors Five connectors
Three connectors Two connectors

Features

  • Widget can contain different number of connectors: 2, 3, 5 or 9.
  • Size and color of the connector (circle by default) can be specified in the xml.
  • Width and color of the connecting lines can be specified in the xml.
  • Connector can be defined as a drawable so any image or icon can be specified in the xml.

Adding it to your project

compile 'com.bcgdv.asia.lib:connectpattern:0.3'

Usage

The connect pattern needs to be configured in the XML.

<com.bcgdv.asia.lib.connectpattern.ConnectPatternView
    android:id="@+id/connect"
    android:padding="32dp"
    android:layout_width="350dp"
    android:layout_height="350dp"
    android:layout_centerVertical="true"
    android:layout_centerHorizontal="true"
    app:connectPatternAnimationType="none|middle|bottom"
    app:connectPatternNumber="nine"
    app:connectPatternCircleColor="@color/colorPrimary"
    app:connectPatternLineColor="@color/colorAccent"
    app:connectPatternCircleRadius="14dp"
    app:connectPatternLineWidth="7dp"
    app:connectPatternDrawable="@mipmap/ic_star"/>
  • app:connectPatternAnimationType (Optional) - none|middle|bottom. Default middle
  • app:connectPatternNumber (Optional) - determines how many connectors will be used
  • app:connectPatternCircleColor (Optional) - color of the circle
  • app:connectPatternCircleRadius (Optional) - radius of the circle
  • app:connectPatternLineColor (Optional) - color of the connecting lines
  • app:connectPatternLineWidth (Optional) - width of the connecting lines
  • app:connectPatternDrawable (Optional) - custom icon / image / drawable to use instead of circle

Callbacks

view.setOnConnectPatternListener(new ConnectPatternView.OnConnectPatternListener() {
        @Override
        public void onPatternEntered(ArrayList<Integer> result) {
        }

        @Override
        public void onPatternAbandoned() {
        }

        @Override
        public void animateInStart() {
        }

        @Override
        public void animateInEnd() {
        }

        @Override
        public void animateOutStart() {
        }

        @Override
        public void animateOutEnd() {
        }
    });
