[SPARK-9853][Core] Optimize shuffle fetch of contiguous partition IDs #19788

yucai · 2017-11-20T07:42:03Z

What changes were proposed in this pull request?

In adaptive execution, one reducer may fetch multiple continuous shuffle blocks from one map output file. For example, originally the map thought it had 20,000 reducers and wrote the map output files accordingly, but the adaptive scheduling thought Spark really only need 2,000. In that case, each reducer really reads the output for 10 reducers the map originally created.
Currently, each reducer needs to fetch those 10 reducer blocks one by one, this way needs many IO and impacts performance. This PR is to support fetching those continuous shuffle blocks in one IO (batch way).

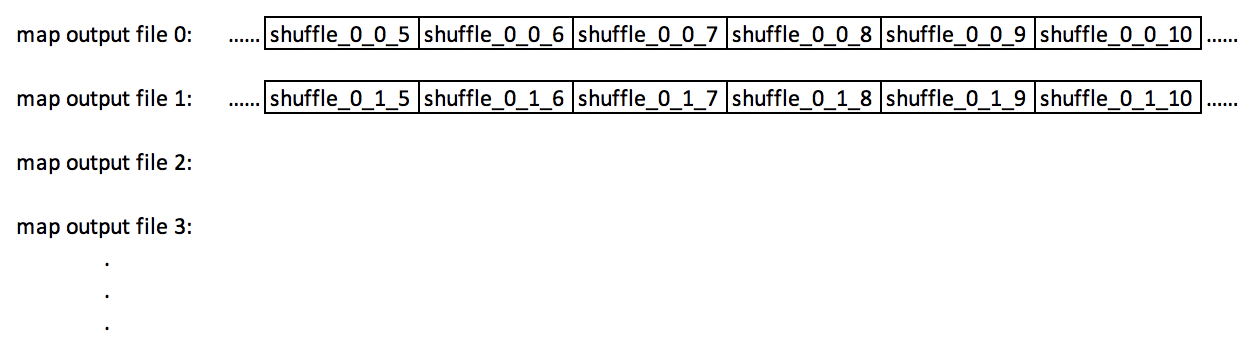

The shuffle block is stored like below:

format is s"shuffle_$shuffleId_$mapId_$reduceId", refering to BlockId.scala.

In adaptive execution, one reducer may want to read output for reducer 5 to 14, whose block Ids are from shuffle_0_x_5 to shuffle_0_x_14.

Before this PR, Spark needs 10 disk IOs + 10 network IOs for each output file.

After this PR, Spark only needs 1 disk IO and 1 network IO, this way can reduce IO dramatically.

High Level Design

The client writes the shuffle data, it knows the used serializer, compression codec etc., so it can decide if it is possible to read shuffle data in batch. See BlockStoreShuffleReader.shouldFetchContinuousShuffleBlocksInBatch.
If the batch read is allowable, we need to merge those continuous ShuffleBlockId to reduce IO. The merge will be done both locally and remotely.

For local continuous shuffle blocks, the client can merge them by itself. See ShuffleBlockFetcherIterator.fetchLocalBlocks
For remote shuffle blocks:
- Normally, client packs ShuffleBlockIds into OpenBlocks message and send it to the remote server to fetch data, and then the remote server side returns a StreamHandle message as the response to OpenBlocks message.
- This PR extends OpenBlocks protocol to add an optional fetchContinuousShuffleBlocksInBatch boolean flag. The client uses this flag to asks server to merge shuffle blocks.
- In server side:
  If remote server supports merge, it will merge blocks and the returned StreamHandle.numChunks < OpenBlocks.blockIds.length. The client will check and know merge happens, so it will work accordingly.
  If remote server does not support merges (like external shuffle service < 3.0), the returned StreamHandle.numChunks == OpenBlocks.blockId.length. The client will check and know merge does not happen , it will work accordingly also.
  See NettyBlockRpcServer.receive, ExternalShuffleBlockHandler.handleMessage and OneForOneBlockFetcher.start.

Backward Compatibility

One important thing is to be compatible with previous Spark version including both client and server.
This PR uses a similar way like PR#23510 to maintain backward compatibility.

This PR extends OpenBlocks to add an optional fetchContinuousShuffleBlocksInBatch boolean flag.
It will only be encoded to the message when it's true. OpenBlocks from old clients do not have this flag, which means this flag is false for them.

This is fully compatible:

new client <-> new server: Definitely fine.
old client <-> old server: Definitely fine.
old client <-> new server: The OpenBlocks from the old client doesn't have the fetchContinuousShuffleBlocksInBatch. The new server will see OpenBlocks.fetchContinuousShuffleBlocksInBatch = false, so it returns the shuffle blocks one by one. The old client works as before.
new client <-> old server: The OpenBlocks from the new client contains the fetchContinuousShuffleBlocksInBatch flag. But the old server doesn't know about it and stops reading the message right before the fetchContinuousShuffleBlocksInBatch part. Then the old server still returns shuffle blocks one by one. New client checks StreamHandle.numChunks == OpenBlocks.blockId.lenght, it knows merge does not happen, so it can work accordingly.

How was this patch tested?

Add new UTs.

gczsjdy · 2017-11-21T07:15:21Z

core/src/main/scala/org/apache/spark/MapOutputTracker.scala

-            ((ShuffleBlockId(shuffleId, mapId, part), status.getSizeForBlock(part)))
+          n += 1
+          totalSize += status.getSizeForBlock(part)
        }


n can be numPartitions, and directly get by endPartition - startPartition ?

jerryshao · 2017-11-23T05:44:27Z

@yucai would you mind adding more explanations to your PR description?

yucai · 2017-11-23T13:44:55Z

@jerryshao the description has been updated, does it look clear now?
Could you kindly help review it? Thanks!

jerryshao · 2017-11-23T13:47:13Z

Sure, I will do it tomorrow.

jerryshao · 2017-11-23T13:47:35Z

ok to test.

SparkQA · 2017-11-23T14:03:26Z

Test build #84132 has finished for PR 19788 at commit 53affd4.

This patch fails MiMa tests.
This patch merges cleanly.
This patch adds no public classes.

jerryshao · 2017-11-24T03:02:04Z

core/src/main/scala/org/apache/spark/shuffle/IndexShuffleBlockResolver.scala

  override def getBlockData(blockId: ShuffleBlockId): ManagedBuffer = {
    // The block is actually going to be a range of a single map output file for this map, so
    // find out the consolidated file, then the offset within that from our index
+    logDebug(s"Fetch block data for $blockId")


Not necessary to add this, I guess this is mainly for your debug purpose.

Ok, I will remove it.

Without this info, it looks hard to know continuous shuffle block read really happens, and getLocalBytes had similar debug info also.

logDebug(s"Getting local block $blockId as bytes")

How about keeping it?

jerryshao · 2017-11-24T03:06:47Z

core/src/main/scala/org/apache/spark/shuffle/IndexShuffleBlockResolver.scala

    try {
      ByteStreams.skipFully(in, blockId.reduceId * 8)
      val offset = in.readLong()
+      ByteStreams.skipFully(in, (blockId.length - 1) * 8)


I doubt this line is not correct, this seems change the semantics, for example if startPartition is 3, endPartition is 8, originally it should be (3*8), now it changes to (4*8), can you please explain more?

Also if length is "1", then this will always be Zero.

Sure, for example, when startPartition = 3, endPartition = 8, it means we need [3, 8) and length = 5.

Line 204: ByteStreams.skipFully(3 * 8), will skip 0, 1, 2
Line 205: offset = in. readLong, we got startPartition(3)'s offset
Line 206: ByteStreams.skipFully((5 - 1) * 8), will skip 4, 5, 6, 7
Line 207: nextOffset = in.readLong(), now we got endPartition(8)'s offset

When length is "1", zero should be correct. We don't need to skip anything, and Line 207's readLong will get endPartition's offset.

I get your point, thanks for the explanation.

jerryshao · 2017-11-24T03:13:21Z

core/src/main/scala/org/apache/spark/MapOutputTracker.scala

        for (part <- startPartition until endPartition) {
-          splitsByAddress.getOrElseUpdate(status.location, ArrayBuffer()) +=
-            ((ShuffleBlockId(shuffleId, mapId, part), status.getSizeForBlock(part)))
+          totalSize += status.getSizeForBlock(part)


This can be simplified like: val totalSize = (startPartition until endPartition).map(status.getSizeForXXX).sum.

SparkQA · 2017-11-24T05:23:39Z

Test build #84148 has finished for PR 19788 at commit e437a26.

This patch fails MiMa tests.
This patch merges cleanly.
This patch adds no public classes.

jiangxb1987 · 2017-11-24T14:03:20Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

+    return getSortBasedShuffleBlockData(executor, shuffleId, mapId, reduceId, length);
+  }
+
+  public ManagedBuffer getBlockData(


nit: we should move the original comment here, and explain the different usages of these two functions.

Thanks, will update.

jiangxb1987 · 2017-11-24T14:06:42Z

...huffle/src/test/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolverSuite.java

    assertEquals(sortBlock1, block1);
+
+    InputStream block01Stream =
+            resolver.getBlockData("app0", "exec0", 0, 0, 0, 2).createInputStream();


nit: please follow the above indents format.

jiangxb1987 · 2017-11-24T14:07:03Z

...huffle/src/test/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolverSuite.java

+    InputStream block01Stream =
+            resolver.getBlockData("app0", "exec0", 0, 0, 0, 2).createInputStream();
+    String block01 = CharStreams.toString(
+            new InputStreamReader(block01Stream, StandardCharsets.UTF_8));


Thanks, updated!

jiangxb1987 · 2017-11-24T14:14:31Z

core/src/main/scala/org/apache/spark/storage/BlockId.scala

-  override def name: String = "shuffle_" + shuffleId + "_" + mapId + "_" + reduceId
+case class ShuffleBlockId(shuffleId: Int, mapId: Int, reduceId: Int, length: Int = 1)
+  extends BlockId {
+  override def name: String = "shuffle_" + shuffleId + "_" + mapId + "_" + reduceId + "_" + length


nit: maybe s"shuffle_$shuffleId_$mapId_$reduceId_$length"?

these are semi-public interfaces, can we create a new block id ContinuousShuffleBlockIds?

ContinuousShuffleBlockIds is a good idea, let me try.

jiangxb1987 · 2017-11-24T14:17:59Z

Also cc @cloud-fan

cloud-fan · 2017-11-24T14:25:05Z

think about shuffle as a server-client framework, does your change need to update the server side? i.e. do users need to upgrade their external shuffle service for new spark version with this feature?

SparkQA · 2017-11-24T15:17:26Z

Test build #84165 has finished for PR 19788 at commit 9cb1f0f.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

yucai · 2017-11-26T01:24:59Z

Currently users need update their external shuffle service for this feature, because we change the format of ShuffleBlockId, which is supposed to be parsed by external shuffle service.
I am trying to introduce a new configure like spark.shuffle.continuousFetch. By default, it is false, Spark will still use ShuffleBlockId as always, and when it is set true intentionally, Spark will use ContinuousShuffleBlockIds. In this way, users no need update their external shuffle service if they only want to work with ShuffleBlockId.

gczsjdy · 2017-11-27T06:55:37Z

core/src/main/scala/org/apache/spark/storage/BlockId.scala

      RDDBlockId(rddId.toInt, splitIndex.toInt)
-    case SHUFFLE(shuffleId, mapId, reduceId) =>
-      ShuffleBlockId(shuffleId.toInt, mapId.toInt, reduceId.toInt)
+    case SHUFFLE(shuffleId, mapId, reduceId, n) =>


:nit length?

Yes, good catch! I will change here after using ContinuousShuffleBlockId

jerryshao · 2017-11-27T07:16:39Z

@yucai I'm thinking of the necessity to add this new configuration spark.shuffle.continuousFetch like you mentioned above. This PR you proposed is actually a superset of previous way, it is compatible with original shuffle way if length = 1. The configuration here is only used to keep compatible for external shuffle service, I think it is not so intuitive and user may confused whether this should be enabled or not (since this conf is not functionality-oriented). Besides do we need to guarantee forward compatible, also is there a transparent way to automatically switch between two shuffles without configuration?

gczsjdy · 2017-11-27T07:54:50Z

Can we just add the ContinuousShuffleBlockId without adding new conf spark.shuffle.continuousFetch? While in classes related to shuffle read like ShuffleBlockFetcherIterator, we also pattern match the formal ShuffleBlockId. This way no addition confs are needed.

yucai · 2017-11-27T12:57:43Z

@jerryshao @cloud-fan @gczsjdy

Because this feature is only used in adaptive execution, how about this way:

Remove spark.shuffle.continuousFetch
When spark.sql.adaptive.enabled is true, we do contiguous partition IDs fetch optimization with ContinuousShuffleBlockId way.
When spark.sql.adaptive.enabled is false (by default), Spark will use ShuffleBlockId like before.

With above solution, user no needs upgrade their external shuffle service for new spark version if they don't use adaptive execution (very likely).

If user wants to use adaptive execution, they have to upgrade external shuffle service because old way does not know length info.

jiangxb1987 · 2017-11-27T13:04:08Z

Sounds good, it would be great if we could document it clearly that if user wants to use adaptive execution, they have to update the external shuffle service.

JoshRosen · 2017-11-28T08:41:32Z

Is there an implicit assumption here that contiguous partitions' data can be decompressed / deserialized in a single stream? If the shuffled data is written with a non-relocatable serializer (Java serialization) or non-concatenatable compression format then I'm not sure that you'll actually be able to successfully deserialize a multi-reducer range of the map output using a single decompression / deserialization stream.

yucai · 2017-12-15T02:05:51Z

I will update a new version.

mridulm · 2017-12-20T19:55:53Z

...work-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockHandler.java

      }
      this.shuffleId = Integer.parseInt(blockId0Parts[1]);
-      mapIdAndReduceIds = new int[2 * blockIds.length];
+      mapIdAndReduceIds = new int[3 * blockIds.length];


Please update description of the variable as well.

Thanks, fixed.

mridulm · 2017-12-20T19:57:54Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

      int mapId,
-      int reduceId) {
+      int reduceId,
+      int length) {


Please rename the variable - length is incorrect (here and other places), please rename to make it clear : numBlocks perhaps ?

Ok, will use numBlocks.

mridulm · 2017-12-20T20:06:42Z

core/src/main/scala/org/apache/spark/MapOutputTracker.scala

+        val totalSize: Long = (startPartition until endPartition).map(status.getSizeForBlock).sum
+        splitsByAddress.getOrElseUpdate(status.location, ArrayBuffer()) +=
+          ((ShuffleBlockId(shuffleId, mapId, startPartition, endPartition - startPartition),
+            totalSize))


This is going to create some very heavy shuffle fetches - and looks incorrect.
This merge should not be happening here, but in ShuffleBlockFetcherIterator

mridulm · 2017-12-20T20:10:15Z

...work-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockHandler.java

      this.execId = execId;
      String[] blockId0Parts = blockIds[0].split("_");
-      if (blockId0Parts.length != 4 || !blockId0Parts[0].equals("shuffle")) {
+      if (blockId0Parts.length != 5 || !blockId0Parts[0].equals("shuffle")) {


This format change can cause incompatibility between shuffle service and spark application - causing a restart of the cluster and update of all spark applications .... I wish we had a better way to encode this information which was not so brittle.

mridulm · 2017-12-20T20:12:08Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

+          String execId,
+          int shuffleId,
+          int mapId,
+          int reduceId) {


Remove this method ? We dont need it anymore

mridulm · 2017-12-20T20:13:03Z

.../network-shuffle/src/main/java/org/apache/spark/network/shuffle/ShuffleIndexInformation.java

   * Get index offset for a particular reducer.
   */
-  public ShuffleIndexRecord getIndex(int reduceId) {
+  public ShuffleIndexRecord getIndex(int reduceId, int length) {


perhaps require that length (number of Blocks) is >= 1

SparkQA · 2018-02-01T17:48:58Z

Test build #86938 has finished for PR 19788 at commit 2799886.

This patch fails Scala style tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2019-01-19T16:04:44Z

Test build #101433 has finished for PR 19788 at commit 5e4430a.

This patch passes all tests.
This patch does not merge cleanly.
This patch adds no public classes.

mridulm · 2019-01-20T12:38:09Z

@yucai :

Thanks @cloud-fan 's help, we discussed a new solution to make both client and server can work with the previous version (backward compatible), which means the user can upgrade spark client or external shuffle service separately. But AE supported Spark and external shuffle service will show better performance.

Can you provide some details regarding the new solution ? I did not see any updates in the JIRA or in this PR.

yucai · 2019-01-20T15:12:09Z

@mridulm thanks for concerning this feature! I have updated the PR's description, could you take a look at? Any comments will be highly appreciated!

SparkQA · 2019-01-20T19:53:39Z

Test build #101446 has finished for PR 19788 at commit 3d4fc7e.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

...work-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockHandler.java

cloud-fan · 2019-01-21T14:33:28Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

      int mapId,
-      int reduceId) {
+      int reduceId,
+      int numBlocks) {


nit: it seems like the name numBlocks doesn't fit well for this method. This method tries to get the block of a specific reducer from a specific mapper, so a better name would be

public ManagedBuffer getBlockData( ... int startReducerId, int numReducers)

Then we can say that this method is to get the block of several consecutive reducers from a specific mapper.

If we name it startReducerId, do you think we need name mapId to mapperId also?

cloud-fan · 2019-01-21T14:37:36Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

+    return new int[] { Integer.parseInt(blockIdParts[2]), Integer.parseInt(blockIdParts[3]) };
+  }
+
+  static public ArrayList<ArrayList<int[]>> mergeContinuousShuffleBlockIds(String[] blockIds) {


we should add doc to explain the assumption: block ids of same mapper id are consecutive in the input blockIds.

cloud-fan · 2019-01-21T14:40:43Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

+
+  static public ArrayList<ArrayList<int[]>> mergeContinuousShuffleBlockIds(String[] blockIds) {
+    ArrayList<int[]> shuffleBlockIds = new ArrayList<>();
+    ArrayList<ArrayList<int[]>> arrayShuffleBlockIds = new ArrayList<>();


I think we only need to return ArrayList<int[]>, and the int[] has 3 parts: mapId, reduceId and numBlocks

Initially, I want to keep it the same as BlockManager.mergeContinuousShuffleBlockIds, but agree with you, ArrayList<int[]> is much simpler.

Oh, seems like numBlocks is not enough, which includes possible zero size blocks.
And this function will be reused in OneForOneBlockFetcher, there needs real size infor.

private void initShuffleBlockIdIndices(String[] blockIds) { ArrayList<ArrayList<int[]>> arrayShuffleBlockIds = ExternalShuffleBlockResolver.mergeContinuousShuffleBlockIds(blockIds); assert(arrayShuffleBlockIds.size() == streamHandle.numChunks); blockIdIndices = new int[arrayShuffleBlockIds.size() + 1]; blockIdIndices[0] = 0; for (int i = 0; i < arrayShuffleBlockIds.size(); i++) { blockIdIndices[i + 1] = blockIdIndices[i] + arrayShuffleBlockIds.get(i).size(); } }

cloud-fan · 2019-01-21T14:41:15Z

...ork-shuffle/src/main/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolver.java

   */
  private ManagedBuffer getSortBasedShuffleBlockData(
-    ExecutorShuffleInfo executor, int shuffleId, int mapId, int reduceId) {
+    ExecutorShuffleInfo executor, int shuffleId, int mapId, int reduceId, int numBlocks) {


ditto about the naming concern

cloud-fan · 2019-01-21T14:47:22Z

...on/network-shuffle/src/main/java/org/apache/spark/network/shuffle/OneForOneBlockFetcher.java

  private final TransportClient client;
  private final OpenBlocks openMessage;
  private final String[] blockIds;
+  private int[] blockIdIndices = null;


add a comment to explain the relationship between blocks and chunks.

cloud-fan · 2019-01-21T14:50:04Z

...on/network-shuffle/src/main/java/org/apache/spark/network/shuffle/OneForOneBlockFetcher.java

    public void onSuccess(int chunkIndex, ManagedBuffer buffer) {
      // On receipt of a chunk, pass it upwards as a block.
-      listener.onBlockFetchSuccess(blockIds[chunkIndex], buffer);
+      listener.onBlockFetchSuccess(Arrays.copyOfRange(blockIds, blockIdIndices[chunkIndex],


is there a way to avoid copy? e.g. if we change the callback interface to not take Array but Seq, then maybe we can create a special Seq which re-maps the index of blockIds, to avoid array copy.

common/network-shuffle/src/main/java/org/apache/spark/network/shuffle/protocol/OpenBlocks.java

cloud-fan · 2019-01-21T14:55:01Z

.../network-shuffle/src/test/java/org/apache/spark/network/shuffle/protocol/TestOpenBlocks.java

+import static org.apache.spark.network.shuffle.protocol.BlockTransferMessage.Type;
+
+/** TestOpenBlocks is used to test OpenBlocks backward compatibility only */
+public class TestOpenBlocks extends BlockTransferMessage {


nit: we can use write scala to test java classes...

cloud-fan · 2019-01-21T15:00:23Z

core/src/main/scala/org/apache/spark/serializer/SerializerManager.scala

  private def shouldCompress(blockId: BlockId): Boolean = {
    blockId match {
      case _: ShuffleBlockId => compressShuffle
+      case _: ArrayShuffleBlockId => compressShuffle


will ArrayShuffleBlockId go through network?

No, but ShuffleBlockFetcherIterator needs uncompress to detect corrupt.

var isStreamCopied: Boolean = false try { input = streamWrapper(arrayBlockId, in)

But I think I can use below to avoid this.

var isStreamCopied: Boolean = false try { input = streamWrapper(arrayBlockId.blockIds.head, in)

SparkQA · 2019-01-22T07:22:06Z

Test build #101514 has finished for PR 19788 at commit 9b60ded.

This patch fails Java style tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2019-01-22T13:25:13Z

Test build #101523 has finished for PR 19788 at commit 039ae85.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2019-01-22T18:25:00Z

Test build #101540 has finished for PR 19788 at commit 92c0ab6.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

tgravescs · 2019-01-23T15:00:15Z

If remote server supports merge, it will merge blocks and the returned StreamHandle.numChunks < OpenBlocks.blockIds.length. The client will check and know merge happens, so it will work accordingly.

So just looking at the description, this implementation is simply having the server side read from the separate map output files and send them out in one stream when the reducer actually reads, correct? Meaning you are still getting disk seeks on the server side, but on the client side it see's one stream that contains the multiple map outputs, correct?

I'm curious what specific performance benefits you were seeing from this? Is it just the client side or is there something on the server side that I might not be thinking about?

tgravescs · 2019-01-23T15:01:44Z

Note, I'm not against this change just want to understand better, thanks for working on this.

yucai · 2019-01-23T16:34:34Z

@tgravescs thanks for looking at this!

The shuffle block is stored like below:

format is s"shuffle_$shuffleId_$mapId_$reduceId", refering to BlockId.scala.

Before this PR, to read map output file 0's data (e.g.: reducer 5 to 10), whose block Ids are from shuffle_0_0_5 to shuffle_0_0_10, Spark needs 6 disk IOs + 6 network IOs.

After this PR, to read the same map output file 0's data, we only needs 1 disk IO and 1 network IO, this way can reduce IO dramatically.

We did this kind of merge in both client and server side.

In my previous benchmark testing, merge IO will have very obvious improvment in shuffle read when adaptive execution enabled.

tgravescs · 2019-01-23T20:08:25Z

So just to make sure I'm following, are you saying reducer tasks 5 to 10 happen to run on the same executor so its fetching those all at once? Perhaps this is combined with your adaptive scheduling logic to automatically set reducer number, so for example originally the map thought it had 20,000 reducers and wrote the map output files accordingly but the adaptive scheduling says you really only need 2,000. In that case each reducer really reads the output for 10 reducers the map originally created?

yucai · 2019-01-24T04:01:58Z

@tgravescs, yes, exactly as you understood.

AmplabJenkins · 2019-09-16T18:23:53Z

Can one of the admins verify this patch?

As the current approach in OneForOneBlockFetcher, we reuse the OpenBlocks protocol to describe the fetch request for shuffle blocks, and it causes the extension work for shuffle fetching like apache#19788 and apache#24110 very awkward. In this PR, we split the fetch request for shuffle blocks from OpenBlocks which named FetchShuffleBlocks. It's a loose bind with ShuffleBlockId and can easily extend by adding new fields in this protocol. Existing and new added UT. Closes apache#24565 from xuanyuanking/SPARK-27665. Authored-by: Yuanjian Li <xyliyuanjian@gmail.com> Signed-off-by: Wenchen Fan <wenchen@databricks.com> (cherry picked from commit 8949bc7)

[SPARK-9853][Core] Optimize shuffle fetch of contiguous partition IDs

e947bcb

gczsjdy reviewed Nov 21, 2017

View reviewed changes

Simplify length in convertMapStatuses

53affd4

jerryshao reviewed Nov 24, 2017

View reviewed changes

Simplify totalSize in convertMapStatuses

e437a26

yucai added 3 commits November 24, 2017 16:21

Modify for external shuffle service

12163f3

Solve mima issue

7aa805b

Fix ExternalShuffleBlockResolverSuite

9cb1f0f

jiangxb1987 reviewed Nov 24, 2017

View reviewed changes

gczsjdy reviewed Nov 27, 2017

View reviewed changes

mridulm reviewed Dec 20, 2017

View reviewed changes

Merge remote-tracking branch 'origin/master' into 19788.1

2799886

Remove unnecessary logDebug

80c8da9

yucai added 2 commits January 20, 2019 23:03

minor

401bddb

Merge remote-tracking branch 'origin/master' into pr19788_server

3d4fc7e

cloud-fan reviewed Jan 21, 2019

View reviewed changes

address comments

039ae85

yucai force-pushed the shuffle_fetch_opt branch from 9b60ded to 039ae85 Compare January 22, 2019 09:39

minor

92c0ab6

carsonwang mentioned this pull request Mar 4, 2019

[SPARK-23128][SQL] A new approach to do adaptive execution in Spark SQL #20303

Closed

xuanyuanking mentioned this pull request May 9, 2019

[SPARK-27665][Core] Split fetch shuffle blocks protocol from OpenBlocks #24565

Closed

dongjoon-hyun added SPARK CORE SQL labels Jun 14, 2019

xuanyuanking mentioned this pull request Oct 7, 2019

[SPARK-9853][Core] Optimize shuffle fetch of continuous partition IDs #26040

Closed

cloud-fan closed this in 239ee3f Oct 17, 2019

[SPARK-9853][Core] Optimize shuffle fetch of contiguous partition IDs #19788

[SPARK-9853][Core] Optimize shuffle fetch of contiguous partition IDs #19788

Uh oh!

Conversation

yucai commented Nov 20, 2017 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

What changes were proposed in this pull request?

How was this patch tested?

Uh oh!

Choose a reason for hiding this comment

Uh oh!

jerryshao commented Nov 23, 2017

Uh oh!

yucai commented Nov 23, 2017 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

jerryshao commented Nov 23, 2017

Uh oh!

jerryshao commented Nov 23, 2017

Uh oh!

SparkQA commented Nov 23, 2017

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

yucai Nov 25, 2017 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

SparkQA commented Nov 24, 2017

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

yucai Nov 25, 2017 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

jiangxb1987 commented Nov 24, 2017

Uh oh!

cloud-fan commented Nov 24, 2017

Uh oh!

SparkQA commented Nov 24, 2017

Uh oh!

yucai commented Nov 26, 2017

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

jerryshao commented Nov 27, 2017 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

gczsjdy commented Nov 27, 2017

Uh oh!

yucai commented Nov 27, 2017

Uh oh!

jiangxb1987 commented Nov 27, 2017

yucai commented Nov 20, 2017 •

edited

Loading

yucai commented Nov 23, 2017 •

edited

Loading

yucai Nov 25, 2017 •

edited

Loading

yucai Nov 25, 2017 •

edited

Loading

jerryshao commented Nov 27, 2017 •

edited

Loading
