Ψ2d

Psi2d is a minimal extendible multiplayer 2D platformer shooting browser game.

The server is written in node.js and the client uses vanilla JS (and shares most of the code base with the client).

A prototype is currently hosted at https://psi2d.itch.io/psi2d

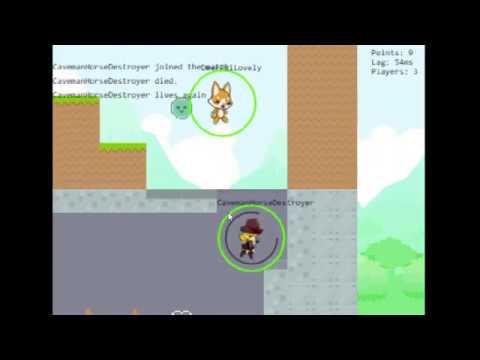

Whatch a game play on youtube https://www.youtube.com/watch?v=qfNqr_UtGLU:

Game Details

During each match (lasting 10 minutes) players run on the map and can collect life points (hearts) and ammoes (yellow circles). Player can shoot mental energy (here the name psi2d) in the form of white shells that damage other players.

In order to make it possible for the game to easily run on mobile browsers, this (so far: but I am open to changes) is a "one-button-game": you can run and shoot with touch only. On mobiles: swipe on the lower side of canvas to move and jump; tap on the upper side of the canvas to shoot. On desktops: WAD/arrows/space to move; click to fire.

Following the guide from valve, multiplayer games must cope with delays. For this reason the client must evolve the world while waiting for server's updates. For this reason the game is made with node.js. With node I am able to use the same exact "game" class files (as well for all js classes of dynamic elements inside the level game) and evolve the game world both in the web browser client and in the server.

The game is easily expandible and it is possible to add new kind of elements, level and player skills.

So far there is only one level (made with Tiled Map Editor with tiles from kenney.nl. And four characters with assets from gameart2d.com and four characters.

To Do

• Add more levels,
• special abilites of characters,
• rooms
• possibility of chat.
• improve shooting sprites
• removing delay on interactions with active elements
• write more guns and find a way to swap it

Game Infrastructure

A sketch of the big picture of the game's client and server routines:

The Level

Each element of a level (background blocks, ammoes, players) is a child class of BlockBase (see www/level/elements.js). All elements have a field pos (a 2-elements list) that stores the 2D position of the object. Being the game tile-based, each static element is supposed to have an integer value of its coordinates.

The class level (see www/level/level.js) contains a list of elements and players and is devoted to evolving the game state in time. It has the following properties:

• elements: list of dynamic elements in the game
• this.time: current time in ms of the game
• this.grid: a map that points to static elements in a given position. (e.g. grid[[1,2]] returns a list of elements in this position).
• spawnpoints: list of elements flagged to be spawn points
• players: list of players in the game
• dt: timestep of temporal evolution

and methods:

• screen(pos, size): returns all elements centered on pos and with a distance size from it.
• simulateTo(time): evolves the level state up to time in chunks of this.dt: the evolution of each element is performed by calling element.step(this.dt).

Elements contains a list of objects of type Clock. When they evolve they also evolve clocks. Clocks are useful for instance to schedule the respawn of a player, of ammoes and heart objects.

Every Element is of type BlockBase and must have the following properties:

• awake: should the level update the element
• pos: 2-elements list of its position in the level
• size: 2-elements list of its size, default [1, 1]
• block: true if it is a "floor",false if it is a background
• trash: element is flagged to be removed from the level - happens with bullets
• clocks: a list of Clock object
• trash if the element is flagged for removal (e.g. a bullet hit the wall)

The game provides various extensions of the class BlockBase in www/levels/elements.js:

• Item: active elements that stores ammo of life points
• Bullet: element that travels in constant speed and removes energy on intersection of a player. So far it is rendered as a circle. It can be changed or personalised on a gun-wise pattern.
• Player: stores player data.

So far I implemented only one level (see www/level1/*json) with (Tiled Map Editor)[https://www.mapeditor.org] and tileset from kenney.nl.

The Player

Class Player is the most complex object: it has a system for spriting used by the client: sprites store action-spriteslist pair. Method load_sprite will store a given sprite in the singleton SpriteService, the function render does render the player in a canvas and function step evolves it following the tutorial of the tiny-platformer.

A player has a list of guns. So far I only implemented SimpleGun (in the same file) that shoot a Bullet in the direction of the click.

I implemented four players (see www/players): Dog (www/players/dog.js), Roby (www/players/roby.js), Annette (www/players/annette.js), and Cat (www/players/cat.js) with assets from gameart2d.com. So far all players have the same abilities. In the future I'd like to add different abilities per player.

Client-Server communication

Client and server communicates via a websocket messages are JSON messages in the form of a list containing the name of a remote procedure call (RPC) and its JSON parameters (i.e. [rpc_name, parameter object]). For some events (see later) data is compressed, for instance the parameter pos becames p, and similar (see www/level/utils.js and function zipTank(obj) and unzipTank(obj) for all de-compressions a obj). The JSON {pos:[1.,2.],fire:true} may became the string p1.&2.|f.

The Server

The server express serves the static www folder and listening websocket (see main.js).

The server is capable of hosting various rooms, each containing a class Game (see game.js) which contains a Level and the association of the players and their websockets. It also has a list broadcast whith a list of events that must be broadcasted between players. This list is typycally set by Clocks (e.g. if a player dies, a clock will add to game.broadcast the chat message player died.).

Every websocket message is forwarded to the rpc_name methods of static class Interface (implemented in game.js), and currently supports these methods:

• joinRandom({name: player_name, class: player_class}): join a random match
• join({name: player_name, class: player_class, code:code }): join a match with code code. It calls' setLevel(level) to send the level to the new client.
• getObjects(list): ask for a list of objects. Reply to the client with method newElement(list) and newPlayer(list) for a list of desidered serialised elements and players
• event(obj): set properties obj of the current player. E.g. if obj={fire:true, left:true, right:false} then the associated player will fire, stop moving right and go left. Broadcast this change to the client via method update
• ping(obj): re-send the same exact object to the client via method pong(obj)

The Client

The client run in the JS browser, and is implemented in the class Client (see www/level/client.js). It contains a Level object (this.game, sick name), a GUIManager object (see next sub session) and Interface class that has the RPC methods corresponding to data caming from a web socket. The Interface has the following methods:

• setLevel(tank): a JSON serialisation of the server's main. The client will initialise a Level object with this data.
• pong(tank): sent upon a ping request, the time delay is used to compute the lag.
• newPlayer(tank) and newElement(tank) are sent on requests on new elements of the level, which is updated accordingly.

The client's function getScreen() returns all elements nearby the current player. upon requestes of the GUIManager will evolve the level (i.e. call level.simulateTo(new Date().getTime)) while waiting for statyus updates of the server.

The UI

The game is run from the file play.html, which has the canvas that shows the level's elements.

The class GUIManager grabs data from the Level inside the Client and paint elements around the player in the canvas.

• paintElement(element, context, pos): paint an element from the level in a given context of the canvas
• render(): asks the client for all'elements nearby the player by calling client.getScreen()
• askForUpdate(): set up a interval of 100ms that asks for updates to the server.
• ping(): set up a interval of 5000ms to periodically ping the server
• setKey(): get's user' input and end it to the client

The routines that grabs clicks and touches from the canvas and sends it to the GUIManager are in clientmain.js:

• onClick: get clicks coordinates and ask the client to fire in that direction
• onTouchStart/onTouchMove/onTouchEnd: for mobiles only, save the begining of a touch: upper part of the screen fires, lower part moves
• drawMobileCommand: show a circle where the finger is touching, to help for better movement.

The "client main" equivalent is in window.onload that creates the websocket and set click and keyboard listeners. The ws stram is piped to the Client's Interface class in the ws.onopen event.

Installing

Use npm to install packages and run the express server:

npm install
npm start

Open the browser's address 127.0.0.1:8080 to play.

License

This project is licensed under the GNU General Public License v3.0 - see the LICENSE file for details

Acknowledgments

This game was made with node.js and thanks to the followsing free resources:

• https://www.mapeditor.org for the level editor
• http://www.gameart2d.com/freebies.html for the free character sprites;
• https://kenney.nl/assets for the tile set;
• https://github.com/jakesgordon/javascript-tiny-platformer a useful game/tutorial on platform logic;
• https://developer.valvesoftware.com/wiki/Latency_Compensating_Methods_in_Client/Server_In-game_Protocol_Design_and_Optimization a guide on how to cope with latency in fast muliplayer games.
• http://atrevida.comprenica.com/atrtut10.html very old but interesting tutorial on how to do move sprites efficiently
• https://code.google.com/archive/p/plar/source/default/source this is a very old (and failed) temptative of a 2D arena in Java I made back in 2008-2010
• https://store.steampowered.com/app/9180/Commander_Keen/ and http://www.shikadi.net/keenwiki/NetKeen for inspiration
