Vehicle Detection Project

Note
Source Code	https://github.com/aurangzaib/CarND-Vehicle-Detection
Car training data	https://s3.amazonaws.com/udacity-sdc/Vehicle_Tracking/vehicles.zip
Not-car training data	https://s3.amazonaws.com/udacity-sdc/Vehicle_Tracking/non-vehicles.zip
How to run	cd implementation && python main.py

The steps of the project are the following:

• Perform a Histogram of Oriented Gradients (HOG), Color Transform and Spatial Bining to extract features on a labeled training set of images.

• Randomize and normalize the features and train a SVM classifier.

• Implement a sliding-window technique with HOG sub-sampling and use the trained classifier to search for vehicles in images by predicting the labels for each feature.

• Create a heat map of recurring detections.

• Remove false positives and Update the bounding boxes for vehicles detected.

---

1- Feature Extraction

Source Code Reference
File	implementation/feature_extraction.py
Method	FeatureExtraction.bin_spatial
Method	FeatureExtraction.color_hist
Method	FeatureExtraction.get_hog_features

Here are a few samples of vehicle and non-vehicle training datasets:

The algorithm is as follows:

• Reading in all the vehicle and non-vehicle images.
• For Spatial Bining, we resize the image to 32x32 and use numpy ravel for each color channel to get features vector.
• For Color Histogram, we use numpy histogram for each channel and concatenate the result.
• For HOG features, skimage hog is used with predefined following parameters.

The combination of parameters are found after running a battery of tests on small datasets. Parameters are selected for best balance of time and prediction accuracy.

Source Code Reference
File	implementation/classifier.py
Method	Classifier.evaluate_classifier_parameters
Car training data	https://s3.amazonaws.com/udacity-sdc/Vehicle_Tracking/vehicles_smallset.zip
Not-car training data	https://s3.amazonaws.com/udacity-sdc/Vehicle_Tracking/non-vehicles_smallset.zip

x_train, x_test, y_train, y_test = train_test_split(features,
                                                    labels,
                                                    test_size=0.2,
                                                    random_state=42)

clf = SVC(kernel='rbf', C=10)

t_start = int(time.time())

clf.fit(x_train, y_train)
t_end = int(time.time())

t_start_test = int(time.time())
y_predicted = clf.predict(x_test)
t_end_test = int(time.time())
score = accuracy_score(y_test, y_predicted)

print("train: {}s, test: {}s, accuracy: {}%".format(t_end - t_start,
                                                    t_end_test - t_start_test,
                                                    score * 100))

Following are the results of the optimal parameters search:

Orient	Channel	Colorspace	Accuracy (%)	Train time (s)	Predict time (s)
08	R	RGB	98.06	10	2
10	R	RGB	98.7	11	3
10	ALL	RGB	99.1	22	6
10	Y	YCrCb	98.49	10	4
10	ALL	YCrCb	100	16	4
10	ALL	LUV	99.56	16	4
10	ALL	HLS	99.78	17	4
10	ALL	HSV	99.84	16	4
12	ALL	RGB	99.5	25	7

Following parameters combination is selected:

HOG parameters	Value
Orientation	10
Pixel per cell	8
Cell per block	2
Color space	YCrCb

def bin_spatial(img, size=(32, 32)):
    color1 = cv.resize(img[:, :, 0], size).ravel()
    color2 = cv.resize(img[:, :, 1], size).ravel()
    color3 = cv.resize(img[:, :, 2], size).ravel()
    return np.hstack((color1, color2, color3))

def color_hist(img, nbins=32):  # bins_range=(0, 256)
    channel1_hist = np.histogram(img[:, :, 0], bins=nbins)[0]
    channel2_hist = np.histogram(img[:, :, 1], bins=nbins)[0]
    channel3_hist = np.histogram(img[:, :, 2], bins=nbins)[0]

    hist_features = np.concatenate((channel1_hist,
                                    channel2_hist,
                                    channel3_hist))
    return hist_features

def get_hog_features(img, feature_vec=False, folder="", filename=None):
    features = hog(img,
                   orientations=config["orient"],
                   pixels_per_cell=(config["pix_per_cell"],
                                    config["pix_per_cell"]),
                   cells_per_block=(config["cell_per_block"],
                                    config["cell_per_block"]),
                   transform_sqrt=True,
                   visualise=False,
                   feature_vector=feature_vec)
    return features

Here is an example of HOG features of training data samples:

1: Original Image. 2: Channel 1 HOG features 3: Channel 2 4: Channel 3

2- Training SVM Classifier:

Source Code Reference
File	implementation/classifier.py
Method	Classifier.normalize_features
Method	Classifier.get_trained_classifier

The algorithm is as follows:

• Randomize dataset using numpy shuffle.
• Normalize features using sklearn StandardScaler. Using Support Vector Machine (SVM) classifier to fit on the training features and labels.
• Save the trained classifier as pickle file for reuse.

Parameter for SVM classifier found using GridSearchCV are as follows:

SVM parameters	Value
Kernel	rbf
C	0.001

not_cars = glob.glob(config["training_not_cars"])
cars = glob.glob(config["training_cars"])

# files for cars and not cars
not_cars_files = [img_file for img_file in not_cars]
cars_files = [img_file for img_file in cars]

# features for cars and not cars
car_features = FeatureExtraction.extract_features(cars_files)
not_cars_features = FeatureExtraction.extract_features(not_cars_files)

# append the feature vertically -- i.e. grow in rows with rows constant
features = np.vstack((car_features, not_cars_features)).astype(np.float64)

# normalize the features
features, scaler = Classifier.normalize_features(features)

# labels
labels = np.hstack((np.ones(len(cars_files)), np.zeros(len(not_cars_files))))

# shuffle dataset
features, labels = shuffle(features, labels)

# initialize SVM with optimized params using GridSearchCV
clf = SVC( kernel='rbf', C=0.001)

# train the classifier
clf.fit(features, labels)

print("classifier trained.")

pickle.dump({"clf": clf, "x_scaler": scaler}, open(config["classifier"], 'wb'))
return clf, scaler

3- Sliding Window Search with HOG subsampling:

Source Code Reference
File	implementation/window_search.py
Method	WindowSearch.get_window_params
Method	WindowSearch.get_frame_hog
Method	WindowSearch.get_box
Method	WindowSearch.get_bounding_boxes

The algorithm is as follows:

• Get HOG features for each full image:

  • Get Region of Interest (ROI). Description for selecting ROI is provided below.
  • Find number of search steps using window size and number of windows.
  • Get HOG features of Y, Cr and Cb channels individually.

• Loop over the windows in x and y direction:

  • Get HOG features for the full image only once.
  • Get subsample of HOG features for each window.
  • Get Spatial and Color Histogram features of the subsample.
  • Use HOG, Spatial and Color features to predict the labels using pretrained SVM classifier.
  • Get the coordinates of bounding boxes if the classifier predicts the label as a car.

• Determining the ROI:

  • ROI is carefully chosen after experimentation to achieve a balance between prediction accuracy and time taken window searching.
  • The larger the ROI, the more area is search by sliding window algorithm but the time taken will be higher.
  • Smaller ROI has shorter searching time but at the expense of missing potential regions to detect the vehicle.

ROI parameters	Value
Left Side	(0, 400), (370, 600)
Top Side	(400, 800), (380, 560)
Right Side	(800, 1270), (370, 600)

• Determining window parameters:
  • Window size is set to be 64 as image size in training dataset is 64x64.
  • Number of blocks in a window are defined.

    Blocks per window = (Window size) / (Pixels per cell - Cells per block + 1)


  • Instead of using overlap, cells per step is defined using number of blocks and blocks in a window.

    Number of steps = (Blocks - Blocks per window) / (Cells per step)


Window Search parameters	Value
Window size	64
Scale	1.7
Subsample Image Size	(64, 64)
Number of Blocks	Right: (28,15)
	Top: (28,12)
	Left: (33,15)
Number of Steps	Right: (10,4)
	Top: (10,2)
	Left: (13,4)
Blocks per window	7

4- Find the Heatmaps and remove false positives:

Source Code Reference
File	implementation/helper.py
Method	Helper.add_heat
Method	Helper.get_heatmap
Method	Helper.remove_false_positives

The algorithm is as follows:

• Increment heat value (+1) for all pixels within windows where a positive detection is predicted by your classifier.

for box in bbox_list:
    # Add += 1 for all pixels inside each bbox
    # Assuming each "box" takes the form ((x1, y1), (x2, y2))
    heatmap[box[0][1]:box[1][1], box[0][0]:box[1][0]] += 1
    # Return updated heatmap
return heatmap

• Apply thresholding on the heatmap.

# Apply threshold to help remove false positives
heat_binary = heatmap[heatmap <= threshold] = 0
heatmap_binary = np.clip(heat_binary, 0, 1)

• Multi-frame accumulated heatmap can be used to optimize the pipeline for subsequent video frames:
  • Create history vector with max length restricted using deque:

    from collection import deque
    history = deque(maxlen=8)

  • Maintain history of heatmaps:

    history.append(heatmap)

  • Use average heatmap for thresholding and for finding labels instead of only current heatmap:

    new_heat = np.zeros_like(img[:, :, 0]).astype(np.float)
    heat = np.mean(history, axis=0) if len(history) > 0 else new_heat

Heatmap parameters	Value
Threshold	2

5- Update bounding boxes:

Source Code Reference
File	implementation/helper.py
Method	Helper.remove_false_positives
Method	Helper.draw_updated_boxes

To update the previously found duplicates and false postive bounding boxes:

• Using sklearn measurements to remove false positive.
• Iterate through all car labels:
  • Get x and y pixel positions.
  • Define top left and bottom right coordinates of a rectangle.
  • Draw bounding box using opencv rectangle.

# get the average of heatmaps from history
new_heat = np.zeros_like(img[:, :, 0]).astype(np.float)
heat = np.mean(history, axis=0) if len(history) > 0 else new_heat
heat = Helper.add_heat(heat, bounding_boxes)

# Get binary heat map
heatmap = Helper.get_heatmap(heat)

# Find final boxes from heatmap using label function
labels = label(heatmap)

# update heatmap history
history.append(heatmap)

# show box where label is 1
detected_cars = Helper.draw_updated_boxes(np.copy(img), labels)

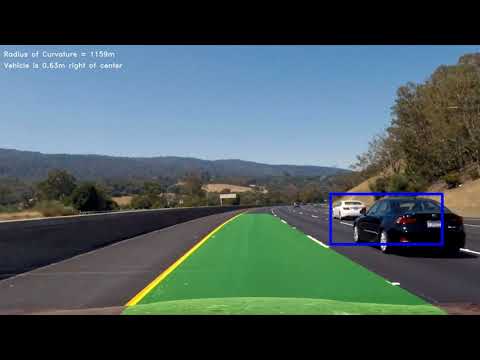

6- Combining results with Lane Detection:

The results of vehicle detection are combined with lane detection from previous project.

Here is the video of the complete pipeline:

Discussion

Possible Improvements:

• Using Convolutional Neural Networks (CNN) can be much faster compared to Support Vector Machine (SVM), also to reduce the dependency on window sliding algorithm.
• Region of Interest (ROI) can be further improved by generating a trapezoid dynamically instead of hardcoded rectangle coordinates.

Potential failure points and problems with current pipeline:

• Varying light conditions and trees shadow.
• Pipeline will most definitely fail in snow conditions.
• Pipeline has issues with overlapping cars.
• The vehicle detection is not fast enough to be realtime, specially sliding window search algorithm even after improvements in Region of Interest (ROI).
• Classifier may not predict Trucks, motorbikes etc. as it is trained only on cars' datasets.
• The pipeline will have issues with high elevations due to fixed Region of Interest (ROI).
