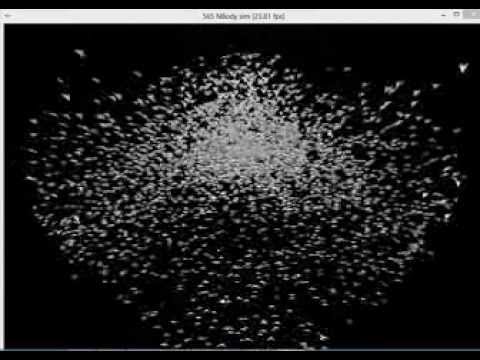

Youtube Video of Flocking Simulation:
This project requires an NVIDIA graphics card with CUDA capability! Any card after the Geforce 8xxx series will work. If you do not have an NVIDIA graphics card in the machine you are working on, feel free to use any machine in the SIG Lab or in Moore100 labs. All machines in the SIG Lab and Moore100 are equipped with CUDA capable NVIDIA graphics cards. If this too proves to be a problem, please contact Patrick or Liam as soon as possible.
This project is divided into two parts. The first folder is a very simple (and not physically accurate) solar system simulation. Part two is a GPU Accelerated flocking simulation. Both projects use a combination of CUDA and GLSL OpenGL shaders to do the bulk of the work.
The Project3 root directory contains the following subdirectories:
- Planets/ (Part 1: Planet Simulation)
- Boids/ (Part 2: Flocking Simulation)
The gravity simulation for this solar system is done in CUDA. Each vertex height of the gravity map is also computed with the same CUDA functions.
Once the height map has been generated, it is passed as a VBO to OpenGL using CUDA GL Interop. From there, GLSL shaders are used to render the scene.
- A Vertex shader code to render a height field
- A Fragment shader code to light that height field
- A Geometry shader code to create screen facing billboards from planet center points points
- Fragment shader code to render those billboards like spheres with simple diffuse shading
In addition to the features mentioned above, a shared memory prefetching technique was used in an attempt to speed up the simulation. As discussed in the performance section below though, the technique yielded little to no speedup for this sim.
Now we have a beautiful looking (if simple) gravity sim!
The following screenshots consist of 4000 "Boids" obeying simple local rules.
The rules current used by the flock are a combination of the following:
- Attraction (go towards other boids that are far away)
- Alignment (face the same direction as boids mid distance away)
- Repulsion (avoid getting too close together)
- Boundary Conditions (turn around if you get too far from center of frame)
- Ground Avoidance (pull up!!!)
- Speed control (Try to maintain a steady cruising speed)
As a little bonus, press 'b' while running the sim. To adjust any of the rules, the quickest way is to alter the "WorldProps" struct in main.cpp
The simulation spits out a position and velocity for each BOID. I then use a geometry shader to create each boid's geometry.
This project uses GLM, the GL Math library, for linear algebra. You need to know two important points on how GLM is used in this project:
- In this project, indices in GLM vectors (such as vec3, vec4), are accessed via swizzling. So, instead of v[0], v.x is used, and instead of v[1], v.y is used, and so on and so forth.
- GLM Matrix operations work fine on NVIDIA Fermi cards and later, but pre-Fermi cards do not play nice with GLM matrices. As such, in this project, GLM matrices are replaced with a custom matrix struct, called a cudaMat4, found in cudaMat4.h. A custom function for multiplying glm::vec4s and cudaMat4s is provided as multiplyMV() in intersections.h.
As mentioned above, an attempt was made to speed the planet simulation by prefetching each planet position into shared memory, avoiding N^2 costly global memory loads. However, when actually implemented the empirical evidence demonstrated the technique did not help on my machine.
In fact, as the chart shows, the shared memory code actually ran slightly slower regardless of block size.
I was puzzled by this so I ran some further profiling analysis. What I discovered was when running the code without prefetching, there was a huge spike in L2 cache bandwith usage. Once I implemented shared memory, this spike disappeared. This leads me to suspect that instead of truly making N^2 global loads per tile, the unoptimized code is making N global loads and N^2 L2 cache loads. For such small amounts of data, the cache is aparently able to maintain the entire position array for the entire run, rivaling shared memory performance.
I adapted the geometry shader code from this excellent tutorial on the subject
