Connect Java App to Database

Learning Goals

• Set up persistence context for communicating with the database.
• Configure database communication settings.

Introduction

We will be setting up the basic structure for interacting with the H2 database and configure the database settings. Make sure the H2 database is running on your machine by logging in on the browser before proceeding.

Configure Persistence Context

The persistence context defines how JPA should behave when it connects to the database. These configurations are added to the persistence.xml file.

1. Create a directory called META-INF in the ~src/main/resources folder.

2. Create a persistence.xml file in the META-INF folder.

3. Your directory structure should look like the following:

   ~/project-root-directory
   ├── pom.xml
   └── src
       ├── main
       │   ├── java
       │   │   └── org
       │   │       └── example
       │   │           └── JpaMain.java
       │   └── resources
       │       └── META-INF
       │           └── persistence.xml
       └── test
           └── java

4. Add the following to your persistence.xml file.

   <persistence xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
                xsi:schemaLocation="http://java.sun.com/xml/ns/persistence
                         http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd"
                version="2.0" xmlns="http://java.sun.com/xml/ns/persistence">

       <persistence-unit name="example" transaction-type="RESOURCE_LOCAL">
           <provider>org.hibernate.ejb.HibernatePersistence</provider>
           <properties>
               <!-- connect to database -->
               <property name="javax.persistence.jdbc.url" value="jdbc:h2:tcp://localhost/~/test" />
               <property name="javax.persistence.jdbc.driver" value="org.h2.Driver" />
               <property name="javax.persistence.jdbc.user" value="sa" />
               <property name="javax.persistence.jdbc.password" value="" />
               <!-- configure behavior -->
               <property name="hibernate.show_sql" value="true"/>
               <property name="hibernate.format_sql" value="true"/>
               <property name="hibernate.dialect" value="org.hibernate.dialect.H2Dialect"/>
               <property name="hibernate.hbm2ddl.auto" value="create-drop" />
           </properties>
       </persistence-unit>
   </persistence>

Let’s look at what these properties do:

• <persistence-unit>: defines a single database your app will connect to.
• <provider>: defines the implementation of JPA that the app will be using.
• The properties under the “connect to database” comment defines the url, driver, username, and password for connecting to the database. The URL we are using is for connecting to the H2 database in server mode. It would be different if we were using the in-memory mode.
• Behavior configurations:
  • hibernate.show_sql: shows the SQL queries performed in the terminal.
  • hibernate.format_sql: formats SQL queries in the terminal to display them in an easier to read formate.
  • hibernate.dialect: defines the type of database which ensures database compatible SQL queries are generated.
  • hibernate.hbm2ddl.auto: defines initial startup behavior for database.

Create an Entity

We will create a Student class and use it to create an associated table in the H2 database. This will be a basic entity for now but later we will learn how to customize the properties.

Create the Class

1. Create a models package in the org.example package.

2. Create a Student class.

3. Your directory structure should look like this:

   ~/project-root-directory
   ├── pom.xml
   └── src
       ├── main
       │   ├── java
       │   │   └── org
       │   │       └── example
       │   │           ├── JpaMain.java
       │   │           └── models
       │   │               └── Student.java
       │   └── resources
       │       └── META-INF
       │           └── persistence.xml
       └── test
           └── java

Define the Class

We have to add certain annotations to a class in order to tell JPA how to map it to the database. We will be using the @Entity, @Table, and @Id annotations from the javax.persistence package in this lesson.

Open your Student.java file and add the following code:

package org.example.models;

import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;

@Entity
@Table(name = "STUDENT_DATA")
public class Student {
    @Id
    private int id;
    private String name;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}

The @Entity annotation tells program that JPA has to manage this class and will be using this to communicate with the database. The @Table annotation is being used to set the table name in the database. Finally, the @Id annotation specifies the property that will be used as the unique identifier for rows in the database.

Note that we are using the default setters and getters generated by IntelliJ. Later, we will have to create a few custom setters and getters when creating models with relationships.

Use the Persistence Context and Entity

We configured a persistence context in the persistence.xml file earlier. Now, we have to use that context in our app to interact with the database. We have to use an EntityManager to use our entity to communicate with the database.

Open up your [JpaMain.java](http://JpaMain.java) file and add the following code:

package org.example;

import org.example.models.Student;

import javax.persistence.Persistence;
import javax.persistence.EntityManagerFactory;
import javax.persistence.EntityManager;
import javax.persistence.EntityTransaction;

public class JpaMain {
    public static void main(String[] args) {
				// create a new student instance
        Student student1 = new Student();
        student1.setId(1);
        student1.setName("Jack");

				// create EntityManager
        EntityManagerFactory entityManagerFactory = Persistence.createEntityManagerFactory("example");
        EntityManager entityManager = entityManagerFactory.createEntityManager();

				// access transaction object
        EntityTransaction transaction = entityManager.getTransaction();

				// create and use transactions
        transaction.begin();
        entityManager.persist(student1);
        transaction.commit();
    }
}

In the “create a new student instance”, we are creating a new student instance which is a regular Java object.

We need to use an EntityManagerFactory because we want a single instance of an EntityManager in our app. We also have to get the EntityTransaction object from the EntityManager because we have to define our own transactions. This is boilerplate code required when working with JPA but these aren’t required when using frameworks which provide auto configurations such as Spring (with SpringBoot).

The persist method tells the database to create and insert a student row using the data provided.

Make sure your H2 database is running in the terminal or command line and then run the main method. This will create a STUDENT_DATA table in the H2 database along with a single row of data. In IntelliJ, you can check out the “Run” tab to see the exact query that Hibernate used to create the table and insert the data. It shows the SQL queries because we enabled this behavior in the persistence.xml file.

Hibernate:

    drop table if exists STUDENT_DATA CASCADE
Hibernate:

    create table STUDENT_DATA (
       id integer not null,
        name varchar(255),

Hibernate:
    insert
    into
        STUDENT_DATA
        (name, id)
    values
        (?, ?)

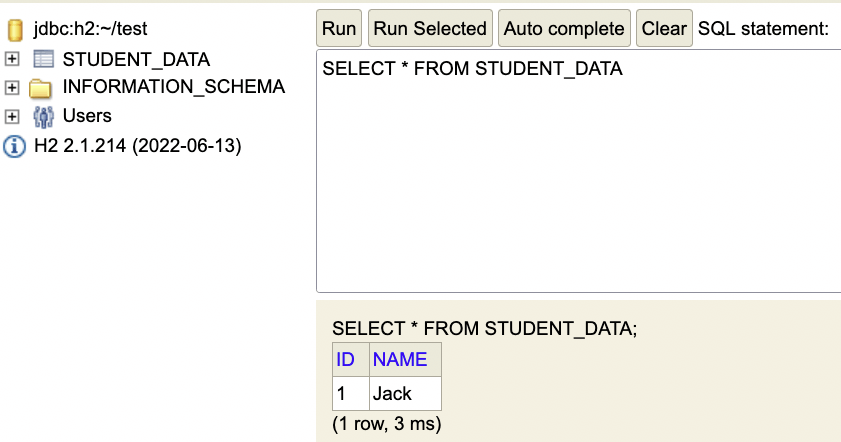

Tip: If you click on the STUDENT_DATA table in the H2 browser GUI sidebar, it will automatically create the SQL query. Click the “Run” button to execute the SQL statement.

Conclusion

We have learned how to configure a persistence context, create an entity, and interact with a database. In the following lessons, we will learn more about entity mapping, object methods, and how to create relationships between models.
