TCPClientPlugin

TCPClient make easy to connect and comunicate with your server via TCP Socket.
You can easily implement all the functions by learning how to use 4 blueprints.
Because of It is only maden by C++17 and unreal libray, any device that supports multi-threading can be used.

features

• All features can be created using blueprints.
• Only c++ can be used for optimization.
• Connect to the server via TCP Socket
• Supports multiple connections with various servers.
• Support type : bool, int8, int16, int32, int64, float, double(c++ only), String(utf-8) and bytes array.
• Each packet is managed with a Blueprint or C++ Class.
• Not Polling method. It can save cpu usage.

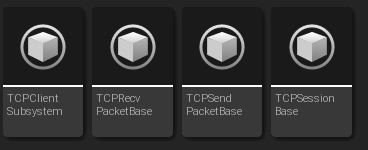

1. 4 Basic Classes

• TCPClientSubsystem : Subsystem is responsible for creating and destroying sessions. You can get the sessions that you created through this.

• TCPClientSessionBase : The session manages communication with the connected server.

• TCPRecvPacketBase : It defines the packets to be received from the server.

• TCPSendPacketBase : It defines the packets to be sent to the server.




2. How To Use

Step.1 - Defining Session

Expand

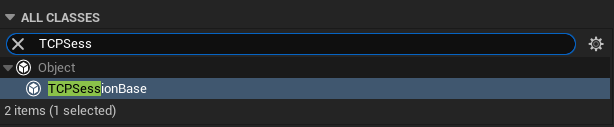

1-1) Create Session blueprint in Content Drawer

1-2) Open session blueprint, click 'class defaults' and setting session in details pannel

• Session Name : 'SessionName' is required when get the session from Subsystem. So, you must input unique value
• Ip : IP Address of server. If you check DNS, it will be treated as a DNS Address
• Port : Port of server
• Custom Header : You can set a custom header. If set to None, the default settings will be applied.
• packet to Receive : Register your created RecvPacket. This will enable you to convert and respond to the byte messages received from the server.

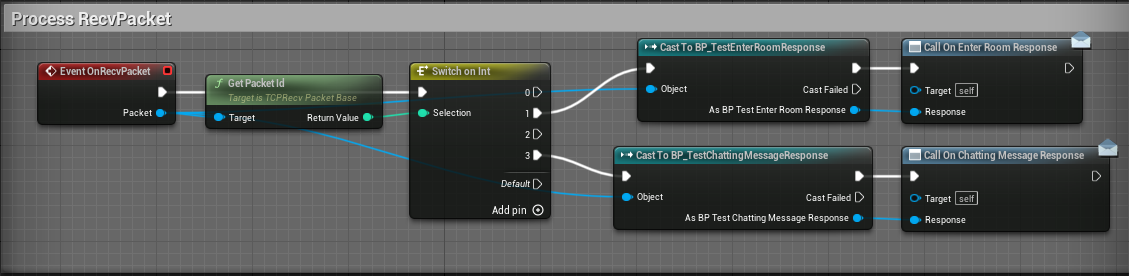

1-3) Override 'OnRecvPacket' in Event Graph and divide it by PacketId and handle it appropriately

Step.2 Defining RecvPacket

Expand

2-1) Create 'RecvPacket' Blueprint in Content Drawer

2-2) Open blueprint, and set 'Packet Id' on details pannel

• The session converts to the RecvPacket that matches this Id

2-3) Add variable as you want

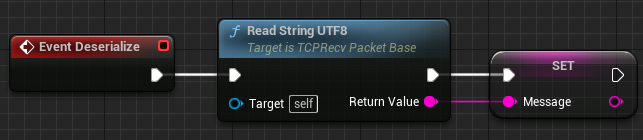

2-4) Override 'Desereialize' function, This defines how to convert the byte message received from the server.

2-5) Open the session and register this packet on details pannel

Step.3 Defining SendPacket

Expand

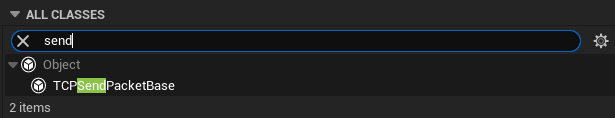

3-1) Create 'SendPacket' Blueprint in Content Drawer

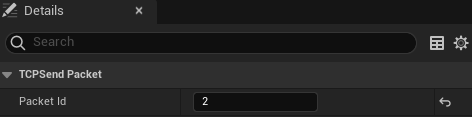

3-2) Open blueprint, you can set 'Packet Id' on details panel.

• This is the Id of the packet you will send, and it will be included in the header

3-3) Add variables as you want

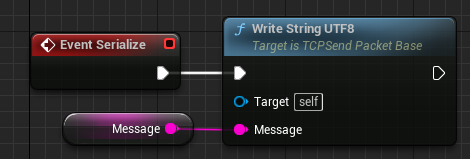

3-4) Override 'Serialize' function. it defines how to convert the message into bytes.

3-5) Use it in other blueprint

• You can use 'CreateSendPacket' method to instantiate SendPacket, and set member after casting it.
• Call 'SendPacket' method of Session. Then packet is sended to server that relative with session

Step.4 Connecting Session

Expand

4-1) Call 'ConnectSession' in TCPClientSubsystem, and set the session to the one you have created.

4-2) Through the Connected Delegate, ensure that the next steps can be taken upon connection.

• The same applies to the Disconnected Delegate.

Step.5 Get Session

Expand

5-1) Now, you can obtain the session connected to the server anytime and anywhere through the TCPClientSubsystem's 'GetSession' method.

• Communicate with the server through this connected session

5-2) If you need to obtain a session whose connection status is uncertain, use the 'GetSessionLazy' method

3. Life Cycle of Session

4. Policy

4-1. Default Header Policy

Inherit from TCPHeaderComponent.h to configure a header suitable for your server environment.
Refer to the comments in the code for more details.

4-2. String Policy

1) Length-Prefixed method for Write strings. (WriteStringUTF8)

Serialize the 2-byte number representing the byte length of the string, followed by the string itself.

2) Raw bytes of string (WriteStringUTF8Raw)

3) Null-Terminated method for Write strings. (WriteStringUTF8NT)

null character at the end of the string.
