複数環境向けのTerraformのCICD環境をCodebuildで構築

環境

以下の環境をterraformで管理していると仮定する

• develop：開発環境
• staging：試験環境
• main：本番環境

Codebuildビルドプロジェクト

develop環境向け

• terraform-dev-dryrun : dryrunプロジェクト
• terraform-dev : releaseプロジェクト　　

staging環境向け

• terraform-stg-dryrun : dryrunプロジェクト
• terraform-stg : releaseプロジェクト　　　

main環境向け

• terraform-prd-dryrun : dryrunプロジェクト
• terraform-prd : releaseプロジェクト

今回構築するCICD

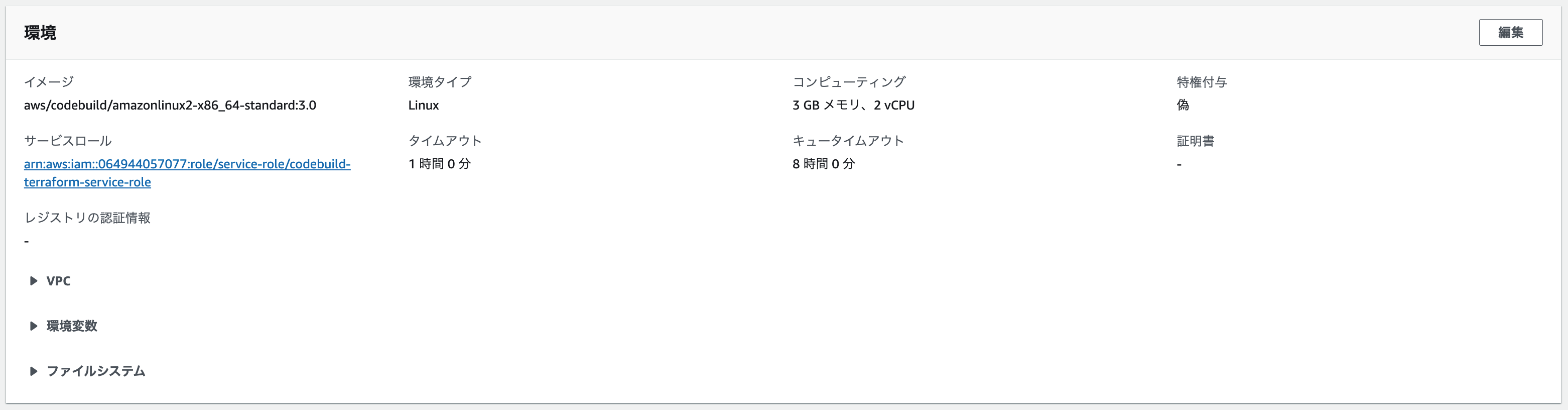

Codebuild環境

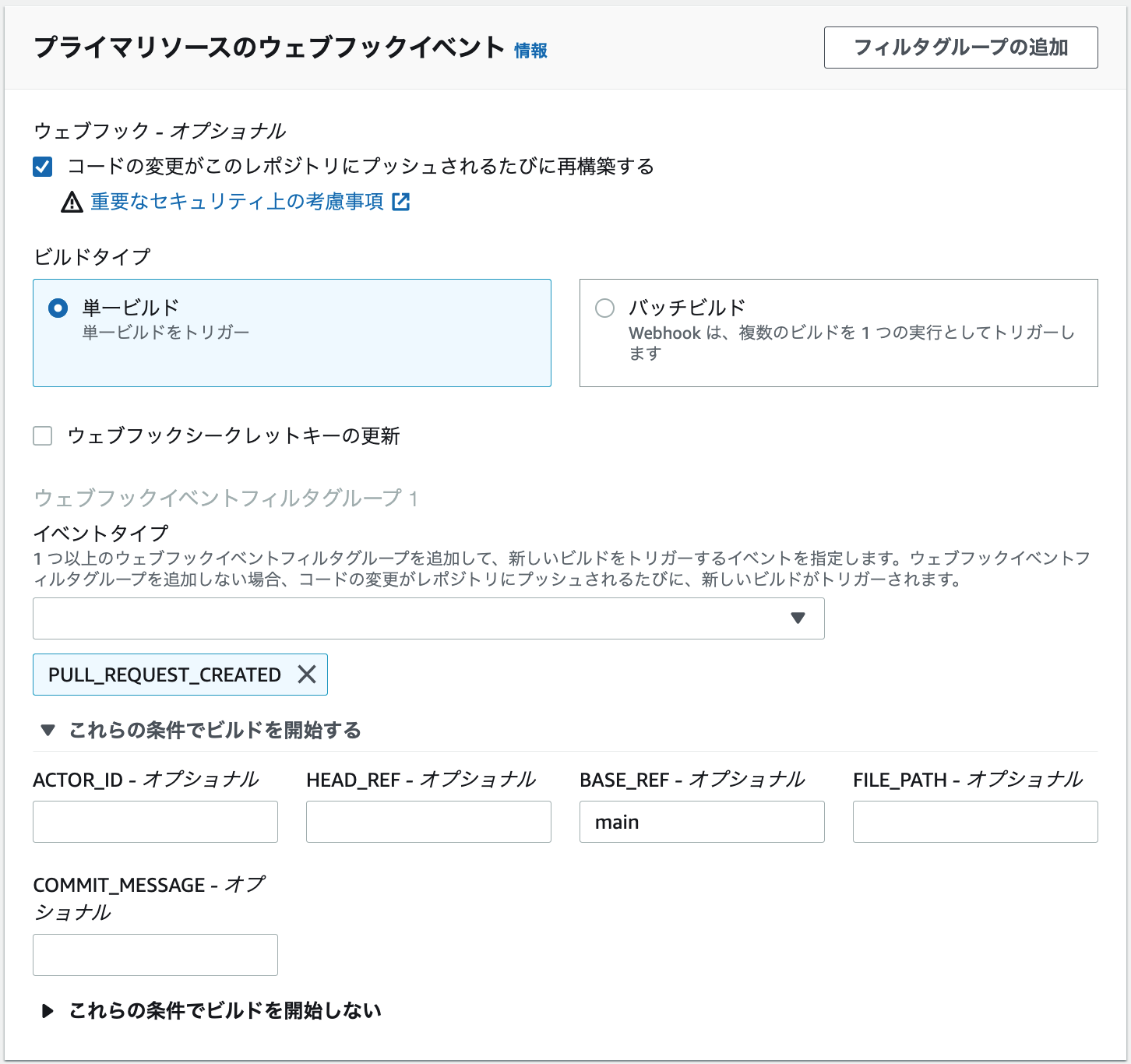

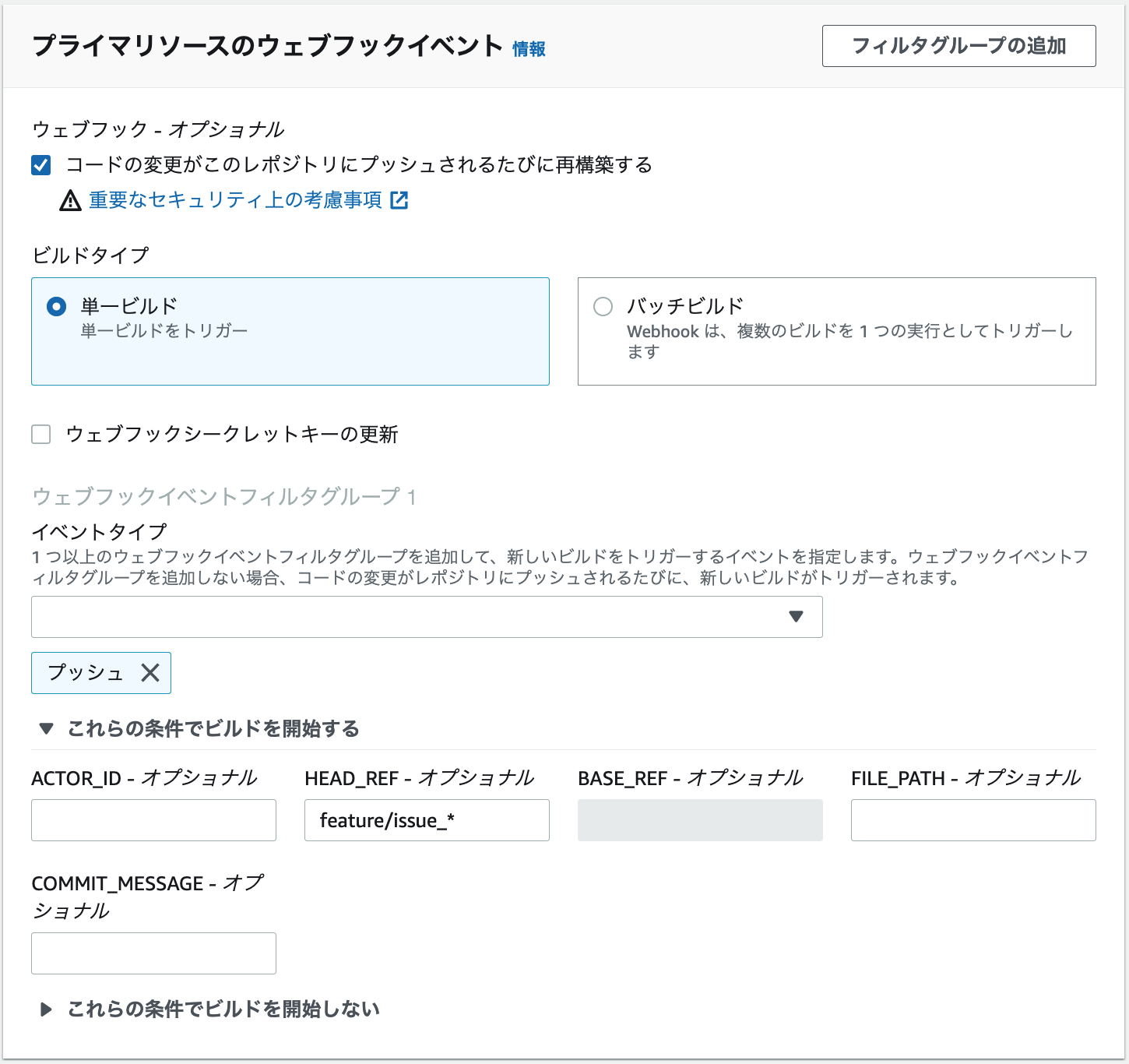

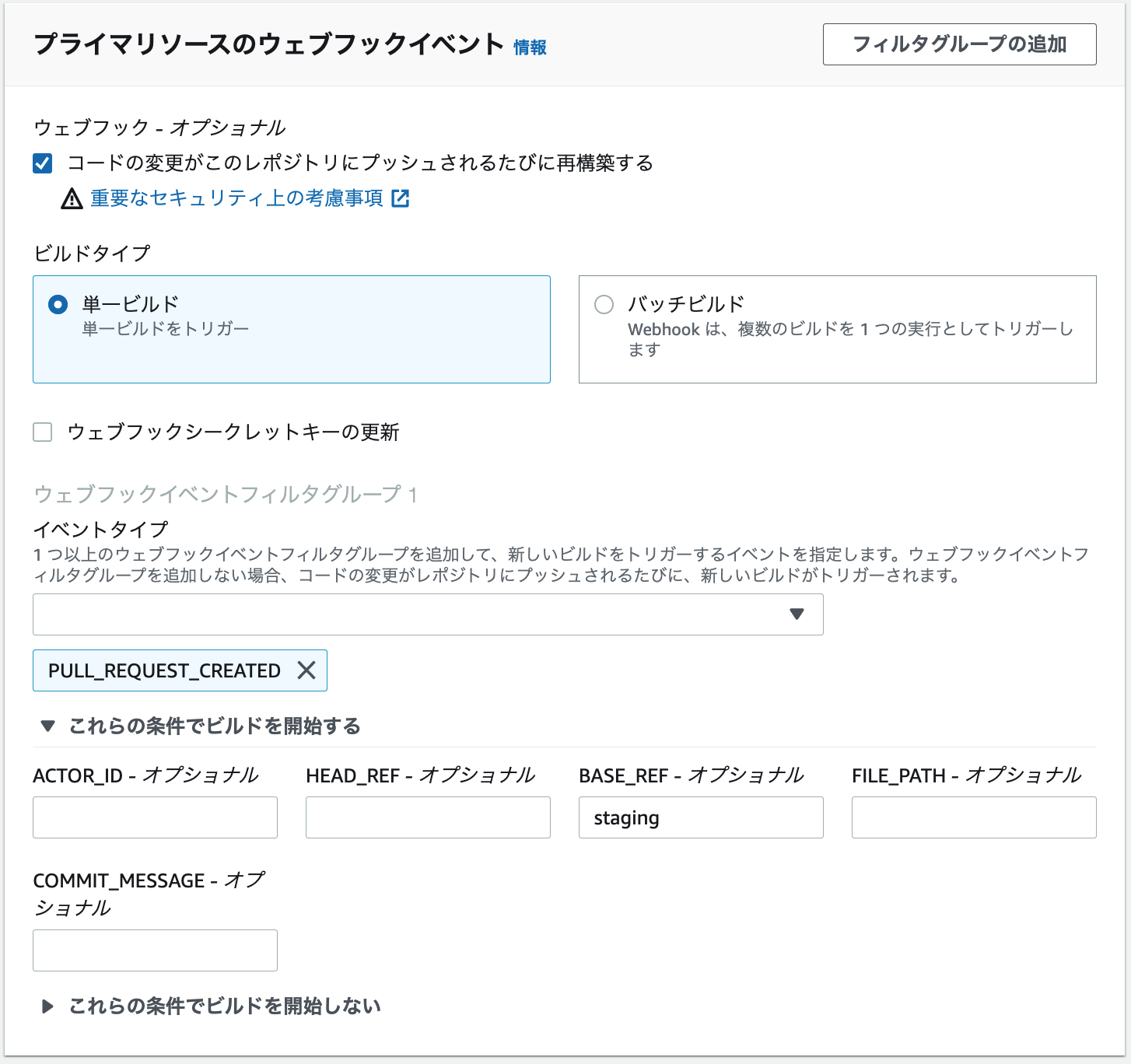

Dryrunプロジェクトのwebhookアクション

terraform-dev-dryrun

terraform-stg-dryrun

terraform-prd-dryrun

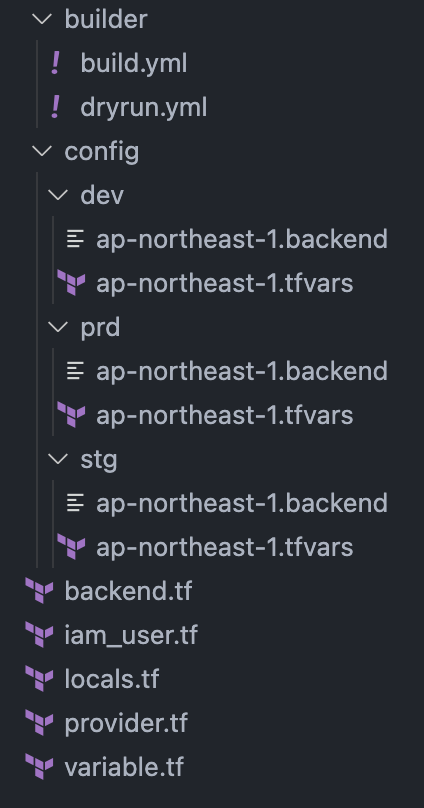

ディレクトリ構造

.
├── backend.tf
├── builder
│   ├── build.yml
│   └── dryrun.yml
├── config
│   ├── dev
│   │   ├── ap-northeast-1.backend
│   │   └── ap-northeast-1.tfvars
│   ├── prd
│   │   ├── ap-northeast-1.backend
│   │   └── ap-northeast-1.tfvars
│   └── stg
│       ├── ap-northeast-1.backend
│       └── ap-northeast-1.tfvars
├── iam_user.tf
├── locals.tf
├── provider.tf
└── variable.tf

buildspec.yml

• builder/dryrun.yml : dryrunプロジェクト用yml
• builder/build.yml : releaseプロジェクト用yml

version: 0.2

phases:
  install:
    on-failure: ABORT | CONTINUE
    commands:
       - echo $CODEBUILD_INITIATOR
       - echo $CODEBUILD_BUILD_ID
       - echo $CODEBUILD_WEBHOOK_TRIGGER
       - echo $CODEBUILD_SOURCE_VERSION
       - export job_name=(${CODEBUILD_BUILD_ID//:/ })
       - export split_build_name=(${job_name//-/ })
       - export DEPLOY_ENV=${split_build_name[1]}
       - export TFVARS_PATH=./config/${DEPLOY_ENV}/ap-northeast-1.tfvars
       - wget -q https://releases.hashicorp.com/terraform/0.14.9/terraform_0.14.9_linux_amd64.zip
       - unzip terraform_0.14.9_linux_amd64.zip
       - mv terraform /bin
       - terraform init -backend-config=./config/${DEPLOY_ENV}/ap-northeast-1.backend -no-color
  pre_build:
    on-failure: ABORT | CONTINUE
    commands:
       - echo pre_build phases
       - terraform plan ${DESTROY_MODE} -var-file=${TFVARS_PATH} -no-color

version: 0.2

phases:
  install:
    on-failure: ABORT | CONTINUE
    commands:
       - echo $CODEBUILD_INITIATOR
       - echo $CODEBUILD_BUILD_ID
       - echo $CODEBUILD_WEBHOOK_TRIGGER
       - echo $CODEBUILD_SOURCE_VERSION
       - export job_name=(${CODEBUILD_BUILD_ID//:/ })
       - export split_build_name=(${job_name//-/ })
       - export DEPLOY_ENV=${split_build_name[1]}
       - export TFVARS_PATH=./config/${DEPLOY_ENV}/ap-northeast-1.tfvars
       - wget -q https://releases.hashicorp.com/terraform/0.14.9/terraform_0.14.9_linux_amd64.zip
       - unzip terraform_0.14.9_linux_amd64.zip
       - mv terraform /bin
       - terraform init -backend-config=./config/${DEPLOY_ENV}/ap-northeast-1.backend -no-color
  pre_build:
    on-failure: ABORT | CONTINUE
    commands:
       - echo pre_build phases
       - terraform plan ${DESTROY_MODE} -var-file=${TFVARS_PATH} -no-color -out plan.out
  build:
    on-failure: ABORT | CONTINUE
    commands:
       - echo build phases
       - terraform apply plan.out

terraform

バージョンとtfstate置き場

terraform {
  required_version = "~> 0.14.9"
  required_providers {
    aws = {
        source = "hashicorp/aws"
        version = "~> 3.74.1"
    }
  }

  backend "s3" {
  }
}

bucket = "terraform-codebuild-tfstate"
key = "terraform/develop/ap-northeast-1.tfstate"
region = "ap-northeast-1"

terraform実行権限はcodebuildのロールで管理
マルチアカウントで環境を分ける場合はassumeroleを使用

provider "aws" {
    region = "ap-northeast-1"
    #assume_role {
    #    role_arn = "arn:aws:iam::${var.aws.account_id}:role/StsAdminRole"
    #}
}

試しに作成するもの

variable "aws" { type = map(any) }
variable "stage" { type = map(any) }
variable "project" { type = map(any) }
variable "iam_users" { type = map(any) }

resource "aws_iam_user" "iam_user" {
    for_each = var.iam_users
    name = "${each.value.name}-${var.stage.short_name}"
    path = "/"
    tags = merge(local.tags, map("Name", "${local.system_name}-user"))
}

locals {
  system_name = "${var.project.name}-${var.stage.short_name}"
  tags = {
      Env = var.stage.name
      Project = var.project.name
  }
}

tfvars develop用

aws = {
    account_id = "064944057077"
}

stage = {
    name = "develop"
    short_name = "dev"
}

project = {
    name = "terraform-codebuild"
}

iam_users = {
    test1 = {
        key = "test1"
        name = "test1@terraform"
    }
    test2 = {
        key = "test2"
        name = "test2@terraform"
    }
    test3 = {
        key = "test3"
        name = "test3@terraform"
    }
}

staging用

aws = {
    account_id = "064944057077"
}

stage = {
    name = "staging"
    short_name = "stg"
}

project = {
    name = "terraform-codebuild"
}

iam_users = {
    test1 = {
        key = "test1"
        name = "test1@terraform"
    }
    test2 = {
        key = "test2"
        name = "test2@terraform"
    }
    test3 = {
        key = "test3"
        name = "test3@terraform"
    }
}

production用

aws = {
    account_id = "064944057077"
}

stage = {
    name = "production"
    short_name = "prd"
}

project = {
    name = "terraform-codebuild"
}

iam_users = {
    #(for_each)
    #     = each.value
    test1 = {
        #   = each.value.key
        key = "test1"
        #   = each.value.name
        name = "test1@terraform"
    }
    test2 = {
        key = "test2"
        name = "test2@terraform"
    }
    test3 = {
        key = "test3"
        name = "test3@terraform"
    }
}

以下も可

resource "aws_iam_user" "iam_user" {
    for_each = var.iam_users
    name = "${each.value}-${var.stage.short_name}"
    path = "/"
    tags = merge(local.tags, map("Name", "${local.system_name}-user"))
}

.
.
.
iam_users = {
    #(for_each)
    #each.key = each.value
    name1 = "test1@terraform"
    name2 = "test2@terraform"
    name3 = "test3@terraform"
}

課題

Codebuildは任意の場所で処理を停止するような分岐を設けることができない(?)ため、 （sourceコマンドで外部シェルスクリプトを利用することはできるのでシェルで書けばできそうだが可読性が落ちてしまう） terraform planで異常に気付けても強制的にビルトを停止するしか無い点。 Jenkinsなら簡単に分岐を書けるため、その点ではJenkinsの方が優れている。
