Adapter

• Current Code with the old vendors's API (XPay in the example)

• Now, the current code interface is not compatible with the new vendor’s API. (PayD in the example)

• Adapter solution

Facade

Composite

• Typical Composite object structure.

• The Component defines an interface or abstract class for all objects in the composition both the composite and the leaf nodes. The Component may implement a default behavior for generic methods.

• The Composite’s role is to define the behavior of the components having children and to store child components. The Composite also implements the Leaf related operations.

Bridge

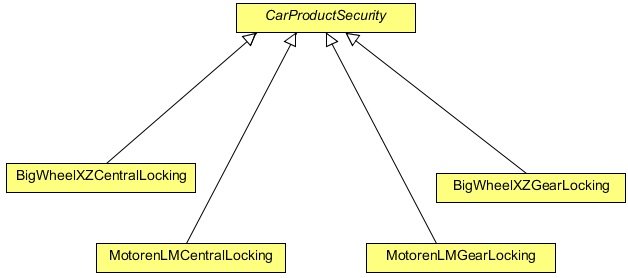

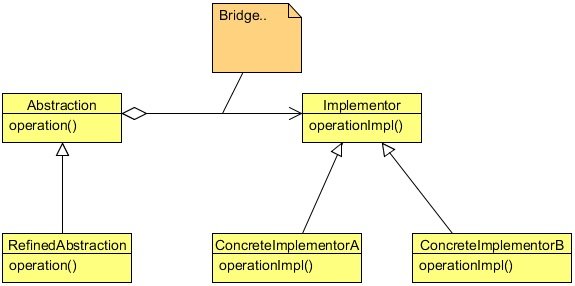

• The components of the Bridge Pattern comprise of an abstraction, refined abstraction, an implementer, and concrete implementer.

Singleton

Observer

• The key objects in this pattern are subject and observer.
• A subject may have any number of dependent observers.
• All observers are notified whenever the subject undergoes a change in its state. In response, each observer will query the subject to synchronize its state with the subject state.

Mediator

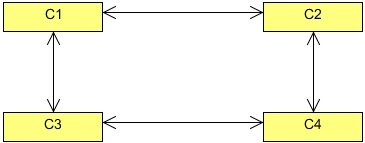

• Before Mediator the interaction between the classes might look like this, containing references of each other.

• After implementing a Mediator the interaction between the classes looks like this, only containing a reference to the mediator.

• Using a Mediator means the interaction code has to reside in only one place, and that makes it easier to maintain.
• More formal structure of the Mediator Pattern.

The major participants of the Mediator Pattern are:

1. Mediator: Defines an interface for communicating with Colleague objects.
2. ConcreteMediator: Implements cooperative behavior by coordinating Colleague objects. It also knows and maintains its colleagues.
3. Colleague Classes: Each Colleague class knows its Mediator object. Each colleague communicates with its mediator whenever it would have otherwise communicated with another colleague.

Proxy

• The client does not know about the proxy, the proxy acts as an original object for the client.

1. Proxy:

• 1a. Maintains a reference that lets the proxy access the real subject. Proxy may refer to a Subject if the RealSubject and Subject interfaces are the same.
• 1b. Provides an interface identical to Subject’s so that a proxy can be substituted for the real subject.
• 1c. Controls access to the real subject and may be responsible for creating and deleting it.

2. Subject:

• 2a. Defines the common interface for RealSubject and Proxy so that a Proxy can be used anywhere a RealSubject is expected.

3. RealSubject:

• 3a. Defines the real object that the proxy represents.

There are three main variations to the Proxy Pattern:

1. A remote proxy provides a local representative for an object in a different address space.
2. A virtual proxy creates expensive objects on demand.
3. A protection proxy controls access to the original object. Protection proxies are useful when objects should have different access rights.

Chain of responsibility

Handler

1. Defines an interface for handling requests.
2. (Optionally) Implements the successor link.

ConcreteHandler

1. Handles requests it is responsible for.
2. Can access its successor.
3. If the ConcreteHandler can handle the request, it does so; otherwise it forwards the request to its successor.

Client

1. Initiates the request to a ConcreteHandler object on the chain.

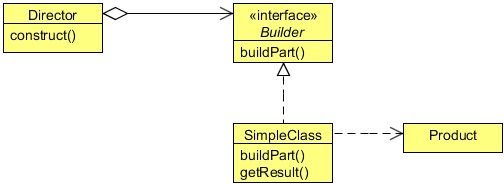

Builder

The intent of the Builder Pattern is to separate the construction of a complex object from its representation, so that the same construction process can create different representations.

Builder

• Specifies an abstract interface for creating parts of a Product object.

ConcreteBuilder

• Constructs and assembles parts of the product by implementing the Builder interface.
• Defines and keeps track of the representation it creates.
• Provides an interface for retrieving the product.

Director

• Constructs an object using the Builder interface.

Product

• Represents the complex object under construction. ConcreteBuilder builds the product’s internal representation and defines the process by which it’s assembled.
• Includes classes that define the constituent parts, including interfaces for assembling the parts into the final result.

Flyweight

The intent of the Flyweight Pattern is to use shared objects to support large numbers of fine-grained objects efficiently.

Flyweight

• Declares an interface through which flyweights can receive and act on extrinsic state.

ConcreteFlyweight

• Implements the Flyweight interface and adds storage for intrinsic state, if any. A ConcreteFlyweight object must be sharable. Any state it stores must be intrinsic; that is, it must be independent of the ConcreteFlyweight object’s context.

FlyweightFactory

• Creates and manages flyweight objects.
• Ensures that flyweights are shared properly. When a client requests a flyweight, the FlyweightFactory object supplies an existing instance or creates one, if none exists.

Client

• Maintains a reference to flyweight(s).
• Computes or stores the extrinsic state of flyweight(s).

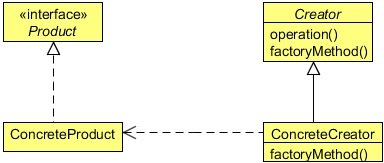

Factory Method

The Factory Method Pattern gives us a way to encapsulate the instantiations of concrete types.

Product

• Defines the interface of objects the factory method creates.

ConcreteProduct

• Implements the Product interface.

Creator

• Declares the factory method, which returns an object of type Product. Creator may also define a default implementation of the factory method that returns a default ConcreteProduct object.
• May call the factory method to create a Product object.

ConcreteCreator

• Overrides the factory method to return an instance of a ConcreteProduct.

Abstract Factory

The Abstract Factory provides an interface for creating families of related or dependent objects without specifying their concrete classes.

AbstractFactory

• Declares an interface for operations that create abstract product objects.

ConcreteFactory

• Implements the operations to create concrete product objects.

AbstractProduct

• Declares an interface for a type of product object.

ConcreteProduct

• Defines a product object to be created by the corresponding concrete factory.
• Implements the AbstractProduct interface.

Client

• Uses only interfaces declared by AbstractFactory and AbstractProduct classes.

Prototype

The Prototype design pattern is used to specify the kinds of objects to create using a prototypical instance, and create new objects by copying this prototype.

Prototype

• Declares an interface for cloning itself.

ConcretePrototype

• Implements an operation for cloning itself.

Client

• Creates a new object by asking a prototype to clone itself.

Memento

The Memento Pattern’s intent is, without violating encapsulation, to capture and externalize an object’s internal state so that the object can be restored to this state later.

Memento

• Stores internal state of the Originator object. The memento may store as much or as little of the originator’s internal state as necessary at its originator’s discretion.
• Protects against access by objects other than the originator. Mementos have effectively two interfaces. Caretaker sees a narrow interface to the Memento—it can only pass the memento to other objects. Originator, in contrast, sees a wide interface, one that lets it access all the data necessary to restore itself to its previous state. Ideally, only the originator that produced the memento would be permitted to access the memento’s internal state.

Originator

• Creates a memento containing a snapshot of its current internal state.
• Uses the memento to restore its internal state.

Caretaker

• Is responsible for the memento’s safekeeping.
• Never operates on or examines the contents of a memento.

Template

The Template Pattern defines the skeleton of an algorithm in an operation, deferring some steps to subclasses. Template Method lets subclasses to redefine certain steps of an algorithm without changing the algorithm’s structure.

AbstractClass

• Defines abstract primitive operations that concrete subclasses define to implement steps of an algorithm.
• Implements a template method defining the skeleton of an algorithm. The template method calls primitive operations as well as operations defined in AbstractClass or those of other objects.

ConcreteClass

• Implements the primitive operations to carry.

State

The State Design Pattern allows an object to alter its behavior when its internal state changes. The object will appear to change its class.

Context

• Defines the interface of interest to clients.
• Maintains an instance of a ConcreteState subclass that defines the current state.

State

• Defines an interface for encapsulating the behavior associated with a particular state of the Context.

ConcreteState subclasses

• Each subclass implements a behavior associated with a state of the Context.

Strategy

The Strategy Design Pattern defines a family of algorithms, encapsulating each one, and making them interchangeable. Strategy lets the algorithm vary independently from the clients that use it.

Strategy

• Declares an interface common to all supported algorithms. Context uses this interface to call the algorithm defined by a ConcreteStrategy.

ConcreteStrategy

• Implements the algorithm using the Strategy interface.

Context

• Is configured with a ConcreteStrategy object.
• Maintains a reference to a Strategy object.
• May define an interface that lets Strategy access its data.

Command

The intent of the Command Design Pattern is to encapsulate a request as an object, thereby letting the developer to parameterize clients with different requests, queue or log requests, and support undoable operations.

Command

• Declares an interface for executing an operation.

ConcreteCommand

• Defines a binding between a Receiver object and an action.
• Implements Execute by invoking the corresponding operation(s) on Receiver.

Client

• Creates a ConcreteCommand object and sets its receiver.

Invoker

• Asks the command to carry out the request.

Receiver

• Knows how to perform the operations associated with carrying out a request. Any class may serve as a Receiver.

Interpreter

Given a language, define a representation for its grammar along with an interpreter that uses the representation to interpret sentences in the language.

AbstractExpression

• Declares an abstract Interpret operation that is common to all nodes in the abstract syntax tree.

TerminalExpression

• Implements an Interpret operation associated with terminal symbols in the grammar.
• An instance is required for every terminal symbol in a sentence.

NonterminalExpression

• One such class is required for every rule R ::= R1 R2 ... Rn in the grammar.
• Maintains instance variables of type AbstractExpression for each of the symbols R1 through Rn.
• Implements an Interpret operation for non terminal symbols in the grammar. Interpret typically calls itself recursively on the variables representing R1 through Rn.

Context

• Contains information that’s global to the interpreter.

Client

• Builds (or is given) an abstract syntax tree representing a particular sentence in the language that the grammar defines. The abstract syntax tree is assembled from instances of the NonterminalExpression and TerminalExpression classes.
• Invokes the Interpret operation.

Decorator

The intent of the Decorator Design Pattern is to attach additional responsibilities to an object dynamically. Decorators provide a flexible alternative to sub-classing for extending functionality.

Component

• Defines the interface for objects that can have responsibilities added to them dynamically.

ConcreteComponent

• Defines an object to which additional responsibilities can be attached.

Decorator

• Maintains a reference to a Component object and defines an interface that conforms to Component’s interface.

ConcreteDecorator

• Adds responsibilities to the component.

Iterator

The intent of the Iterator Design Pattern is to provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation.

Iterator

• Defines an interface for accessing and traversing elements.

ConcreteIterator

• Implements the Iterator interface.
• Keeps track of the current position in the traversal of the aggregate.

Aggregate

• Defines an interface for creating an Iterator object.

ConcreteAggregate

• Implements the Iterator creation interface to return an instance of the proper ConcreteIterator.

Visitor

Visitor

• Declares a Visit operation for each class of ConcreteElement in the object structure. The operation’s name and signature identifies the class that sends the Visit request to the visitor. That lets the visitor determine the concrete class of the element being visited. Then the visitor can access the element directly through its particular interface.

ConcreteVisitor

• Implements each operation declared by Visitor. Each operation implements a fragment of the algorithm defined for the corresponding class of object in the structure. ConcreteVisitor provides the context for the algorithm and stores its local state. This state often accumulates results during the traversal of the structure.

Element

• Defines an Accept operation that takes a visitor as an argument.

ConcreteElement

• Implements an Accept operation that takes a visitor as an argument.

ObjectStructure

• Can enumerate its elements.
• May provide a high-level interface to allow the visitor to visit its elements.
• May either be a composite or a collection such as a list or a set.
