What is a Thread?

Learning Goals

• Explain the differences between a program, process, and thread.
• Define the relationship between a thread and a stack.
• Demonstrate single threaded versus multithreaded program execution.

Introduction

In order to understand concurrency and multithreading we have to first understand some basic terms. We’ll look at the following terms:

• Program
• Process
• Thread
• Stack

A program is a set of instructions and data to perform a specialized task.

A process is an instance of an executing program. Each process is an environment that allocates the necessary system resources to run the instructions in the program.

A thread is the smallest unit of execution within a process. Every process executes at least one thread. However, a process can run multiple threads to carry out the program instructions. Each thread has its own stack.

A stack holds information about the methods that are executing in that thread. When a method is called, a "stack frame" is pushed onto the stack to store the details of the method call. The frame stores the method's local variables, including parameters and possibly the this reference if the method is called on an object, along with other data like the return address so the thread knows where to go when the method finishes executing.

Single Threaded Program Execution

So far the Java programs we've written were single-threaded. When we run a program, Java automatically creates a thread and then executes the main method within the thread.

Let's look at a single-threaded program to understand how the call stack works. Consider the Dog class shown below, which has instance variables to store the dog's name, whether their tail is wagging, and if they like baths. The constructor does not assign isWaggingTail, so the instance variable will have the default value false.

public class Dog {
    private String name;
    private boolean isWaggingTail;
    private boolean likesBaths;

    public Dog(String name, boolean likesBaths) {
        this.name = name;
        this.likesBaths = likesBaths;
    }

    public void eatTreats(int numTreats) {
        for (int i=1; i<= numTreats; i++)
            System.out.println(name + " eats treat #" + i + " (" + Thread.currentThread().getName() + ")");
        isWaggingTail = true;
        System.out.println("After treats " + toString() + " (" + Thread.currentThread().getName() + ")");
    }

    public void takeBath() {
        isWaggingTail = likesBaths;
        System.out.println("After bath " + toString() + " (" + Thread.currentThread().getName() + ")");
    }

    @Override
    public String toString() {
        return String.format("%s wagging is %b" , name, isWaggingTail);
    }

    public static void main(String[] args) {
        System.out.println("Start " + " (" + Thread.currentThread().getName() + ")");
        int treats = 4;
        Dog snoopy = new Dog("Snoopy", false);
        Dog fifi = new Dog("Fifi", true);
        snoopy.eatTreats(treats);
        fifi.eatTreats(treats);
        snoopy.takeBath();
        System.out.println("Finish " + " (" + Thread.currentThread().getName() + ")");
    }
}

The main method creates two dogs and then calls the eatTreats and takeBath methods, which reassign the isWaggingTail variable and print the resulting object state. The print statements append the name of the current thread by calling Thread.currentThread().getName(). In a single threaded program, the default thread is named "main".

The output will be the same every time the program runs.

Start  (main)
Snoopy eats treat #1 (main)
Snoopy eats treat #2 (main)
Snoopy eats treat #3 (main)
Snoopy eats treat #4 (main)
After treats Snoopy wagging is true (main)
Fifi eats treat #1 (main)
Fifi eats treat #2 (main)
Fifi eats treat #3 (main)
Fifi eats treat #4 (main)
After treats Fifi wagging is true (main)
After bath Snoopy wagging is false (main)
Finish  (main)

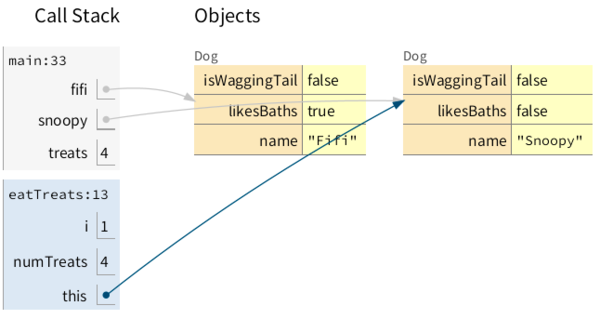

Let's use the debugger and visualizer to explore the program and understand the call stack. We'll set a breakpoint at the first print statement in the eatTreats method. The breakpoint is reached after the main method calls snoopy.eatTreats(numTreats):

The main method is automatically called when the program starts. The call stack contains a frame to store data for the main method:

• A local variable that holds a primitive value such as an integer is stored directly in the frame.
• Objects are not stored in the stack, they are stored in a separate area of memory called the heap. A local variable that holds an object reference stores the heap address.
• Data about the current line of execution is stored in the frame. For example, the main method is at line 33, which corresponds to snoopy.eatTreats(treats).

The eatTreats frame will be popped off the stack when the method finishes executing its statements. The main method can then proceed with its next line of code, which will add a new frame to the stack corresponding to the call fifi.eatTreats(treats).

Because the single threaded program has just one stack, the method calls always execute in the exact order listed:

snoopy.eatTreats(treats);
fifi.eatTreats(treats);
snoopy.takeBath();

Multithreaded program execution

Let’s briefly look at how we can use multiple threads in Java to support concurrent execution.

Java's Thread class provides constructors and methods to create and perform operations on a thread.

• The Thread class has a constructor that takes a Runnable object as an argument.
• Runnable is a functional interface that defines a single abstract method: void run()
  • The object passed into the Thread constructor must implement the run() method.
• We call the start() method on the new Thread object.
  • Starting a thread automatically calls the run() method on the Runnable object.
  • The run() method executes on the thread's stack.

We will adapt the main method to create 3 separate threads to execute the eatTreats and takeBath method calls. Each thread has its own stack, which means the methods can execute concurrently rather than sequential order.

We will pass a lambda expression as an argument to the Thread constructor. The lambda expression implements the abstract run() method. The lambda body is executed when the start() method is called on the corresponding thread object.

public static void main(String[] args) {
    System.out.println("Start " + " (" + Thread.currentThread().getName() + ")" );
    int treats = 4;
    Dog snoopy = new Dog("Snoopy", false);
    Dog fifi = new Dog("Fifi", true);

    Thread thread0 = new Thread( () -> snoopy.eatTreats(treats) );
    Thread thread1 = new Thread( () -> fifi.eatTreats(treats) );
    Thread thread2 = new Thread( () -> snoopy.takeBath() );

    thread0.start();
    thread1.start();
    thread2.start();

    System.out.println("Finish " + " (" + Thread.currentThread().getName() + ")" );
}

By default, Java will name the threads main, Thread-0, Thread-1, and Thread-2. Because there are 4 threads, the order of the print statements may differ each time the program executes.

For example, we might see this output:

Start  (main)
Finish  (main)
After bath Snoopy wagging is false (Thread-2)
Fifi eats treat #1 (Thread-1)
Fifi eats treat #2 (Thread-1)
Snoopy eats treat #1 (Thread-0)
Fifi eats treat #3 (Thread-1)
Fifi eats treat #4 (Thread-1)
Snoopy eats treat #2 (Thread-0)
Snoopy eats treat #3 (Thread-0)
Snoopy eats treat #4 (Thread-0)
After treats Fifi wagging is true (Thread-1)
After treats Snoopy wagging is true (Thread-0)

The sample output corresponds to the shared timeline shown below. We can see the print statements in the main thread both happen before Thread-2 executes the print statement from the call snoopy.takeBath(). Thread-0 and Thread-1 then alternate executing the code from the method calls snoopy.eatTreats(treats) and fifi.eatTreats(treats).

main       - -
Thread-0                -      - - -    -
Thread-1           - -     - -        -
Thread-2        -

How does this happen? Recall that each thread has its own stack. The image below depicts the heap and stacks for the sample program. Note the heap would also contain objects for each thread and lambda implementation, but only the dog objects are shown.

The Java runtime system allows the threads to take turns executing the methods on their stack. The order and duration of each turn may differ every time the program executes.

Conclusion

This lesson introduced the concept of concurrency by demonstrating a program with multiple threads.

Multithreading is the reason the browser can react to mouse clicks while loading the page, and why a game can handle user input from the keyboard, mouse, and touch screen while showing animation on the monitor screen.

Resources

Java 11 Thread
Java 11 Runnable
