Angular Overview

Learning Goals

• Give an overview of Angular.
• Describe SPA, Reactive Applications.

Introduction

Angular is a JavaScript framework (that also supports TypeScript) that allows developers to create *reactive, *single page web applications*.

There is a lot in that one sentence, so let's break it down:

1. A web application is an application that runs inside a web browser, such as Chrome, Safari, Internet Explorer, ...
2. A single page web application is one where the browser loads an initial page and the rest of the interactions are handled within that page instead of asking the browser to reload the entire page. We'll discuss this aspect in more detail below.
3. A reactive web application is one where each interaction is either handled on the client side (i.e. by code that is executed by the browser without needing to go back to the server) or by making requests to the server side in the background.

Even though Angular is a "JavaScript" framework in the sense that it uses JavaScript in the browser to enable its functionality, Angular actually defaults to using TypeScript for its programming needs, and compiles it to JavaScript when it packages up an application to get it ready to run in the browser.

Single Page Application (SPA)

To understand SPAs, we need to take a step back and look at how a browser loads an HTML page and what role JavaScript plays in that.

Without SPAs, the usual lifecycle of a static web page looks like this (in a simplified sequence):

1. The user stars a browser, which is an application that knows how to read and render HTML and CSS.
2. The user enters a URL in the browser's address bar that tells the browser which server on the internet to make a request to.
3. The browser sends an HTTP (or HTTPS) request to the server
4. The server responds and returns the HTML and CSS code that it wants the browser to render
5. The browser interprets the HTML and CSS code and renders the page accordingly
6. The user clicks on any of the links on the static page
7. The browser gets an instruction that tells it to replace the current URL with the URL of this new link and to start the lifecycle again at step 2.

The above is for a static page that does not have user interactivity, which is not very common or useful. JavaScript is a way to add user interactivity to a static page. With JavaScript, the lifecycle of the page is the same except that in addition to being able to click on a link, the user can actually enter data in form elements and click on buttons to give the web page (which is now an interactive application) information and instructions. That lifecycle looks like this (in a simplified sequence):

1. The user stars a browser, which is an application that knows how to read and render HTML and CSS and knows how to interpret JavaScript
2. The user enters a URL in the browser's address bar that tells the browser which server on the internet to make a request to.
3. The browser sends an HTTP (or HTTPS) request to the server
4. The server responds and returns the HTML, CSS and JavaScript code that it wants the browser to render and interpret
5. The browser interprets the HTML and CSS code and renders the page accordingly
6. The browser interprets the JavaScript code and executes its instructions accordingly
7. The user clicks on any of the links on the static page or interacts with the interactive aspects of the page
8. Either:
   1. The browser gets an instruction that tells it to replace the current URL with the URL of this new link and to start the lifecycle again at step 2.
   2. The browser gets an instruction through the JavaScript-based interactive part of the page and executes that instruction, which may result in a new URL being loaded or in some other action on the current page

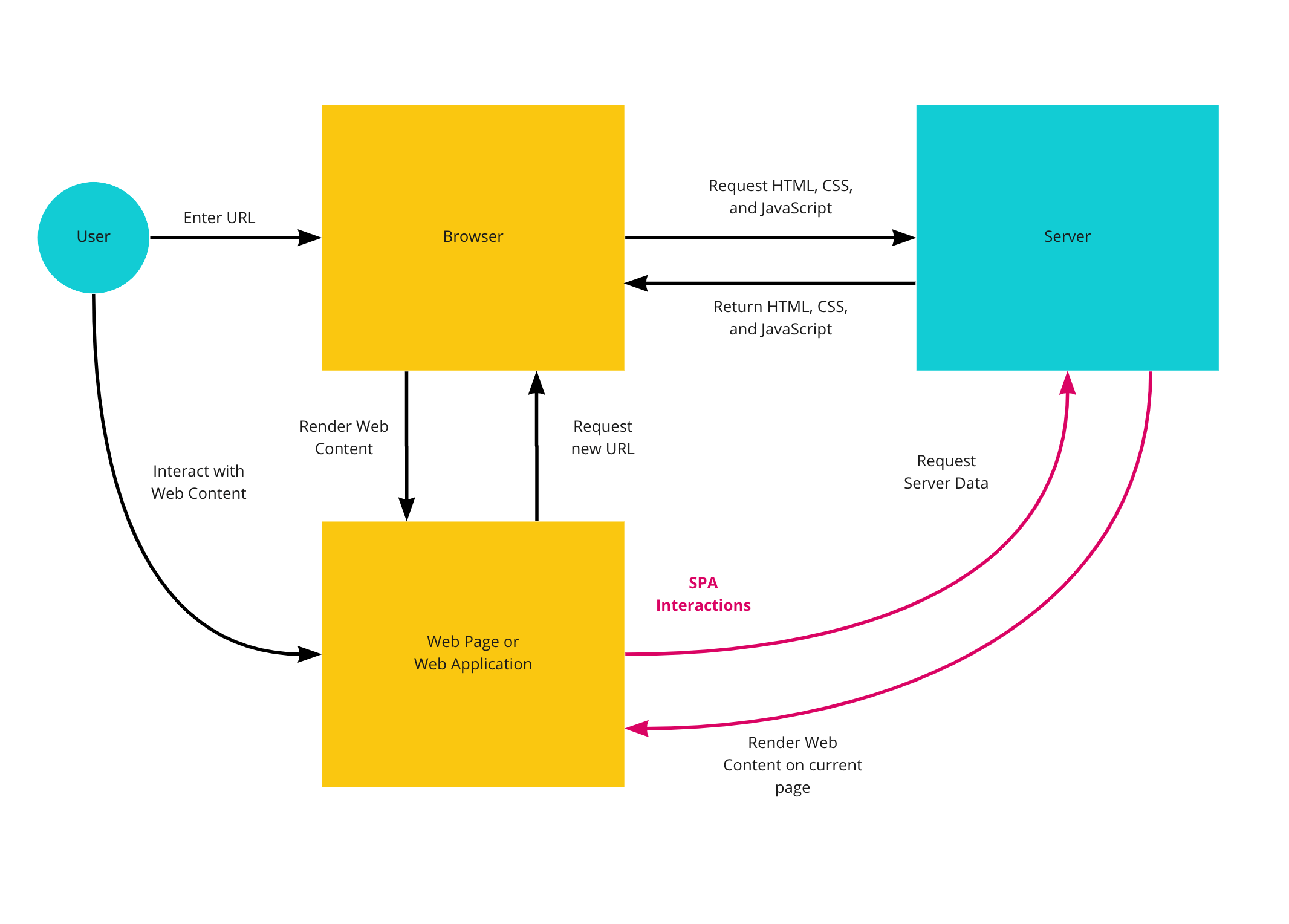

The 2 interaction models (static web page vs SPA) are illustrated in the following diagram:

As you can see from the magenta lines, the main difference with a Single Page Application is that it does ask the browser to reload the entire page (i.e. it does not request a brand new URL). Instead, it requests data from the server and uses that data to update the content on the existing page.

Reactive applications

In the context of SPAs, reactive web applications are applications that have the ability to make those "data requests" we discussed in the previous section in the background. This means that the user interface presented by the browser on the current page is still available for the user to interact with, while the browser waits for the server to return the requested data. When the requested data is eventually returned, the browser then updates the web content accordingly.

A "reactive" web applications takes advantage of the browser's ability to make "asynchronous" requests, which means that the browser is able to send a request and not "wait" for a response. Instead, it sends the request, and continues with whatever other work it has to do. When the server is ready to send the response, it does so and the browser recognizes what the response is for and processes it at that time.

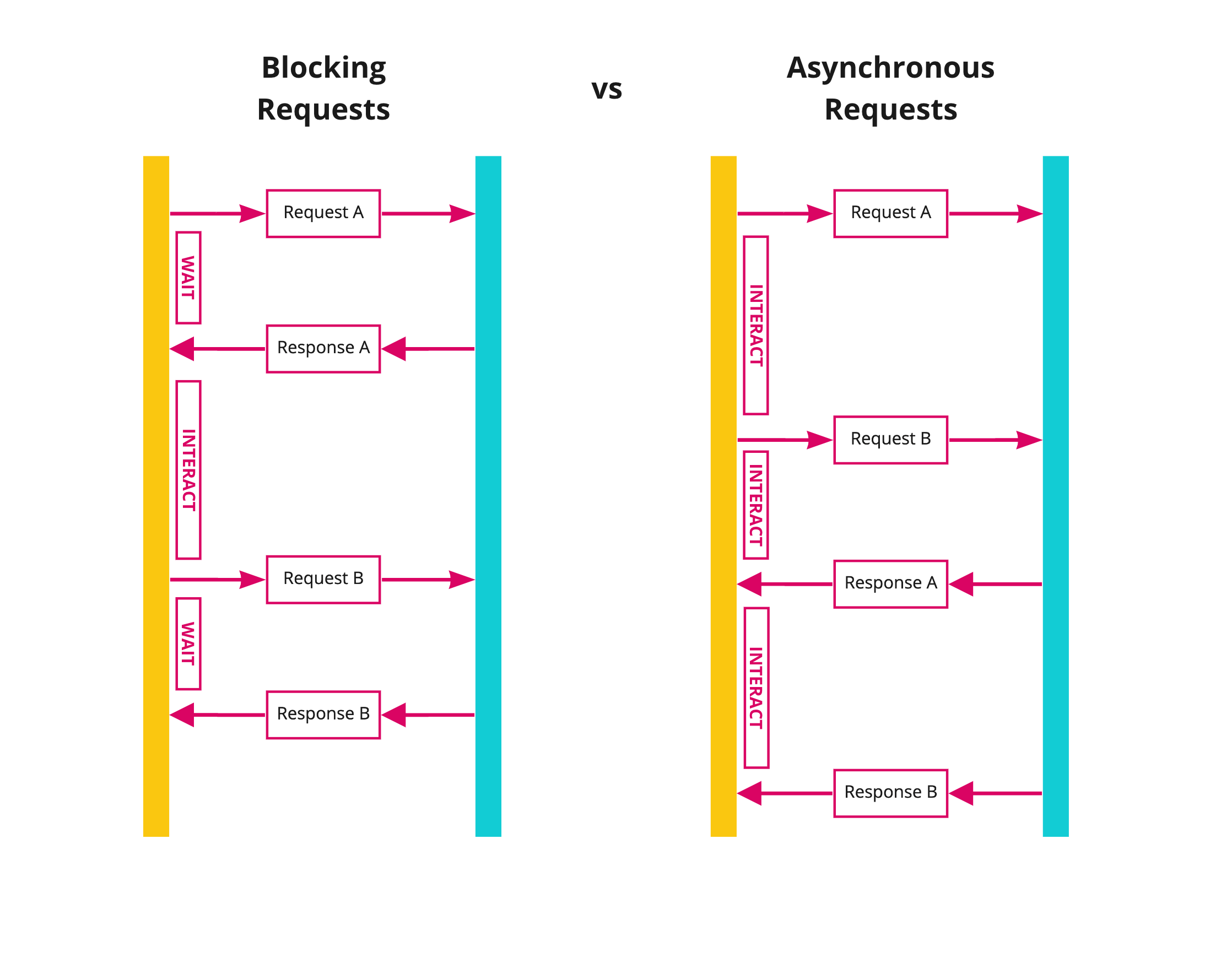

Here is a high level diagram to contrast "blocking" and "asynchronous" (also called "async") requests:

Angular provides a framework for handling the various aspects of managing a SPA, handling user interaction and server data through async requests to make the SPA reactive, and a host of other concerns that comes with complicated web-based applications.

Let's learn the basics of how to work with this framework, so that we can then dive into the various aspects that it allows us to manage.

The versioning around Angular can be confusing because there is AngularJS (aka Angular 1) and since version 2 Angular has been referred to as simply Angular followed by the version number. The main thing to understand is that since Angular 2, a) Angular has dropped the JS from its name and b) it has been very backwards compatible and the changes have been incremental.
