smart-house-arduino

smart house implementation, simulated with Proteus and C

Proteus

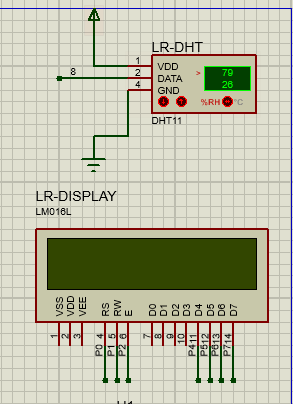

We use a DHT11 and an LED to simulate the sensor and the display-ing of the values in Proteus

Arduino code

We use a timer structure to operate the functions of each component. In this case, we use an ISR of 10ms:

void timer_init(){
  cli();                      // disable all interrupts
  TCCR1A = 0;                 // Reset entire TCCR1A to 0
  TCCR1B = 0;                 // Reset entire TCCR1B to 0
  TCCR1B |= B00000100;        //Set CS12 to 1 so we get prescalar 256
  TIMSK1 |= B00000010;        //Set OCIE1A to 1 so we enable compare match A
  OCR1A = 625 ;               //Finally we set compare register A to this value
  sei();                      //Enable back the interrupts
}
//timer interrupt service call
ISR(TIMER1_COMPA_vect){
  TCNT1  = 0;
  timer1_run();
  button_reading();
  timer2_run();
}

Our timer are as follows:

static uint16_t timer1_counter = 0;
static uint8_t timer1_flag = 0;
void setTimer1(uint16_t DURATION){
     timer1_counter = DURATION/TIMER_CYCLE;
     timer1_flag = 0;
}

void timer1_run(){
    if(timer1_counter > 0){
      timer1_counter--;
      if(timer1_counter == 0) timer1_flag = 1;
    }
}

uint8_t isTimer1(){
    return (timer1_flag == 1) ? 1 : 0;
}

##IOT connections: We use Blynk app and virutalize COM ports to set-up a connection between Proteus and our phones:

void setup()
{
   Serial.begin(9600);
   Blynk.begin(Serial, auth);
 }

BLYNK_WRITE(V1) //Button Widget is writing to pin V1
{
  int pinData = param.asInt();
  if(pinData==1){
    digitalWrite(13, HIGH);
  }else{
    digitalWrite(13, LOW);
  }
}

void loop(){
   Blynk.run();

Demo:
